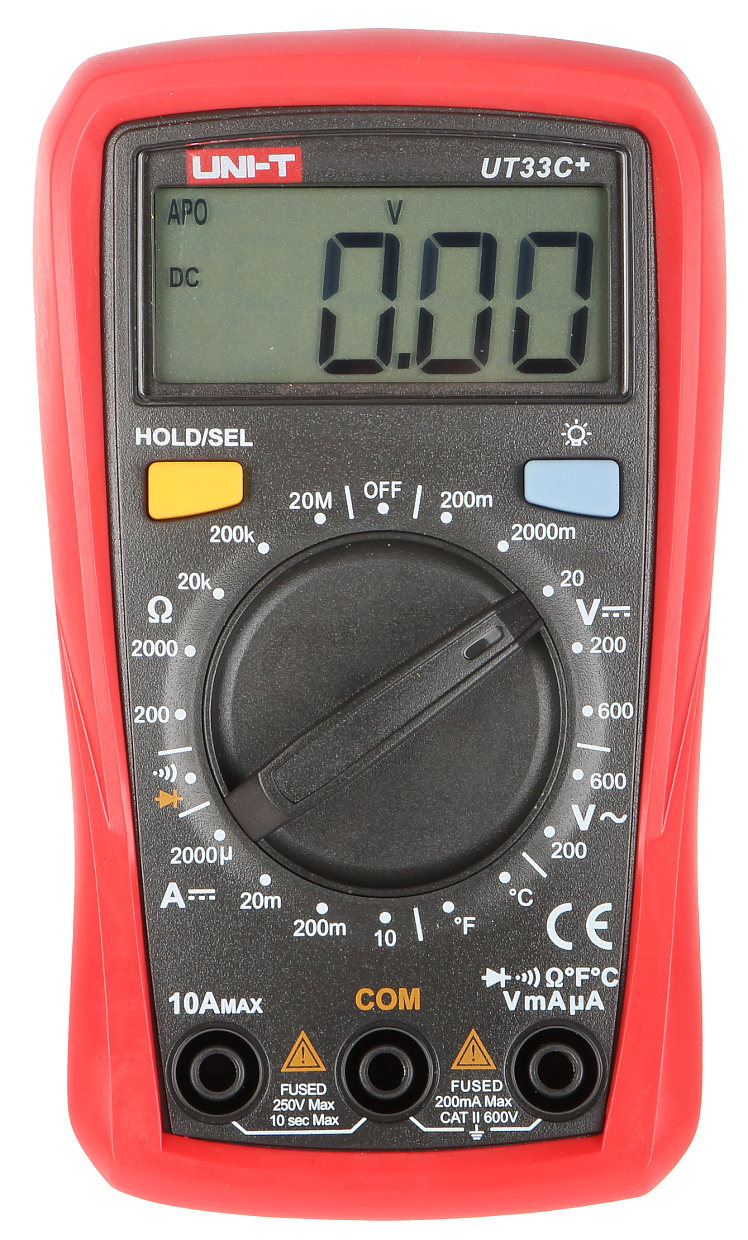

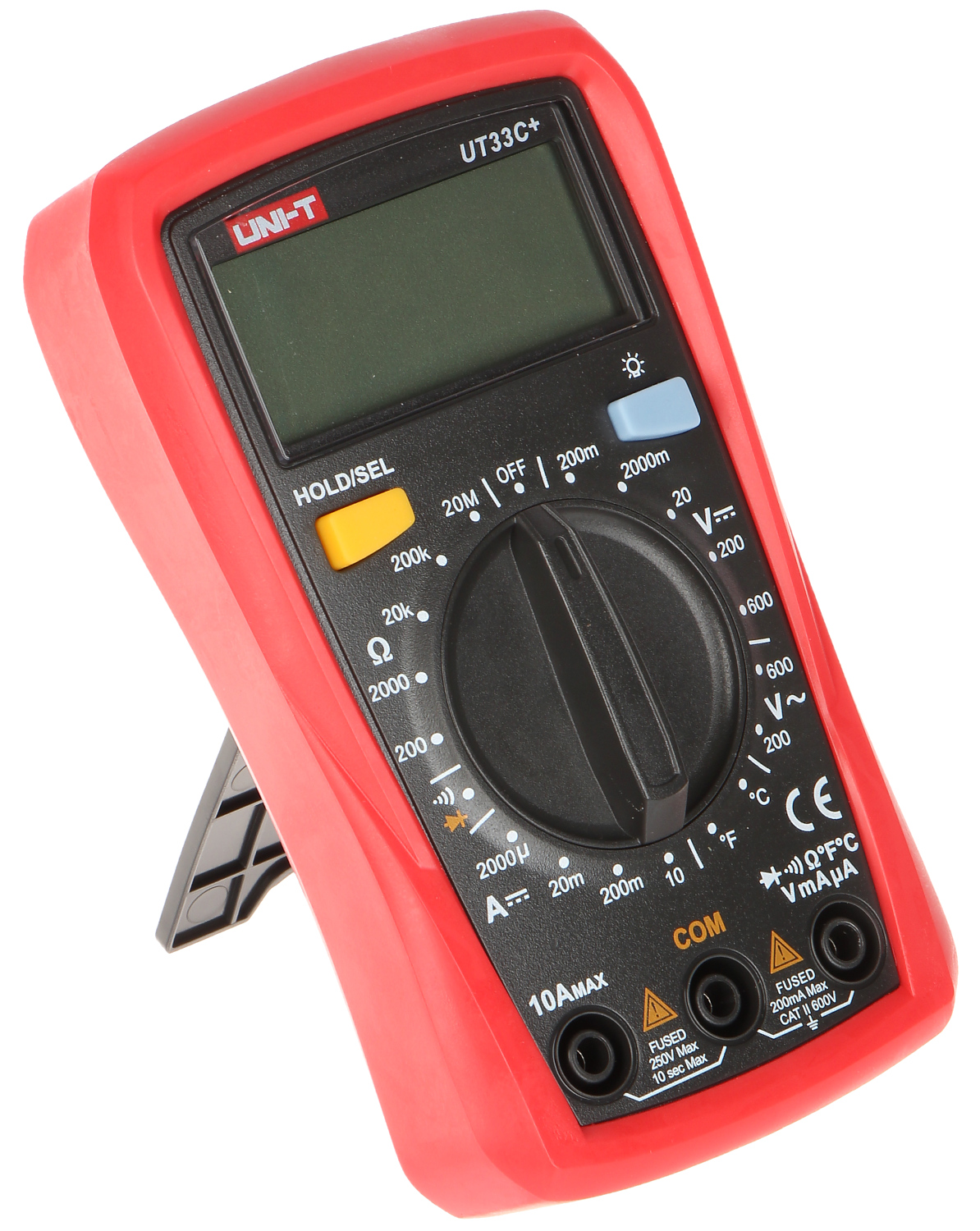

UT-33C+ is a universal digital meter used to measure: voltage, current, resistance; The device also has a temperature measurement function;
| DC voltage measurement: | 200 mV ± (0.7% + 3) @ 0.1 mV , 2000 mV ± (0.5% + 2) @ 1 mV , 20 V ± (0.7% + 3) @ 10 mV , 200 V ± (0.7% + 3) @ 100 mV , 600 V ± (0.7% + 3) @ 1 V |
| AC voltage measurement: | 200 V ± (1.2% + 3) @ 100 mV , 600 V ± (1.2% + 3) @ 1 V |
| DC current measurement: | 2000 µA ± (1% + 2) @ 1 µA , 20 mA ± (1% + 2) @ 10 µA , 200 mA ± (1% + 2) @ 0.1 mA , 10 A ± (1.2% + 5) @ 10 mA |
| AC current measurement: |  |
| Resistance measurement: | 200 Ω ± (1% + 2) @ 0.1 Ω , 2 kΩ ± (0.8% + 2) @ 1 Ω , 20 kΩ ± (0.8% + 2) @ 10 Ω , 200 kΩ ± (0.8% + 2) @ 100 Ω , 20 MΩ ± (1.2% + 3) @ 10 kΩ , |
| Capacitance measurement: | |
| Inductance measurement: | |
| Frequency measurement: | |
| Temperature measurement: | -40 ... 0 °C ± 3 @ 1 °C , 0 ... 100 °C ± (1% + 3) @ 1 °C , 100 ... 1000 °C ± (2% + 3) @ 1 °C , -40 ... 32 °F ± 5 @ 1 °F , 32 ... 212 °F ± (1.5% + 5) @ 1 °F , 212 ... 1832 °F ± (2.5% + 5) @ 1 °F |
| Automatic change of measuring ranges: | |
| hFE: | |
| Diode test: |  |
| Sound signal of the continuity test: | |
| Checking TTL logic states: | |
| RS-232: | |
| Main features: | |

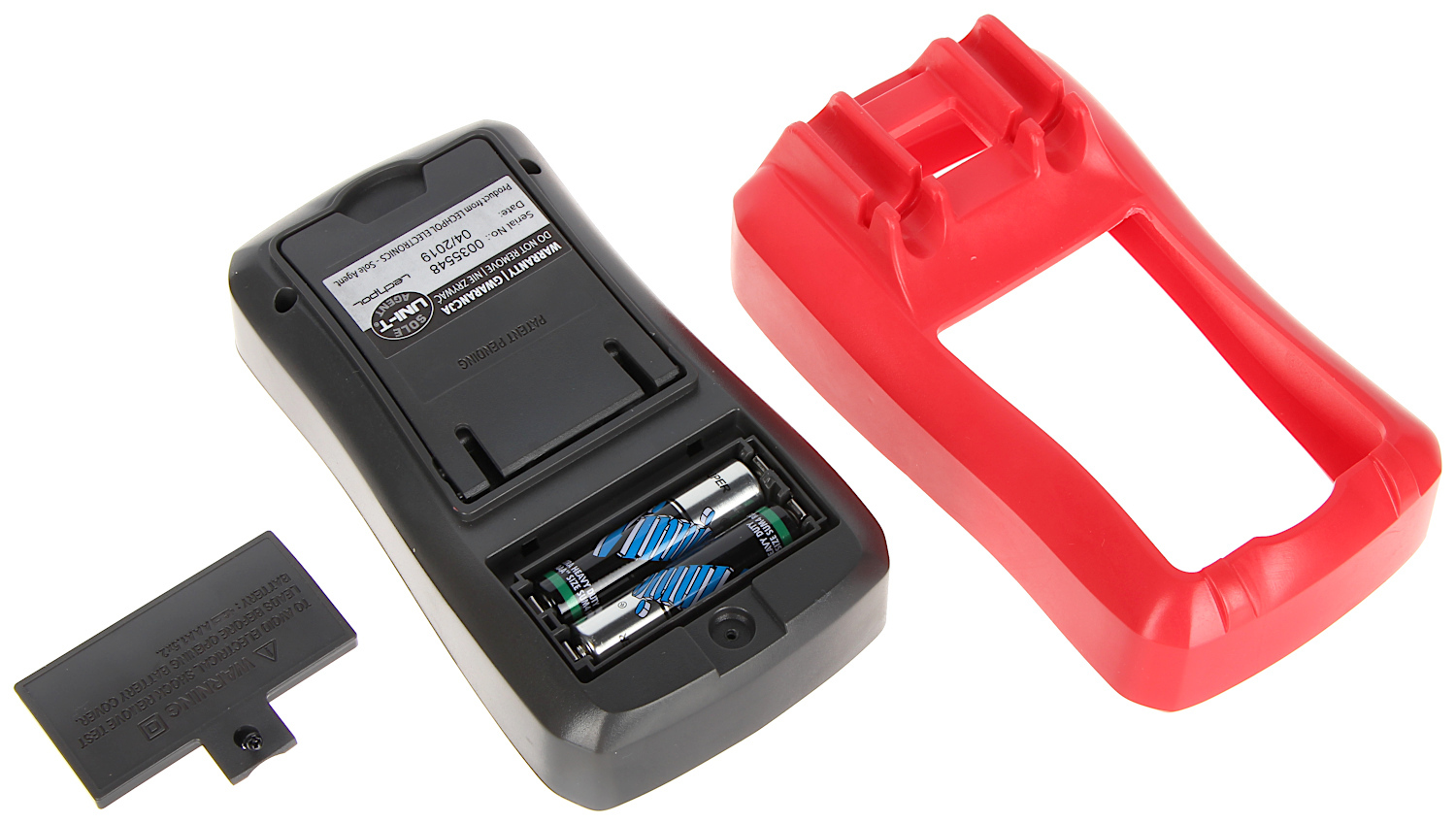

| Power supply: | 2 x 1.5V, type AAA/LR03 battery - included |
| Weight: | 0.28 kg |
| Dimensions: | 134 x 78 x 47 mm |
| Manufacturer / Brand: | UNI-T |
| Guarantee: | 2 years |
Brand:
UNI-T
