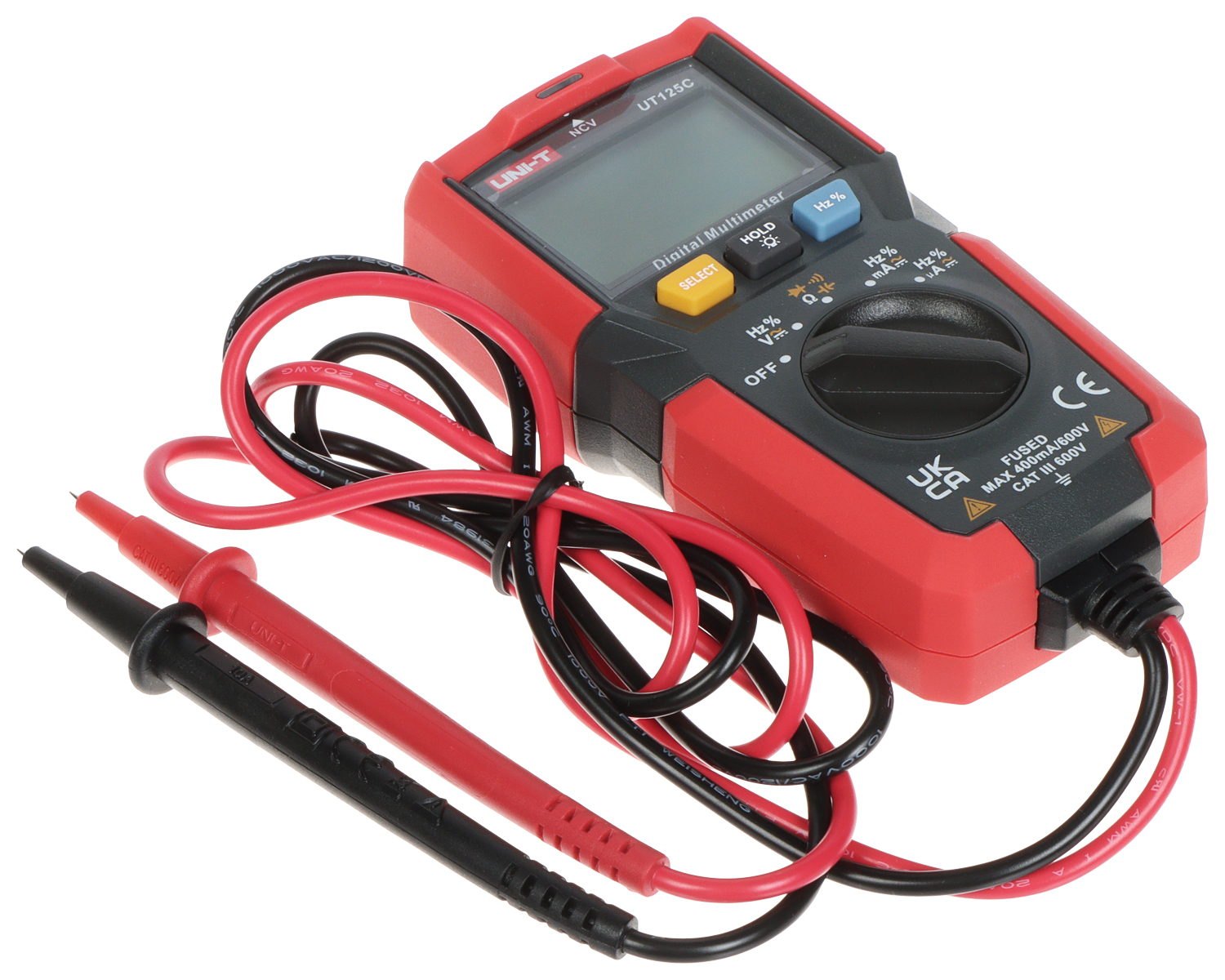

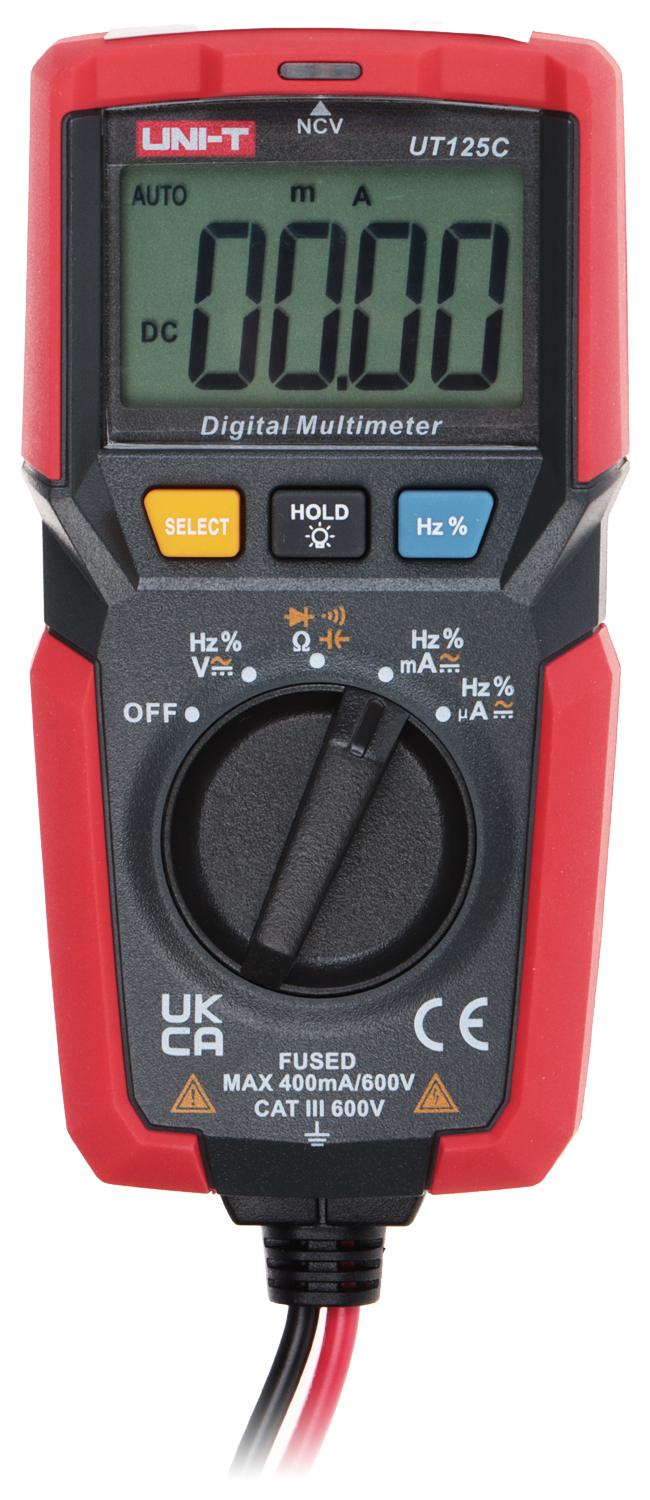

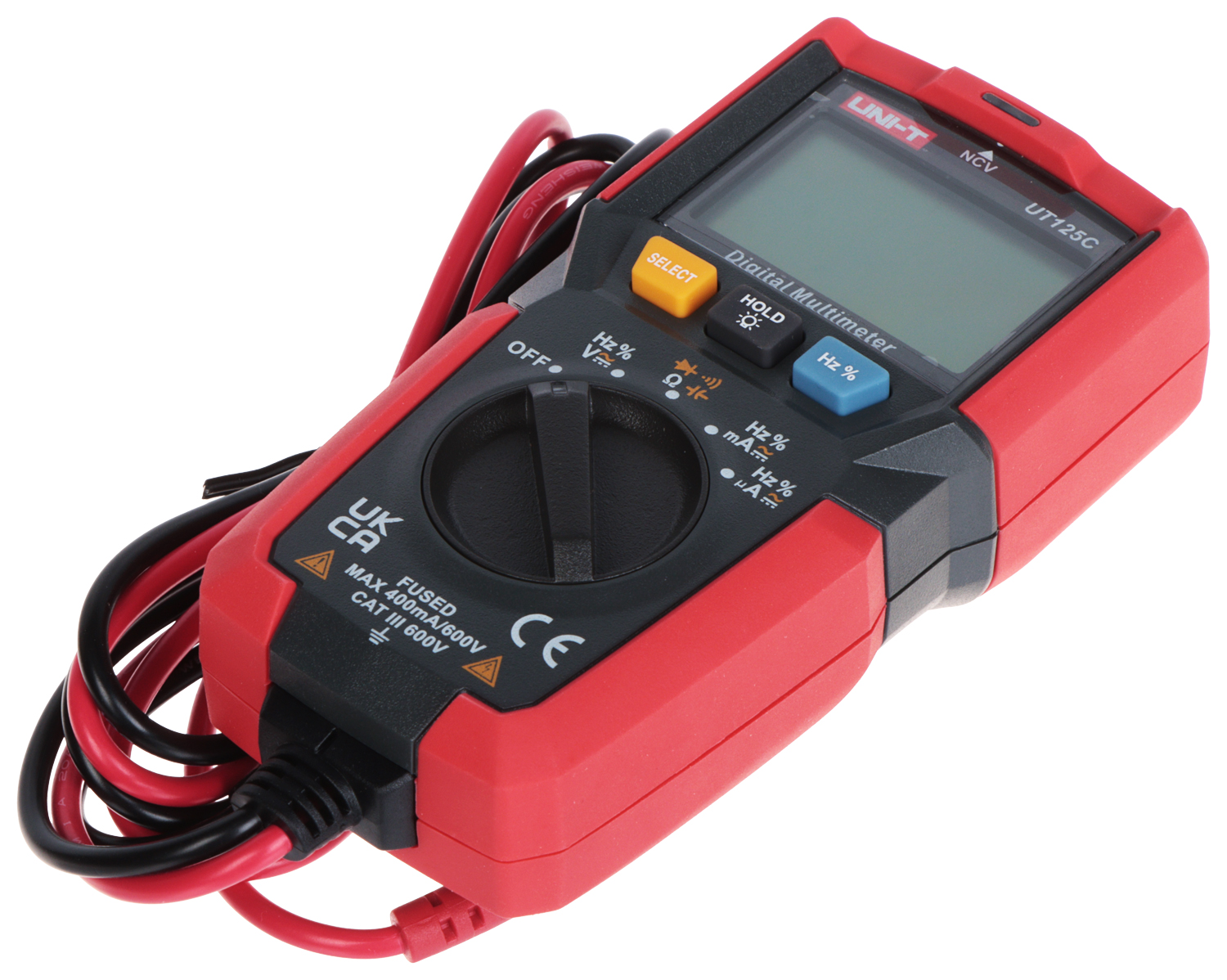

UT-125C is a universal digital meter used to measure: voltage, resistance, diodes, continuity, frequency, duty cycle factor;
| DC voltage measurement: | 400 mV ± (1% + 8) @ 0.1 mV , 4 V ± (0.5% + 5) @ 0.001 V , 40 V ± (0.5% + 5) @ 0.01 V , 400 V ± (0.5% + 5) @ 0.1 V , 600 V ± 0.8% + 5) @ 1 V |
| AC voltage measurement: | 4 V ± (1.2% + 5) @ 0.001 V , 40 V ± (1.2% + 5) @ 0.01 V , 400 V ± (2.0% + 10) @ 0.1 V , 600 V ± (2.0% + 10) @ 1 V |
| DC current measurement: | 400 µA ± (1.8% + 5) @ 0.1 µA , 4 µA ± (1.8% + 5) @ 0.001 mA , 40 mA ± (1.8% + 5) @ 0.01 mA , 400 mA ± (1.8% + 5) @ 0.1 mA |
| AC current measurement: | 400 µA ± (2.0% + 8) @ 0.1 µA , 4 mA ± (2.0% + 8) @ 0.001 mA , 40 mA ± (2.0% + 8) @ 0.01 mA , 400 mA ± (2.0% + 8) @ 0.1 mA , |
| Resistance measurement: | 400 Ω ± (1% + 5) @ 0.1 Ω , 4 kΩ ± (1% + 5) @ 0.001 kΩ , 40 kΩ ± (1% + 5) @ 0.01 kΩ , 400 kΩ ± (1% + 5) @ 0.1 kΩ , 4 MΩ ± (1.2% + 10) @ 0.001 MΩ , 40 MΩ ± (2.0% + 10) @ 0.01 MΩ |
| Capacitance measurement: | 50 nF ± (4.0% + 30) @ 0.01 nF , 500 nF ± (3% + 15) @ 0.1 nF , 5 µF ± (4.0% + 10) @ 1 nF , 50 µF ± (4.0% + 10) @ 10 nF , 100 µF ± (4.0% + 10) @ 100 nF |
| Inductance measurement: |  |
| Frequency measurement: | 9.999 Hz ~ 60 kHz ± (0.1% + 5) @ 0.001 Hz ~ 0.01 MHz |
| Square-wave signal duty ratio measurement: | |
| Temperature measurement: | |
| Automatic change of measuring ranges: |  |
| hFE: | |
| Diode test: | |
| Sound signal of the continuity test: | |
| Checking TTL logic states: | |
| RS-232: | |
| Main features: | |

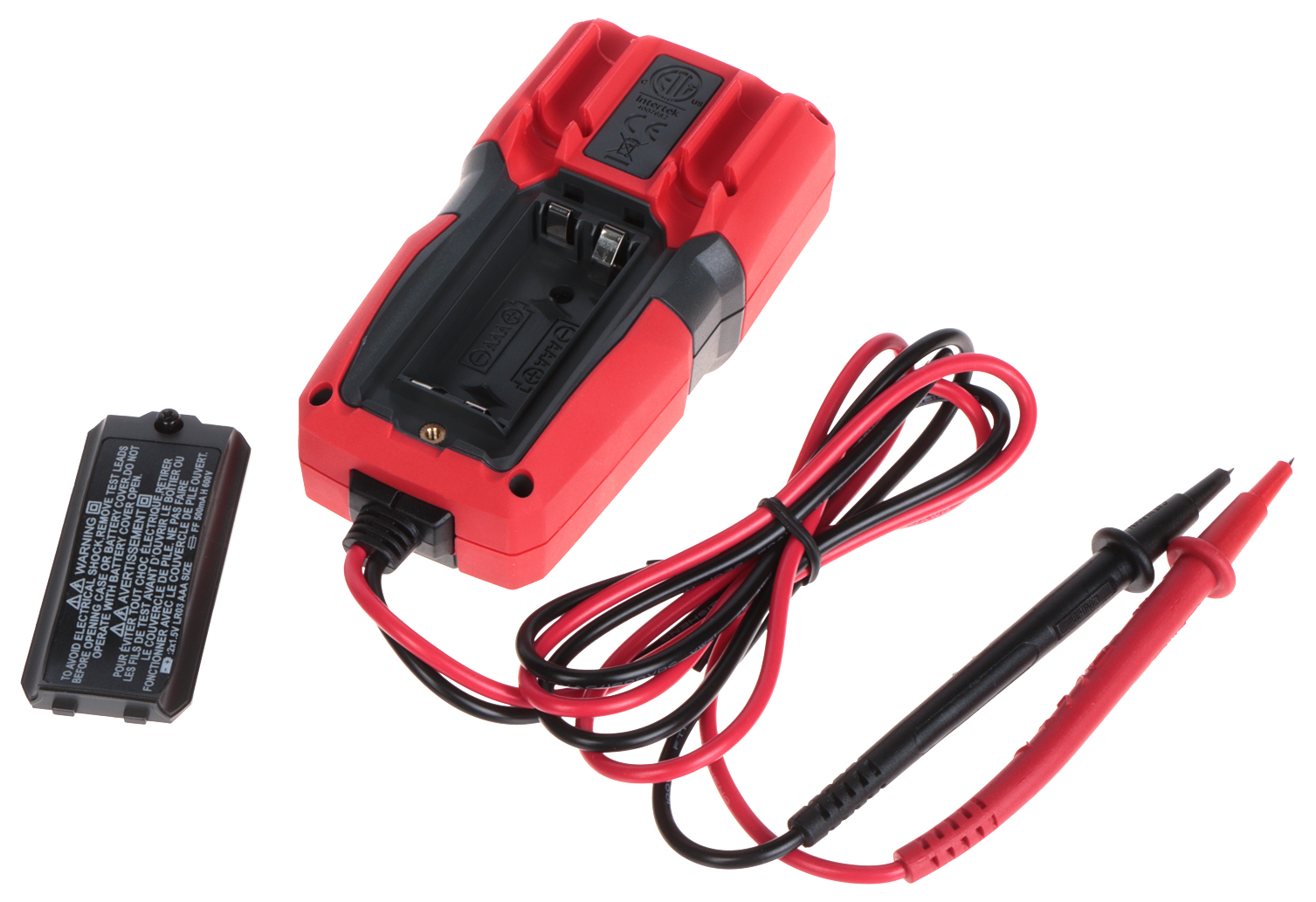

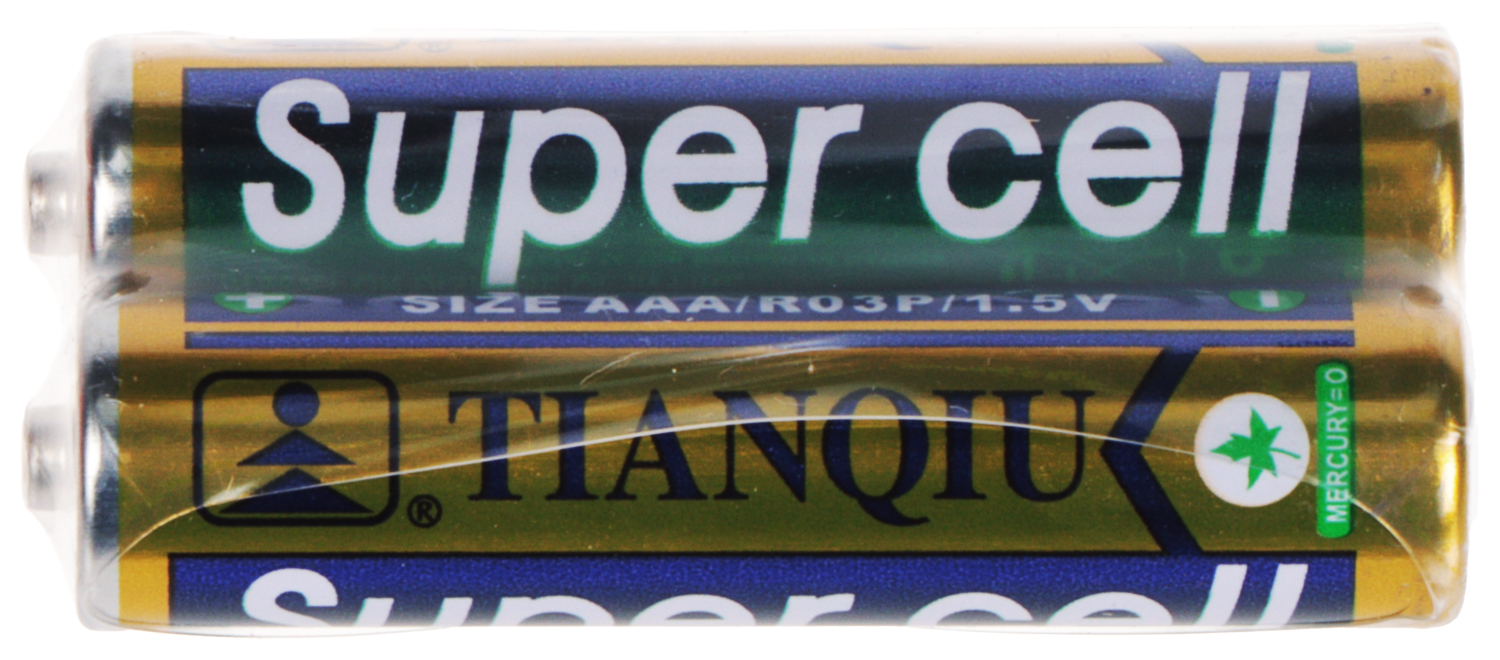

| Power supply: | 2 x 1.5V, type AAA/LR03 battery - included |
| Weight: | 0.164 kg |
| Dimensions: | 110 x 58 x 35 mm |
| Manufacturer / Brand: | UNI-T |
| Guarantee: | 2 years |
Brand:
UNI-T
