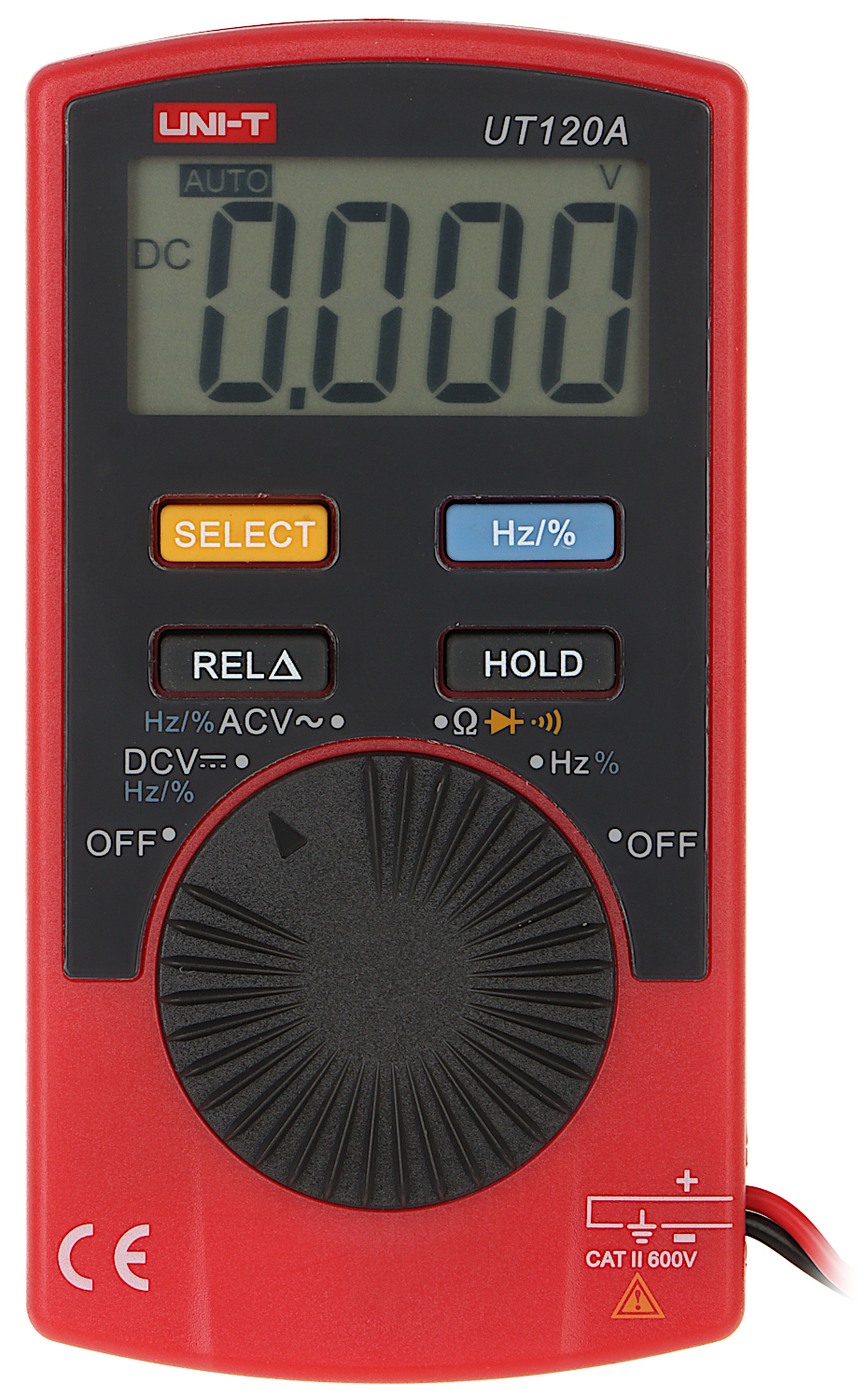

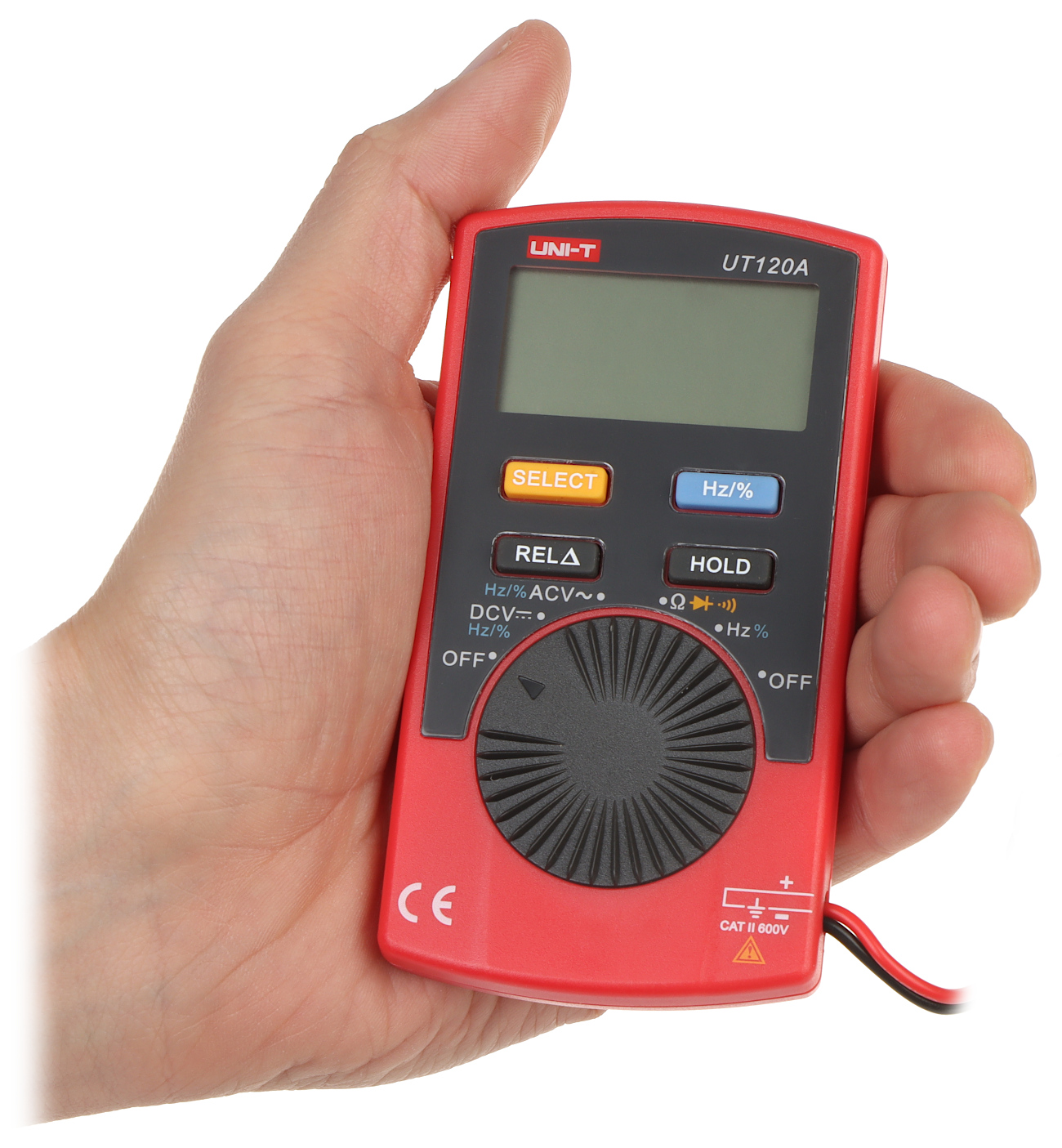

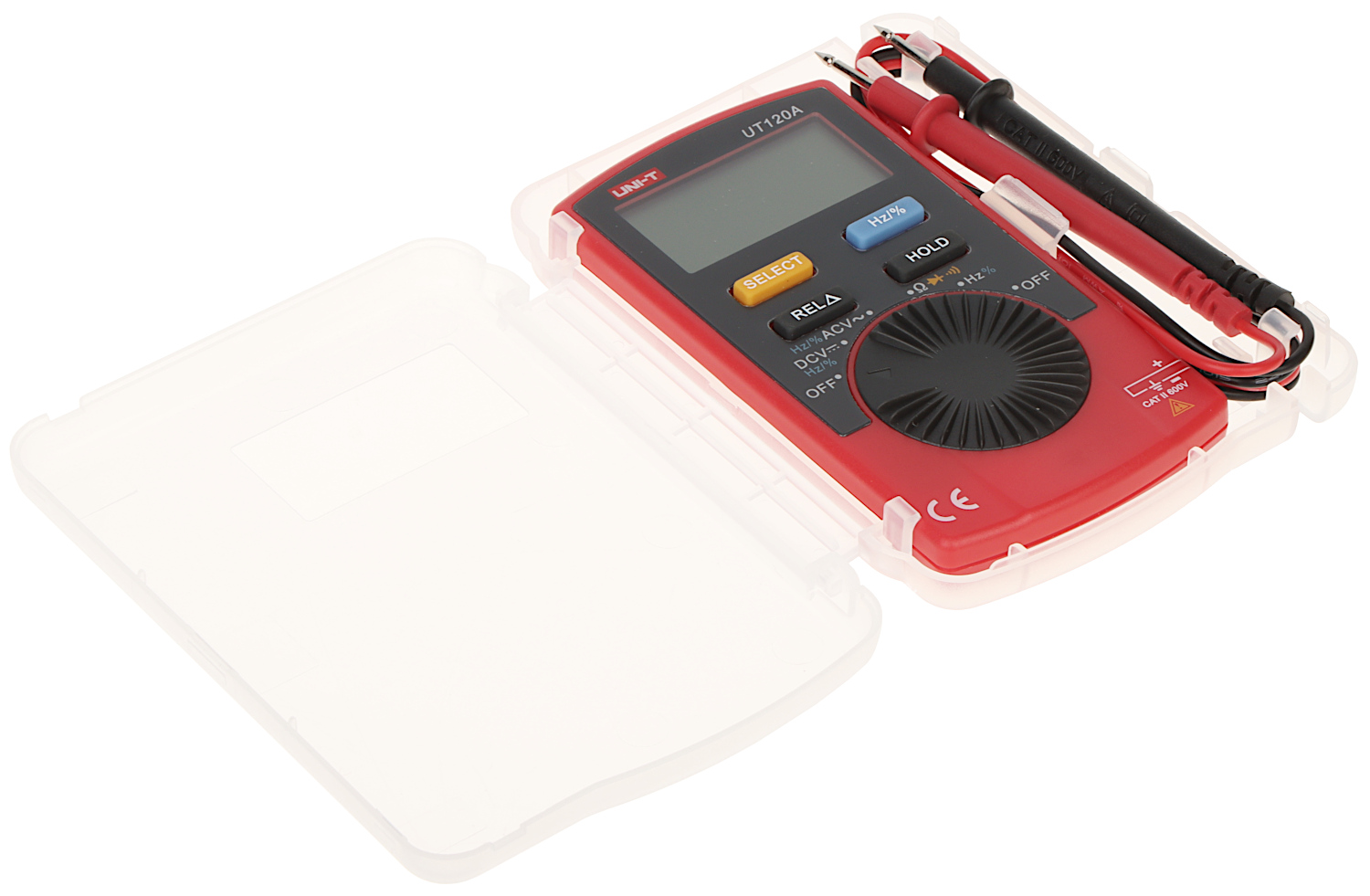

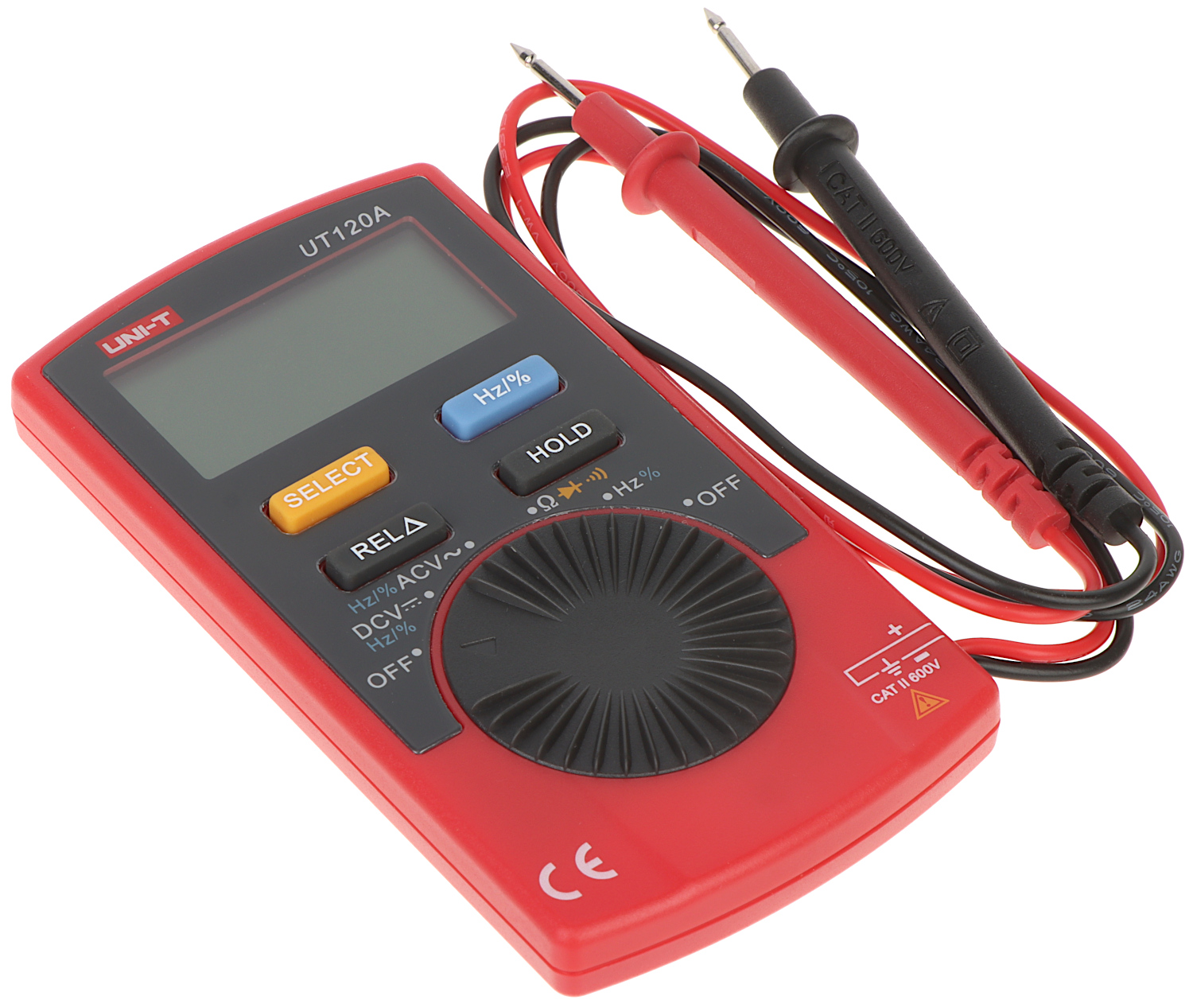

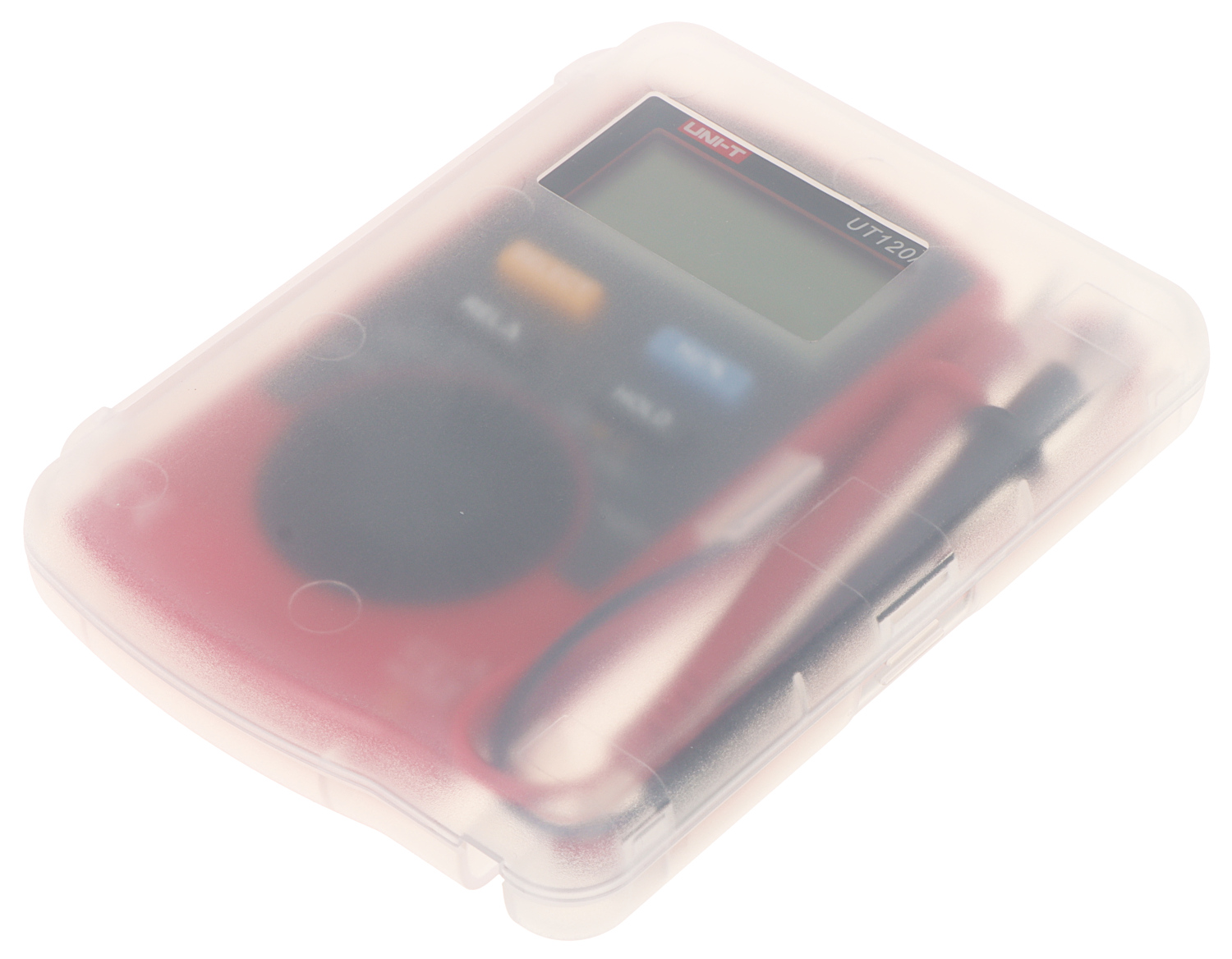

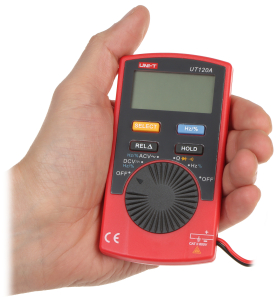

UT-120A is a universal digital meter used to measure: voltage, resistance, diodes, continuity, frequency, duty cycle factor;
| DC voltage measurement: | 4 V ± (0.8% + 1) @ 0.001 V , 40 V ± (0.8% + 1) @ 0.01 V , 400 V ± (0.8% + 1) @ 0.1 V , 600 V ± (1.0% + 3) @ 1 V |
| AC voltage measurement: | 4 V ± (1.2% + 3) @ 0.001 V , 40 V ± (1.2% + 3) @ 0.01 V , 400 V ± (1.2% + 3) @ 0.1 V , 600 V ± (1.5% + 5) @ 1 V |
| DC current measurement: |  |
| AC current measurement: | |
| Resistance measurement: | 400 Ω ± (1.2% + 2) @ 0.1 Ω , 4 kΩ ± (1.0% + 2) @ 0.001 kΩ , 40 kΩ ± (1.0% + 2) @ 0.01 kΩ , 400 kΩ ± (1.0% + 2) @ 0.1 kΩ , 4 MΩ ± (1.2% + 2) @ 0.001 MΩ , 40 MΩ ± (1.5% + 2) @ 0.01 MΩ |
| Capacitance measurement: | |
| Inductance measurement: | |
| Frequency measurement: | 99.9 Hz ± (0.5% + 3) @ 0.1 Hz , 0.999 kHz ± (0.5% + 3) @ 0.001 kHz , 9.99 kHz ± (0.5% + 3) @ 0.01 kHz , 99.9 kHz ± (0.5% + 3) @ 0.1 kHz |
| Square-wave signal duty ratio measurement: | 0.1 ... 99.9 % @ 0.1 % |
| Temperature measurement: | |
| Automatic change of measuring ranges: |  |
| hFE: | |
| Diode test: | |
| Sound signal of the continuity test: | |
| Checking TTL logic states: | |
| RS-232: | |
| Main features: | |

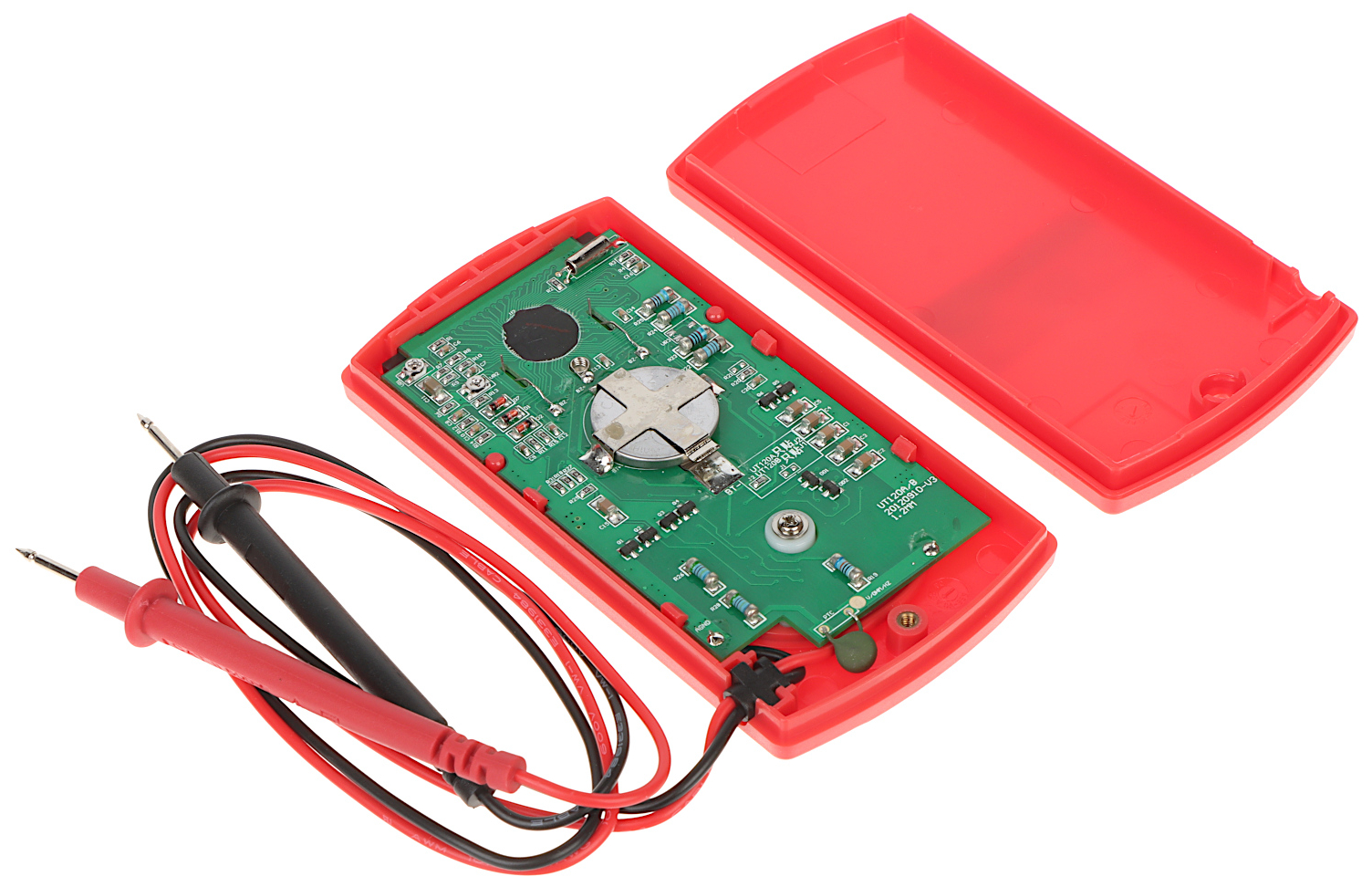

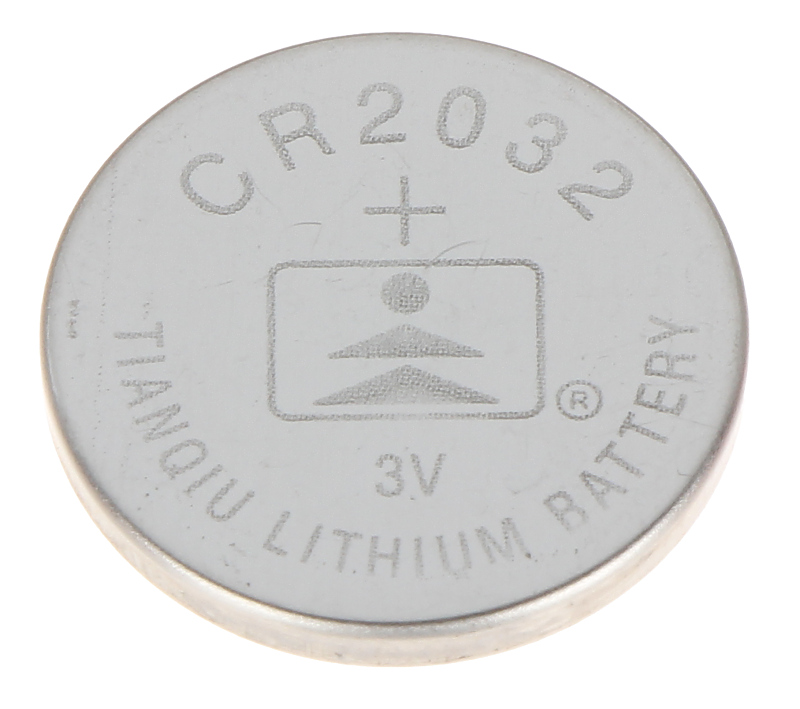

| Power supply: | 1 x CR2032 lithium battery - included |
| Weight: | 0.076 kg |
| Dimensions: | 110 x 58 x 13 mm |
| Manufacturer / Brand: | UNI-T |
| Guarantee: | 2 years |
Brand:
UNI-T
