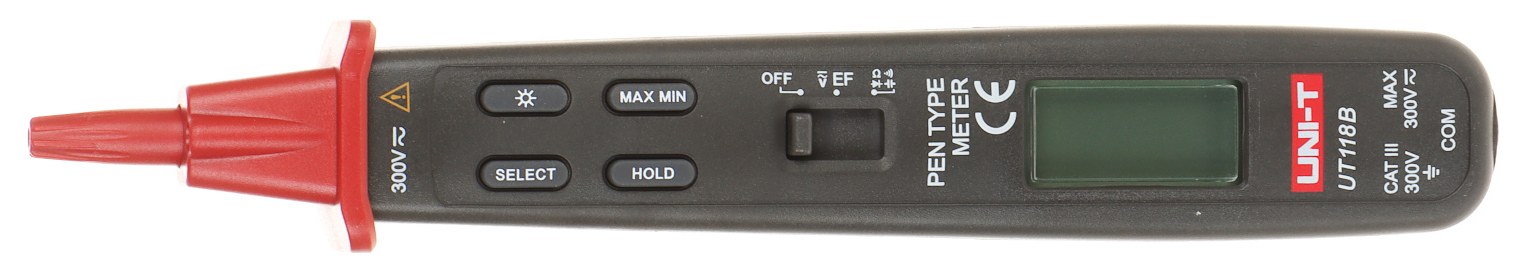

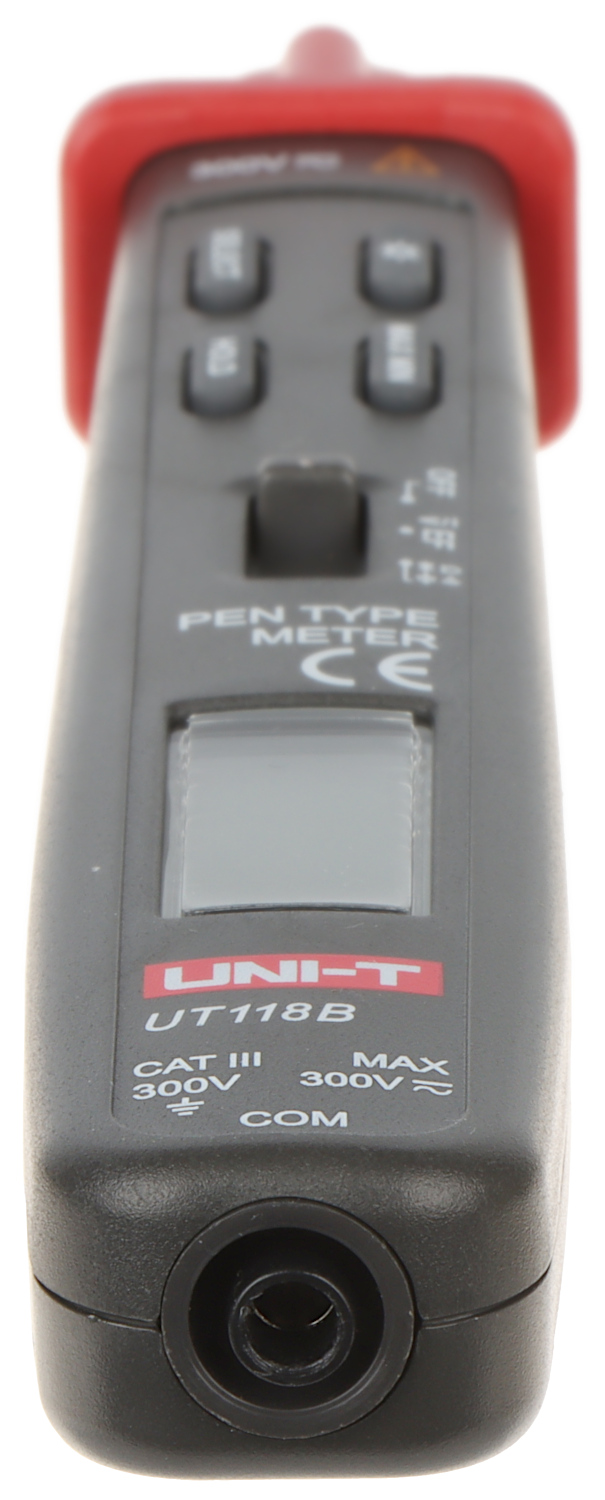

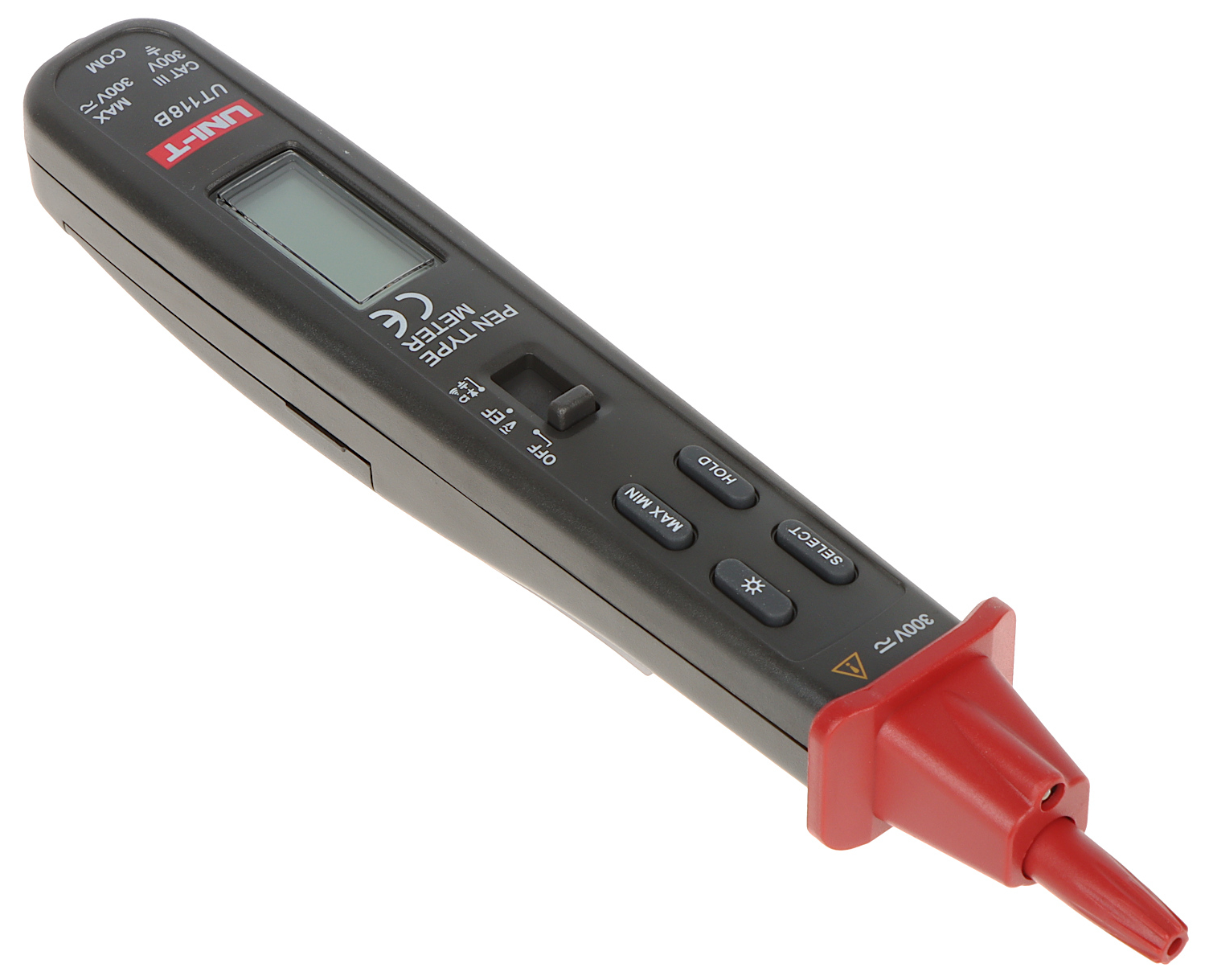

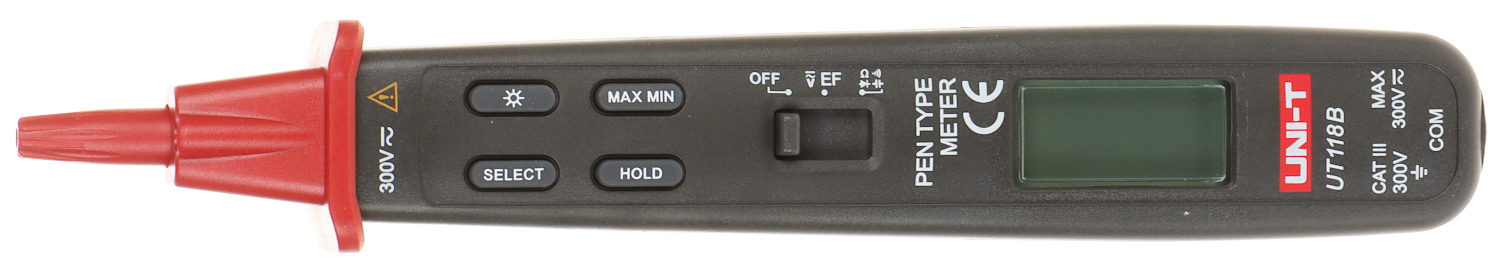

The UT-118B is a universal digital meter used to measure: voltage, current, resistance, diodes; Main features: EF function - enables non-contact voltage detection eg in wires, in the range of 50V ... 400V ;
| DC voltage measurement: | 3 V ± (1% + 3) @ 0.001 V , 30 V ± (1% + 3) @ 0.01 V , 300 V ± (1% + 3) @ 0.1 V |
| AC voltage measurement: | 3 V ± (1% + 4) @ 0.001 V , 30 V ± (1% + 4) @ 0.01 V , 300 V ± (1% + 4) @ 0.1 V |
| DC current measurement: |  |
| AC current measurement: | |
| Resistance measurement: | 300 Ω ± (1.0% + 3) @ 0.1 Ω , 3 kΩ ± (1.0% + 3) @ 0.001 kΩ , 30 kΩ ± (1.0% + 3) @ 0.01 kΩ , 300 kΩ ± (1.0% + 3) @ 0.1 kΩ , 3 MΩ ± (1.5% + 5) @ 0.001 MΩ , 30 MΩ ± (1.5% + 5) @ 0.01 MΩ |
| Capacitance measurement: | 3 nF ± (3% + 5) @ 0.001 nF , 30 nF ± (3% + 5) @ 0.01 nF , 300 nF ± (3% + 5) @ 0.1 nF , 3 µF ± (3% + 5) @ 0.001 µF , 30 µF ± (3% + 5) @ 0.01 µF , 300 µF ± (5% + 5) @ 0.1 µF , 3 mF @ 0.001 mF - visual measurement |
| Inductance measurement: | |
| Frequency measurement: | |
| Temperature measurement: | |
| Automatic change of measuring ranges: |  |
| hFE: | |
| Diode test: | |
| Sound signal of the continuity test: | |
| Checking TTL logic states: | |
| RS-232: | |
| Main features: | |

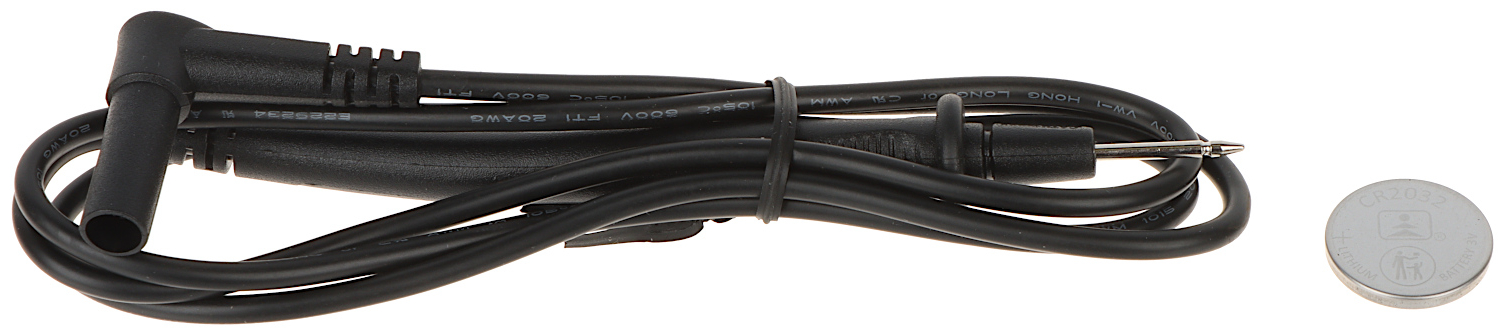

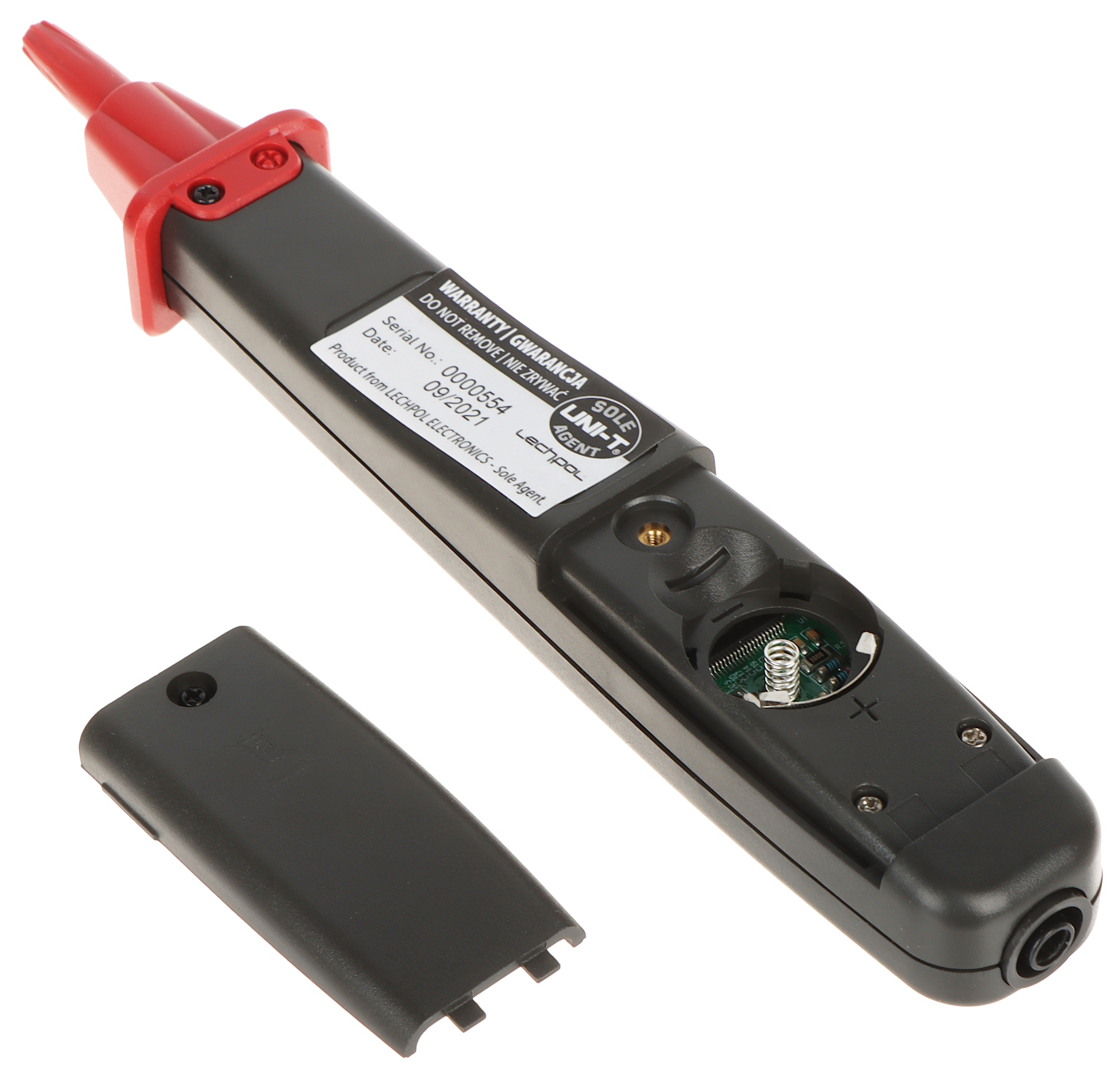

| Power supply: | 1 x Battery type : CR2032 3V - included |
| Weight: | 0.06 kg |
| Dimensions: | 180 x 26 x 22 mm |
| Manufacturer / Brand: | UNI-T |
| Guarantee: | 2 years |
Brand:
UNI-T
