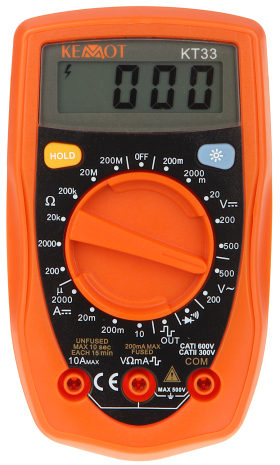

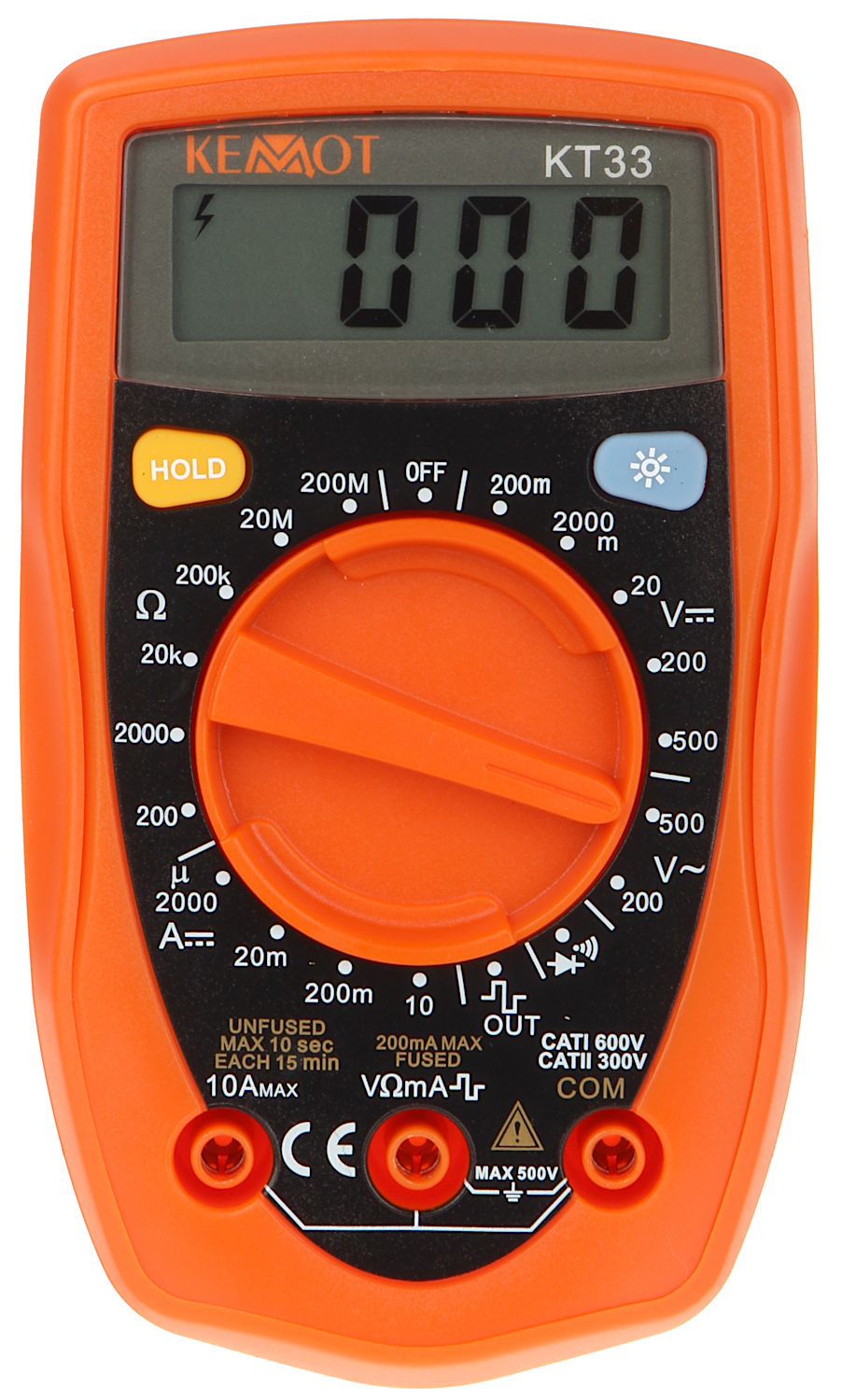

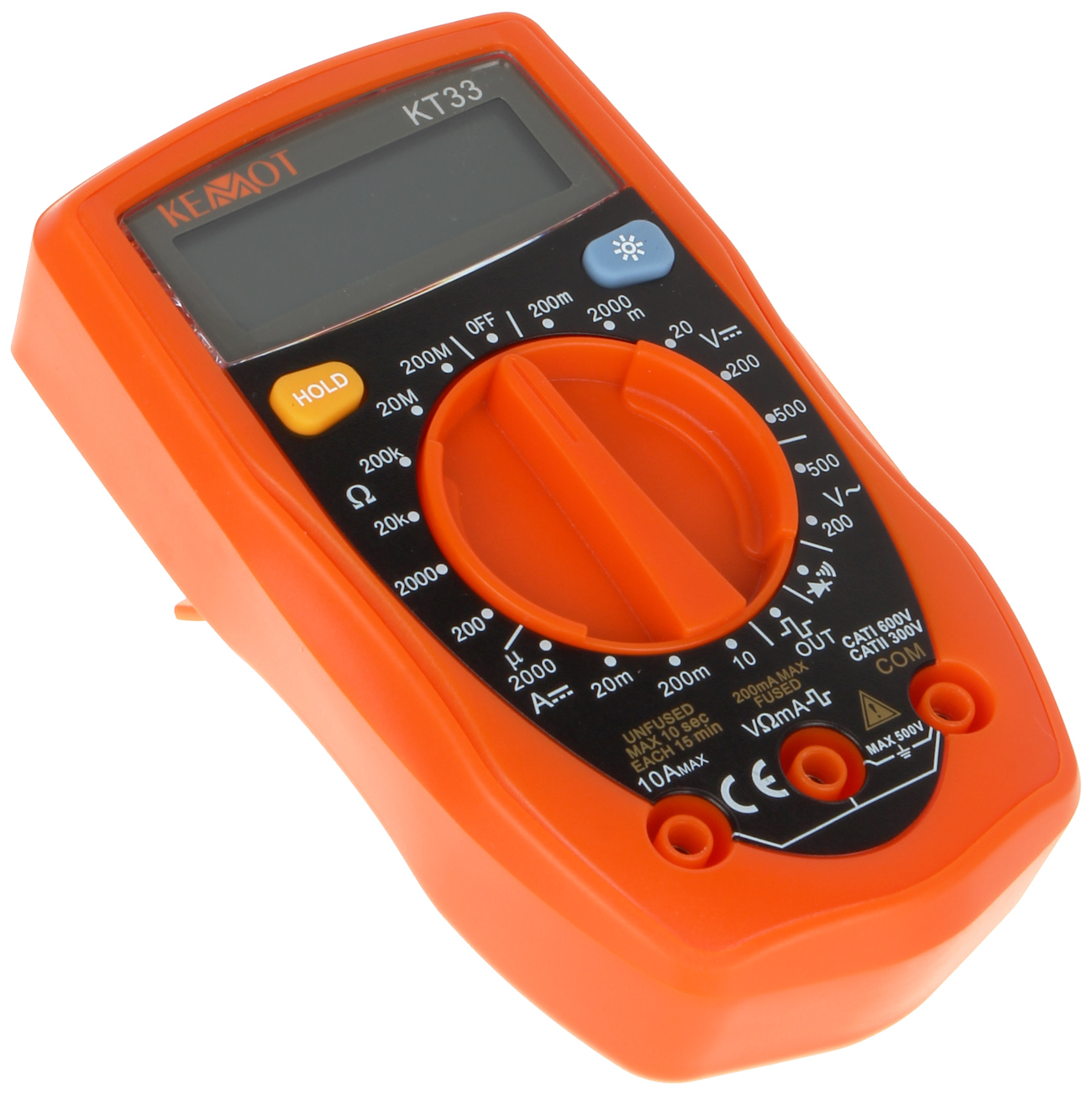

The KT-33 is a universal digital meter used to measure: voltage, current, resistance, diodes;
| DC voltage measurement: | 200 mV ± (0.5% + 2) @ 0.1 mV , 2000 mV ± (0.5% + 2) @ 1 mV , 20 V ± (0.5% + 2) @ 0.01 V , 200 V ± (0.5% + 2) @ 0.1 V , 500 V ± (0.8% + 2) @ 1 V |
| AC voltage measurement: | 200 V ± (1.2% + 10) @ 0.1 V , 500 V ± (1.2% + 10) @ 1 V |
| DC current measurement: | 200 µA ± (1.0% + 2) @ 0.1 µA , 2000 µA ± (1.0% + 2) @ 1 µA , 20 mA ± (1.0% + 2) @ 0.01 mA , 200 mA ± (1.2% + 2) @ 0.1 mA , 10 A ± (2.0% + 5) @ 0.01 A |
| AC current measurement: |  |
| Resistance measurement: | 200 Ω ± (0.8% + 5) @ 0.1 Ω , 2 kΩ ± (0.8% + 2) @ 0.001 kΩ , 20 kΩ ± (0.8% + 2) @ 0.01 kΩ , 200 kΩ ± (0.8% + 2) @ 0.1 kΩ , 2 MΩ ± (0.8% + 2) @ 0.001 MΩ 20 MΩ ± (1.0% + 5) @ 0.01 MΩ , 200 MΩ ± (5% + 10) @ 0.1 MΩ * * Warning! For the measuring range of 200 MΩ, subtract 10 from the reading value |
| Capacitance measurement: | |
| Inductance measurement: | |
| Frequency measurement: | |
| Temperature measurement: | |
| Automatic change of measuring ranges: | |
| hFE: |  |
| Diode test: | |
| Sound signal of the continuity test: | |
| Checking TTL logic states: | |
| RS-232: | |
| Main features: | |

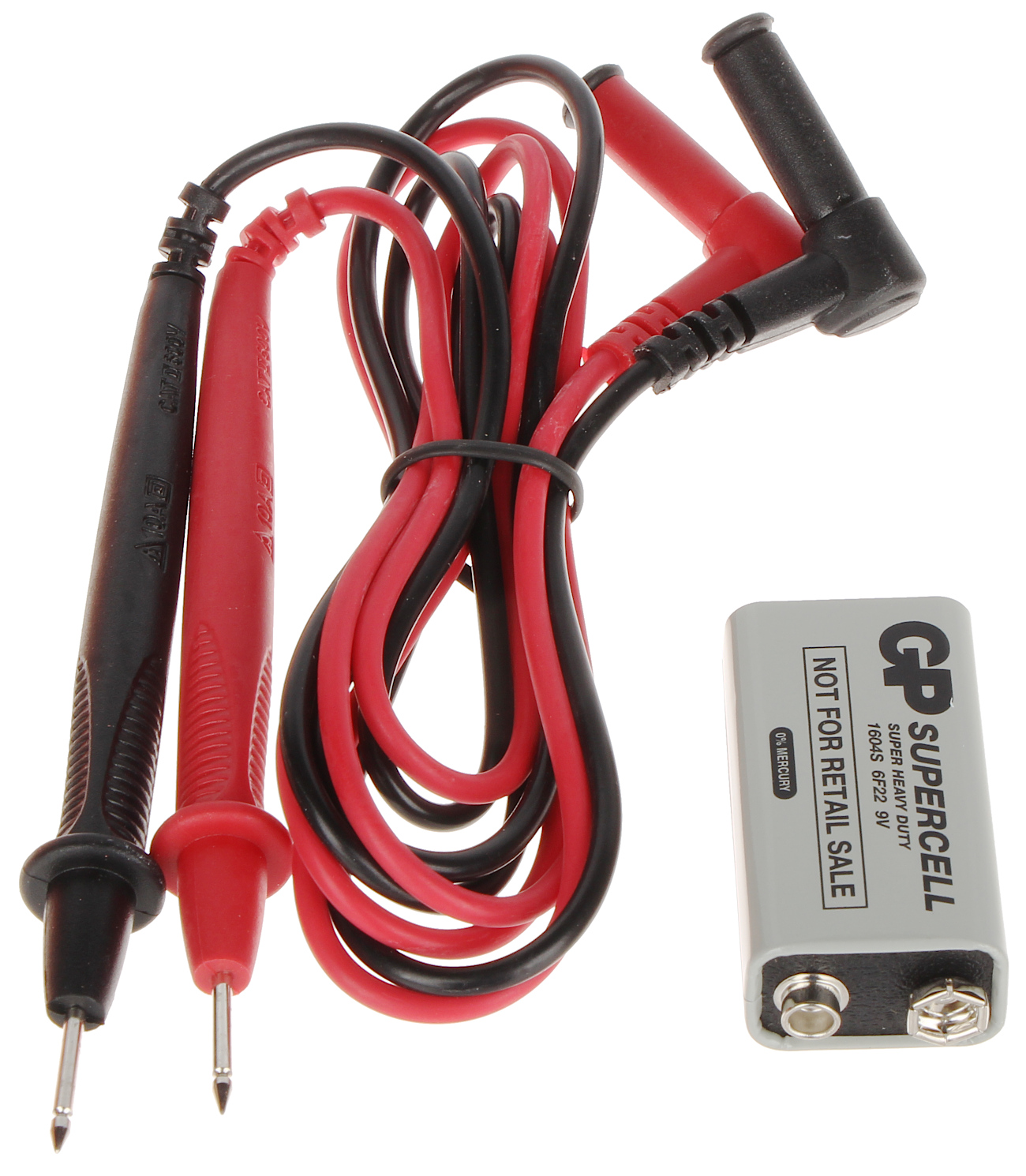

| Power supply: | 9V, type 6F22 battery - included |
| Weight: | 0.18 kg |
| Dimensions: | 133 x 77 x 37 mm |
| Manufacturer / Brand: | KEMOT |
| Guarantee: | 2 years |
Brand:
Kemot
