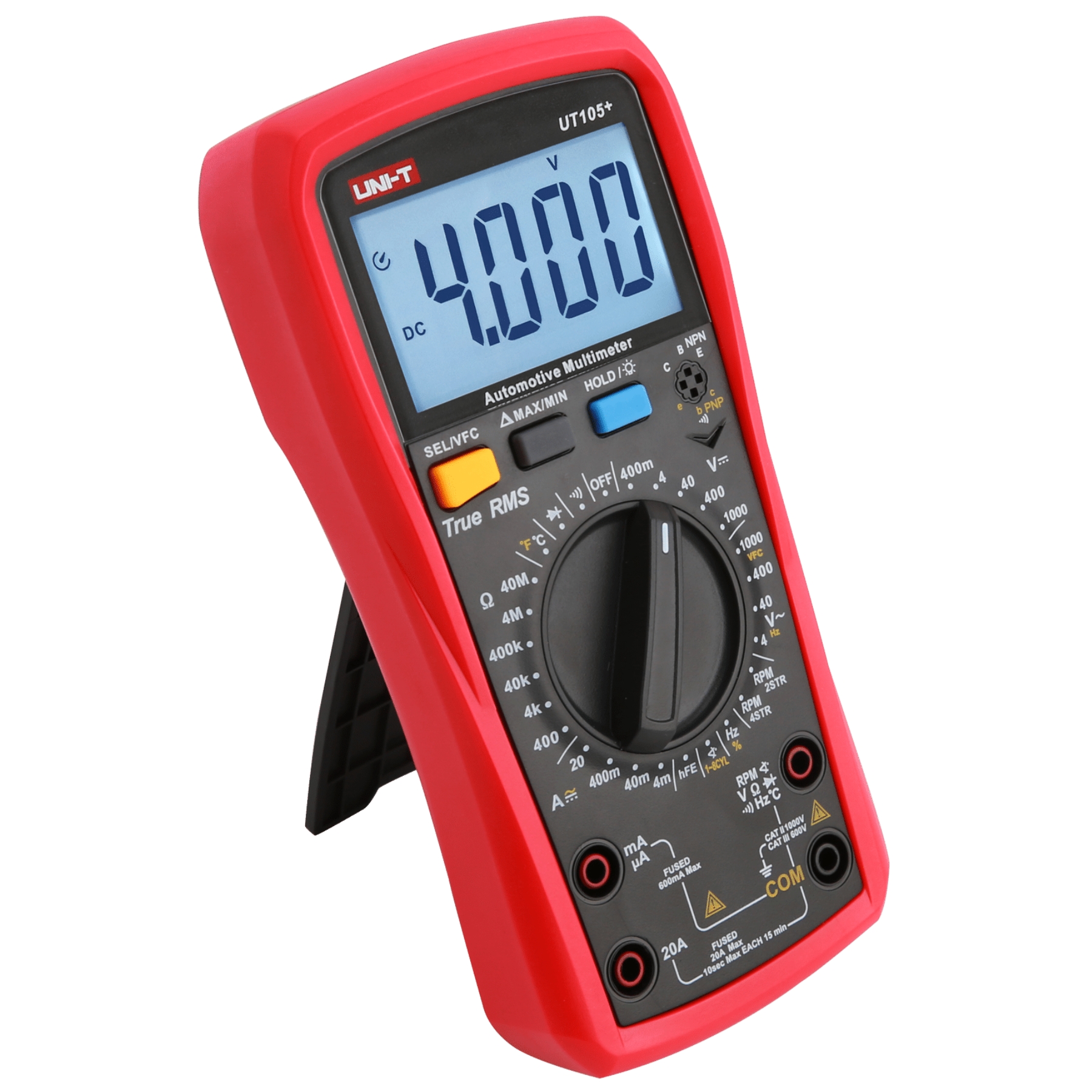

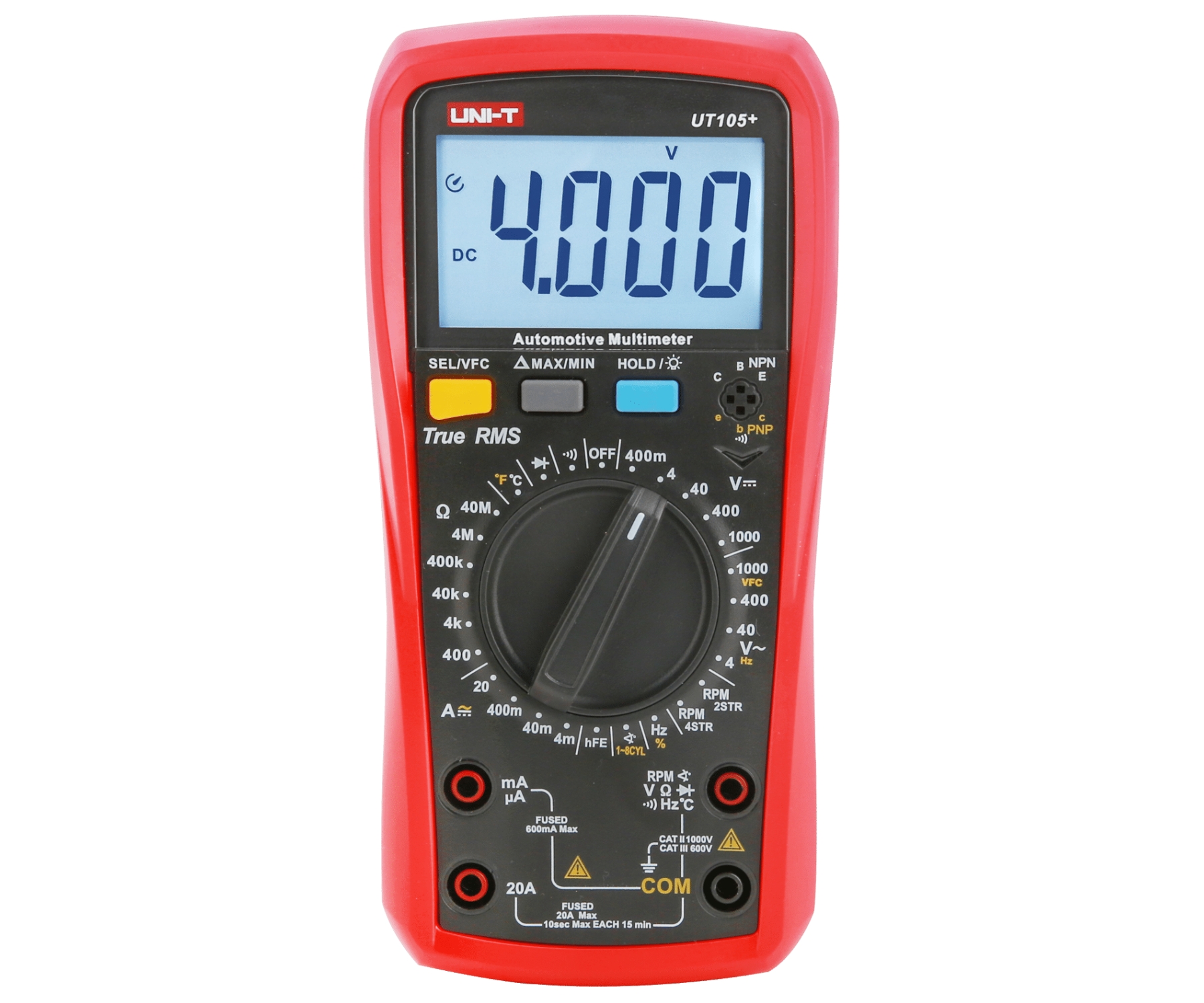

CAR UNIVERSAL METER UT-105+ UNI-T
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Main features: Measurement of the closing angle of the DWELL circuit breaker, RPM x 10 rotational speed measurement, ;
| DC voltage measurement: | 400 mV ± (0.5% + 3) , 4 V ± (0.5% + 3) , 40 V ± (0.5% + 3) , 400 V ± (0.5% + 3) , 1000 V ± (0.5% + 3) |
| AC voltage measurement: | 4 V ± (0.8% + 3) , 40 V ± (0.8% + 3) , 400 V ± (0.8% + 3) , 1000 V ± (0.8% + 3) |
| DC current measurement: | 4 mA ± (1% + 8) , 40 mA ± (1% + 8) , 400 mA ± (1% + 8) , 10 A ± (1% + 8) |
| AC current measurement: | 4 mA ± (0.8% + 8) , 40 mA ± (0.8% + 8) , 400 mA ± (0.8% + 8) , 10 mA ± (0.8% + 8) |
| Resistance measurement: | 400 Ω ± (0.8% + 3) , 4 kΩ ± (0.8% + 3) , 40 kΩ ± (0.8% + 3) , 400 kΩ ± (0.8% + 3) , 4 MΩ ± (0.8% + 3) , 40 MΩ ± (0.8% + 3) |
| Capacitance measurement: |  |
| Inductance measurement: | |
| Frequency measurement: | 10 Hz ... 10 MHz ± (0.1% + 5) |
| Square-wave signal duty ratio measurement: |  |
| Temperature measurement: | -40 ... 1000 °C ± (1% + 8) |
| Automatic change of measuring ranges: | |
| hFE: | |
| Diode test: | |
| Sound signal of the continuity test: | |
| Checking TTL logic states: | |
| RS-232: | |
| Main features: | |

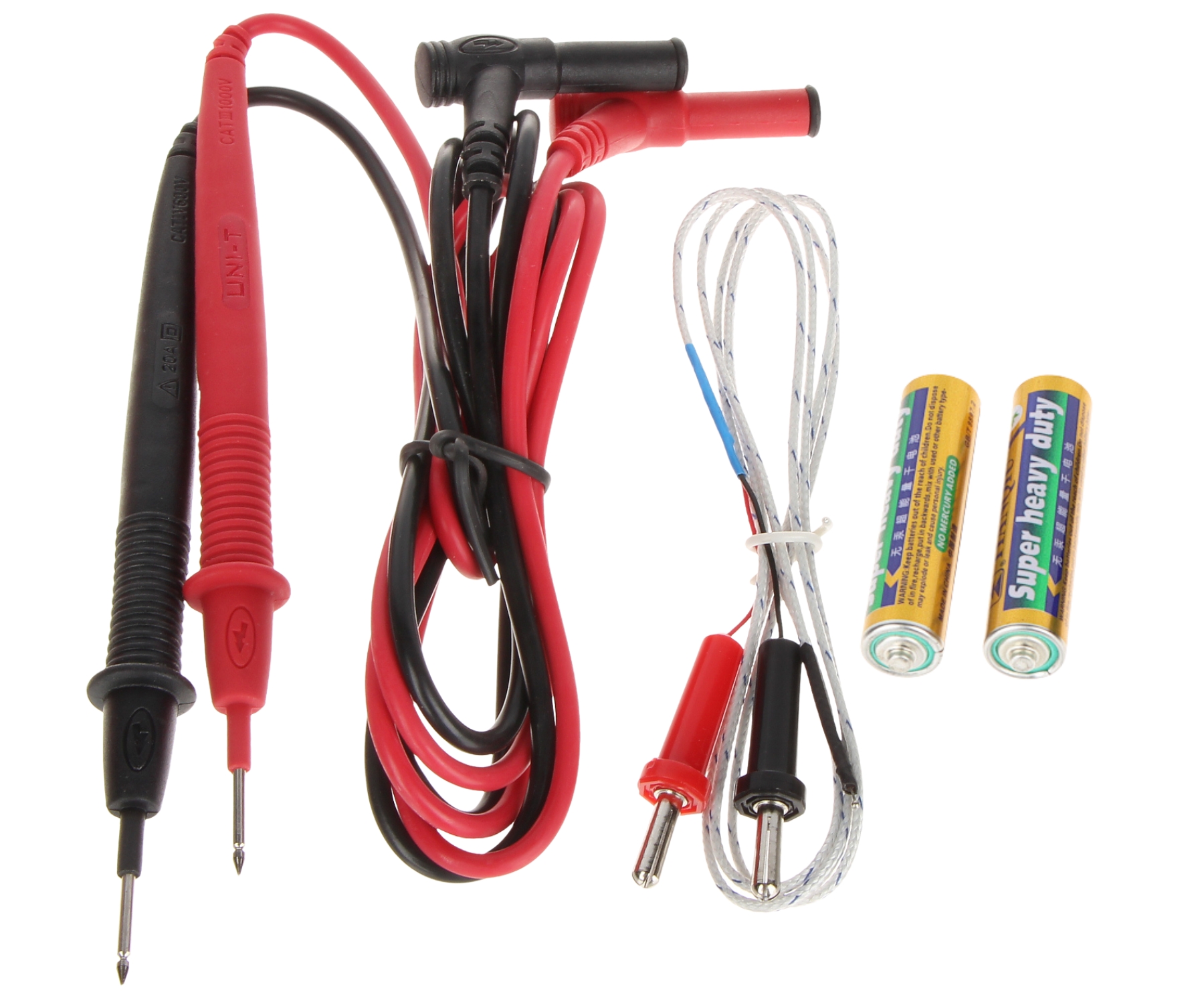

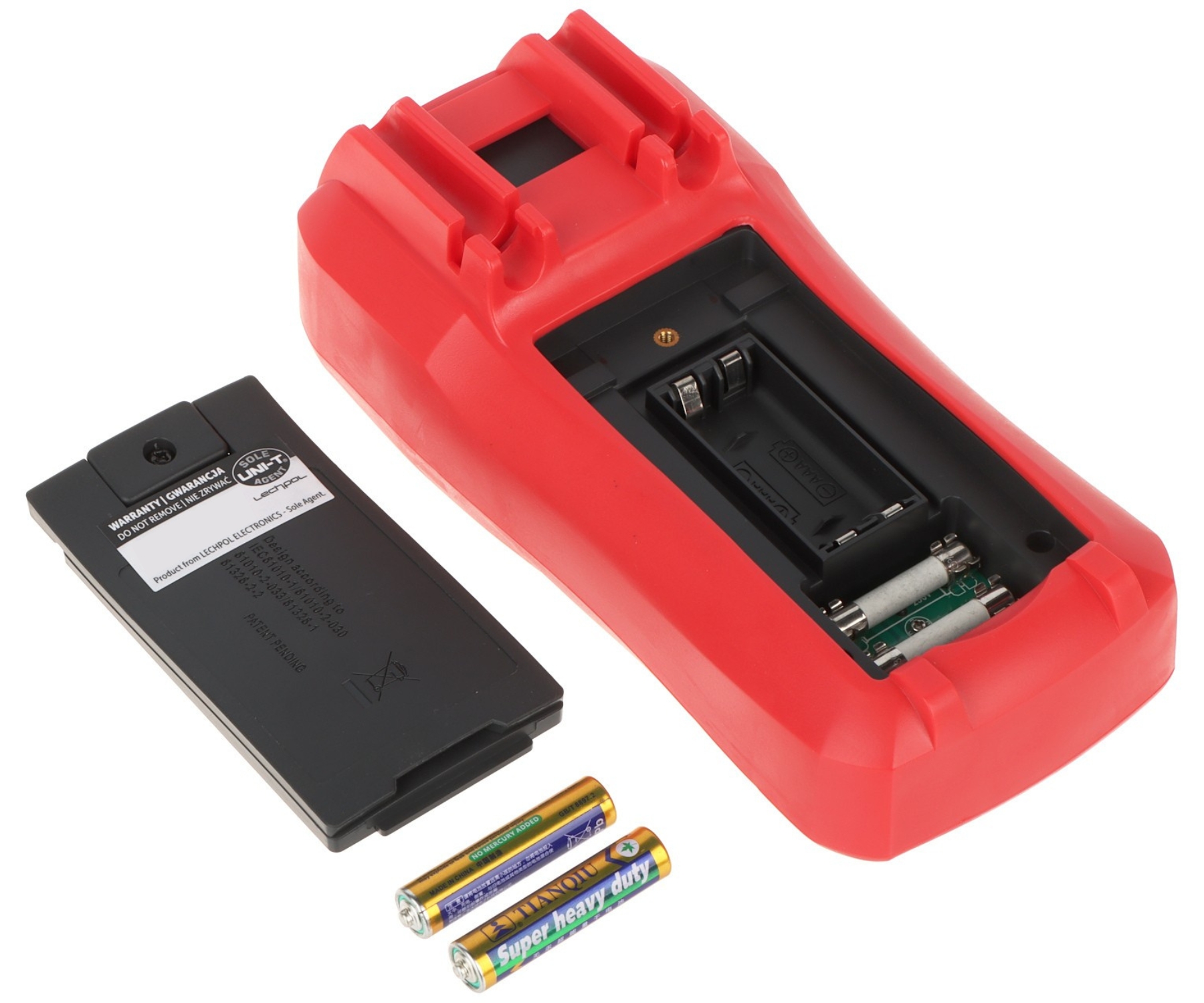

| Power supply: | 2x battery LR3 (AAA) - included |
| Weight: | 0.35 kg |
| Dimensions: | 179 x 87 x 39 mm |
| Manufacturer / Brand: | UNI-T |
| Guarantee: | 2 years |
