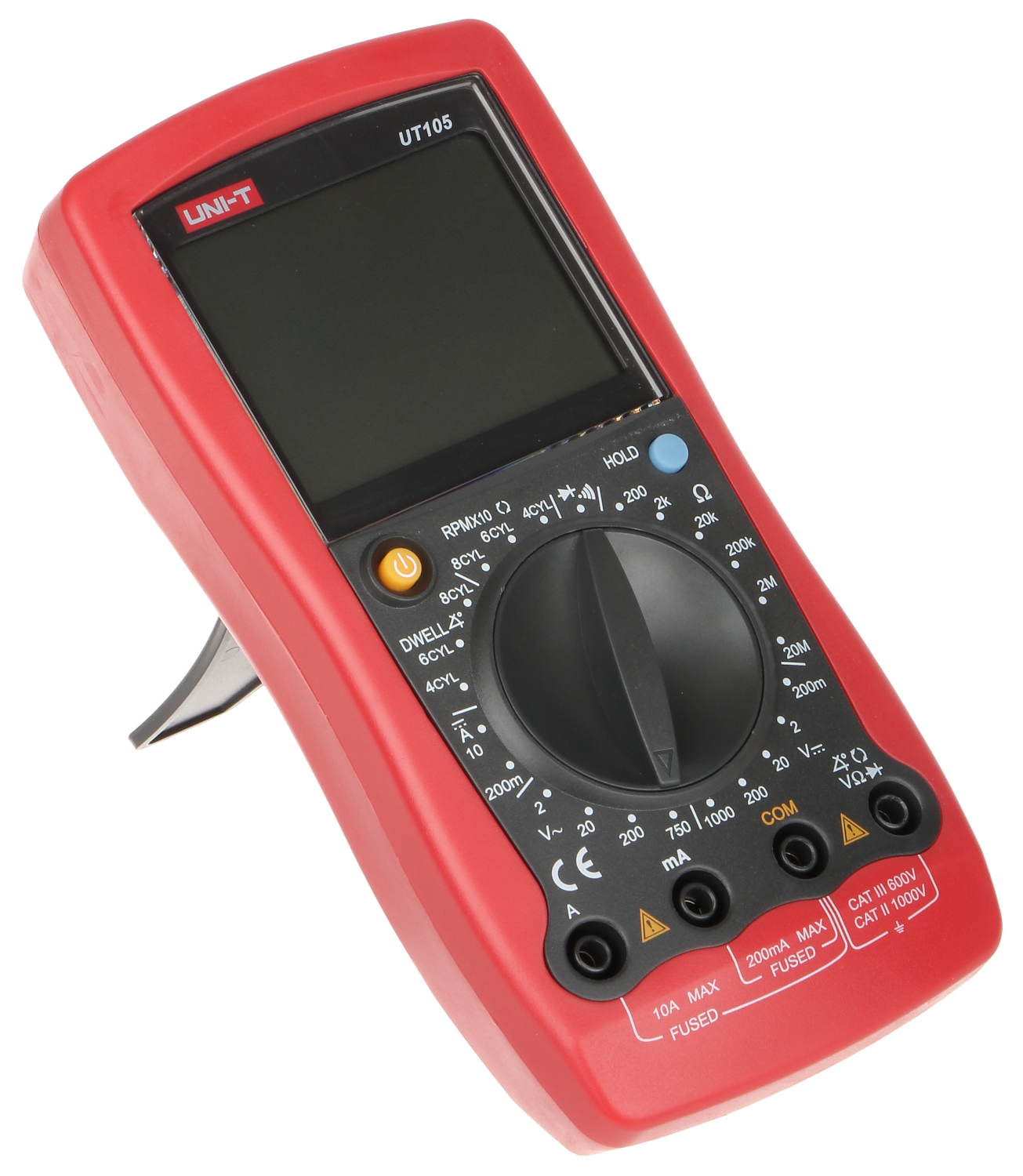

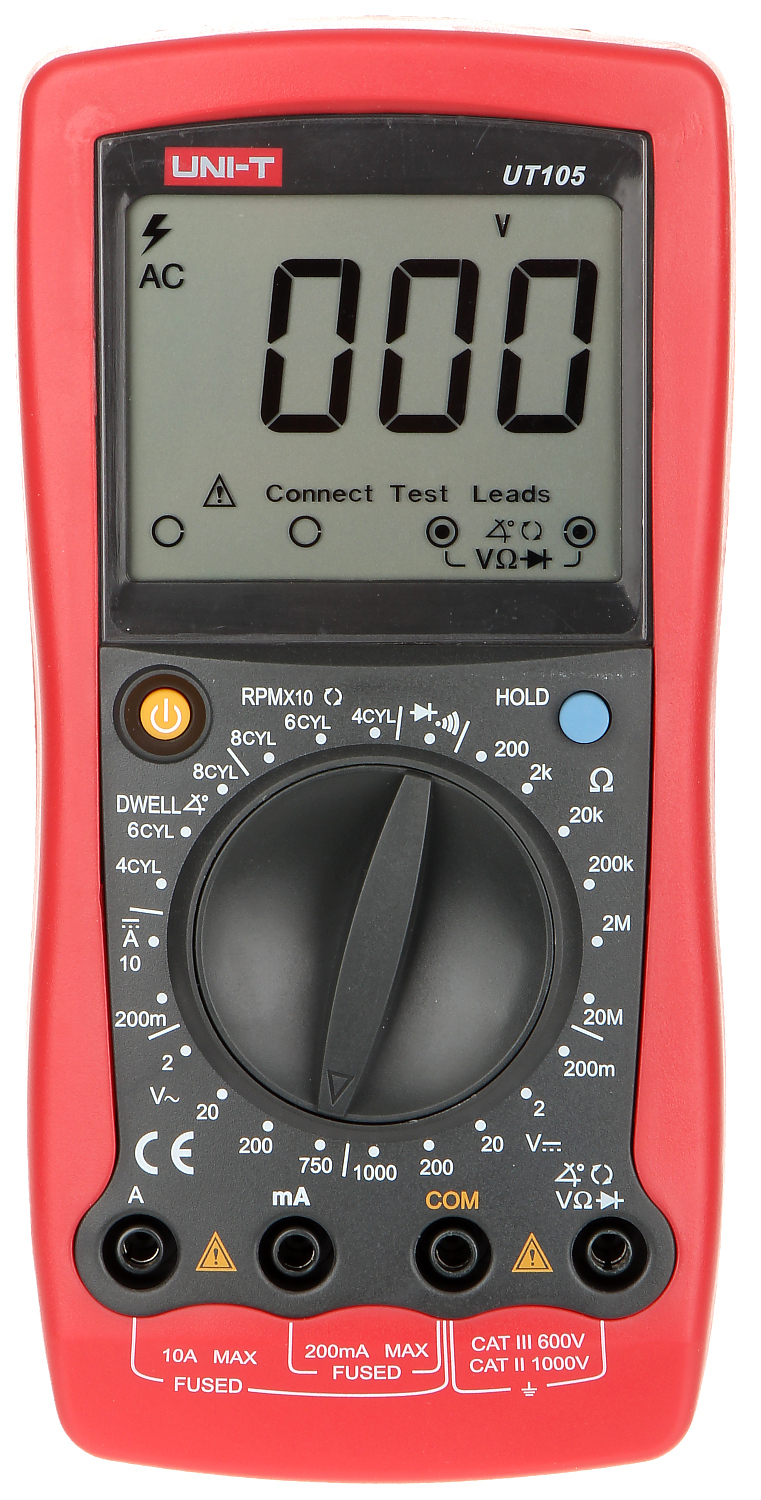

The UT-105 is a digital car meter used to measure: voltage, current, resistance, equipped with additional functions useful in car diagnostics; Main features: 12V battery voltage test, Measurement of the closing angle of the DWELL circuit breaker, RPM x 10 rotational speed measurement, The following items can be checked: : the ignition coil, high voltage wires, Hall sensor, magnetoresistive sensor, Lambda probe, temperature sensor, position sensor, MAP pressure sensor, MAF air flow sensor ;
| DC voltage measurement: | 200 mV ± (0.5% + 2) @ 0.1 mV , 2 V ± (0.5% + 2) @ 1 mV , 20 V ± (0.5% + 2) @ 10 mV , 200 V ± (0.5% + 2) @ 100 mV , 1000 V ± (0.8% + 2) @ 1 V |
| AC voltage measurement: | 2 V ± (0.8% + 5) @ 1 mV , 20 V ± (0.8% + 5) @ 10 mV , 200 V ± (0.8% + 5) @ 0.1 V , 750 V ± (1% + 5) @ 1 V |
| DC current measurement: | 200 mA ± (0.8% + 5) @ 0.1 mA , 10 A ± (1.2% + 5) @ 10 mA |
| AC current measurement: |  |
| Resistance measurement: | 200 Ω ± (0.8% + 5) (not included) @ 0.1 Ω , 2 kΩ ± (0.8% + 5) @ 1 Ω , 20 kΩ ± (0.8% + 5) @ 10 Ω , 200 kΩ ± (0.8% + 5) @ 100 Ω , 2 MΩ ± (0.8% + 5) @ 1 kΩ , 20 MΩ ± (1.5% + 5) @ 10 kΩ |
| Capacitance measurement: | |
| Inductance measurement: | |
| Frequency measurement: | |
| Square-wave signal duty ratio measurement: | |
| Temperature measurement: | |
| Automatic change of measuring ranges: | |
| hFE: | |
| Diode test: |  |
| Sound signal of the continuity test: | |
| Checking TTL logic states: | |
| RS-232: | |
| Main features: | |

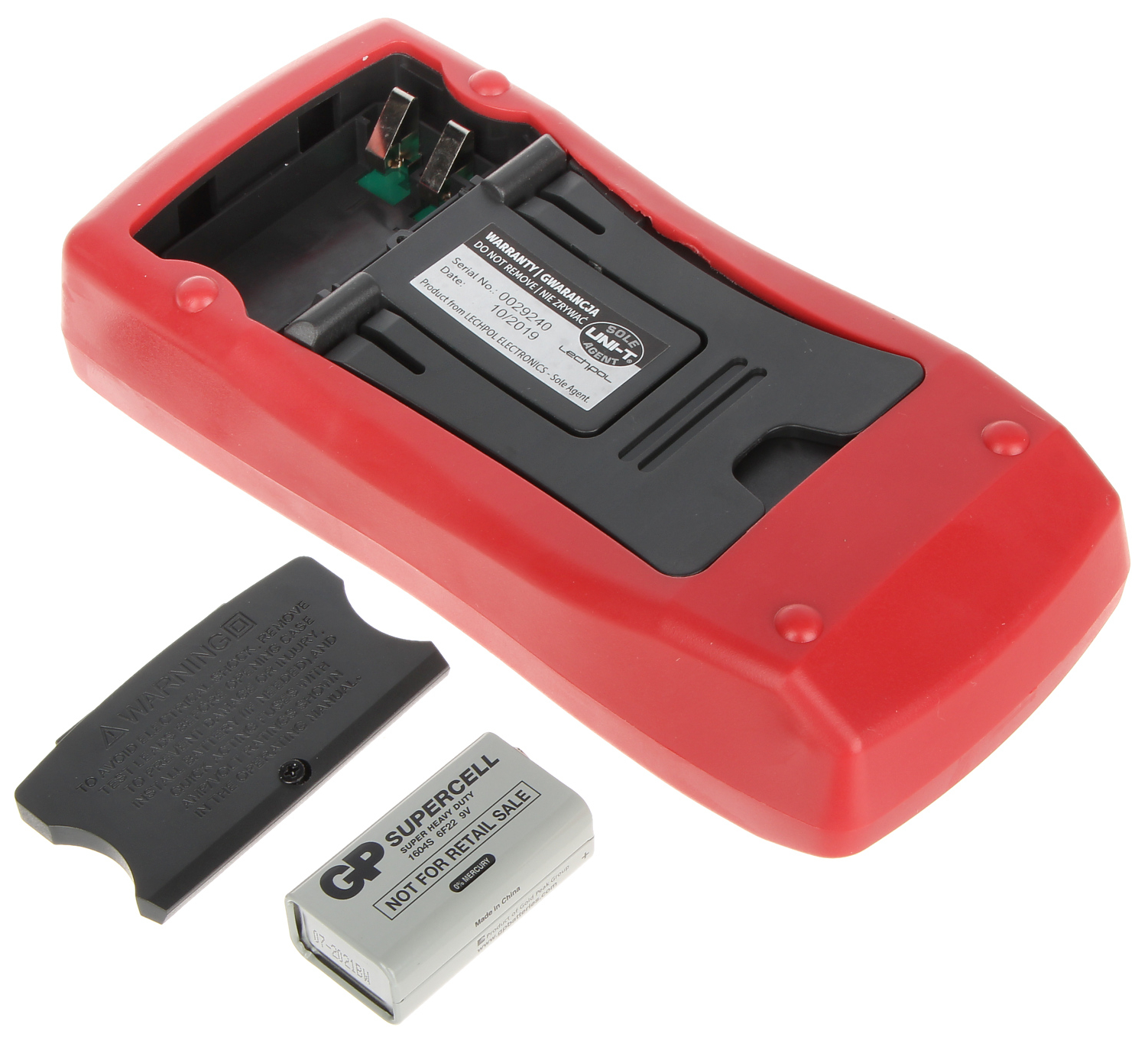

| Power supply: | 9V, type 6LR61 battery - included |
| Weight: | 0.35 kg |
| Dimensions: | 179 x 87 x 39 mm |
| Manufacturer / Brand: | UNI-T |
| Guarantee: | 2 years |
Brand:
UNI-T
