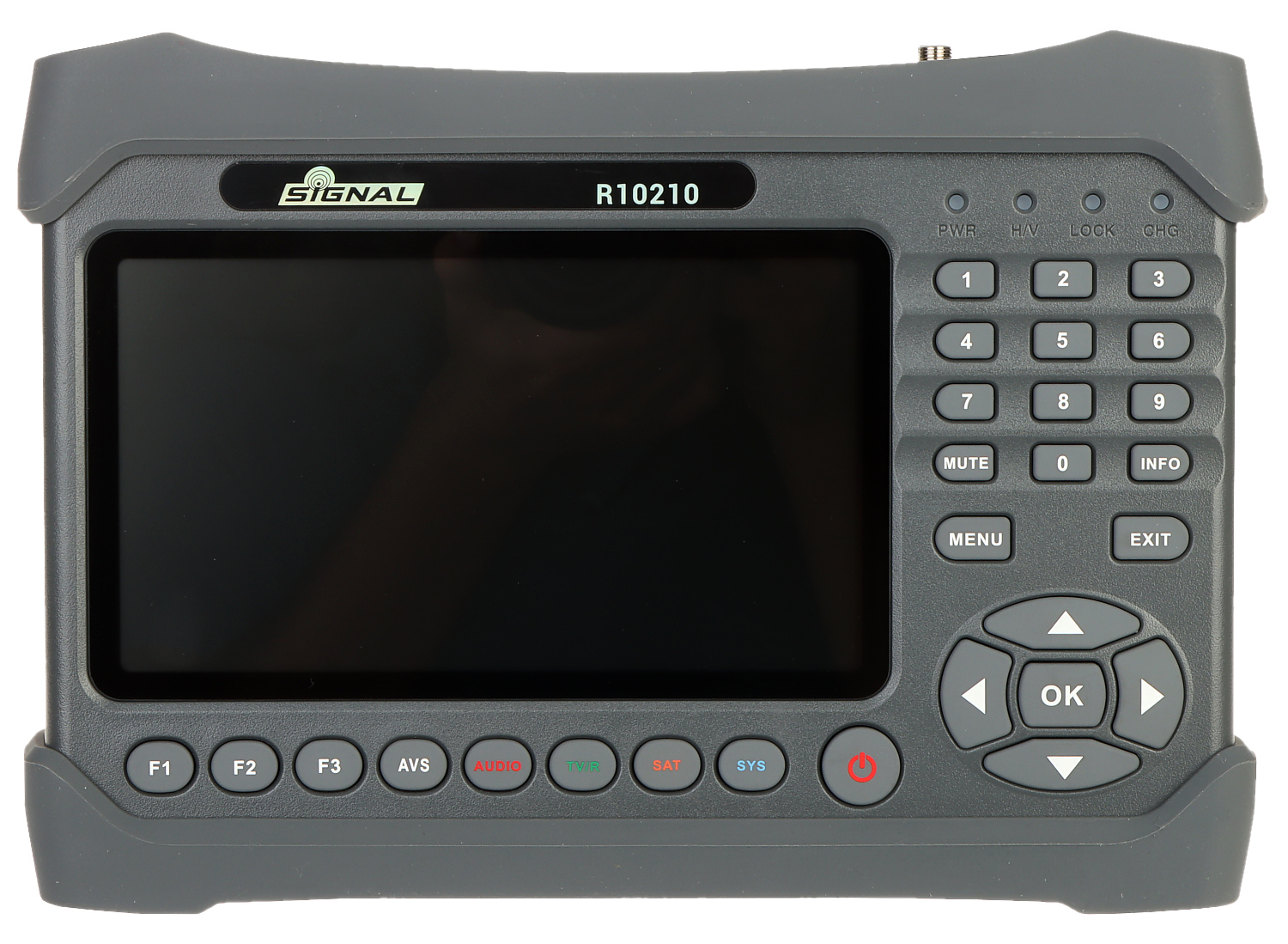

UNIVERSAL METER ST-6986 DVB-T/T2 DVB-S/S2 DVB-C SIGNAL

€445.84

(Включая налог 21%)

Задать вопрос

КОД: ST-6986

Доступность: 3 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

Frequency range: 48 MHz ... 862 MHz @ DVB-T / DVB-T2 / DVB-C, 950 MHz ... 2150 MHz @ DVB-S / DVB-S2 ; Signal level: -20 ... +80 dBm @ DVB-S / DVB-S2, -20 ... +80 dBm @ DVB-T / DVB-T2 / DVB-C ;

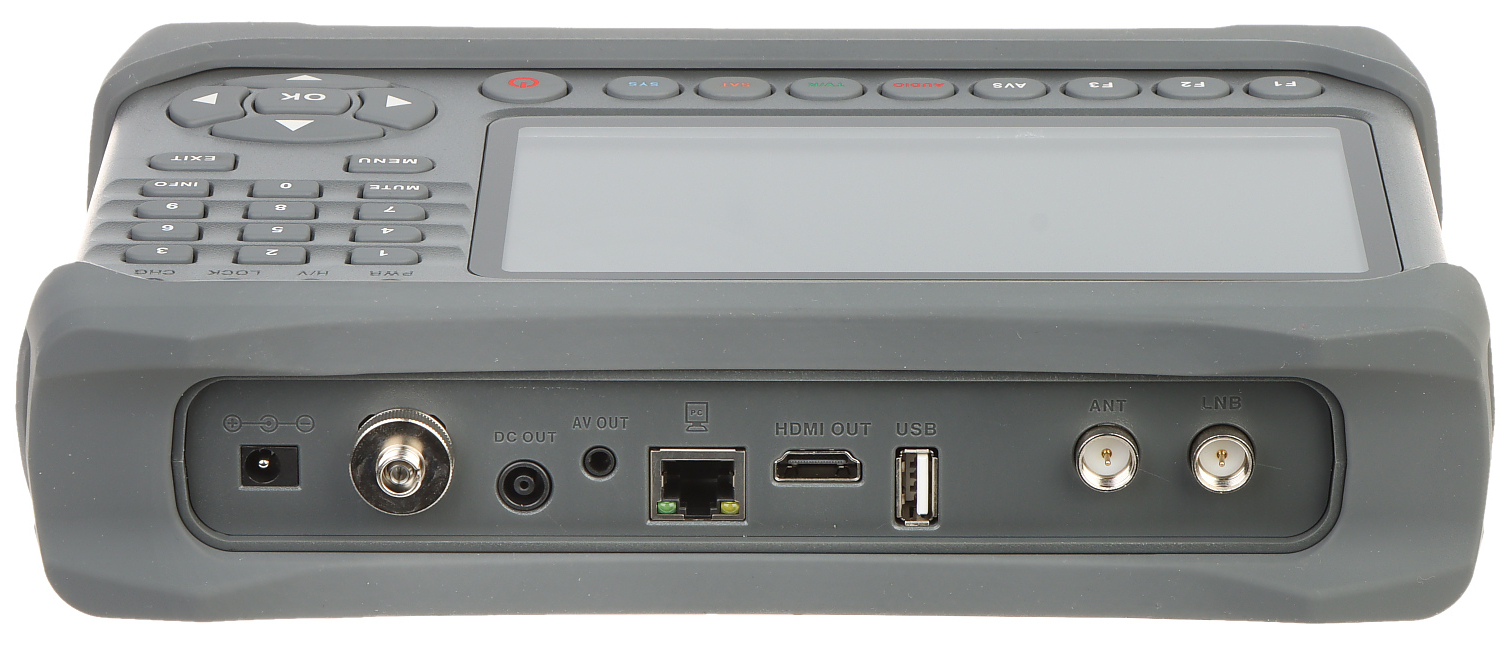

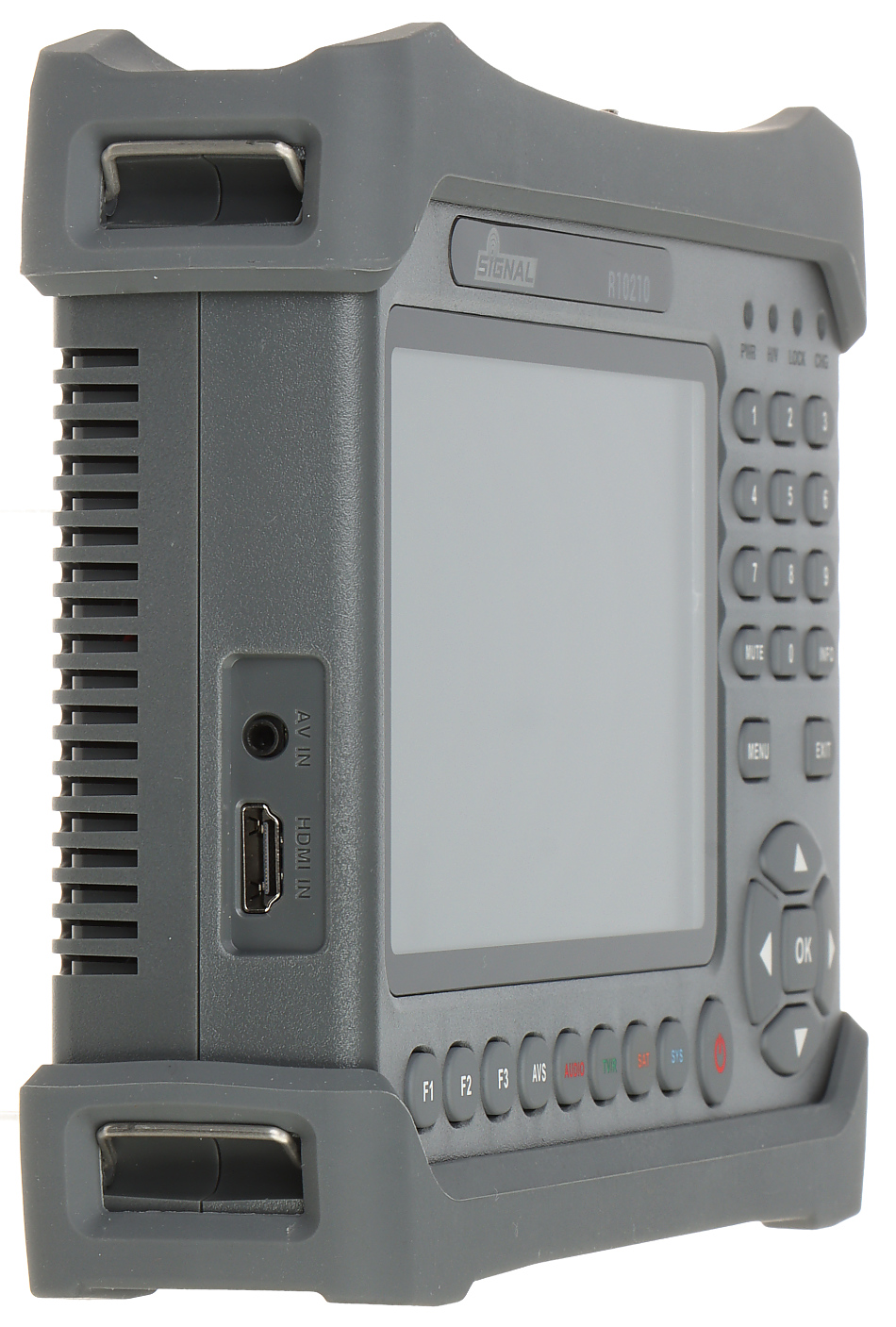

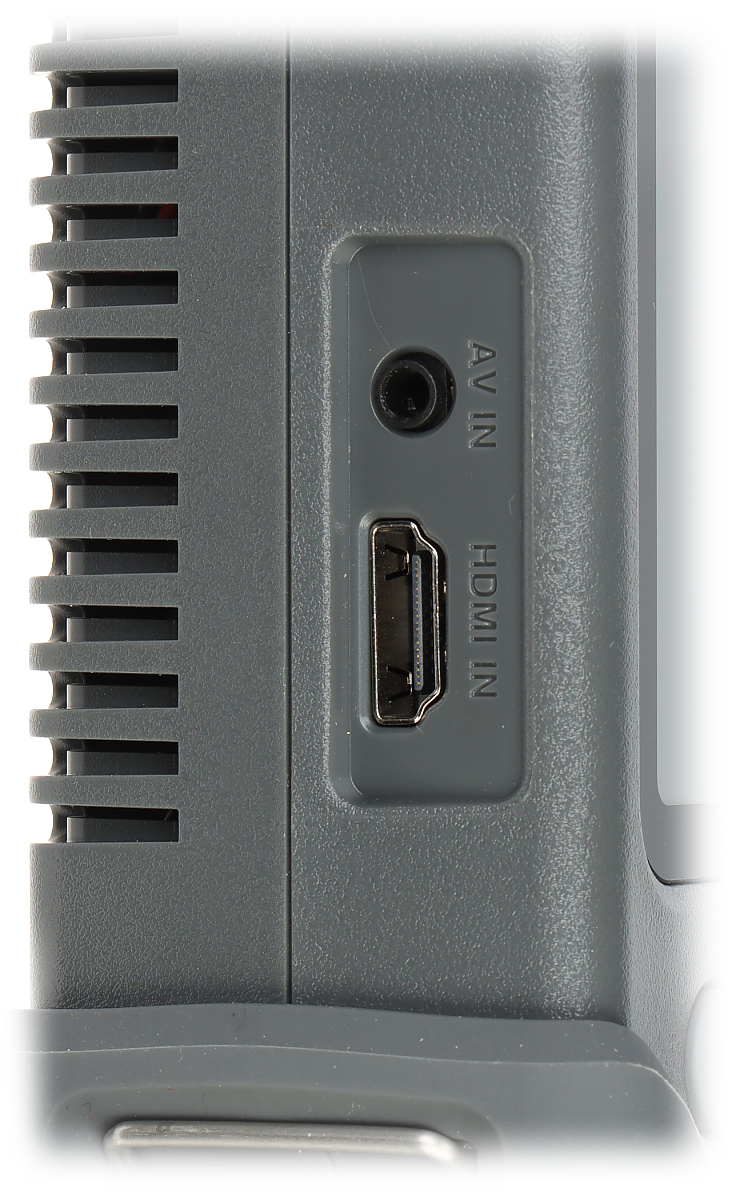

Output and input:	Inputs : IEC - Ant socket, "F" - LNB socket, HDMI, AV - mini Jack input, SC / FC fiber optic input Outputs : HDMI, AV - mini Jack output, Power output, 12 V DC
Frequency range:	48 MHz ... 862 MHz @ DVB-T / DVB-T2 / DVB-C, 950 MHz ... 2150 MHz @ DVB-S / DVB-S2
Signal level:	-20 ... +80 dBm @ DVB-S / DVB-S2, -20 ... +80 dBm @ DVB-T / DVB-T2 / DVB-C, -40 ... +23 dBm - Optical power meter
LNB power supply:	13 / 18 V, max. 400 mA
Switching between bandwidths:	0 / 22 kHz
Antenna powering:	5 / 12 / 24 V @ 100 mA
DiSEqC:	1.0, 1.1,1.2, 0/22 kHz Tone, Unicable (dSCR), Wideband systems support
Modulation:	QPSK / 8PSK / 16APSK @ DVB-S / DVB-S2 QPSK / 16-QAM / 64-QAM / 256-QAM @ DVB-T / DVB-T2 / DVB-C
Video signal test:
Programming and firmware upgrade:	via USB port

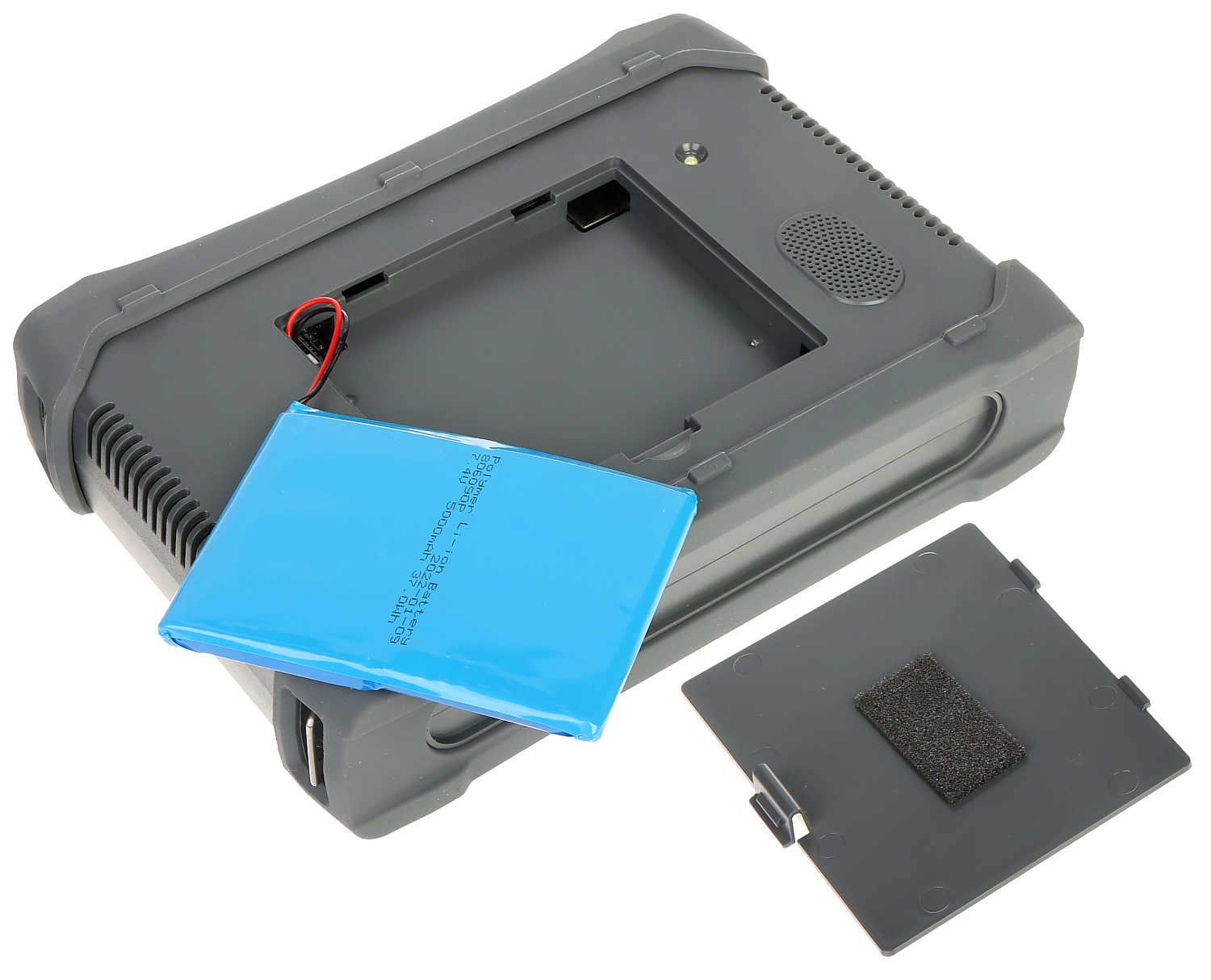

Battery power supply:	Li-Ion battery 7.4 V / 5000 mAh

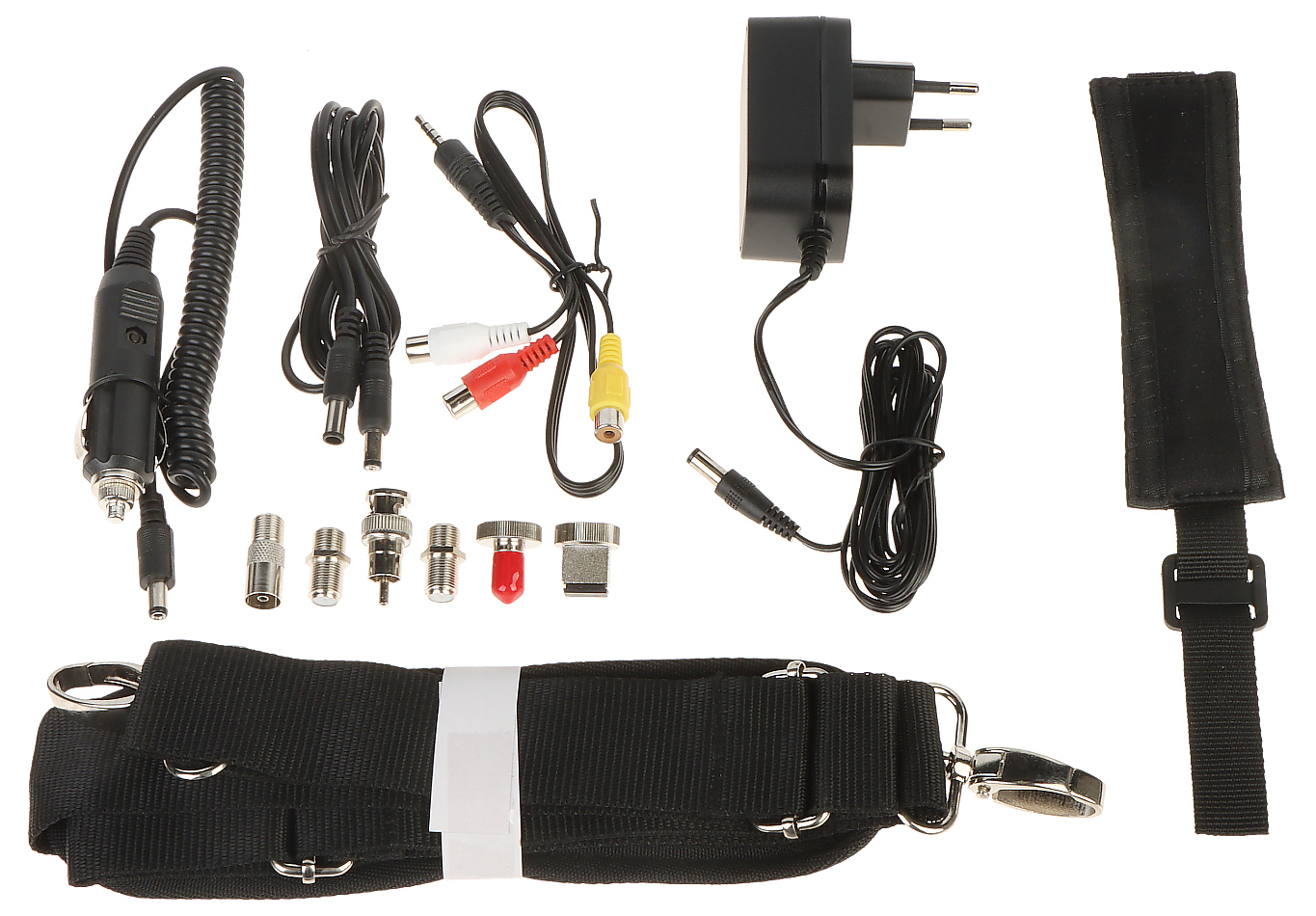

Power supply:	12 V / 1.5 A (power adapter included)
Power consumption:	≤ 10 W

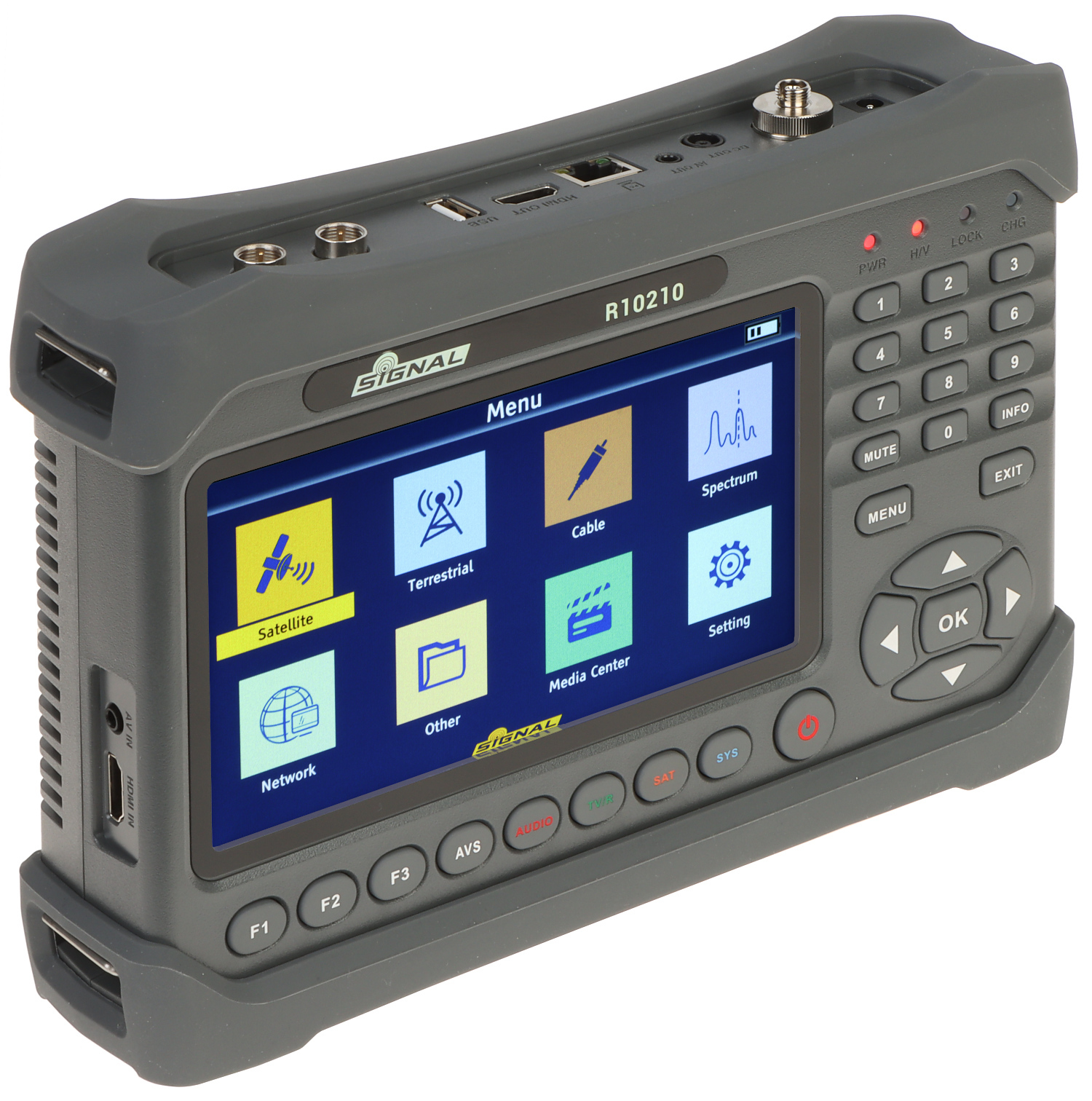

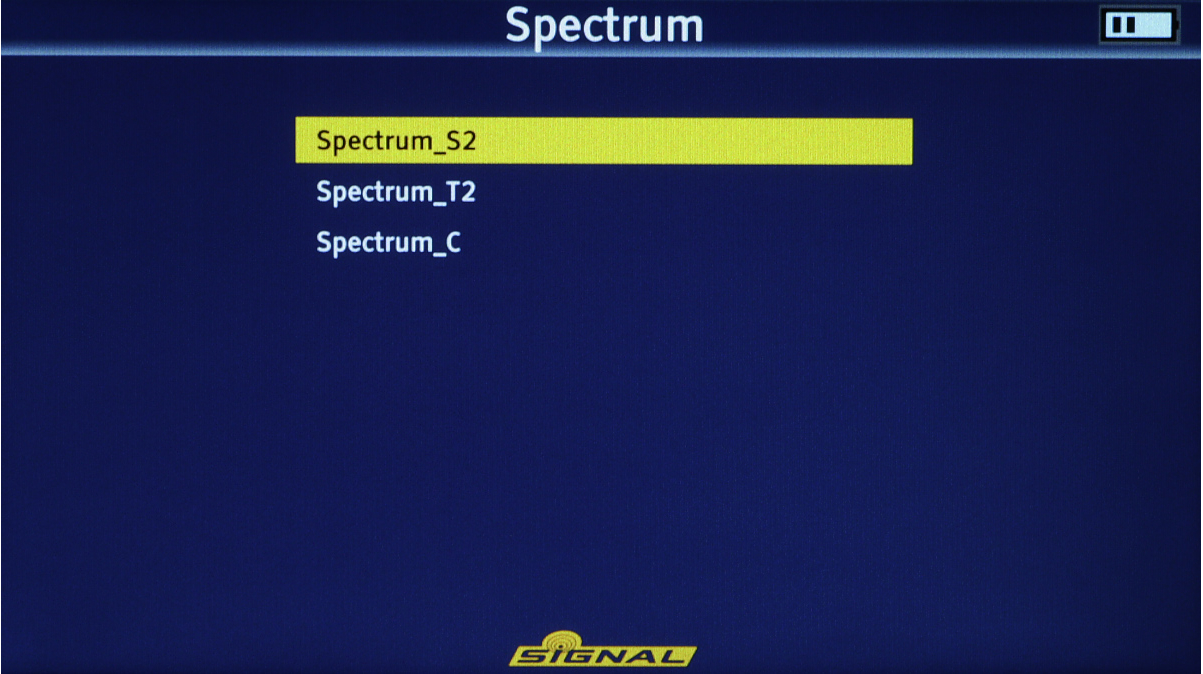

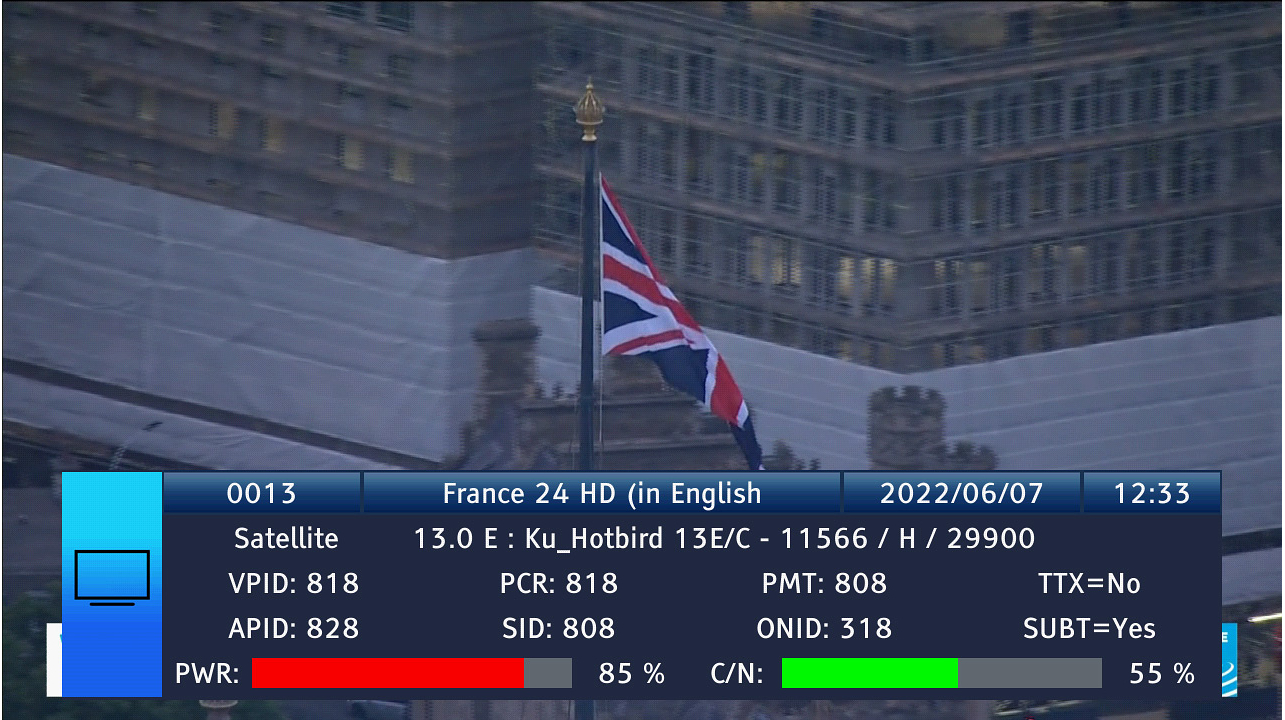

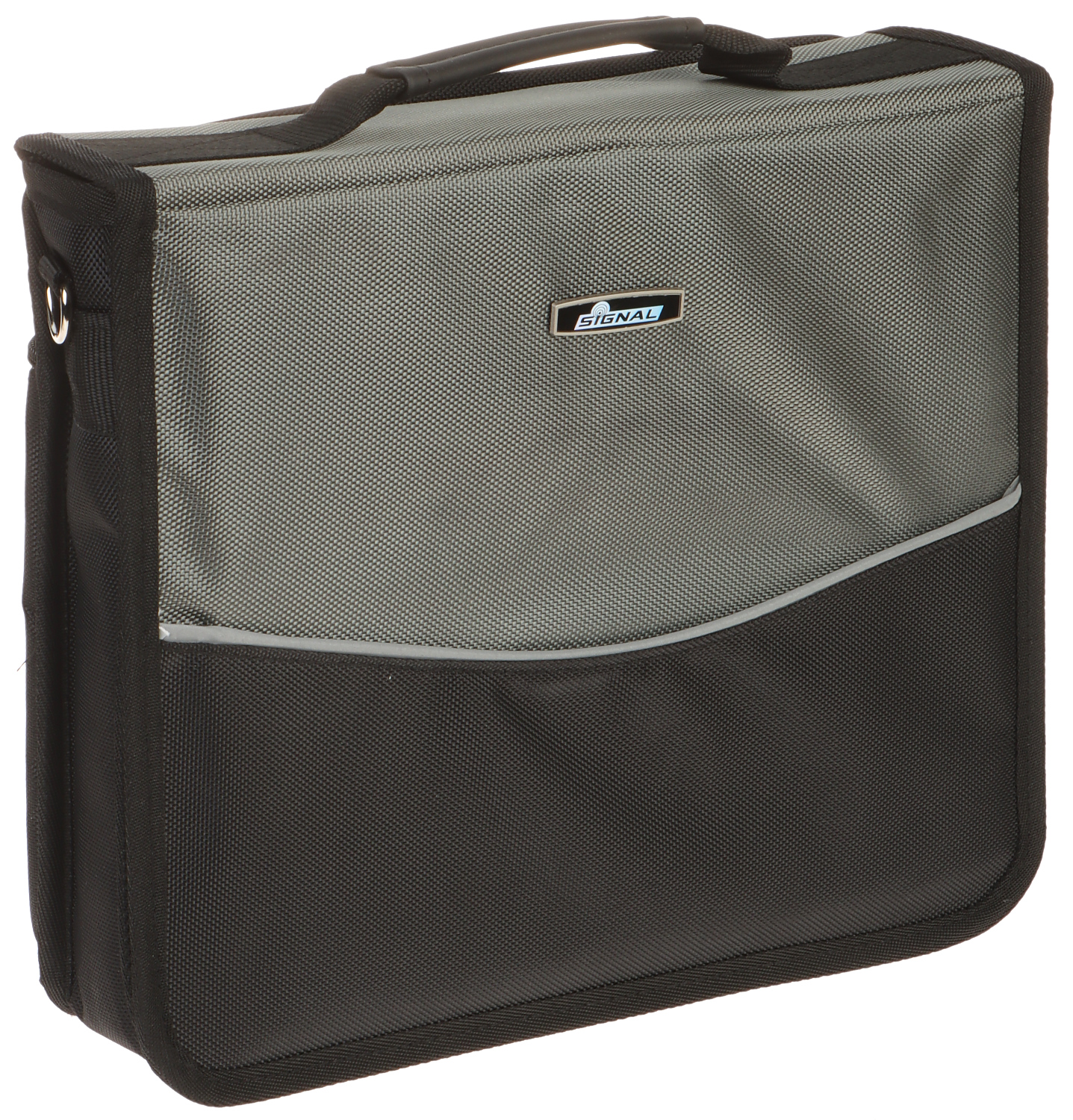

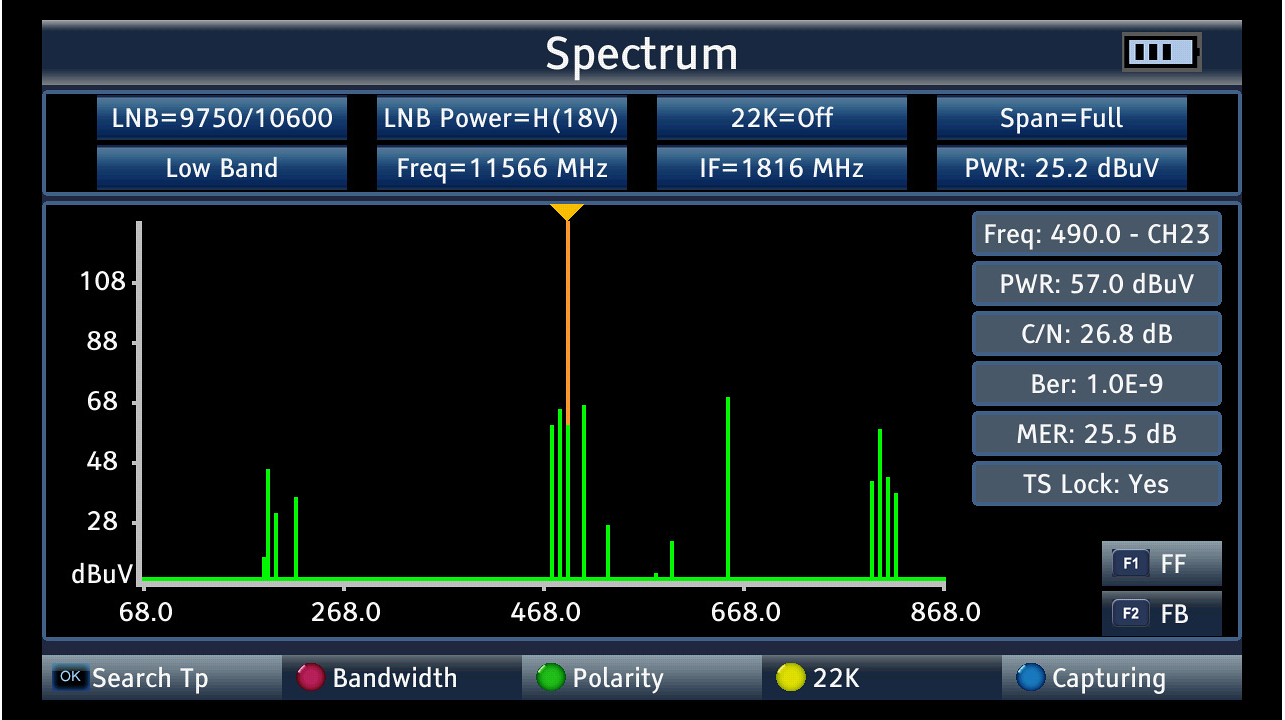

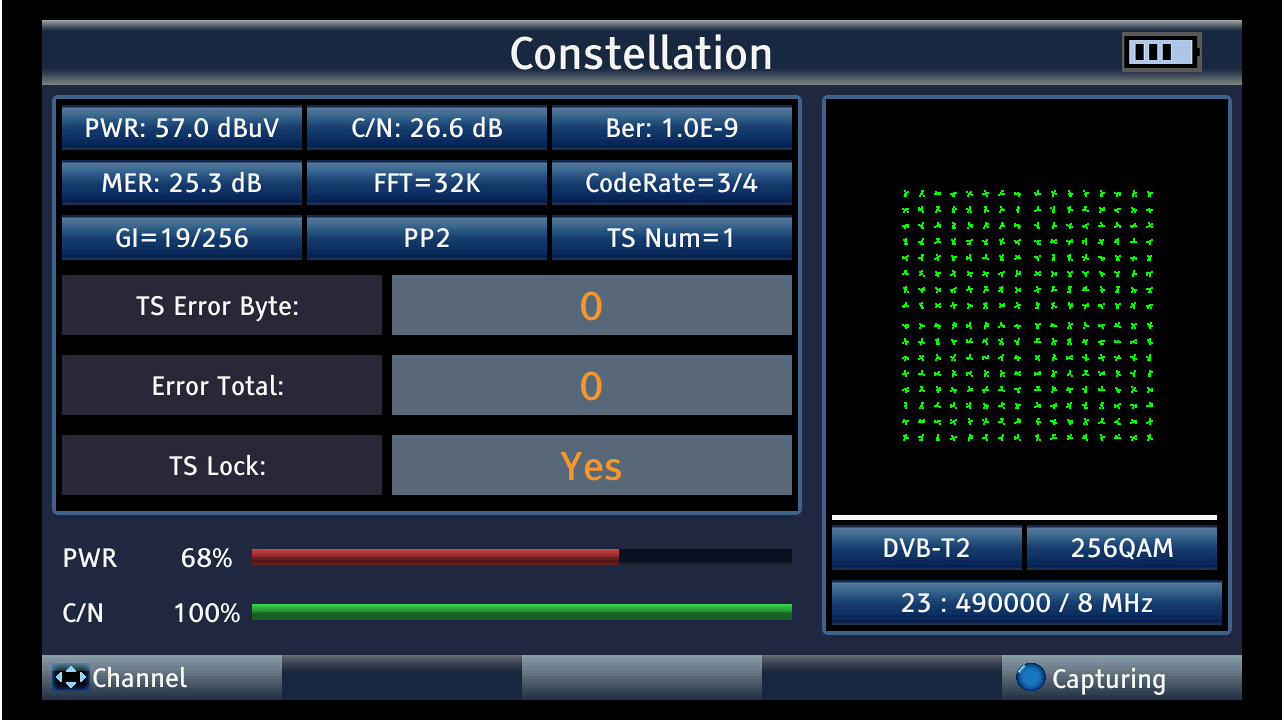

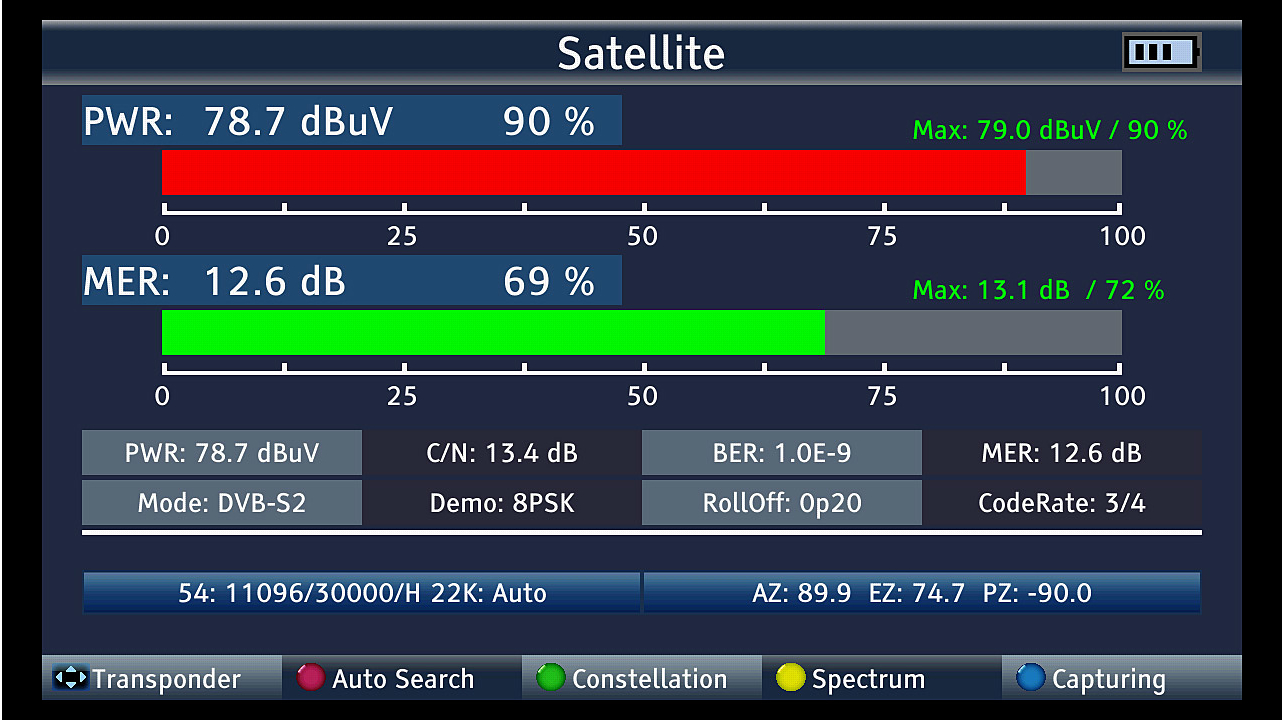

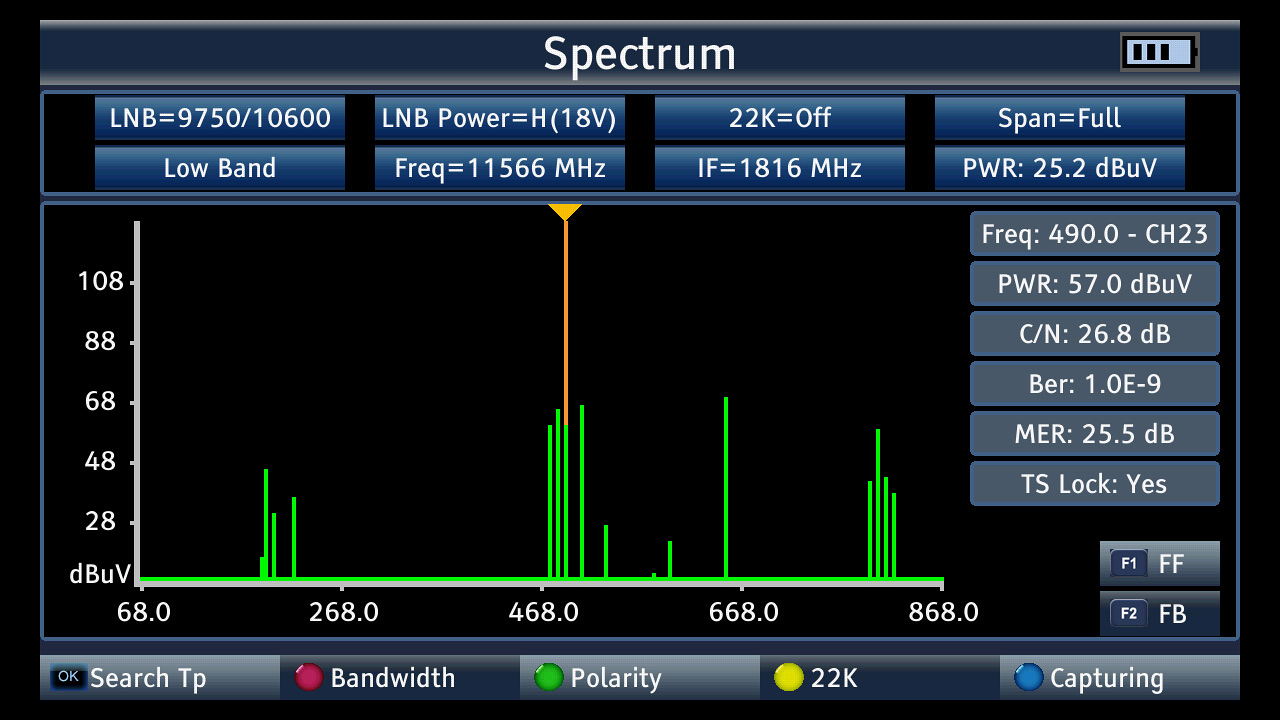

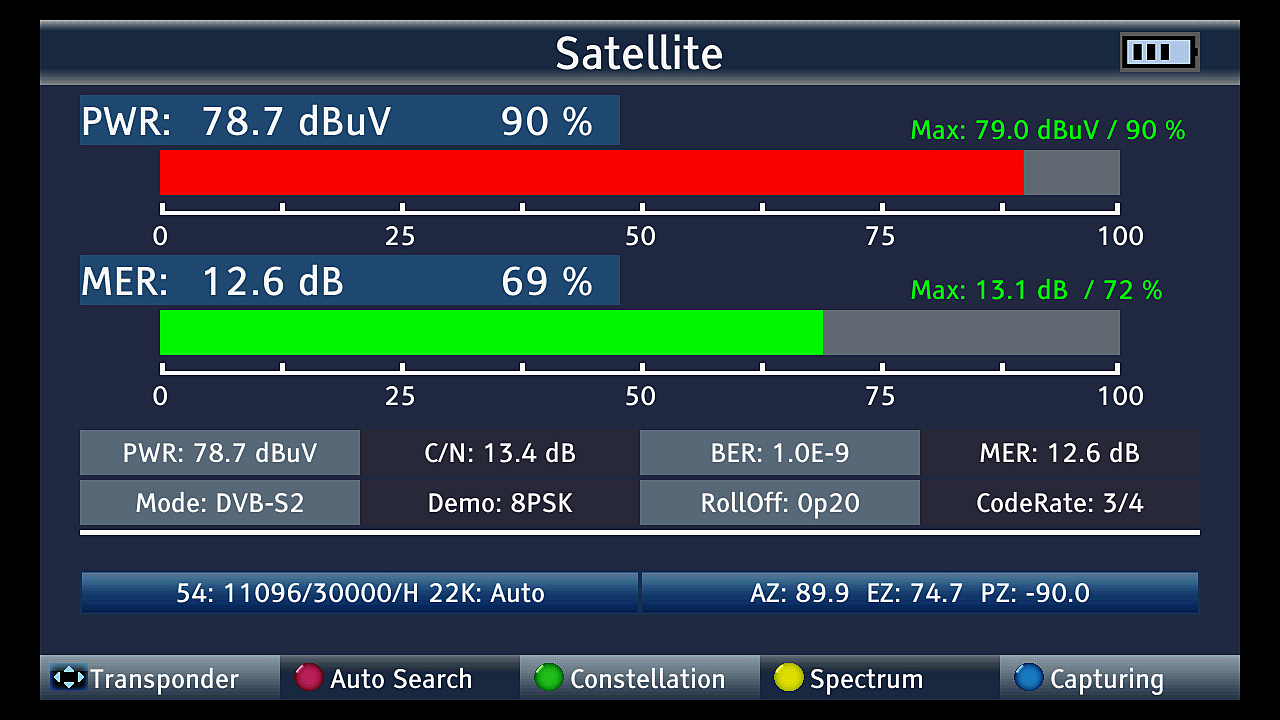

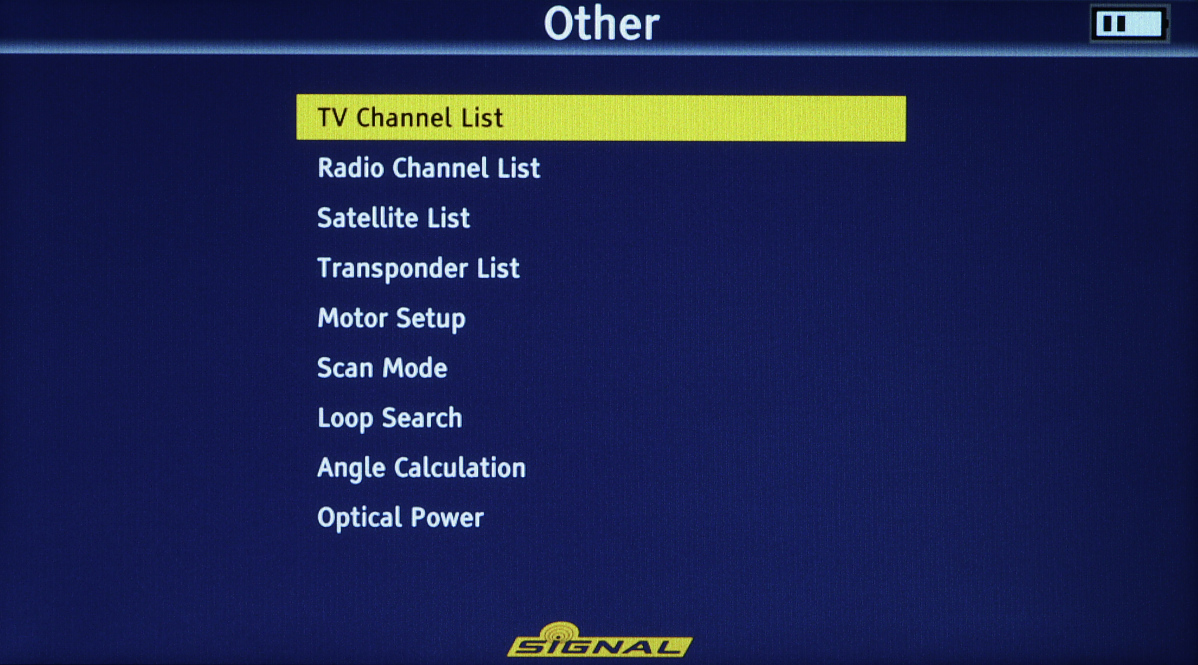

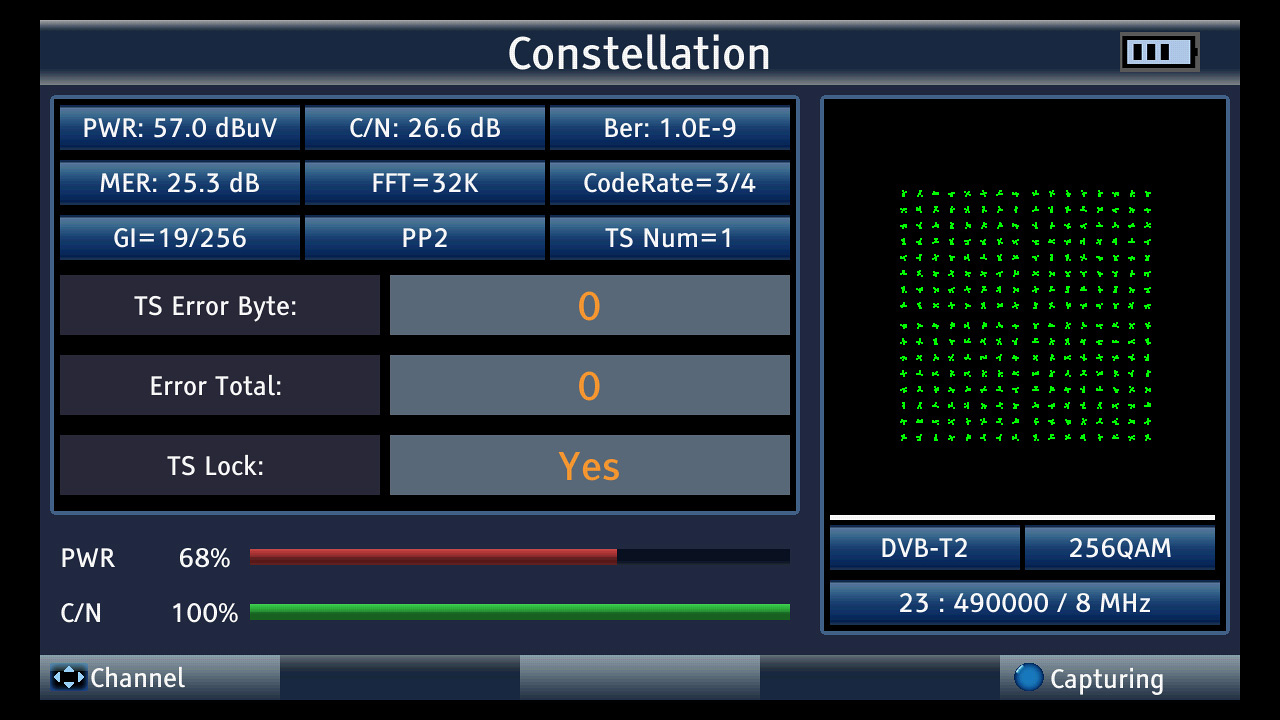

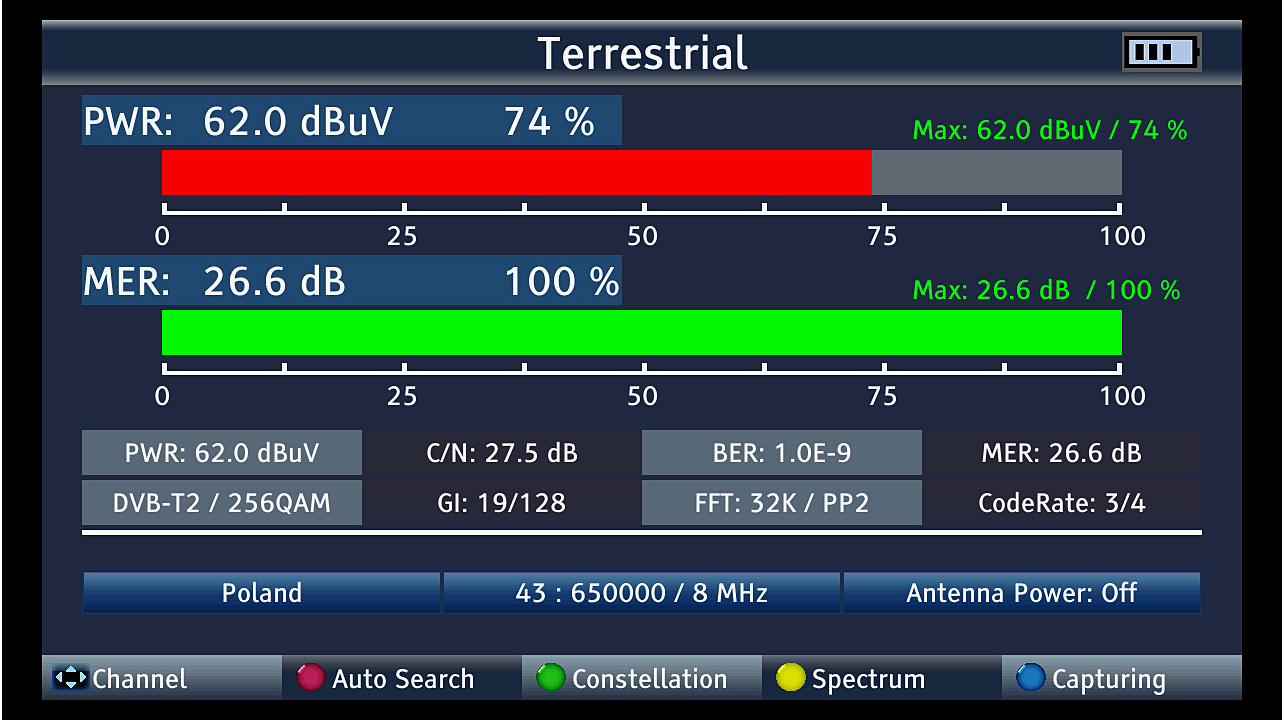

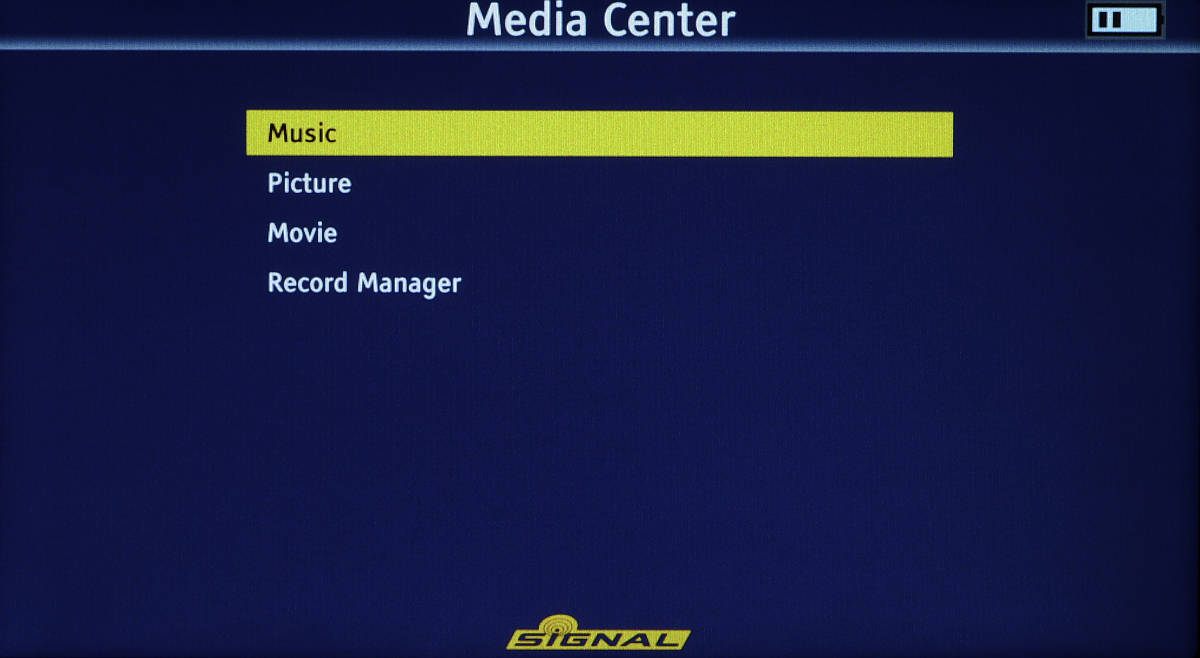

Main features:	7 " LCD display - 1280 x 720 px Measurement of DVB-T/T2/C, DVB-S/S2 @ MPEG2/MPEG4 signals Built-in DVB-S/S2, DVB-T/T2/C receiver allowing constant preview of the set channel Built-in MPEG-2 / H.264 / H.265 video decoder Calculation of azimuth and elevation angle Constellation diagram Analysis of the spectrum for the whole frequency band Signal measurement expressed in dBμV, C/N, BER, MER Measurement of signal strength and quality Percent indication of signal quality Built-in optical power meter - Optical wavelength : 850,1300, 1310, 1330, 1490, 1550, 1625 nm The USB connector for supporting multimedia files wma, mp3, mp4, avi, jpg, jpeg, bmp, img DisEqC automatic identification High measurement accuracy The set includes a practical case
Weight:	1.17 kg
Dimensions:	259 x 181 x 59 mm
Supported languages:	Polish, English, Czech, Danish, French, Greek, Spanish, Dutch, German, Slovenian, Portuguese, Russian, Turkish, Hungarian, Italian
Manufacturer / Brand:	SIGNAL
Guarantee:	2 years
