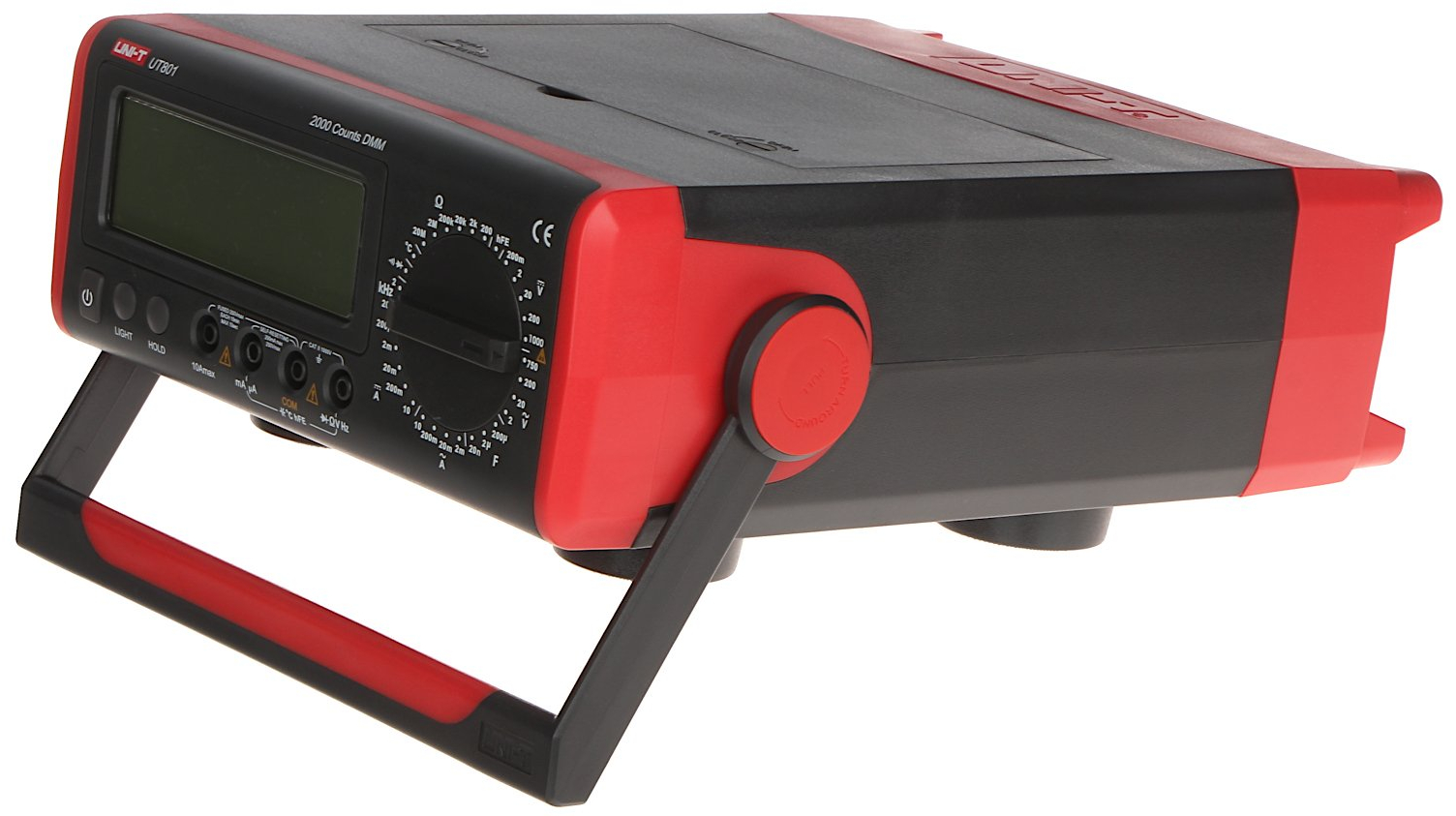

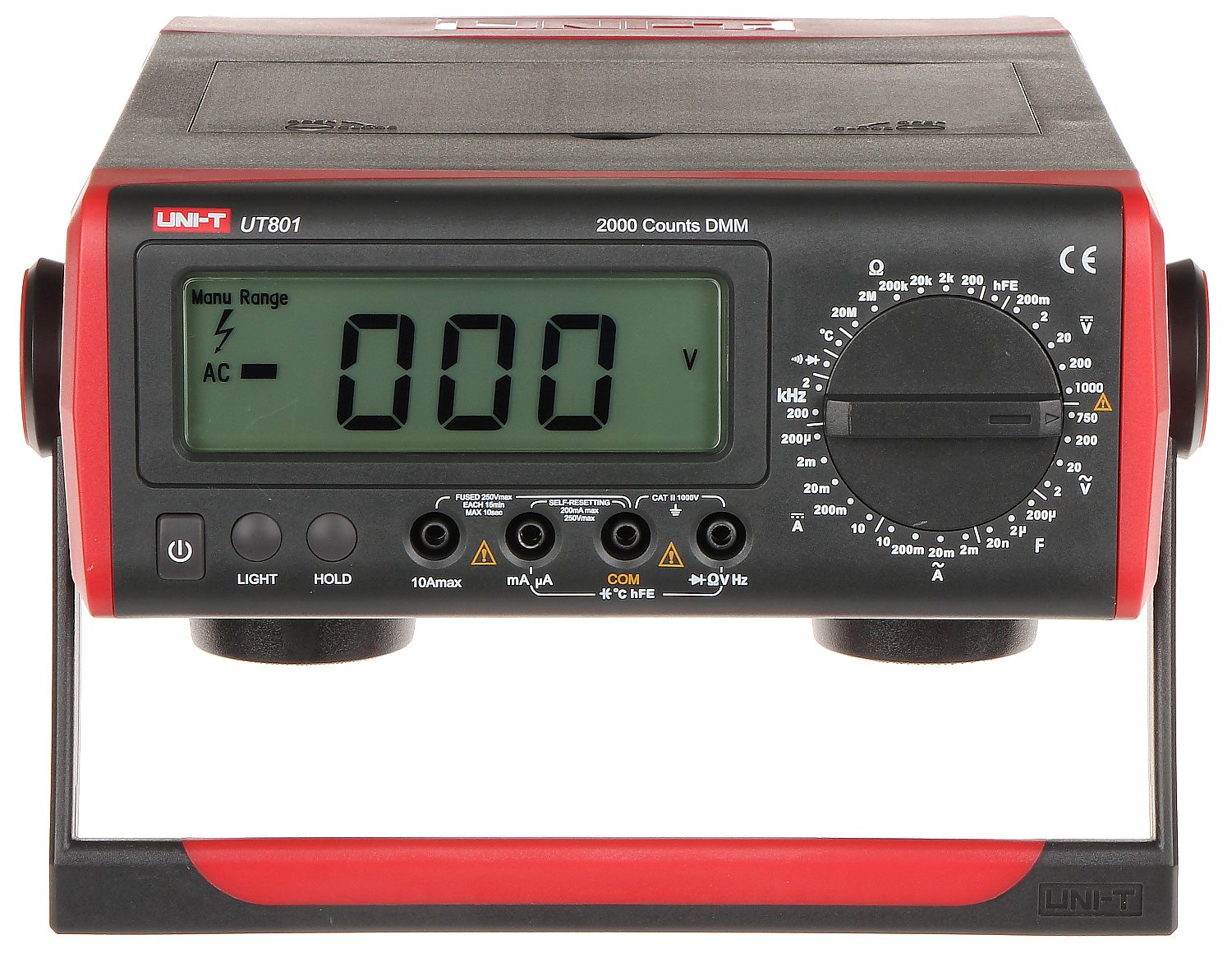

LABORATORY METER UT-801 UNI-T

€121.70

(Включая налог 21%)

Задать вопрос

КОД: UT-801

Доступность: 3 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

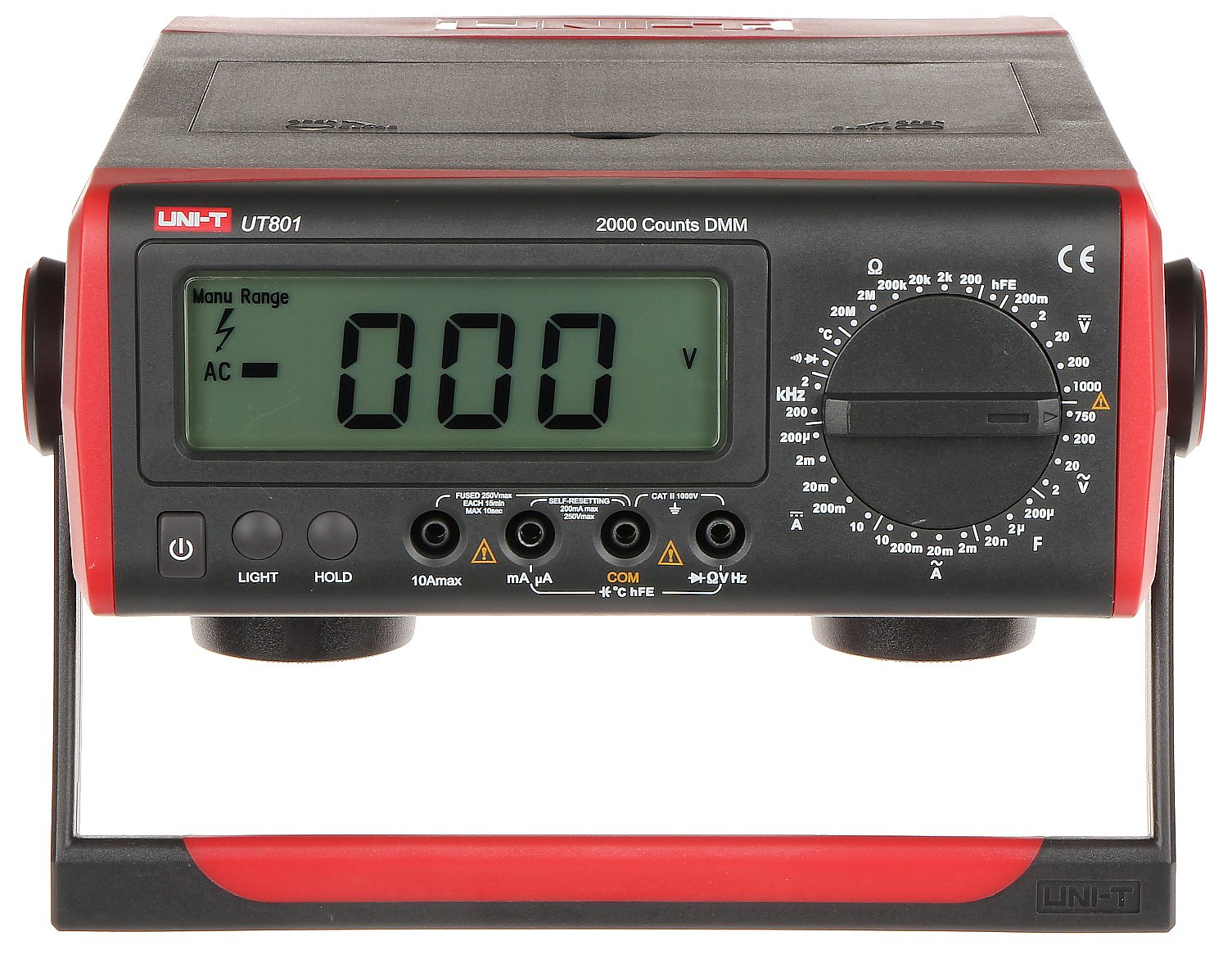

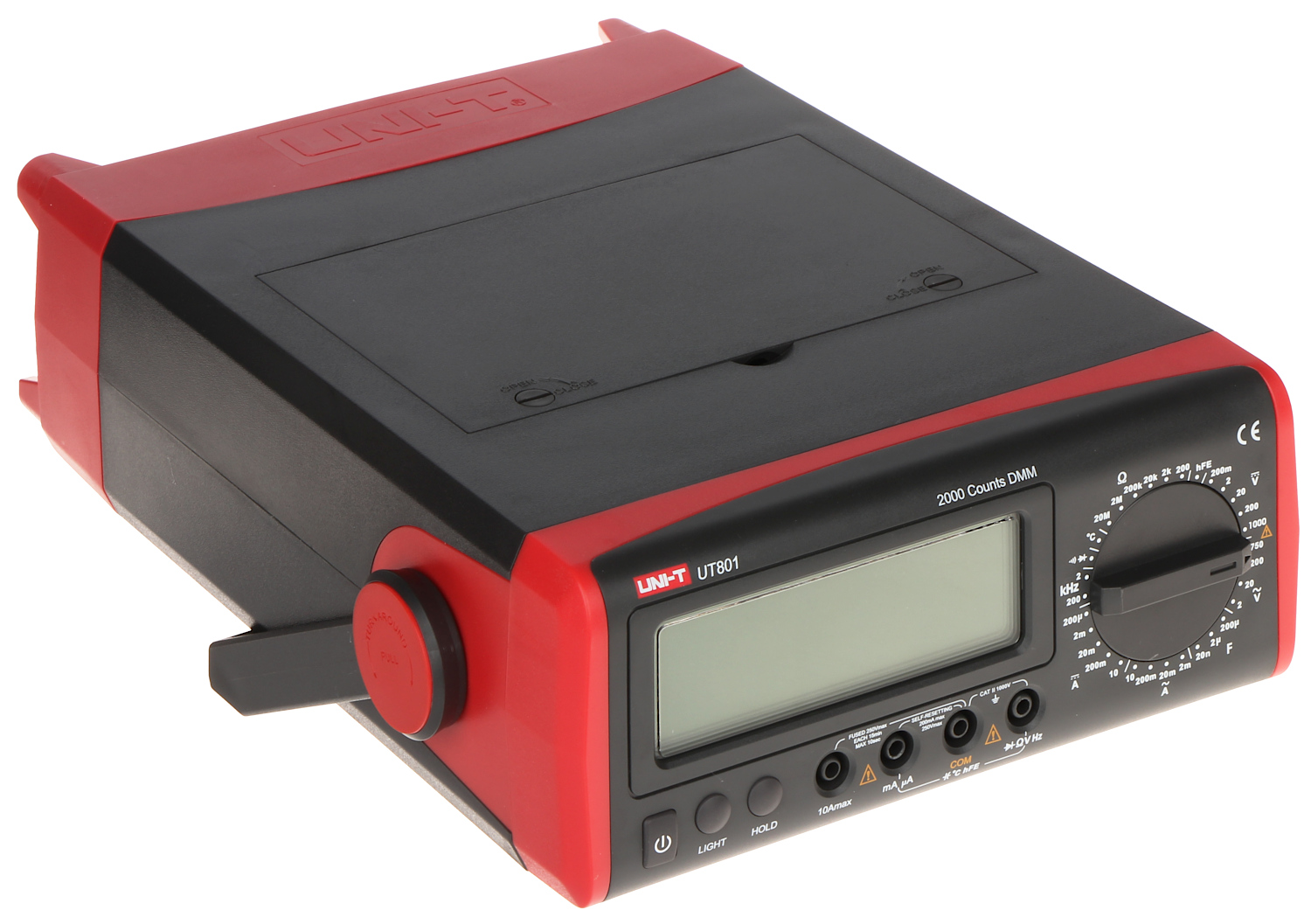

The UT-801 is a digital laboratory meter used to measure: voltage, current, resistance, capacity, frequency, temperature and to check the correct operation of diodes; Power supply: 6 x 1.5V, type R14/LR14 battery, 9 V DC ;

DC voltage measurement:	200 mV ± (0.5% + 2) @ 0.1 mV, 2 V ± (0.5% + 2) @ 1 mV, 20 V ± (0.5% + 2) @ 10 mV, 200 V ± (0.5% + 2) @ 100 mV, 1000 V ± (0.8% + 3) @ 1 V
AC voltage measurement:	2 V ± (0.8% + 3) @ 1 mV, 20 V ± (1.0% + 4) @ 10 mV, 200 V ± (1.0% + 4) @ 100 mV, 1000 V ± (1.0% + 4) @ 1 V
DC current measurement:	200 µA ± (0.8% + 2) @ 0.1 µA, 2 mA ± (0.8% + 2) @ 0.001 mA, 20 mA ± (0.8% + 2) @ 0.01 mA, 200 mA ± (0.8% + 2) @ 0.1 mA, 10 A ± (2.0% + 4) @ 0.01 A
AC current measurement:	2 mA ± (1.0% + 3) @ 0.001 mA, 20 mA ± (1.0% + 3) @ 0.01 mA, 200 mA ± (1.0% + 3) @ 0.1 mA, 10 A ± (2.5% + 5) @ 0.01 A
Resistance measurement:	200 Ω ± (0.8% + 3) @ 0.1 Ω, 2 kΩ ± (0.8% + 3) @ 1 Ω, 20 kΩ ± (0.8% + 3) @ 10 Ω, 200 kΩ ± (0.8% + 3) @ 100 Ω, 2 MΩ ± (0.8% + 3) @ 1 kΩ, 20 MΩ ± (1.2% + 5) @ 10 kΩ
Capacitance measurement:	20 nF ± (4% + 3) @ 0.01 nF, 2 µF ± (4% + 3) @ 0.001 µF, 200 µF ± (5% + 5) @ 0.1 µF
Inductance measurement:
Frequency measurement:	2 kHz ± (1.5% + 5) @ 1 Hz, 200 MHz ± (1.5% + 5) @ 100 Hz
Temperature measurement:	-40 °C ... -20 °C ± (8% + 5) @ 1 °C, -20 °C ... 0 °C ± (1.2% + 4) @ 1 °C, 0 ... 100 °C ± (1.2% + 3) @ 1 °C, 100 ... 1000 °C ± (2.5% + 2) @ 1 °C
Automatic change of measuring ranges:

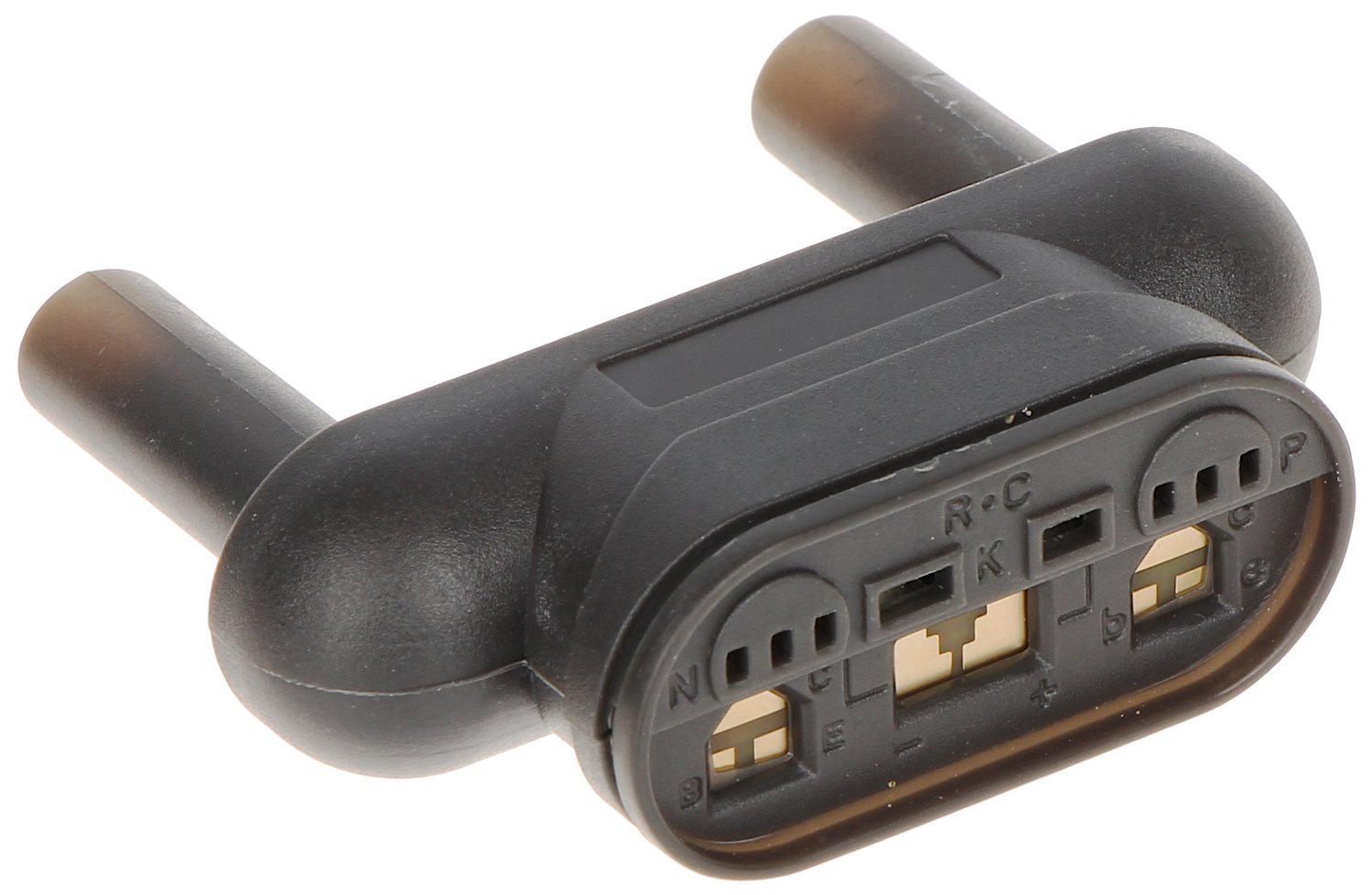

hFE:
Diode test:
Sound signal of the continuity test:
Checking TTL logic states:
RS-232:
USB:
Main features:	Large, readable LCD display with backlight Hold - stopping the meter reading Aesthetic and solid construction

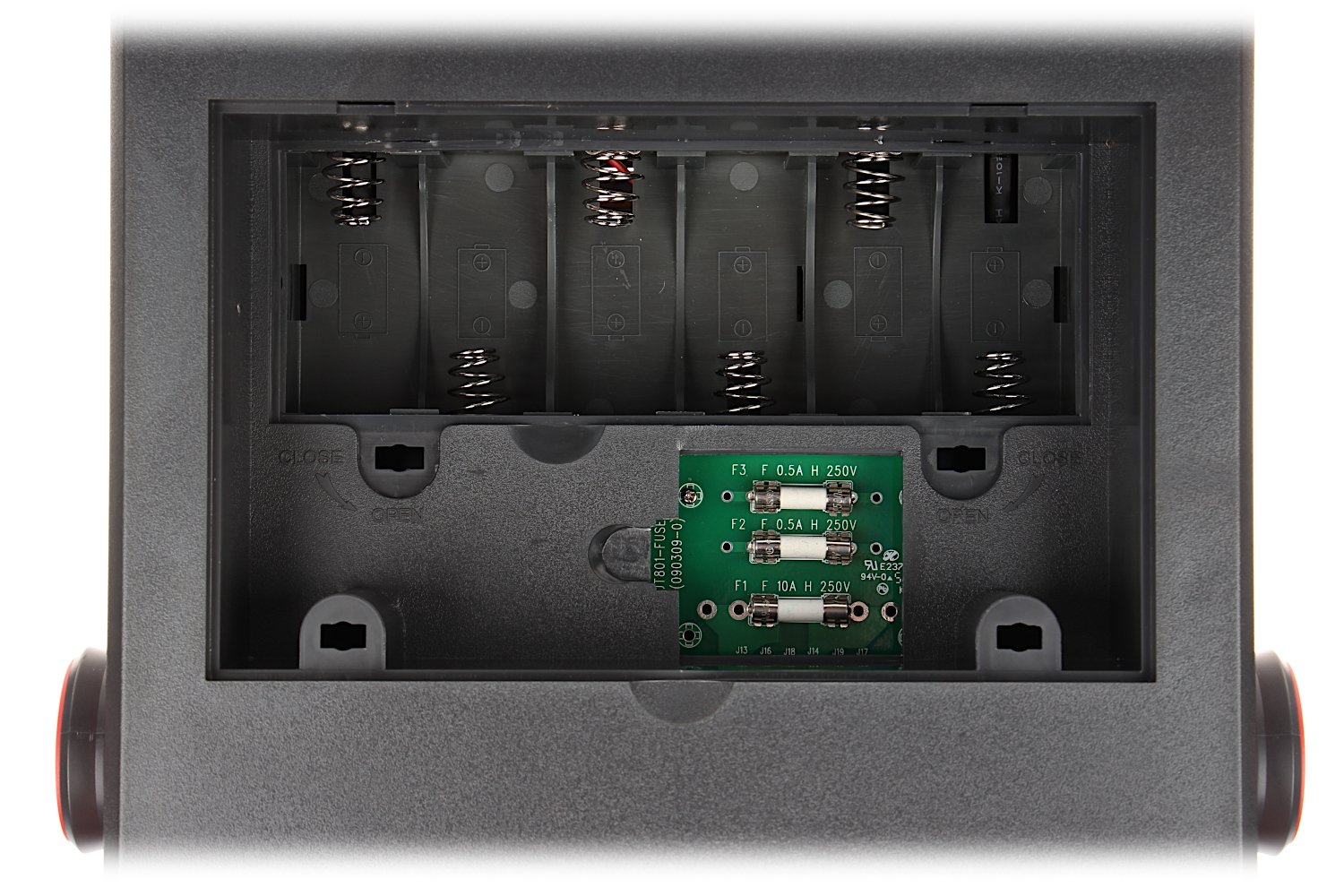

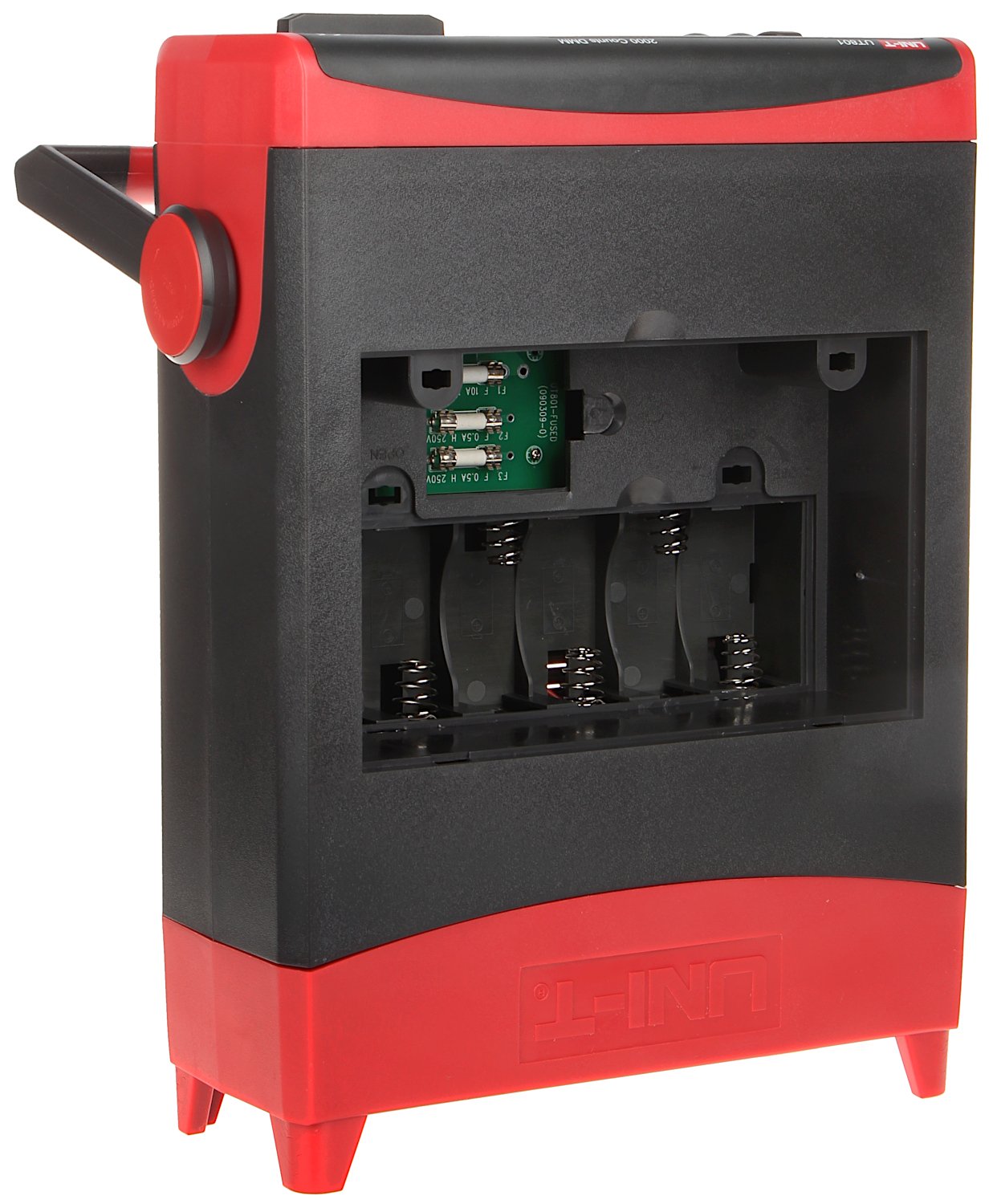

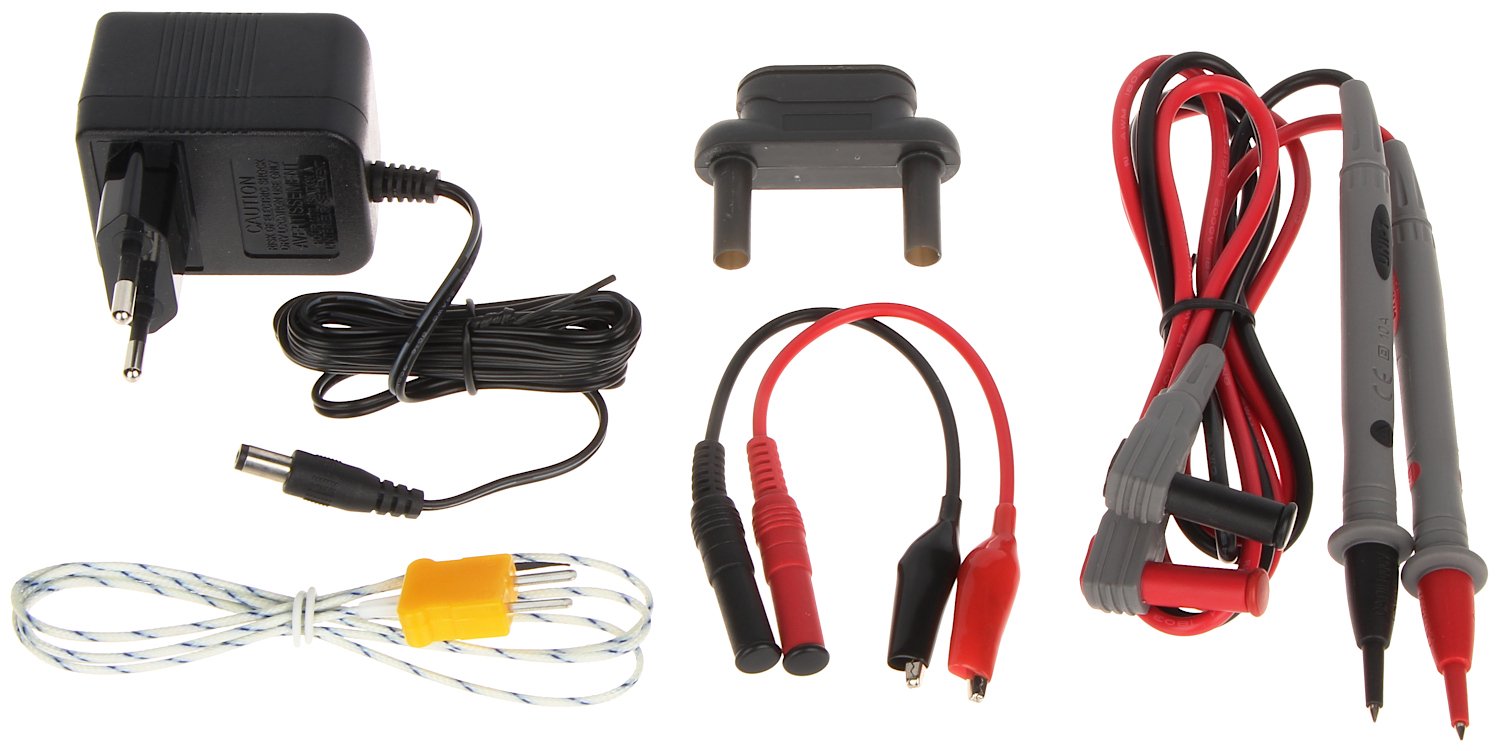

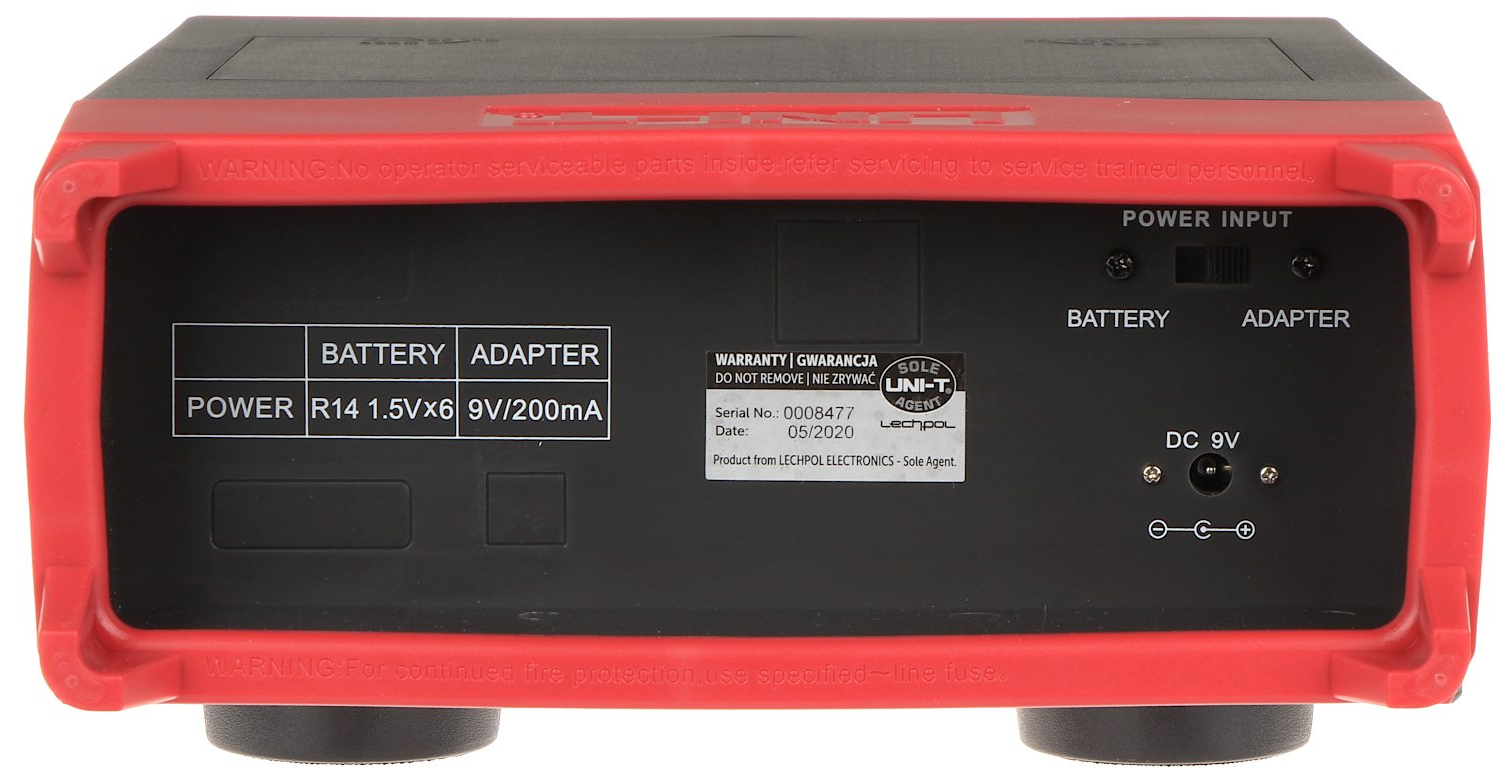

Power supply:	6 x 1.5V, type R14/LR14 battery (not included), 9 V DC / 200 mA (power adapter included)
Weight:	1.61 kg
Dimensions:	306 x 243 x 107 mm
Manufacturer / Brand:	UNI-T
Guarantee:	2 years
