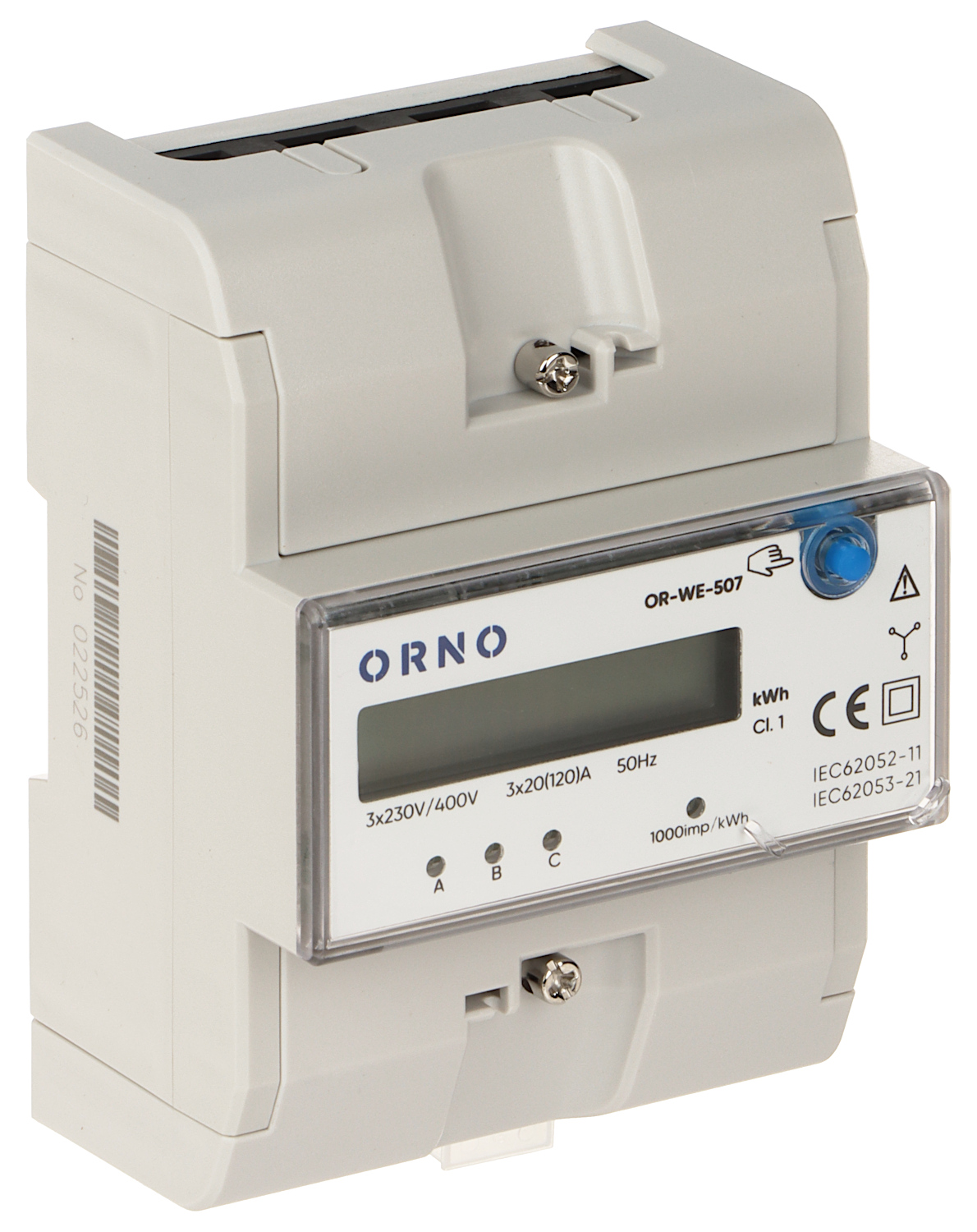

Device type: Electric Energy Meter, Three-phase ; Rated voltage: 3 x 230 (400) V AC, 50 Hz ; Measurement unit: kWh ; LCD display: 6+1 digits ; Measuring accuracy: class I ; Impulse frequency: 1000 imp/kWh ; Connectors type: screw terminals ; Housing: DIN, TS-35 rail mounting ;
| Device type: | Electric Energy Meter, Three-phase |
| Rated voltage: | 3 x 230 (400) V AC, 50 Hz |
| Measurement unit: | kWh |
| Current: | 20 A - (nominal) 120 A - Max. current |
| LCD display: | 6+1 digits ( 000000.0 kWh ) |
| Measuring accuracy: | class I |
| Impulse frequency: | 1000 imp/kWh |
| RS-485 ports: |  |
| Connectors type: | screw terminals max. 16 mm² |
| Main features: | |
| Housing: | Plastic DIN, TS-35 rail mounting |
| "Index of Protection": | IP20 |
| Operation temp: | -20 °C ... 55 °C |
| Width in 17.5 mm modules: | 5 |
| Weight: | 0.609 kg |
| Dimensions: | 90 x 130 x 70 mm |
| Guarantee: | 2 years |
Brand:
ORNO
