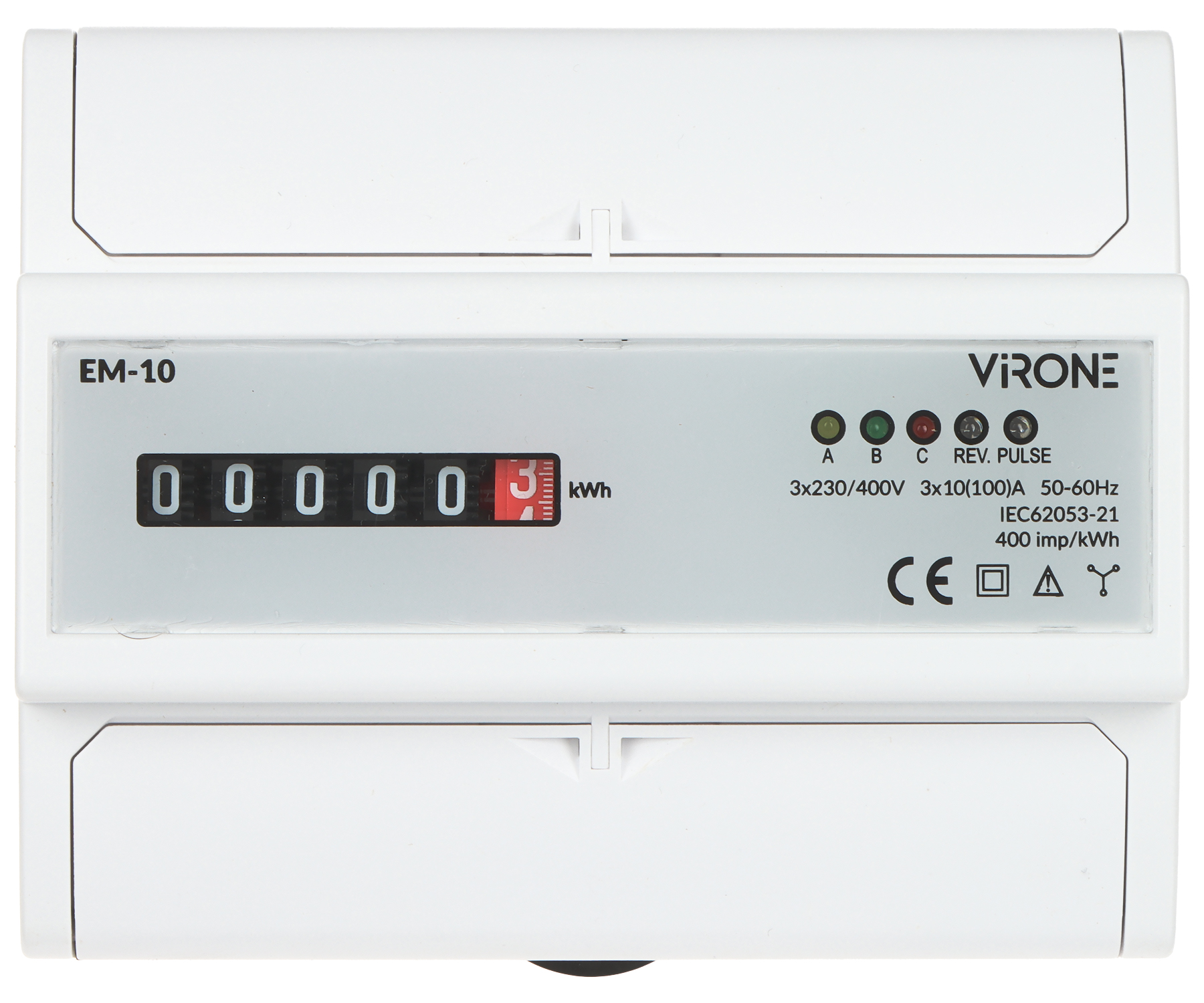

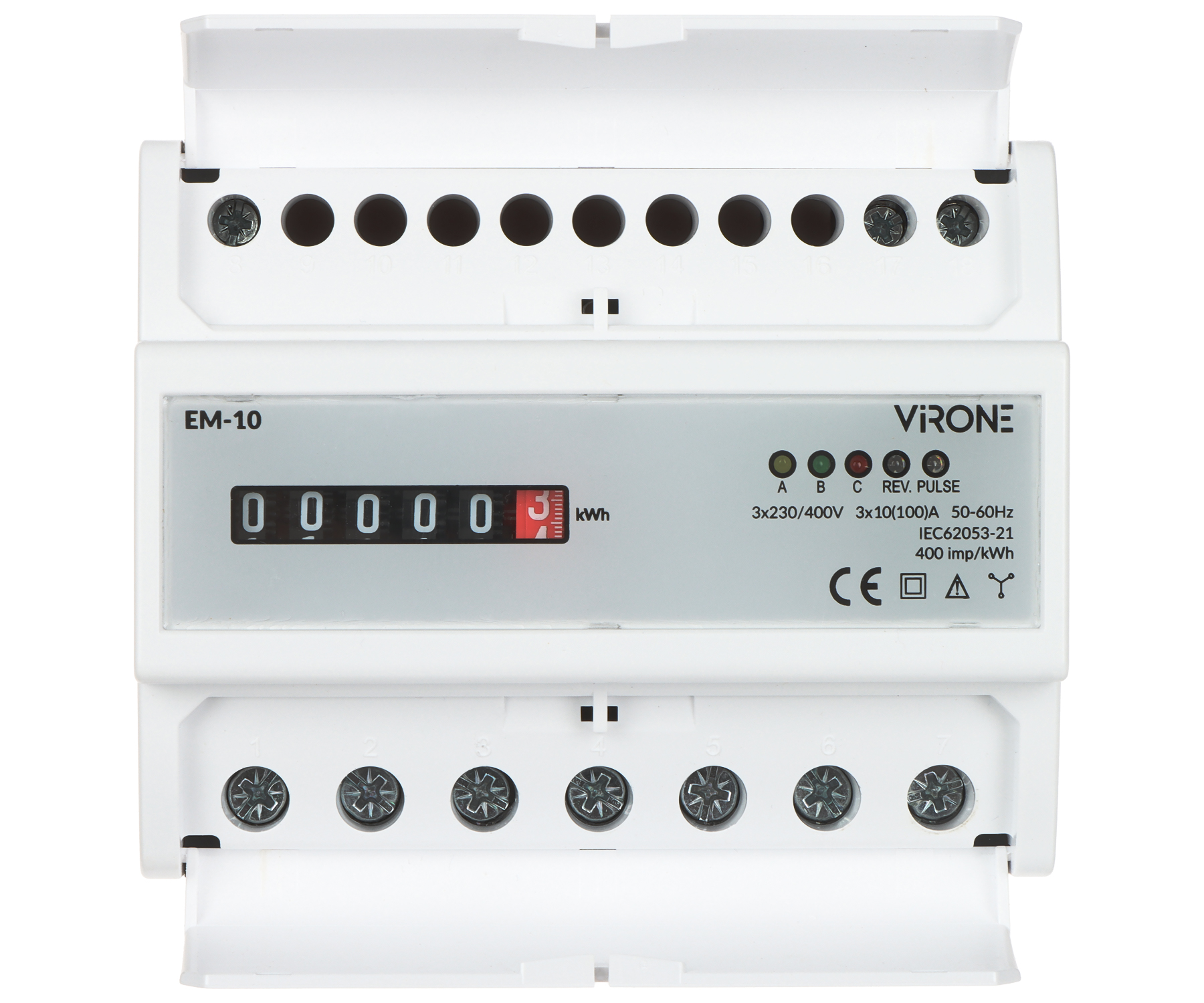

ELECTRIC ENERGY METER EM-10 THREE-PHASE, ANALOG
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device type: Electric Energy Meter, Three-phase, Analog ; Rated voltage: 3 x 230 (400) V AC, 50 Hz ; Measurement unit: kWh ; LCD display: 5+1 digits ; Measuring accuracy: Class B ; Impulse frequency: 400 imp/kWh ; Connectors type: screw terminals ; Main features: Pulse output : S0-type, 400 imp/kWh ; Housing: DIN, TS-35 rail mounting ;
| Device type: | Electric Energy Meter, Three-phase, Analog |
| Rated voltage: | 3 x 230 (400) V AC, 50 Hz |
| Measurement unit: | kWh |
| Current: | 3 x 20 A - (nominal) 3 x 100 A - Max. current |
| LCD display: | 5+1 digits ( 00000.0 kWh ) |
| Measuring accuracy: | Class B |
| Impulse frequency: | 400 imp/kWh |
| RS-485 ports: |  |
| Connectors type: | screw terminals |
| Main features: | |
| Housing: | Plastic DIN, TS-35 rail mounting |
| "Index of Protection": | IP20 |
| Operation temp: | -25 °C ... 55 °C |
| Width in 17.5 mm modules: | 7 |
| Weight: | 0.42 kg |
| Dimensions: | 123 x 100 x 65 mm |
| Guarantee: | 2 years |
Brand:
Virone
