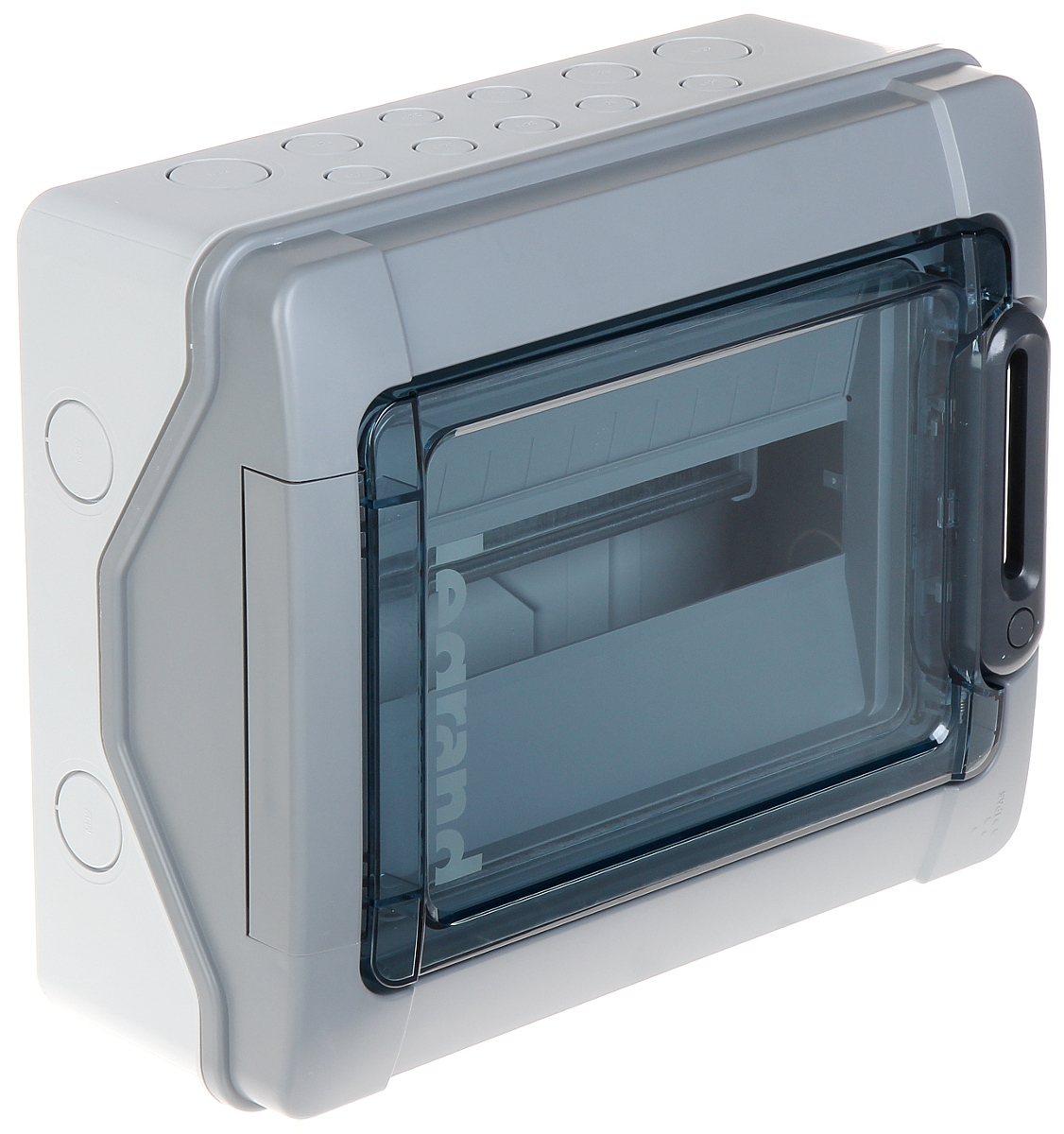

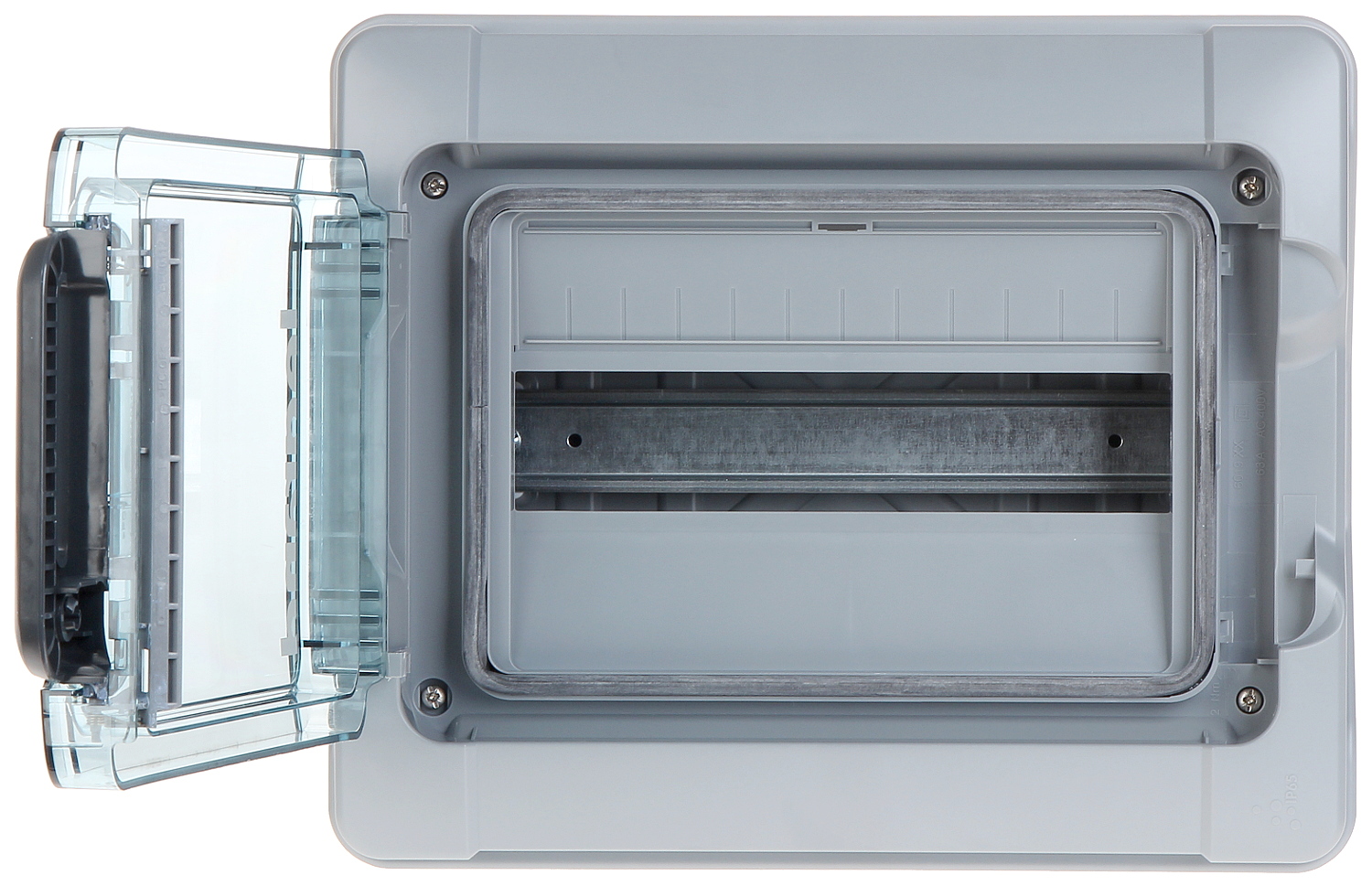

Number of mounted modules: 12 x 1 row ; Transparent door; Main features: Max. current : 63 A ; "Index of Protection": IP65 ; IK rating: IK09 ; Dimensions: 340 x 282 x 141 mm ;

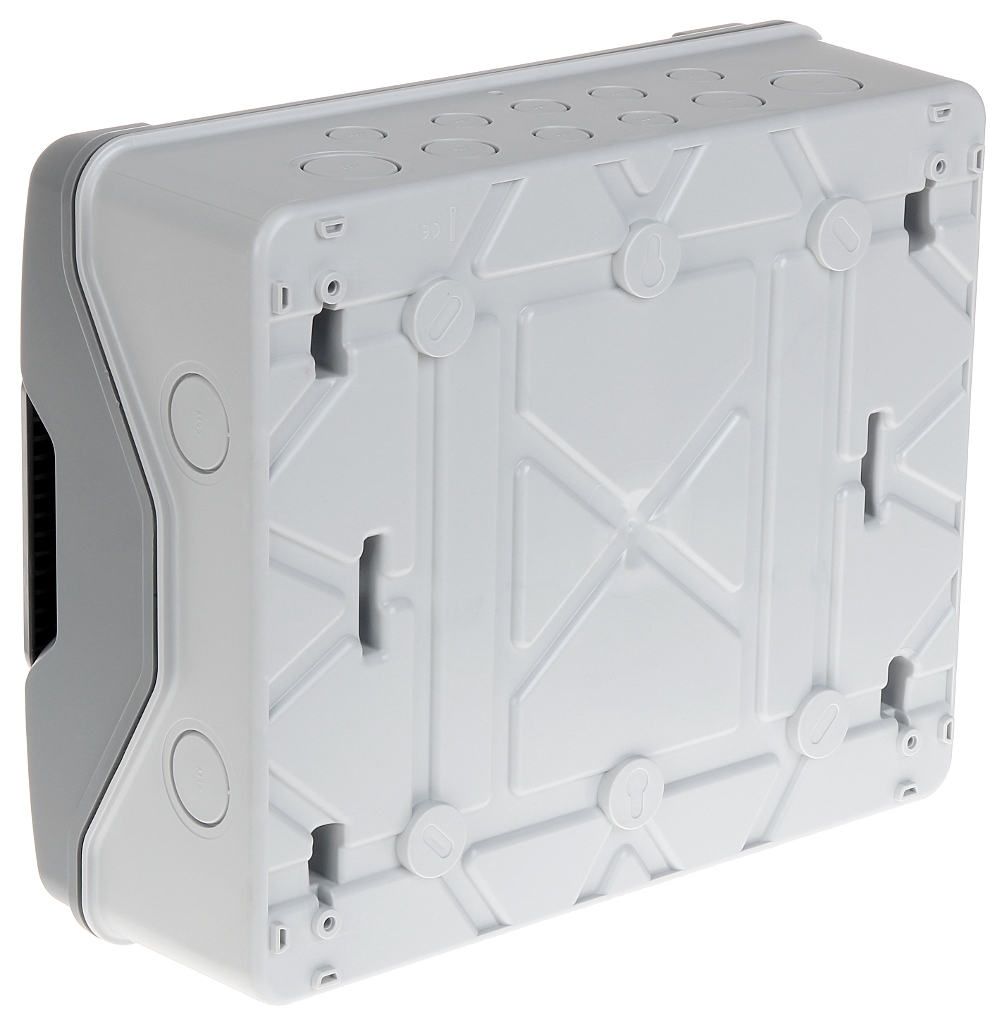

| Method of mounting: | Surface-mounted |
| Number of mounted modules: | 12 x 1 row |
| Spacing between TH 35 rails: |  |

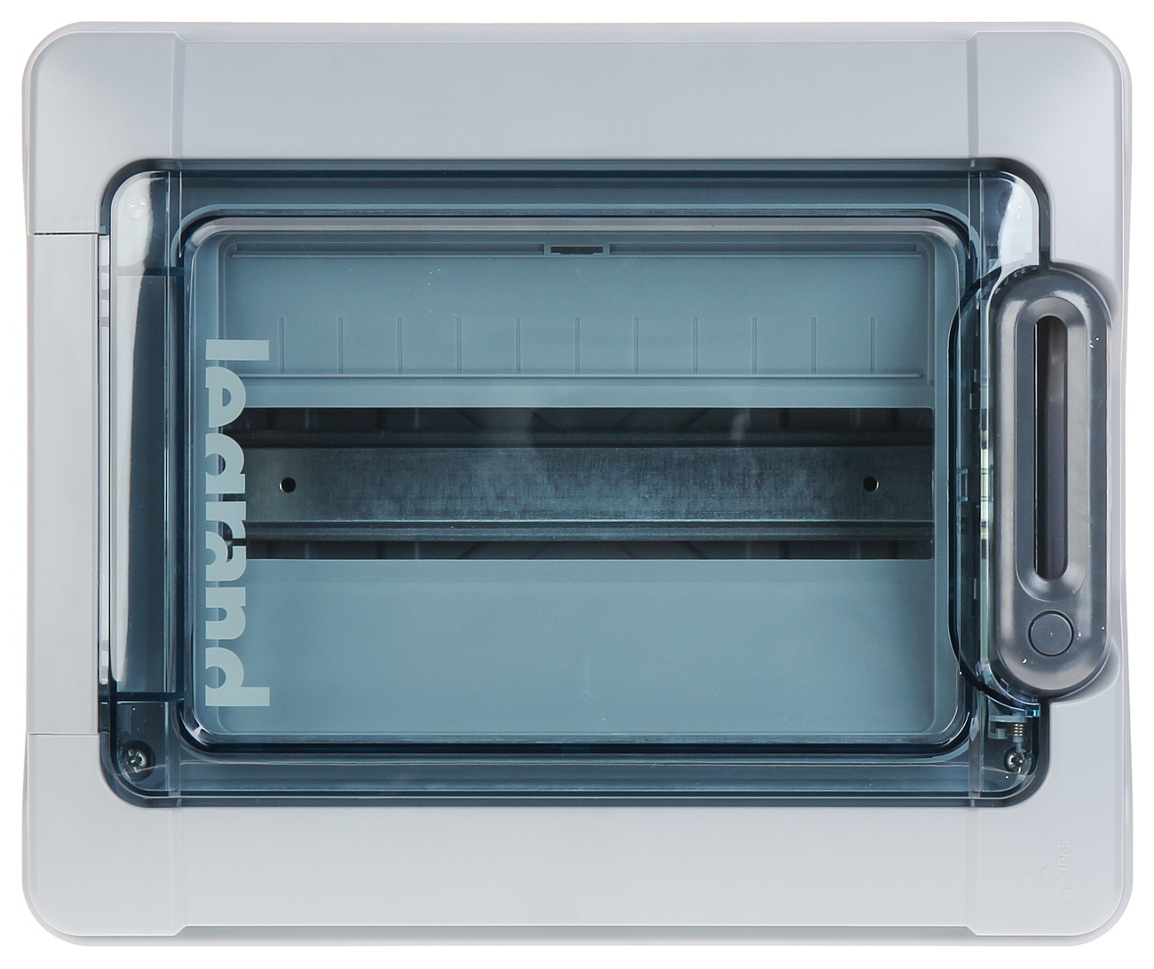

| Transparent door: |  |
| Main features: | |

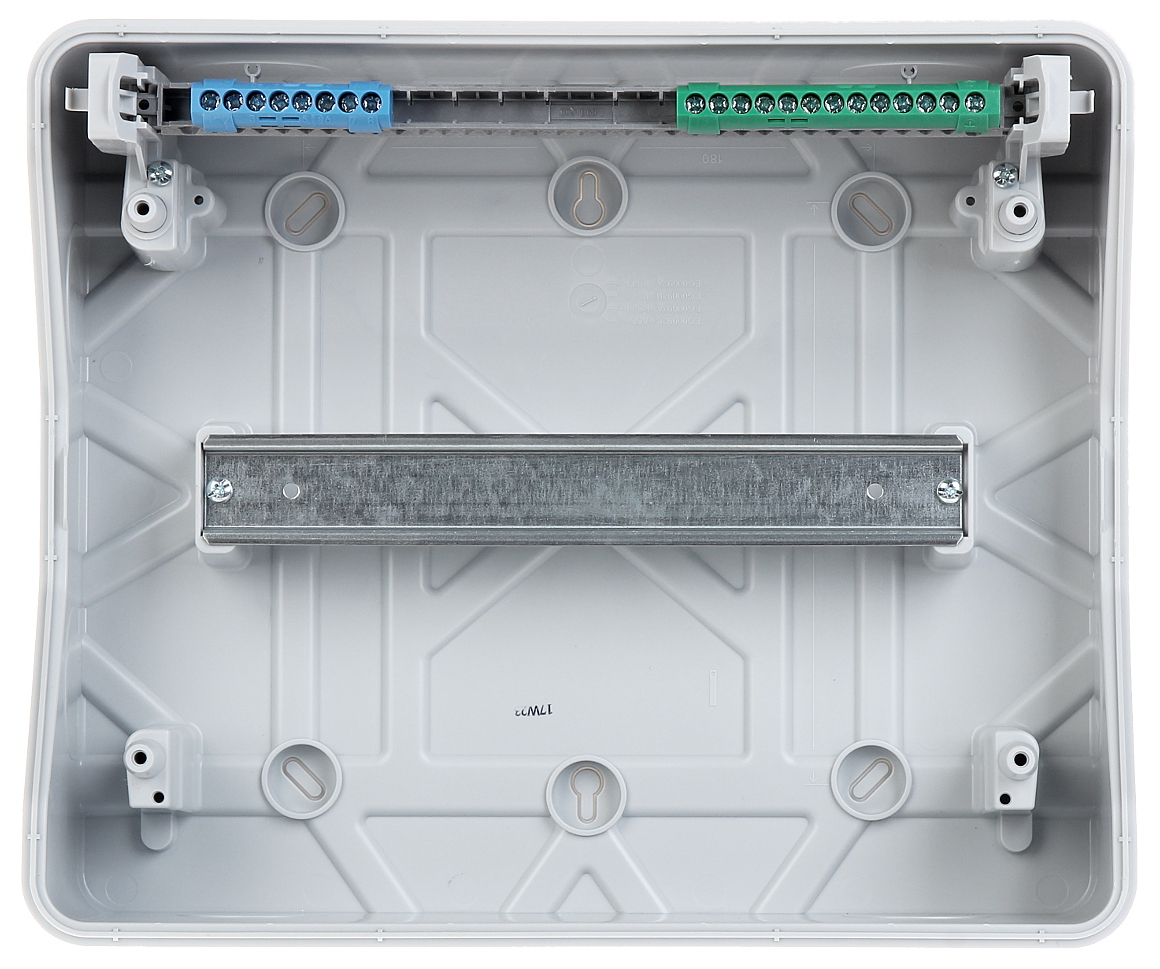

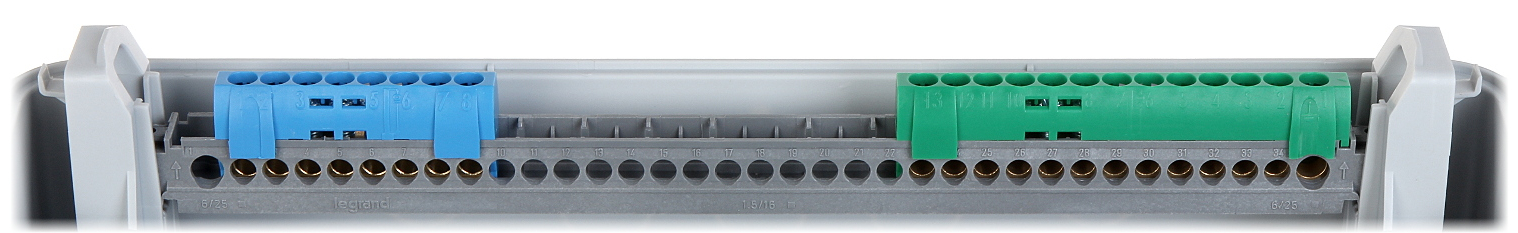

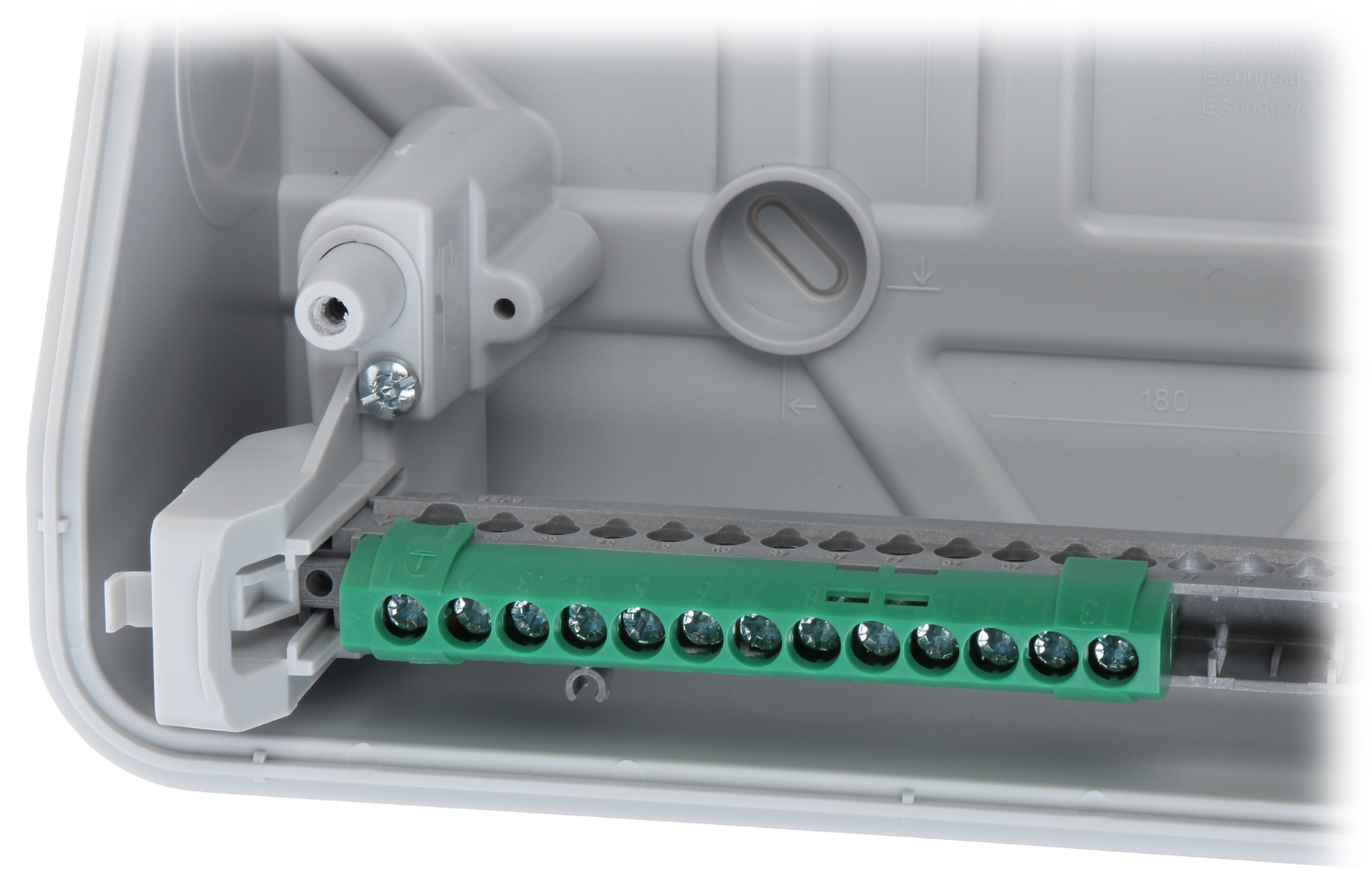

| Equipment: | 1 x ( 12 x 1.5 ... 16 mm² + 1 x 6 ... 25 mm² ) 1 x ( 8 x 1.5 ... 16 mm² ) |
| Material: | Self-extinguishing |
| Color: | Light gray |
| "Index of Protection": | IP65 |
| IK rating: | IK09 |
| Compliance with standards: | PN-EN 60439-3, IEC 60695-2-11, IEC 62262 |
| Operation temp: | -25 °C ... 40 °C |
| Weight: | 1.928 kg |

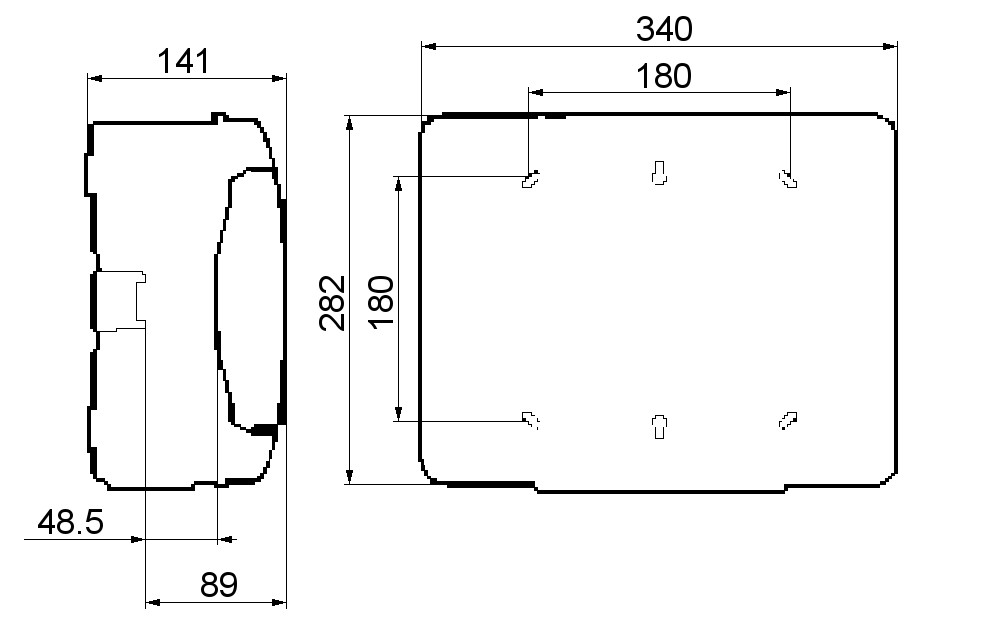

| Dimensions: | 340 x 282 x 141 mm |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
Brand:
Legrand
