Number of mounted modules: 24 x 3 rows ; Spacing between TH 35 rails: 150 mm ; Main features: Max. current : 160 A ; "Index of Protection": IP30 (without door) IP40 (with door) ; IK rating: IK04 (without door) IK07 (with door) ; Dimensions: 595 x 590 x 135 mm ;
| Method of mounting: | Surface-mounted |
| Number of mounted modules: | 24 x 3 rows |

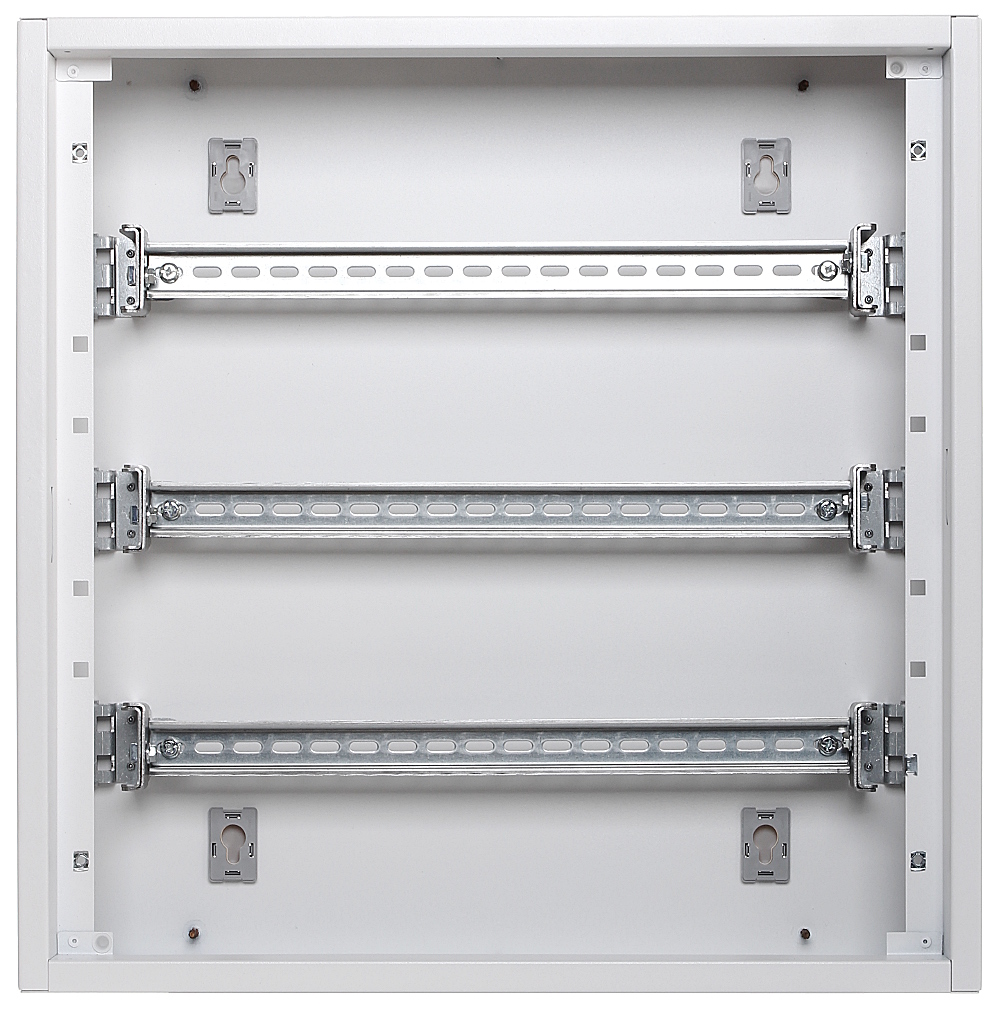

| Spacing between TH 35 rails: | 150 mm |
| Transparent door: | (not included) |
| Main features: | |

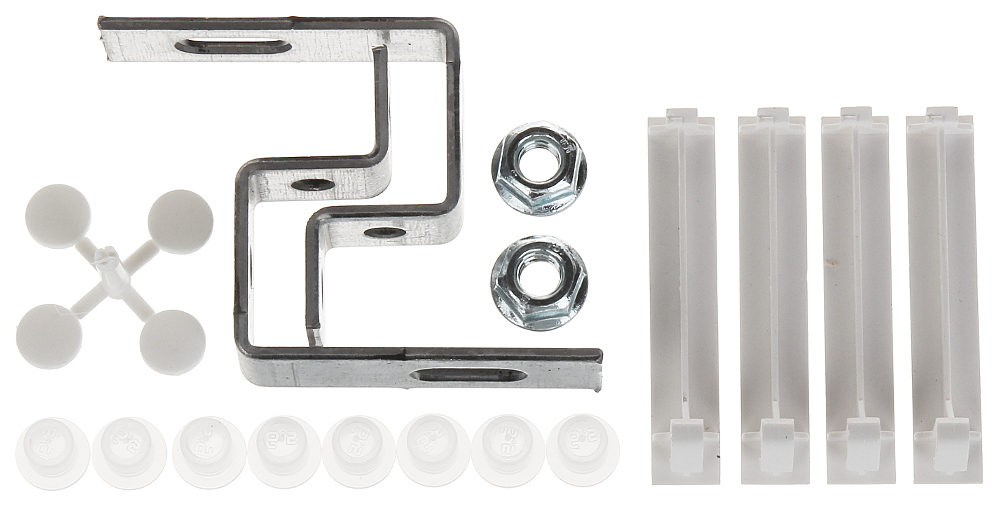

| Equipment: | Faceplates : 1 x 3R |
| Material: | Steel |
| Color: | White |
| "Index of Protection": | |
| IK rating: | |
| Compliance with standards: | IEC/EN 61439-1, IEC/EN 61439-3, IEC 60695-2-1 |
| Operation temp: | -5 °C ... 40 °C |
| Weight: | 11.30 kg |

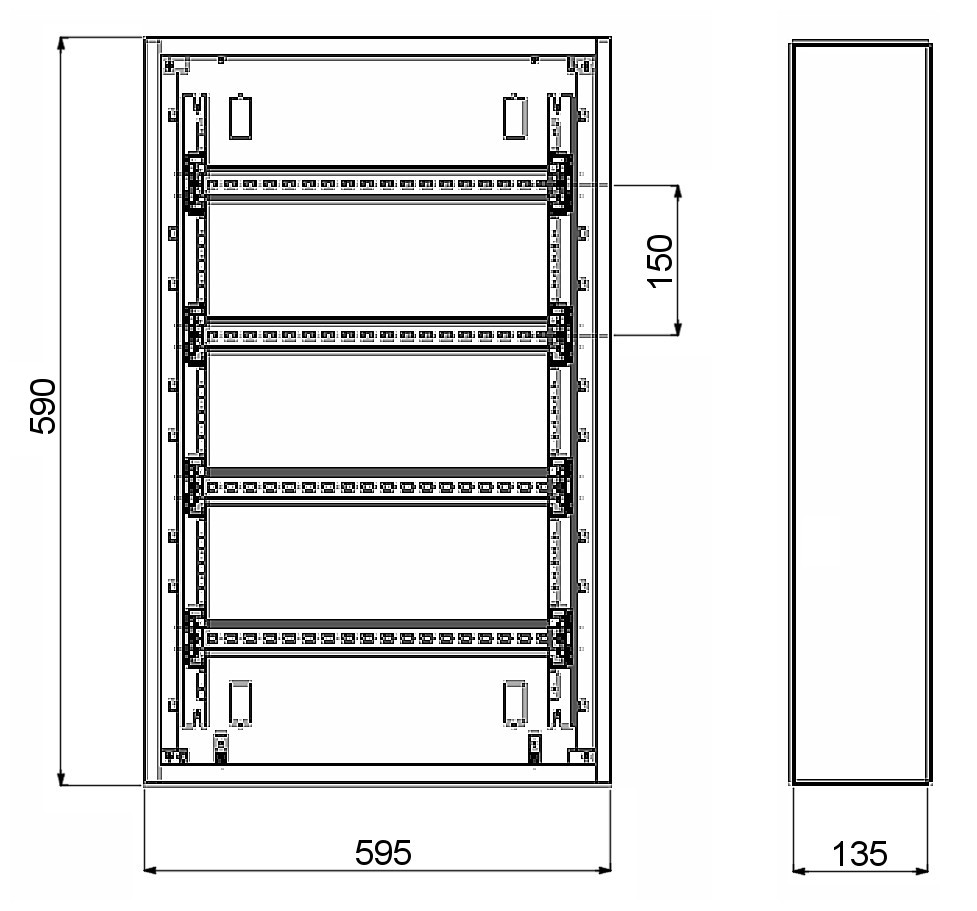

| Dimensions: | 595 x 590 x 135 mm |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
Brand:
Legrand
