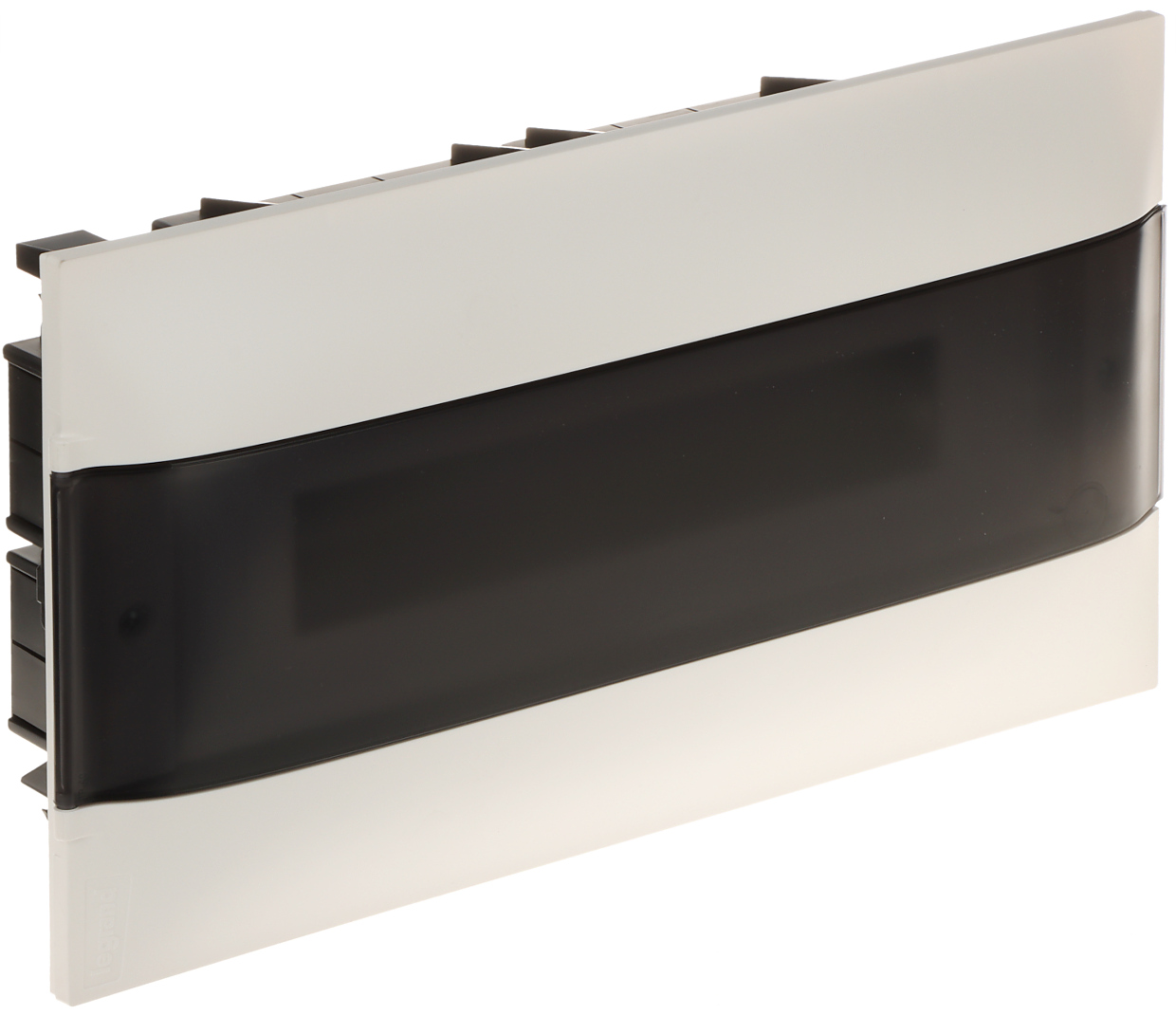

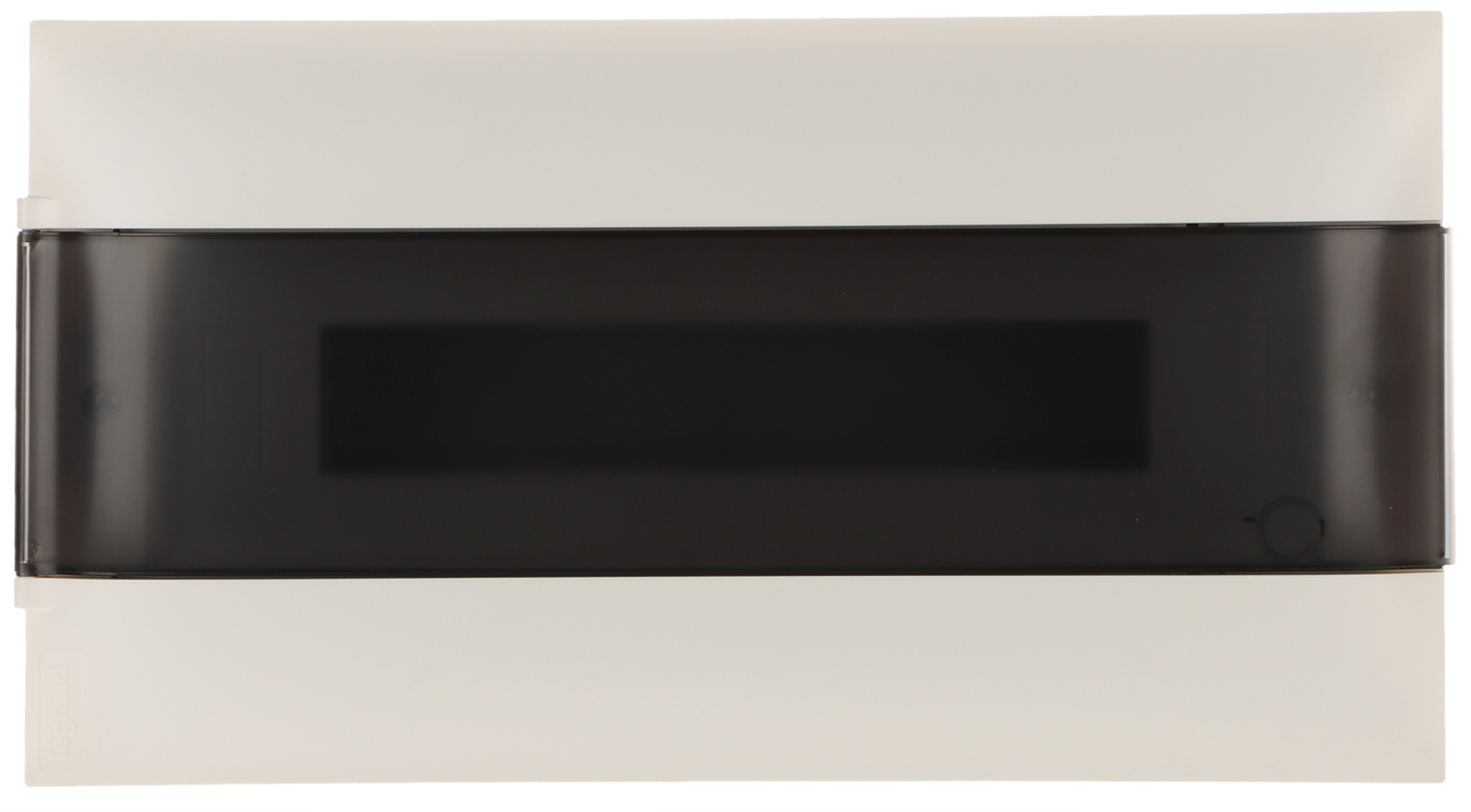

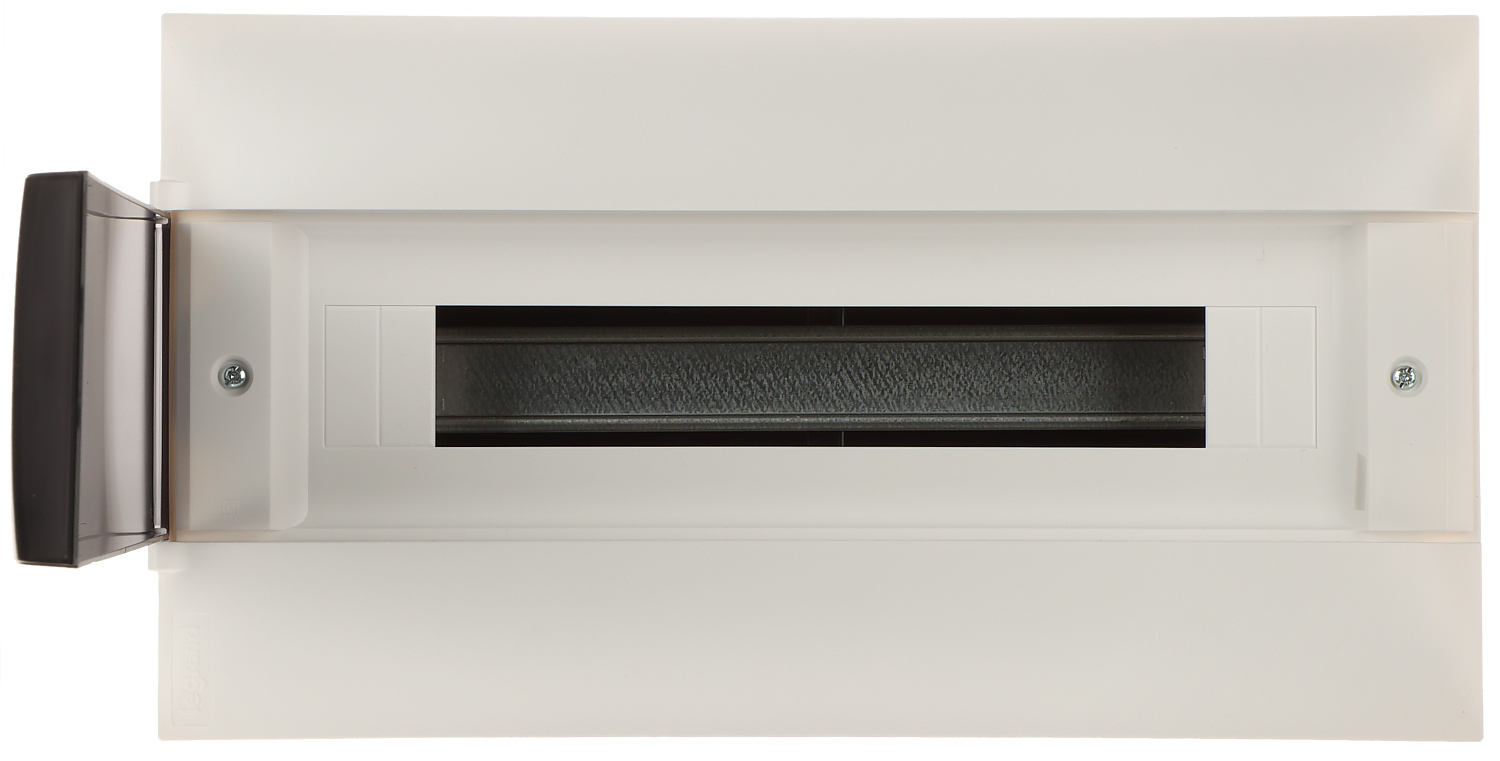

Number of mounted modules: 18 x 1 row ; Transparent door; Main features: Max. current : 63 A ; "Index of Protection": IP40 ; IK rating: IK07 ; Dimensions: 436 x 235 x 104 mm, 415 x 220 x 72 mm - flush-mounting box ;

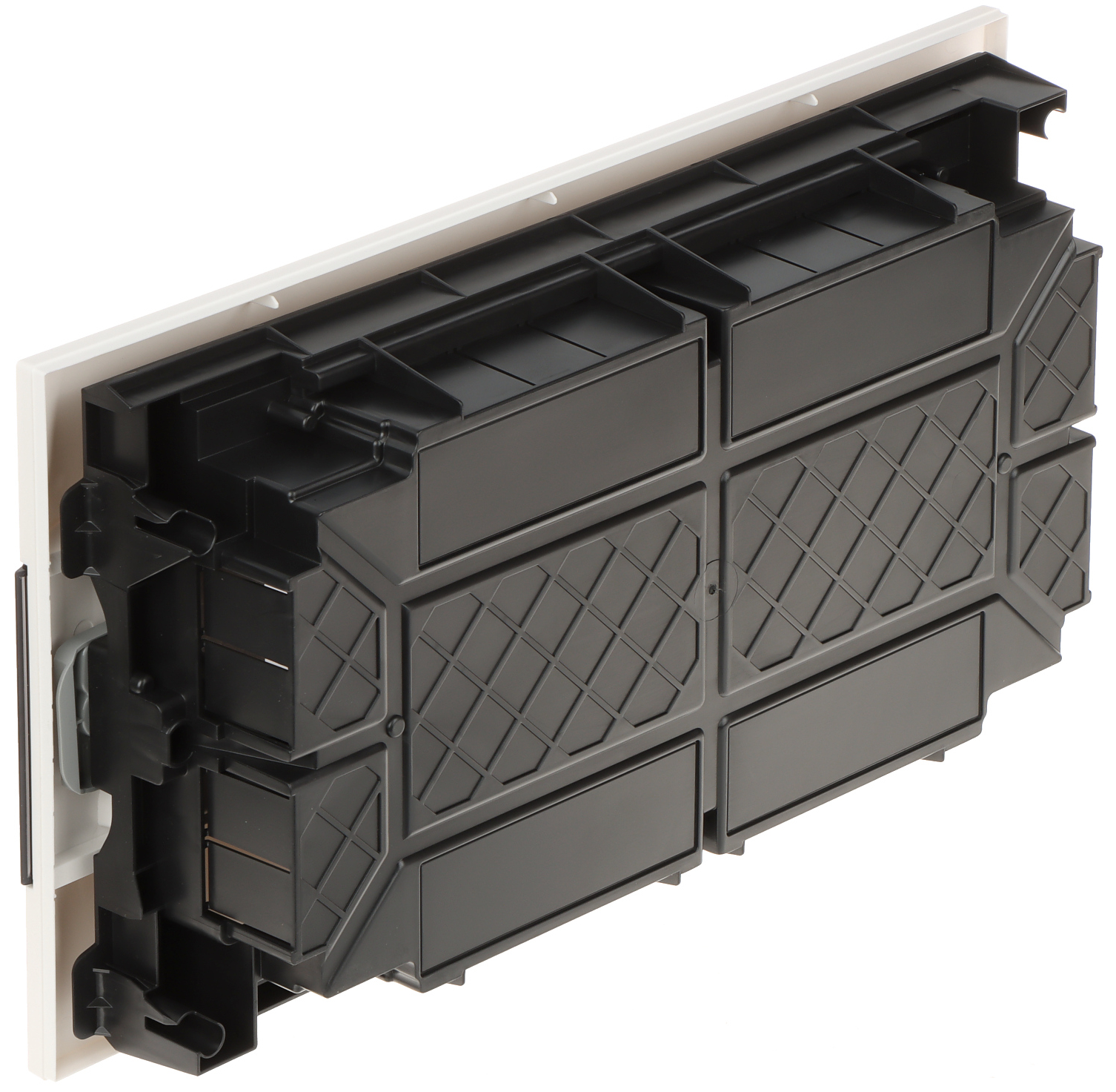

| Method of mounting: | Flush-mounted |
| Number of mounted modules: | 18 x 1 row, 17.5 mm |
| Spacing between TH 35 rails: |  |
| Transparent door: |  |
| Main features: | |

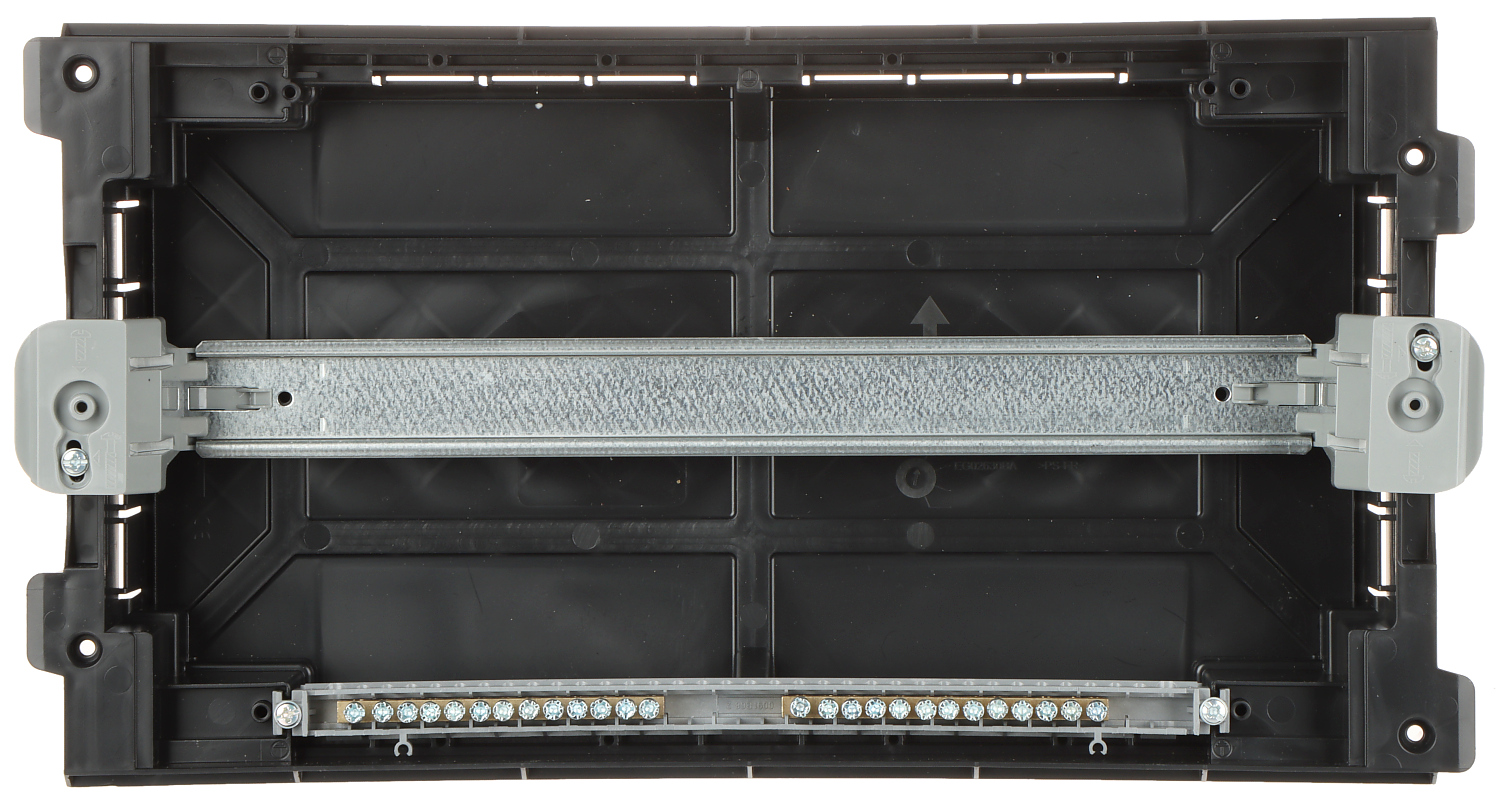

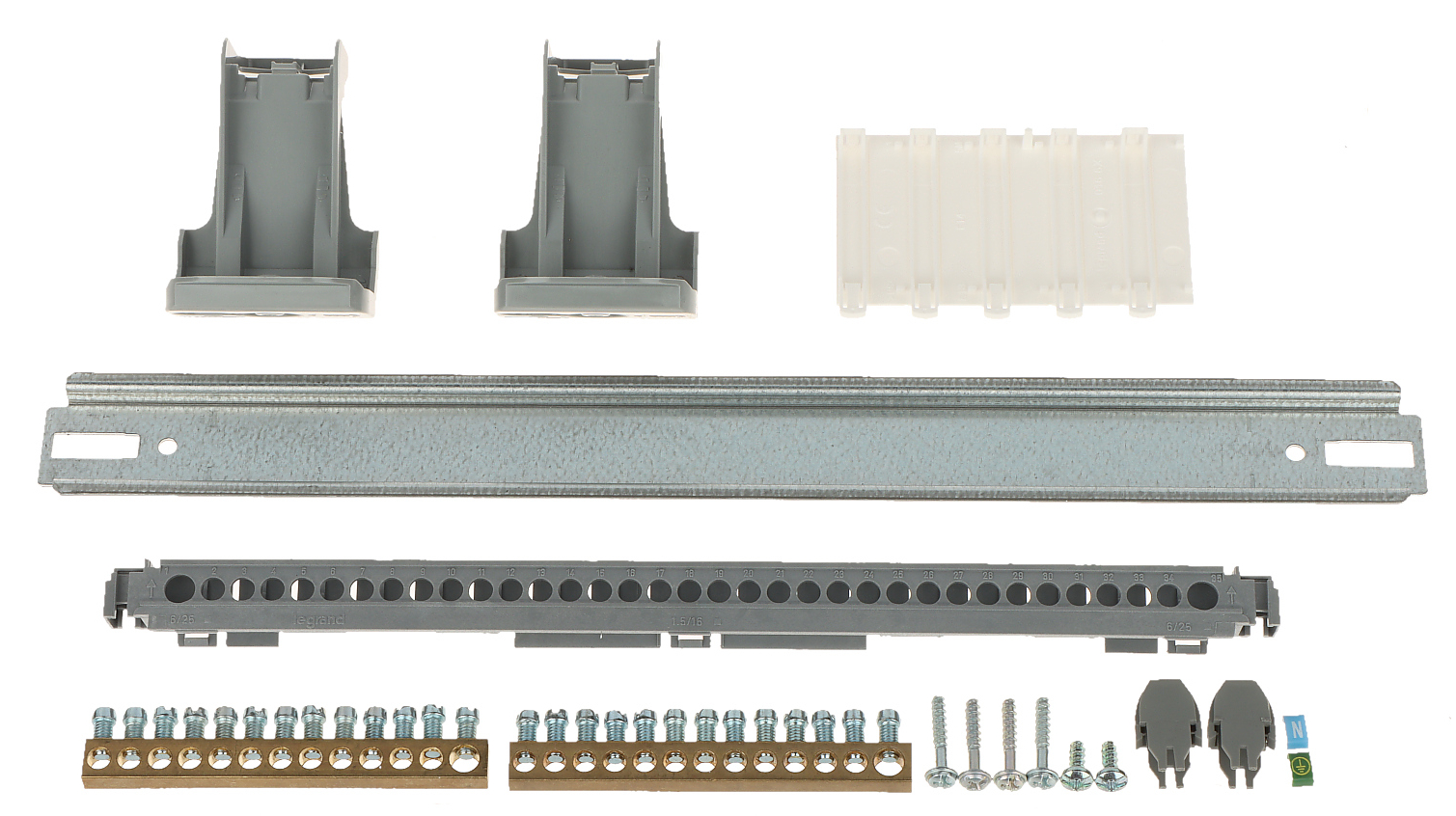

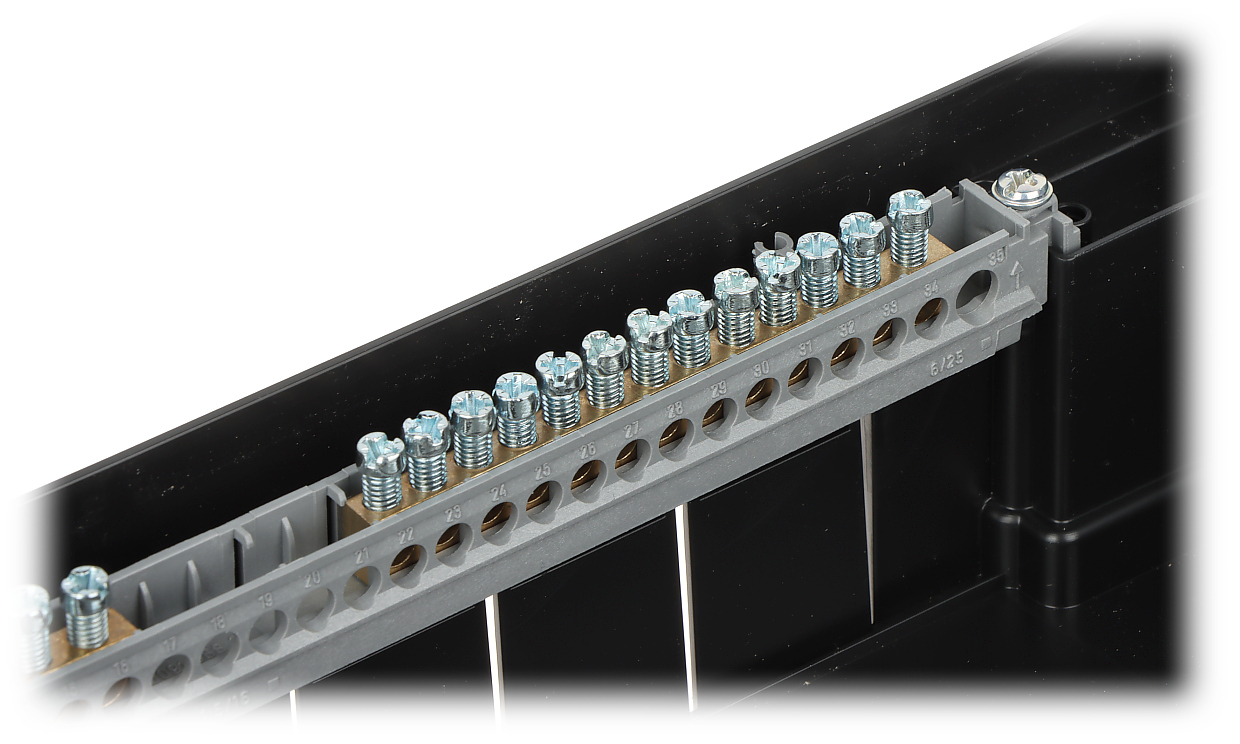

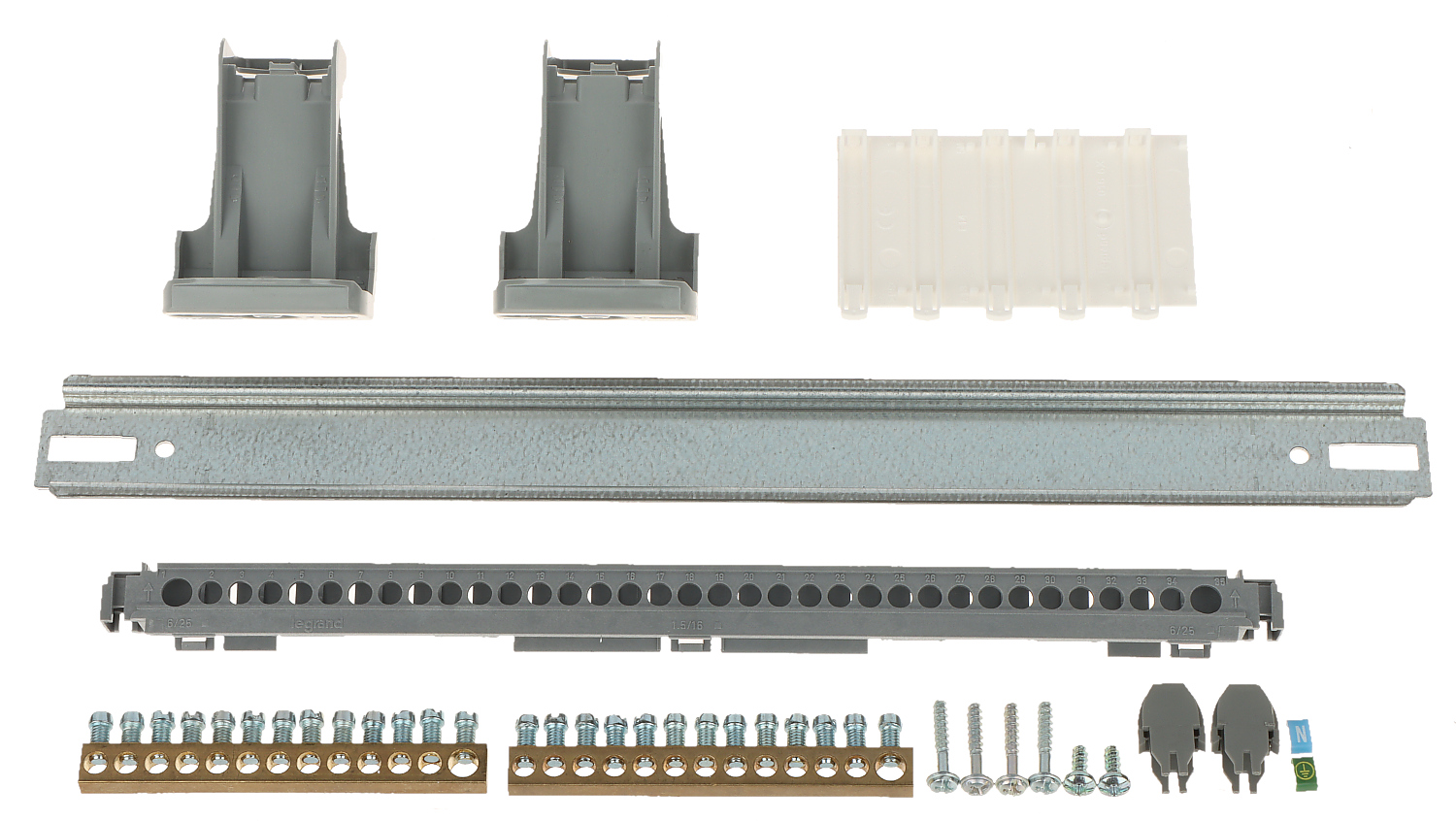

| Equipment: | Terminal blocks : |
| Material: | Self-extinguishing |
| Color: | White |
| "Index of Protection": | IP40 |
| IK rating: | IK07 |
| Compliance with standards: | IEC/EN 60670-24, IEC/EN 61439-3 |
| Operation temp: | -10 °C ... 60 °C |
| Weight: | 1.05 kg |
| Dimensions: | 436 x 235 x 104 mm , 415 x 220 x 72 mm - flush-mounting box |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
Brand:
Legrand
