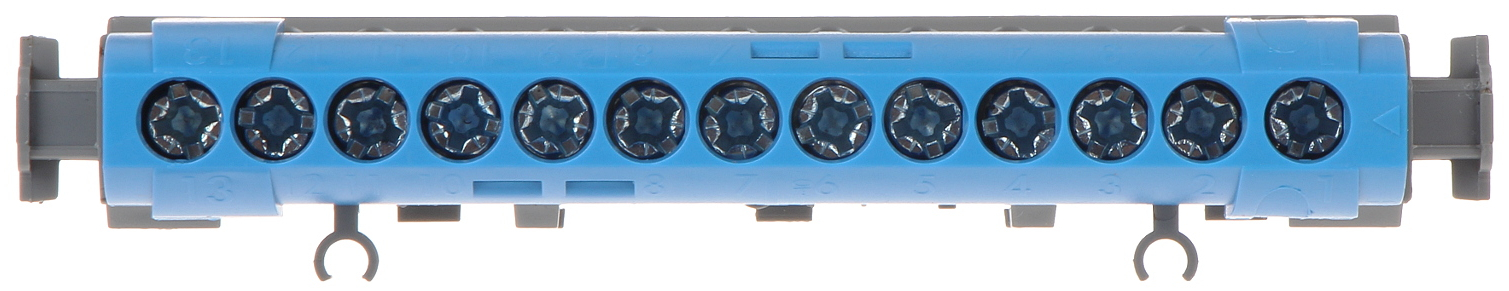

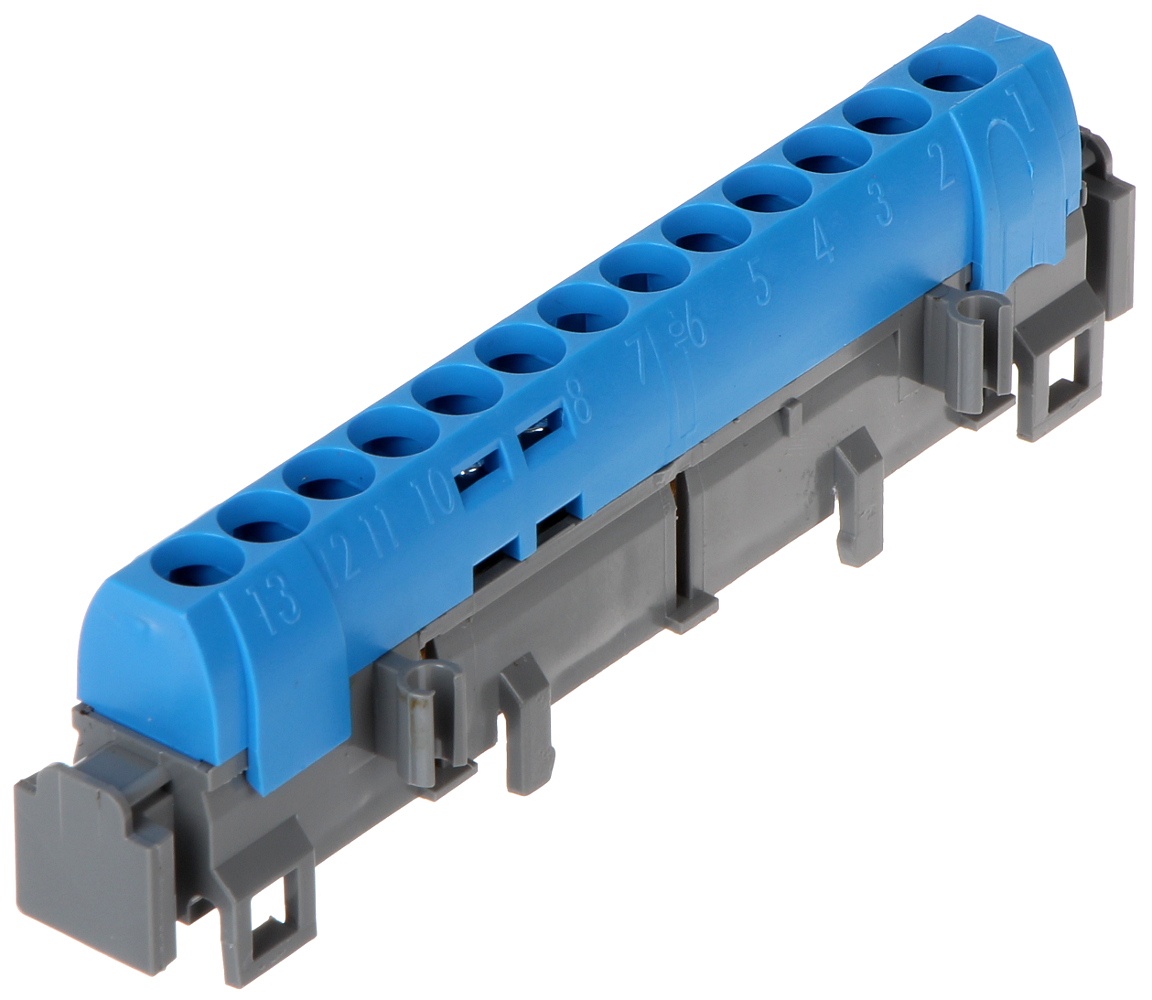

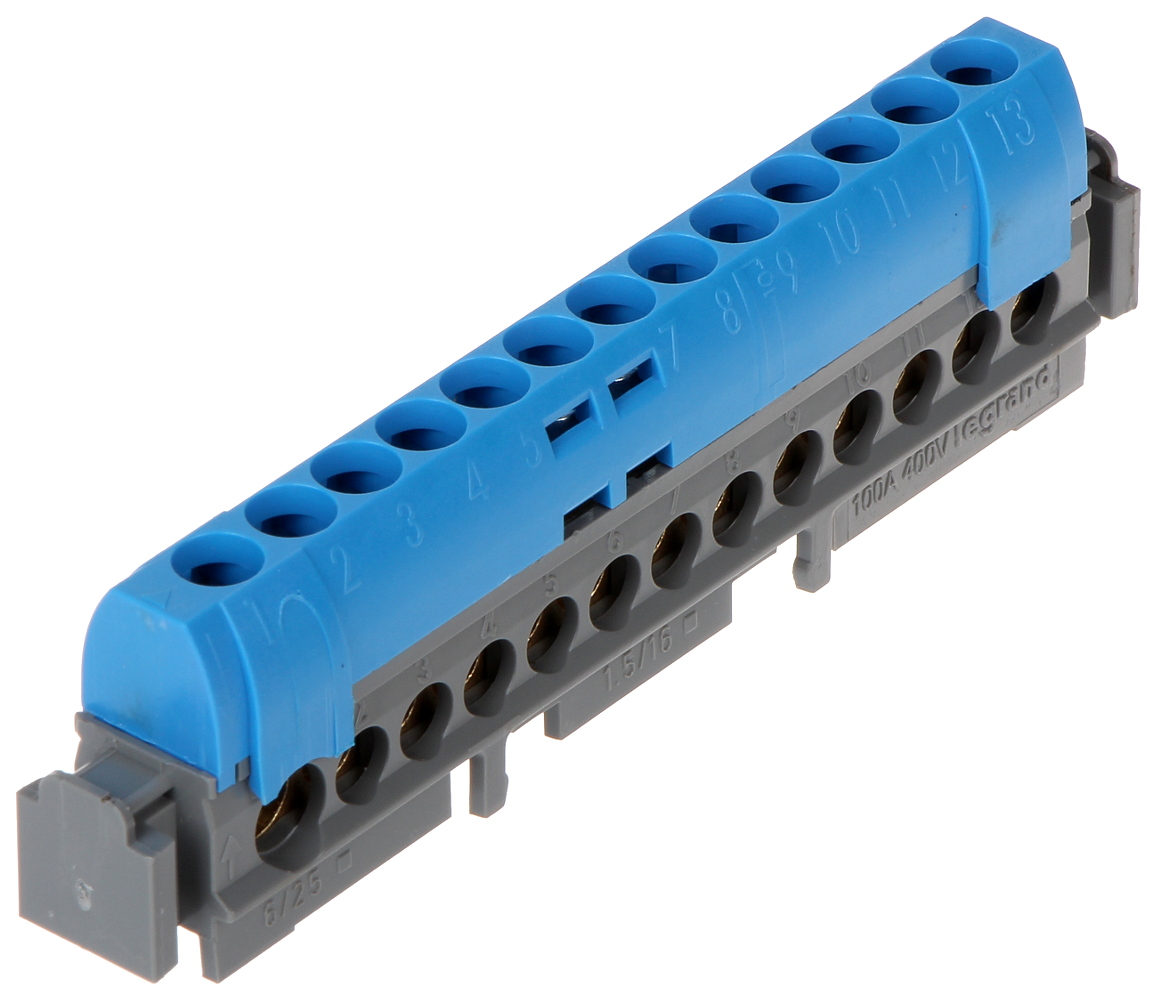

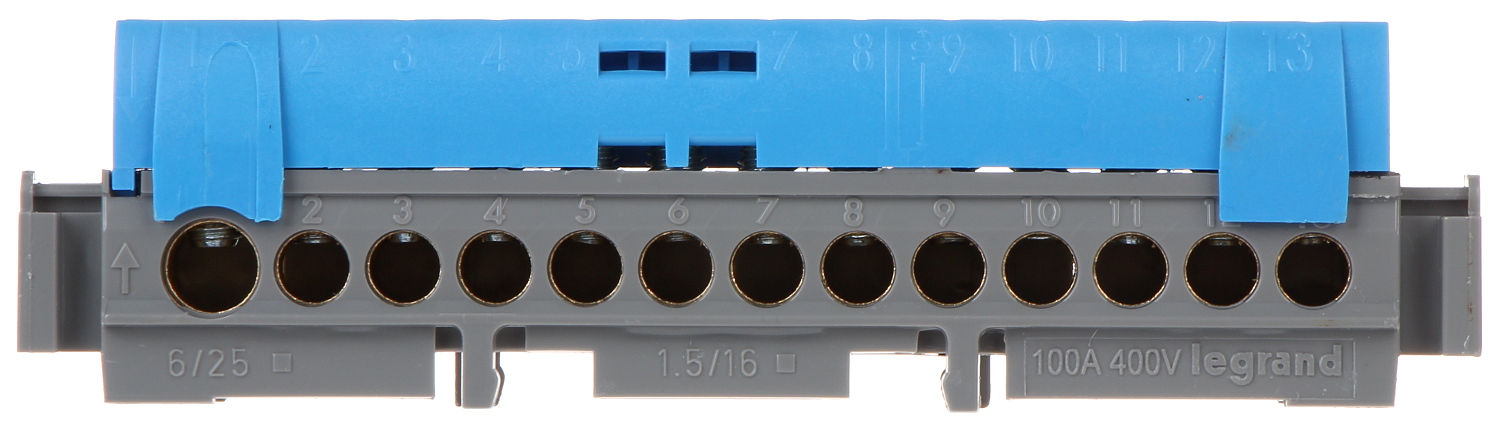

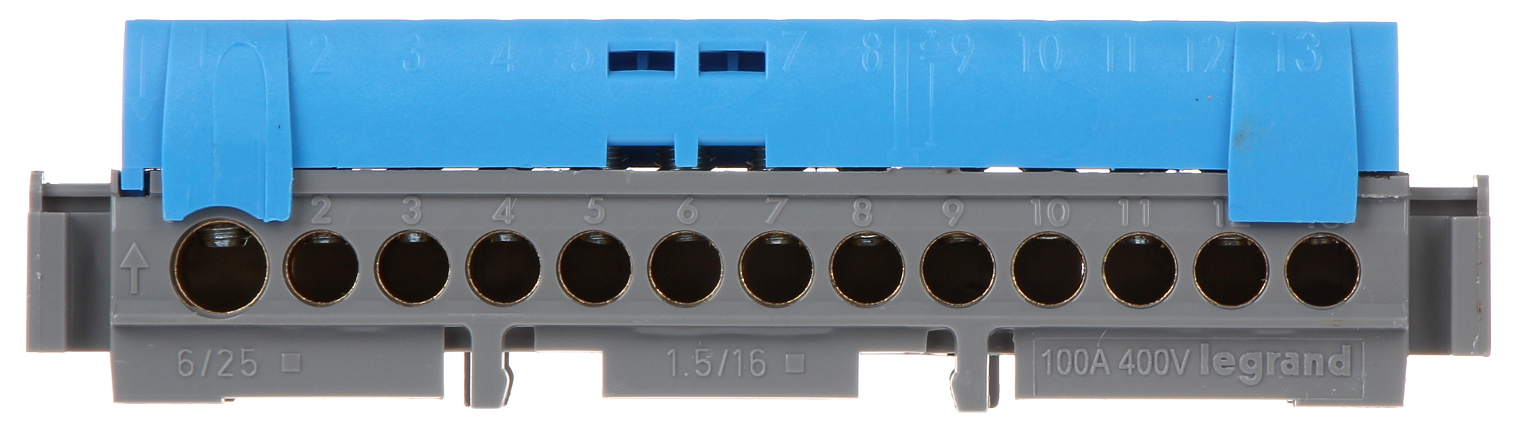

Insulated distribution terminal block for using with modular distribution cabinets Nedbox, RWN, Practibox3, XL3 125, RN 65; Maximum permissible current: 100 A - 400 V AC @ 25 mm², 80 A - 400 V AC @ 16 mm² ; Number of terminals: 1 x 6 ... 25 mm² (screw terminal), 12 x 1.5 ... 16 mm² (screw terminals) ; Color: Blue ; Dimensions: 113 x 30 x 20 mm ;
| Application: | Modular Distribution Cabinets Nedbox, RWN, Practibox3, XL3 125, RN 65 |
| Maximum permissible current: | 100 A - 400 V AC @ 25 mm² , 80 A - 400 V AC @ 16 mm² |
| Number of terminals: | 1 x 6 ... 25 mm² (screw terminal) , 12 x 1.5 ... 16 mm² (screw terminals) |
| Material: | Plastic / Metal |
| Color: | Blue / Gray |
| Weight: | 0.064 kg |
| Dimensions: | 113 x 30 x 20 mm |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
Brand:
Legrand
