CIRCUIT BREAKER HN-C16/1 ONE-PHASE 16 A C TYPE EATON
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device type: Circuit Breaker, One-phase ; Rated current: 16 A ; Number of poles: 1 ; Tripping curves: C type ; Breaking capacity: 6000 A ; Connectors type: screw terminals ; Wire gauge: 1 mm² - 25 mm² ; Housing: DIN, TS-35 rail mounting ; Width in 17.5 mm modules: 1 ;
| Device type: | Circuit Breaker, One-phase |
| Rated current: | 16 A |
| Number of poles: | 1 |

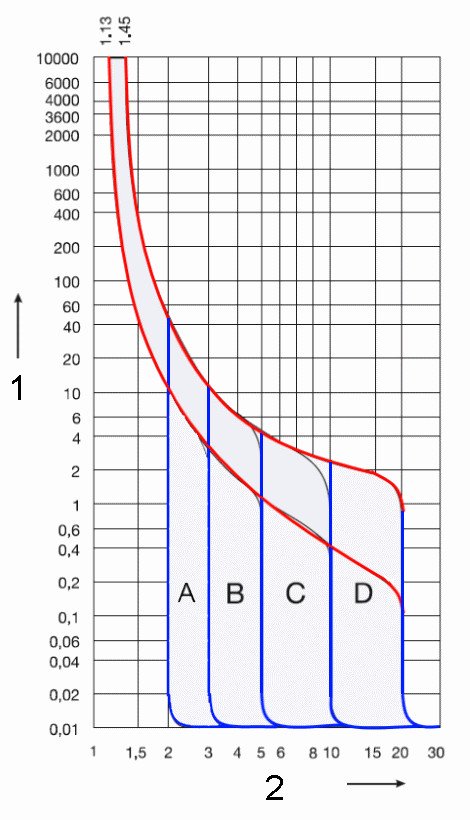

| Tripping curves: | C type |
| Breaking capacity: | 6000 A |
| Rated voltage: | |
| Connectors type: | screw terminals |
| Wire gauge: | 1 mm² - 25 mm² |
| Main features: | Contact position indicator Possibility of sealing |
| Housing: | Plastic, DIN, TS-35 rail mounting |
| Width in 17.5 mm modules: | 1 |
| Weight: | 0.100 kg |
| Dimensions: | 85 x 73 x 17.5 mm |
| Manufacturer / Brand: | EATON |
| Guarantee: | 2 years |
Brand:
Eaton
