Device type: Circuit Breaker, Three-phase ; Rated current: 32 A ; Number of poles: 3 ; Tripping curves: B type ; Breaking capacity: 6000 A ; Connectors type: screw terminals ; Wire gauge: 1 mm² - 25 mm² ; Housing: DIN, TS-35 rail mounting ; Width in 17.5 mm modules: 3 ;
| Device type: | Circuit Breaker, Three-phase |
| Rated current: | 32 A |
| Number of poles: | 3 |

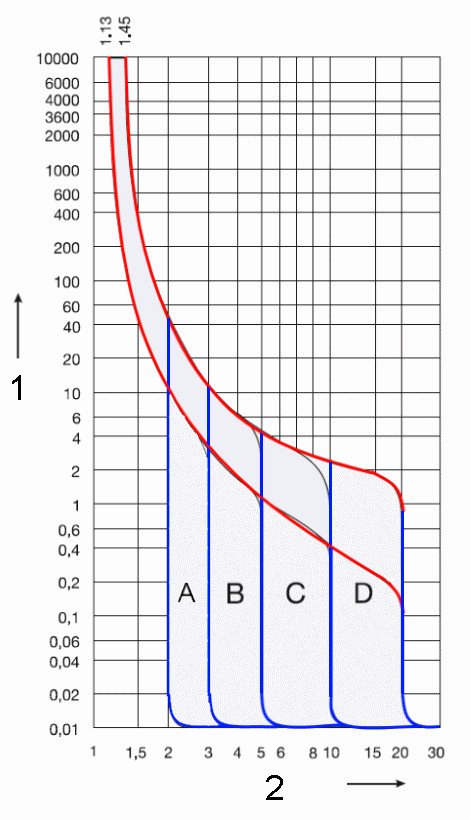

| Tripping curves: | B type |
| Breaking capacity: | 6000 A |
| Rated voltage: | |
| Connectors type: | screw terminals |
| Wire gauge: | 1 mm² - 25 mm² |
| Main features: | |
| Housing: | Plastic, DIN, TS-35 rail mounting |
| Width in 17.5 mm modules: | 3 |
| Weight: | 0.322 kg |
| Dimensions: | 52.5 x 84.5 x 73 mm |
| Manufacturer / Brand: | EATON |
| Guarantee: | 2 years |
Brand:
Eaton
