Rated voltage: | 400 V / 50 ... 60 Hz |
Maximal current load: | 32 A |
Number of poles: | 4P |
Grounding: | 6h |
Electrical cable: | max. 4 x 6 mm² |

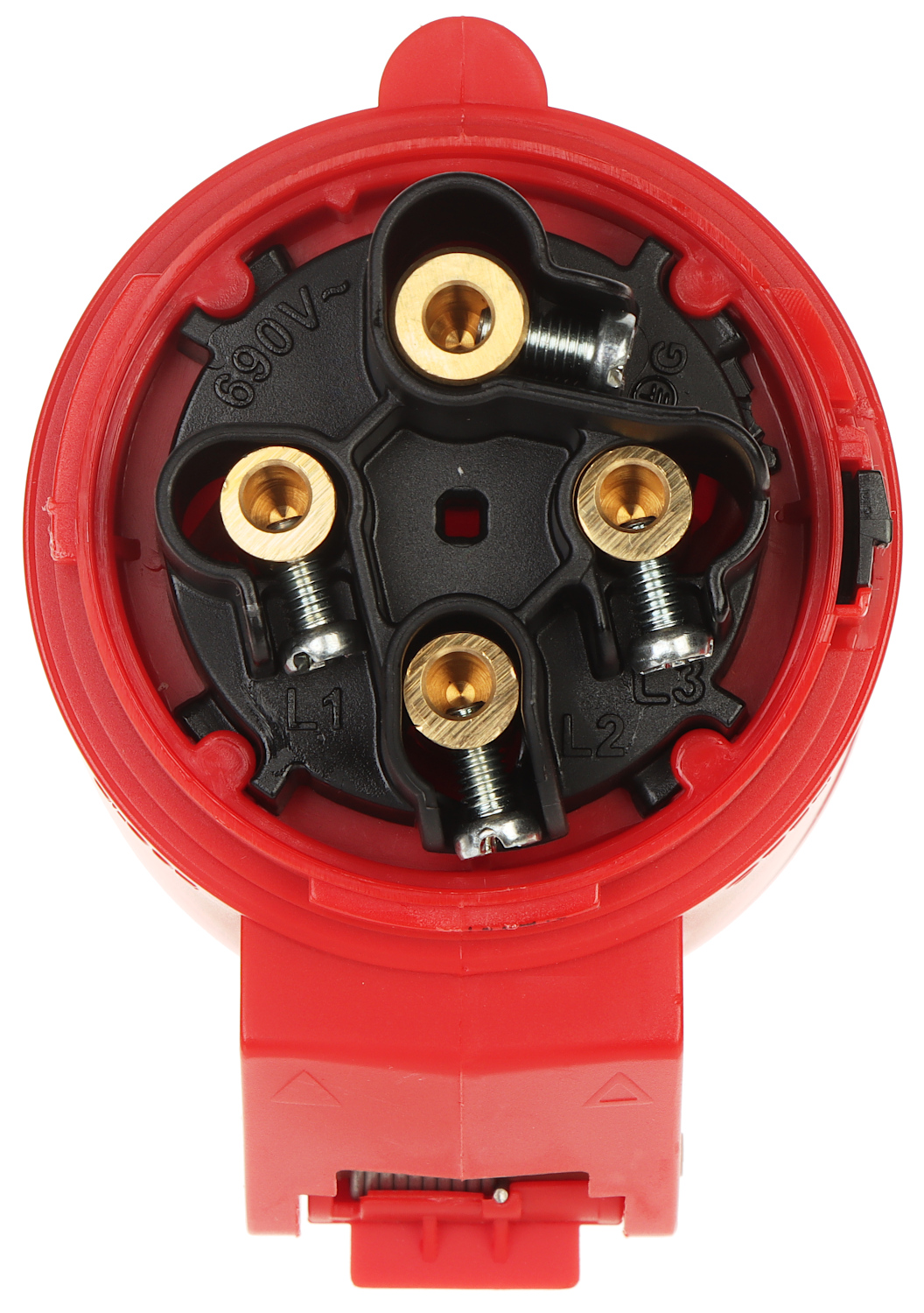

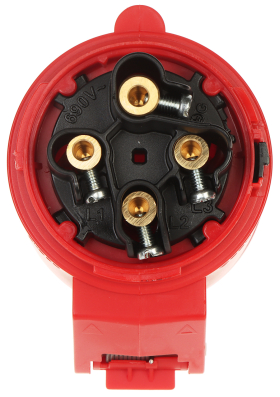

Cable terminals: | screw terminals |
Plug type: | CEE |
"Index of Protection": | IP44 / IP54 |
Contact material: | CuZn |
Maximum wire insulation diameter: | 20 mm |
Weight: | 0.25 kg |
Dimensions: | 161 x 94 x 67 mm |
Color: | Red |
Manufacturer / Brand: | PCE |
Guarantee: | 2 years |
