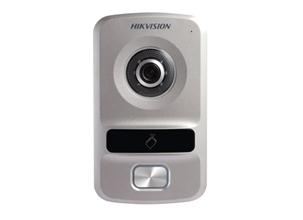

1.3 MP Villa Door Station, Plastic, Camera resolution: HD720P, 25fps(P), 10M/100M Self-adaptive Ethernet, RS-485, 4-ch alarm input,1-ch alarm output, IP65, 12 VDC, 1-ch Indoor station access, IR Supplement
|
System Parameters |
|
|
Processor: |
High-Performance Embedded SOC Processor |
|
Operation System: |
Embedded Linux Operation System |
|
Video Parameters |
|
|
Camera: |
CMOS Low Illumination 1.3 MP HD Colorful Camera |
|
Video Compression Standard: |
H.264 |
|
Resolution: |
1280 x 720 |
|
Video frame rate: |
25 fps |
|
Audio Parameters |
|
|
Audio Input: |
Built-in Omnidirectional Microphone |
|
Audio Output: |
Built-in Loudspeaker |
|
Audio Compression Standard: |
G.711 U |
|
Audio Compression Rate: |
64 Kbps |
|
Audio Quality: |
Noise Suppression and Echo Cancellation |
|
Network Parameters |
|
|
Ethernet: |
10/100 Mbps Self-Adaptive Ethernet |
|
Network Protocol: |
TCP/IP, RTSP |
|
Access Control Parameters |
|
|
Internal Card Reader: |
Built-in IC Card Reader |
|
Exit button: |
Exit Button for Opening the Door |
|
Door Magnetic Detection: |
Detects Door Magnetic Status |
|
Light Supplement |
|
|
Light Supplement Mode: |
IR Supplement |
|
Alarm Parameters |
|
|
Alarm Input: |
Door Magnetic Alarm, Tampering Alarm |
|
Device Interfaces |
|
|
Network Interface: |
1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
|
RS-485: |
1 RS-485 Half-Duplex Port |
|
I/O Input: |
4 |
|
I/O Output: |
1 |
|
General |
|
|
Material: |
Plastic |
|
Power Supply: |
12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) |
|
Power Consumption: |
≤12 W |
|
Certification: |
FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
|
Working Temperature: |
-40° C to +70° C (-40° F to 158° F) |
|
Working Humidity: |
10% to 90% |
|
IP Protection Level: |
IP65 |
|
Dimensions(L × W × H): |
164 mm × 97 mm × 54.4 mm (6.46" × 3.82" × 2.14") |
