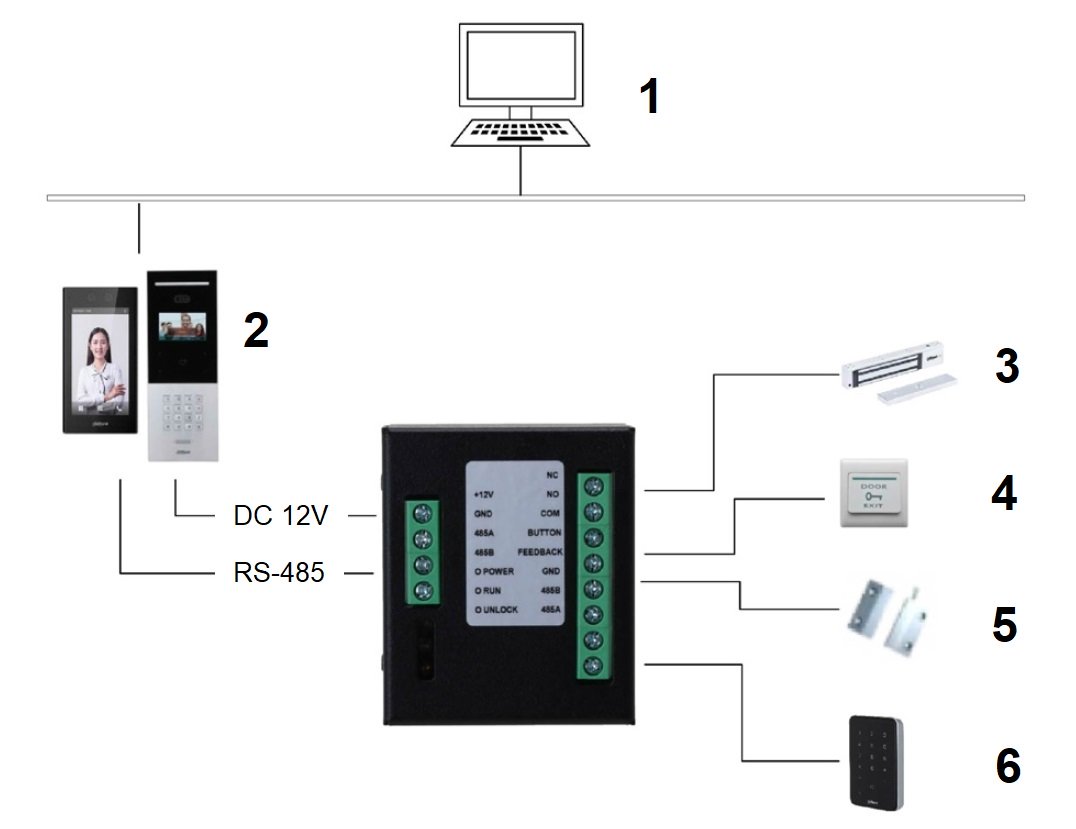

The DEE1010B-S2 module allows the expansion of video doorphone features for control of another door or gate; Support: Cooperation with the DAHUA access control systems, Designed for DAHUA video doorphones ; Outputs: 1 x NO / NC, 1 x Exit button, 1 x Reed switch , 2 x RS-485 ; Power supply: 12 V DC ;
| Support: | |
| Number of relay outputs: | 1 x |
| Outputs: | |
| Interface: | RS-485, Twisted-pair cable - pair of wires |
| Main features: | |
| Operation state indication: | 3 x Operation status LED indicator |
| Power supply: | 12 V DC / 1 A |
| Power consumption: | ≤ 0.9 W (Standby mode) ≤ 1.0 W (operation) |
| Operation temp: | -10 °C ... 60 °C |
| Permissible relative humidity: | 0 % ... 95 % |
| Weight: | 0.09 kg |
| Dimensions: | 59 x 50 x 21 mm |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 2 years |
Brand:
Dahua
