VIDEO DOORPHONE KIT KTX03 Wi-Fi / 2-Wire DAHUA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
View angle: 84 ° ; Cards support: 13.56 MHz S50 ; IR illuminator; RS-485; Main features: Tamper detection - removing from mounting surface ; Power supply: 2-Wire interface ; Shield: 7 " capacitive touch screen ; Memory card slot: Micro SD card support up to 64GB ; Main features: The ability to automatically take and save photos if you do not answer to the bell button ; Alarm inputs: 6 ; Alarm outputs: 1 ; Power supply: 2-Wire interface ; Number of ports: 1 x Input, 1 x Output - DAHUA 2-wire ;
| Compatibility: | DAHUA |
| Sensor: | 2 Mpx CMOS |
| View angle: | 84 ° |
| proximity reader built-in: |  |
| Cards support: | 13.56 MHz S50 |
| Reading distance of prox-keys: | 0 ... 2 cm |
| LED illuminator: |  |
| IR illuminator: | |
| RS-485: | |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) |
| Main features: | |
| Power supply: | 2-Wire interface |
| Power consumption: | |
| Housing: | Aluminum alloy |
| Color: | Silver |
| "Index of Protection": | IP65 - after additional sealing the housing connection with the mounting surface, e.g. with silicone |
| IK rating: | IK08 |
| Operation temp: | -40 °C ... 60 °C |
| Weight: | 0.978 kg |

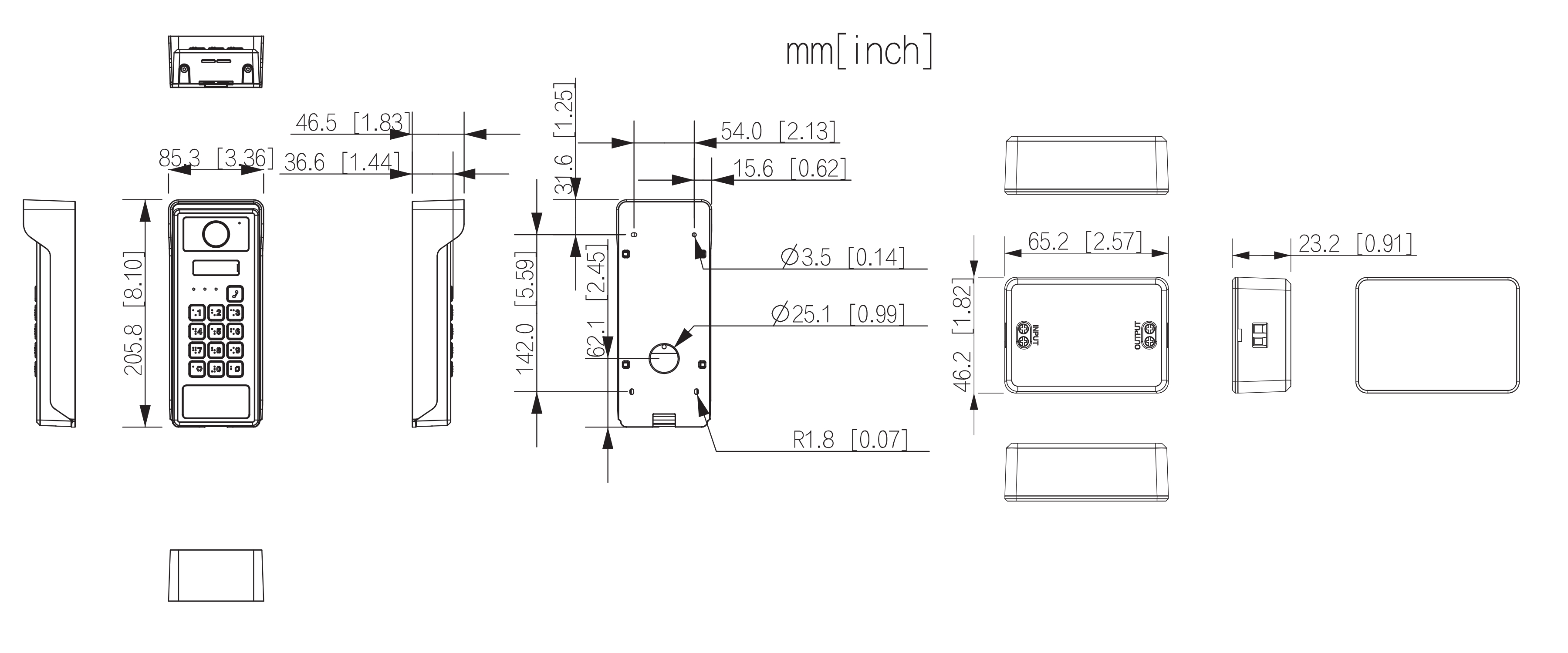

| Dimensions: | 197 x 78 x 33 mm |
| Supported languages: | English |

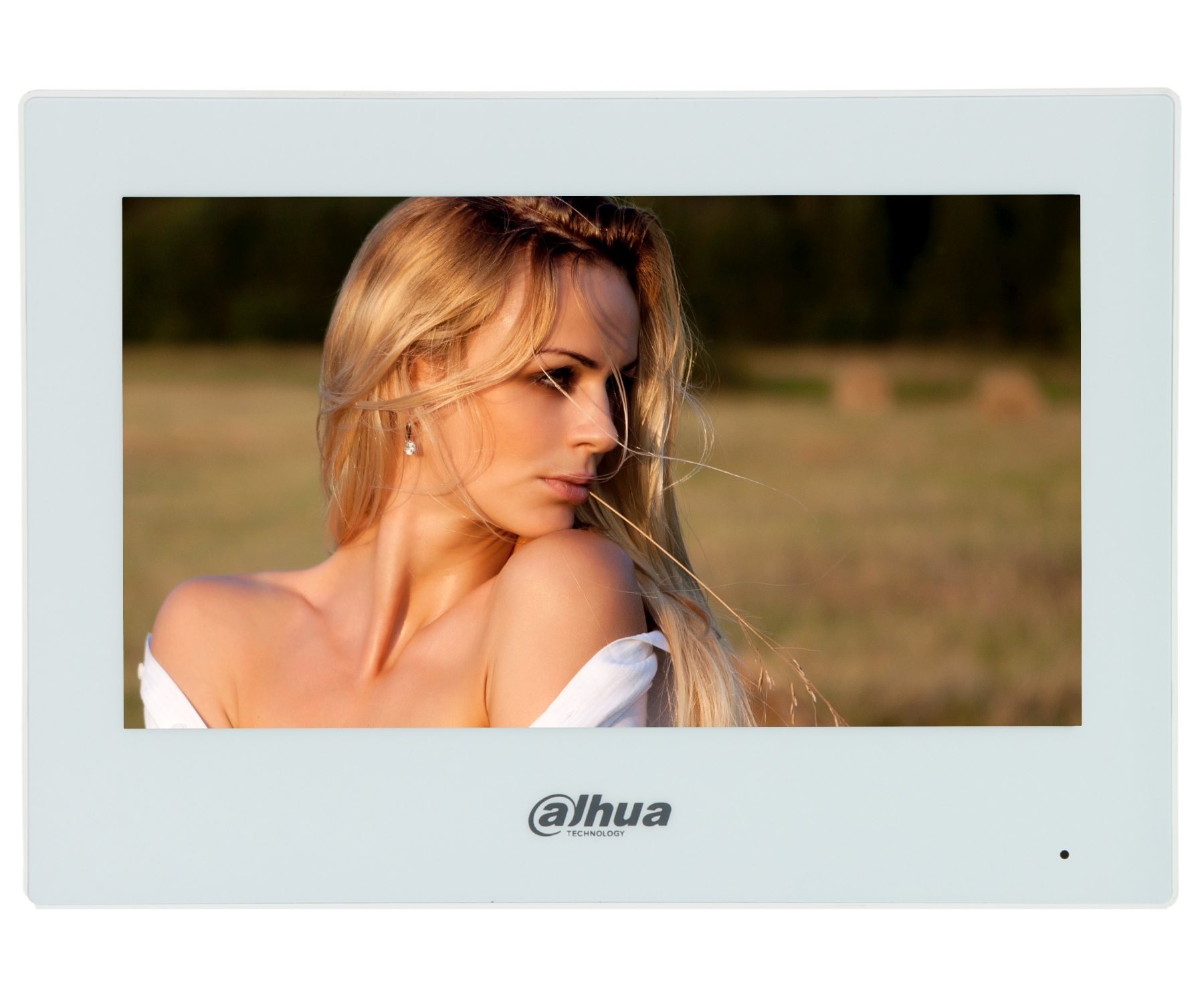

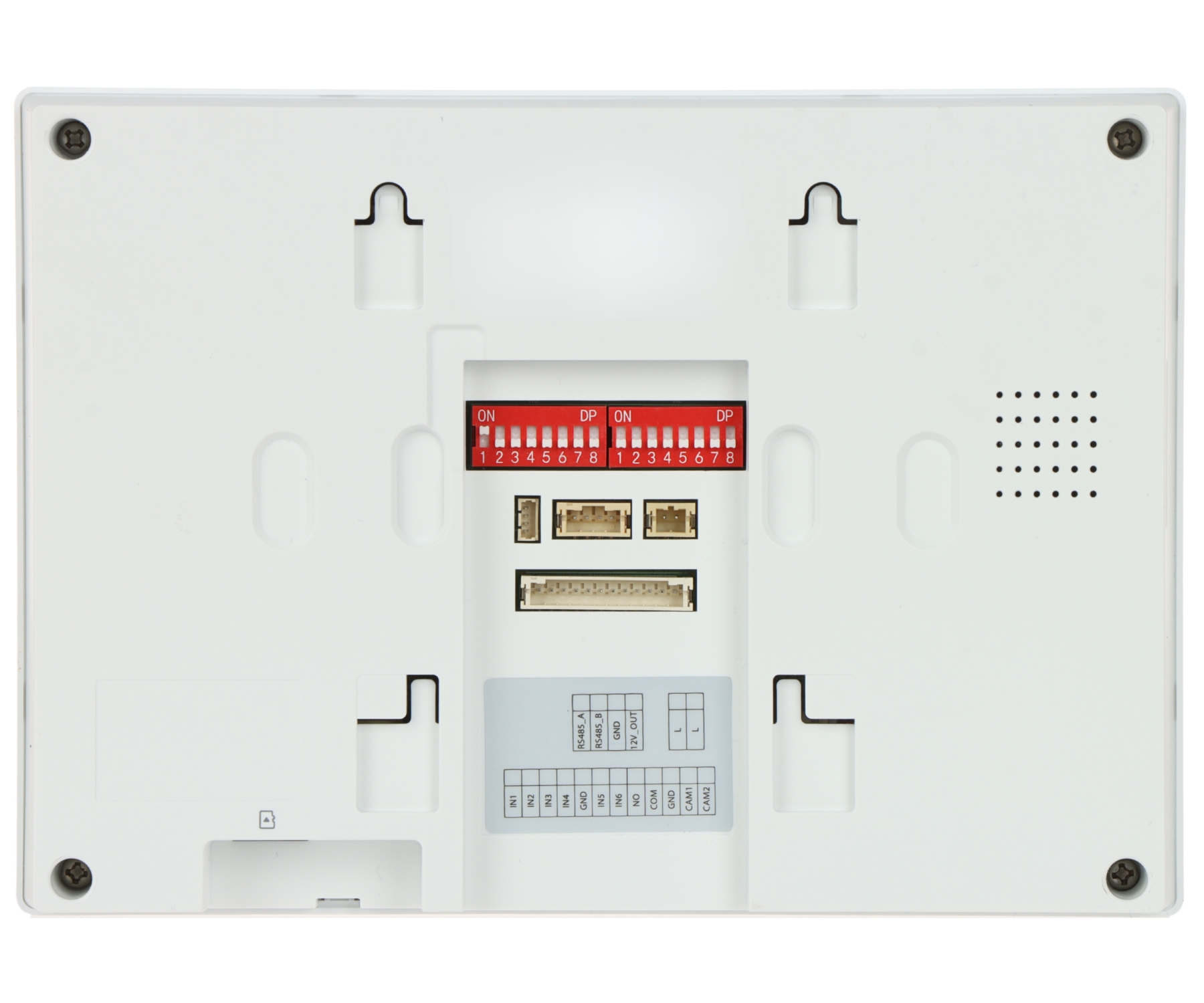

INDOOR PANEL:
| Compatibility: | DAHUA |
| Shield: | 7 " capacitive touch screen |
| Resolution: | 1024 x 600 |
| Internal memory: | |
| Memory card slot: | Micro SD card support up to 64GB |
| Main features: | |
| Controlling: | capacitive touch screen |

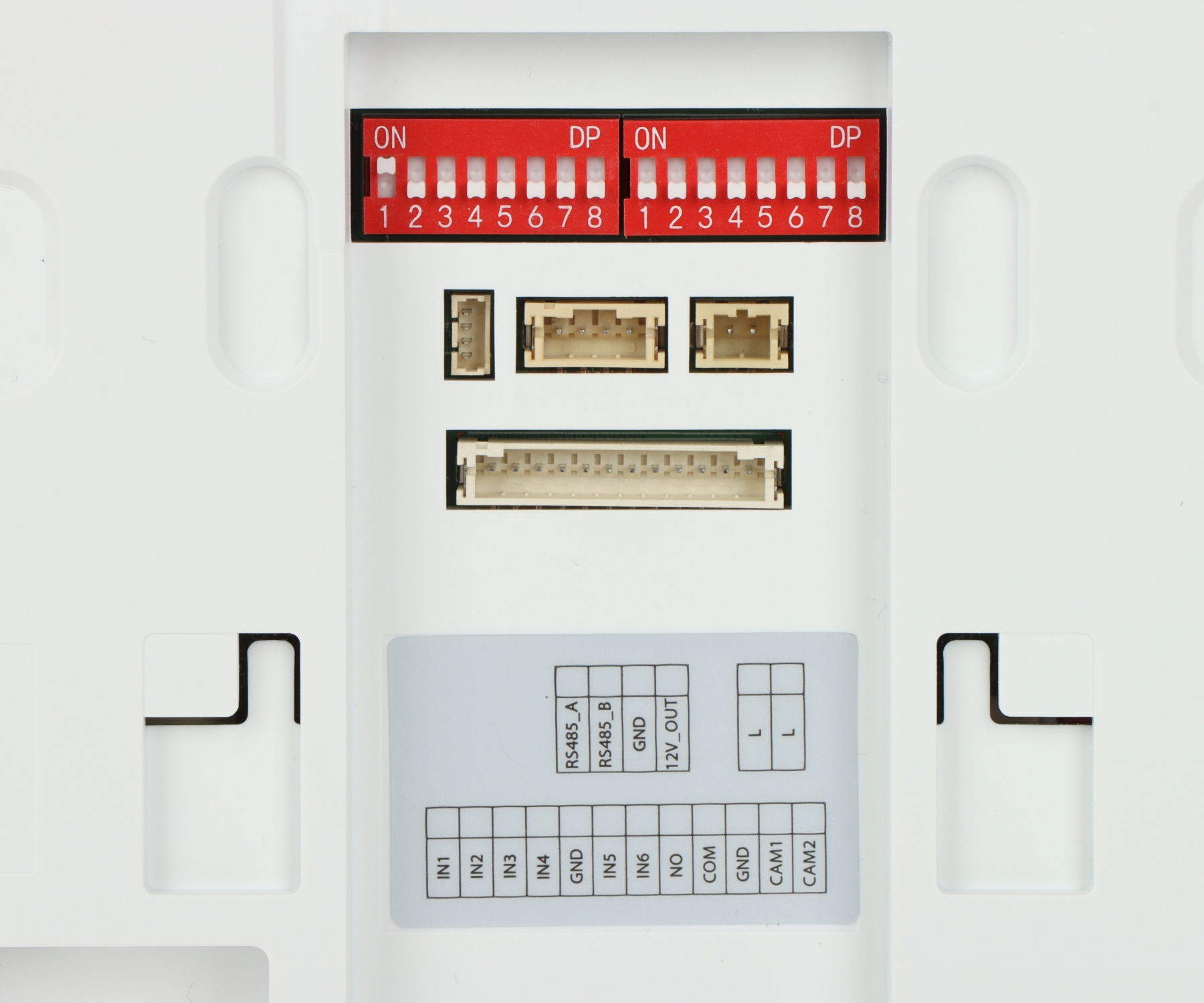

| Alarm inputs: | 6 |
| Alarm outputs: | 1 |
| RS-485: | |
| Power supply: | 2-Wire interface |
| Power consumption: | |
| Operation temp: | -10 °C ... 55 °C |
| Color: | White |
| Weight: | 0.622 kg |

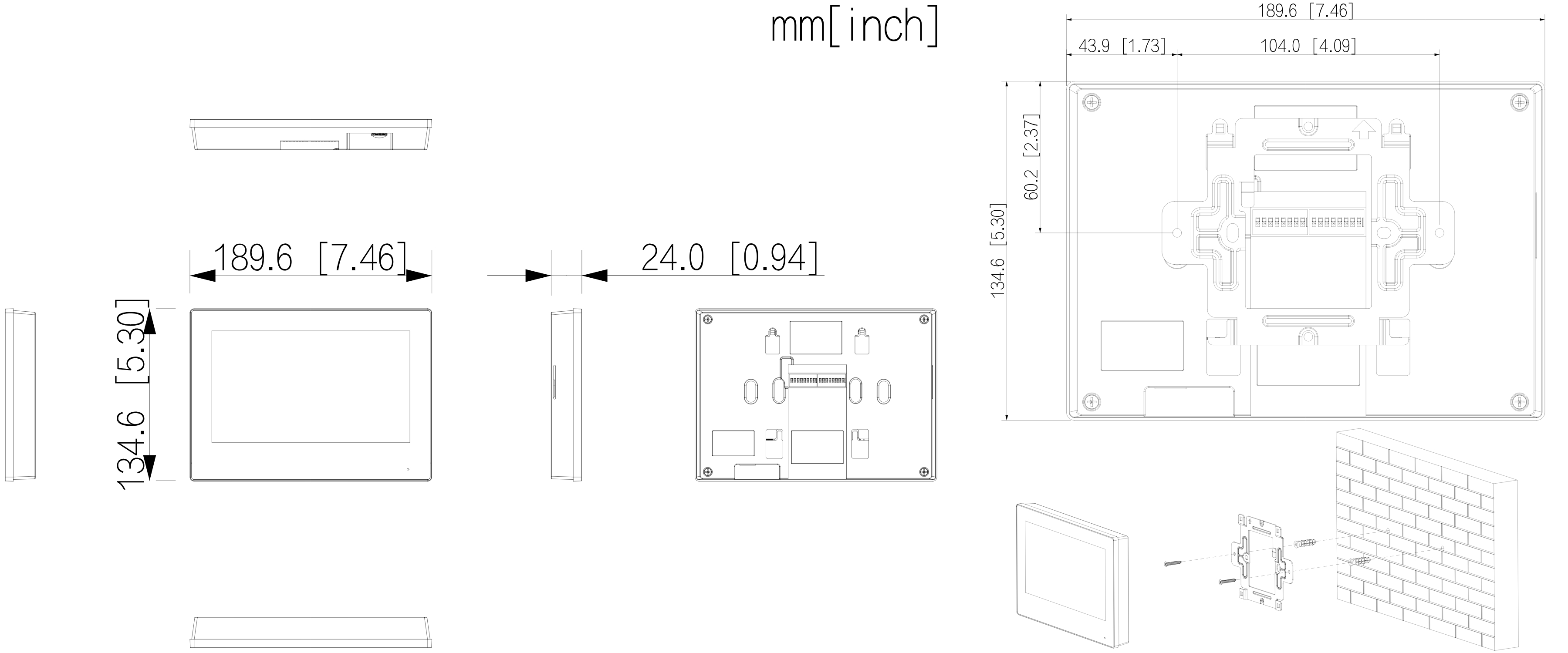

| Dimensions: | 135 x 190 x 24 mm |
| Supported languages: | English |

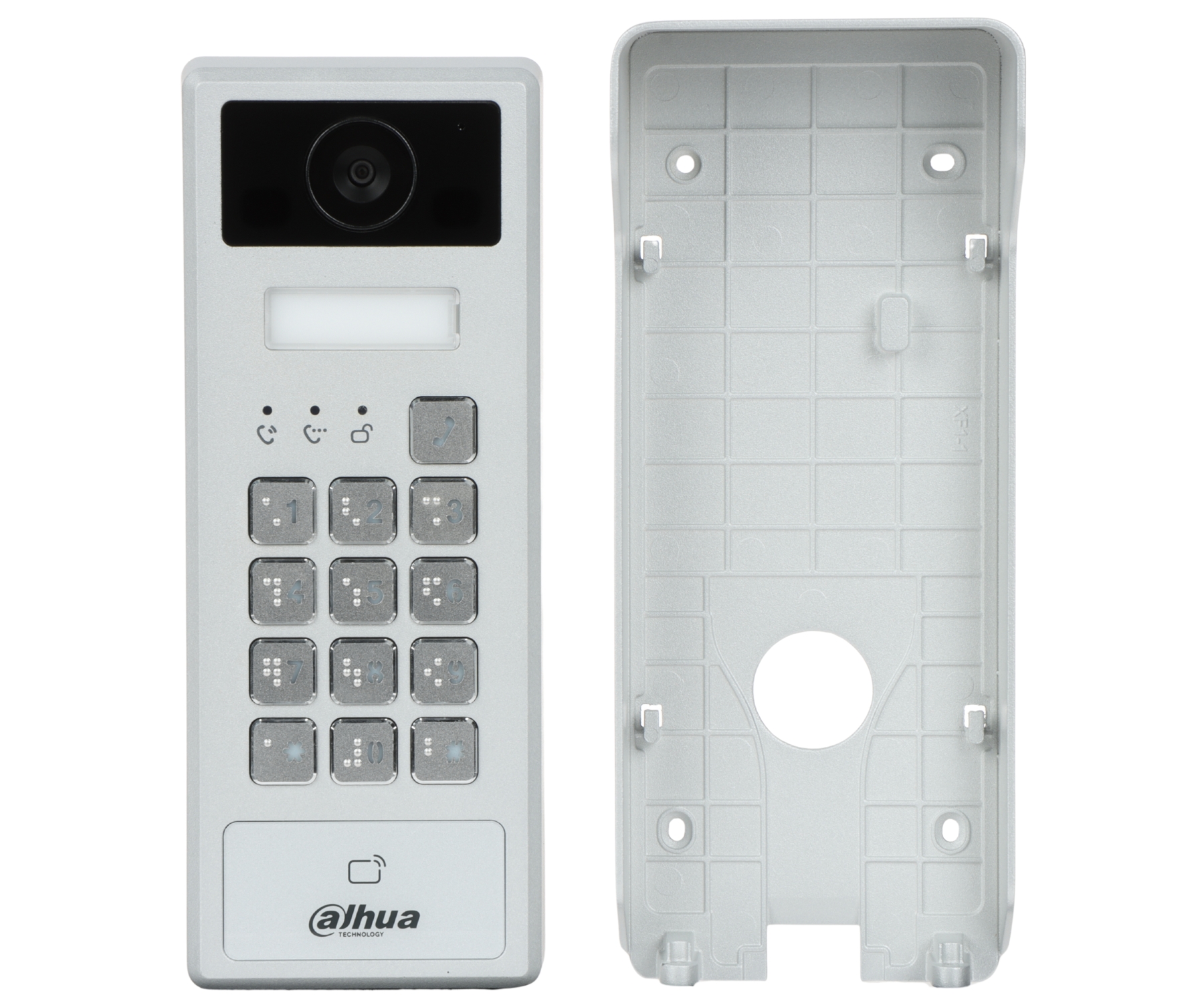

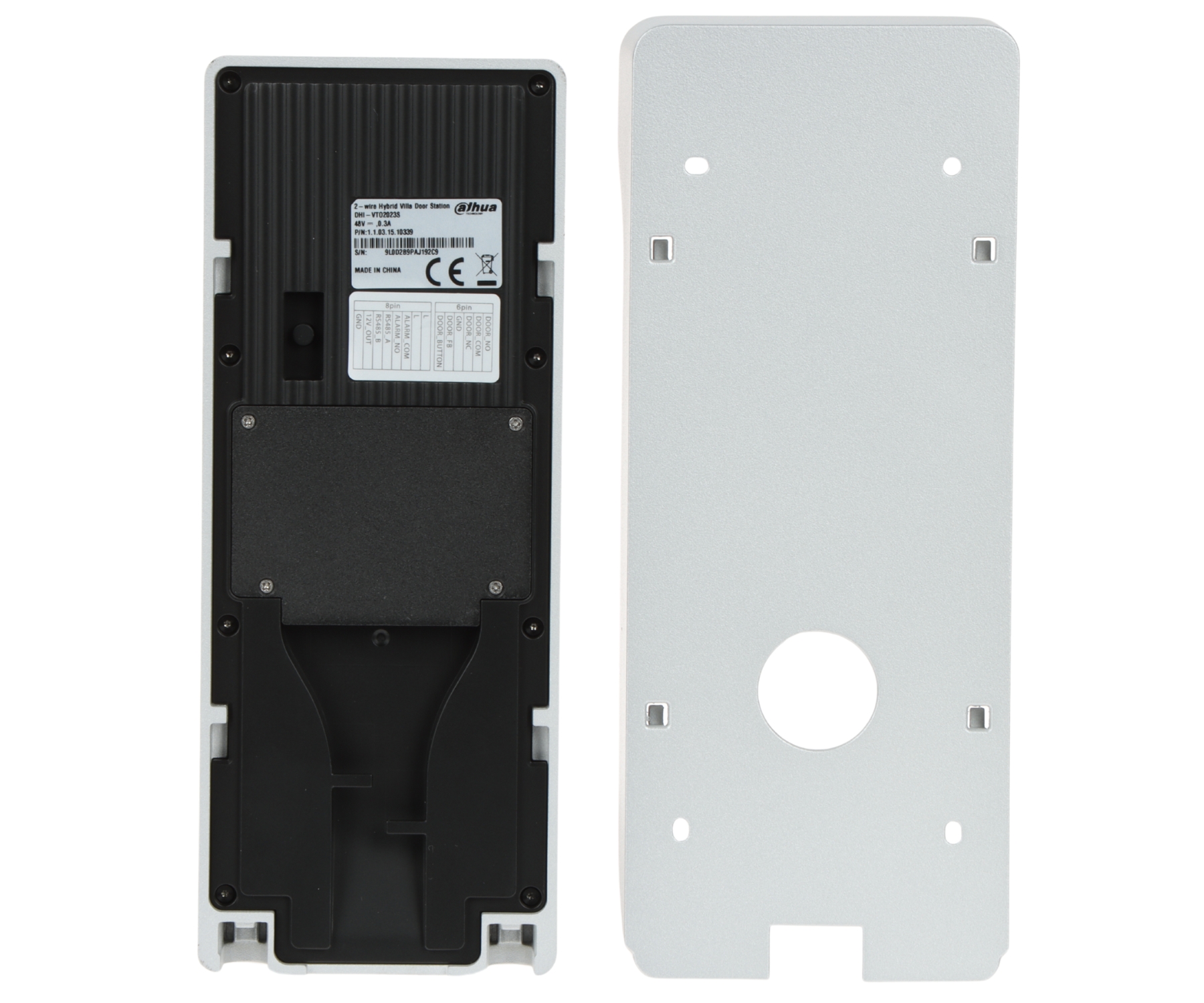

SURFACE HOUSING:
| Material: | Aluminum alloy |
| Color: | Silver |
| Weight: | 0.182 kg |
| External dimensions: | 204 x 82 x 47 mm |

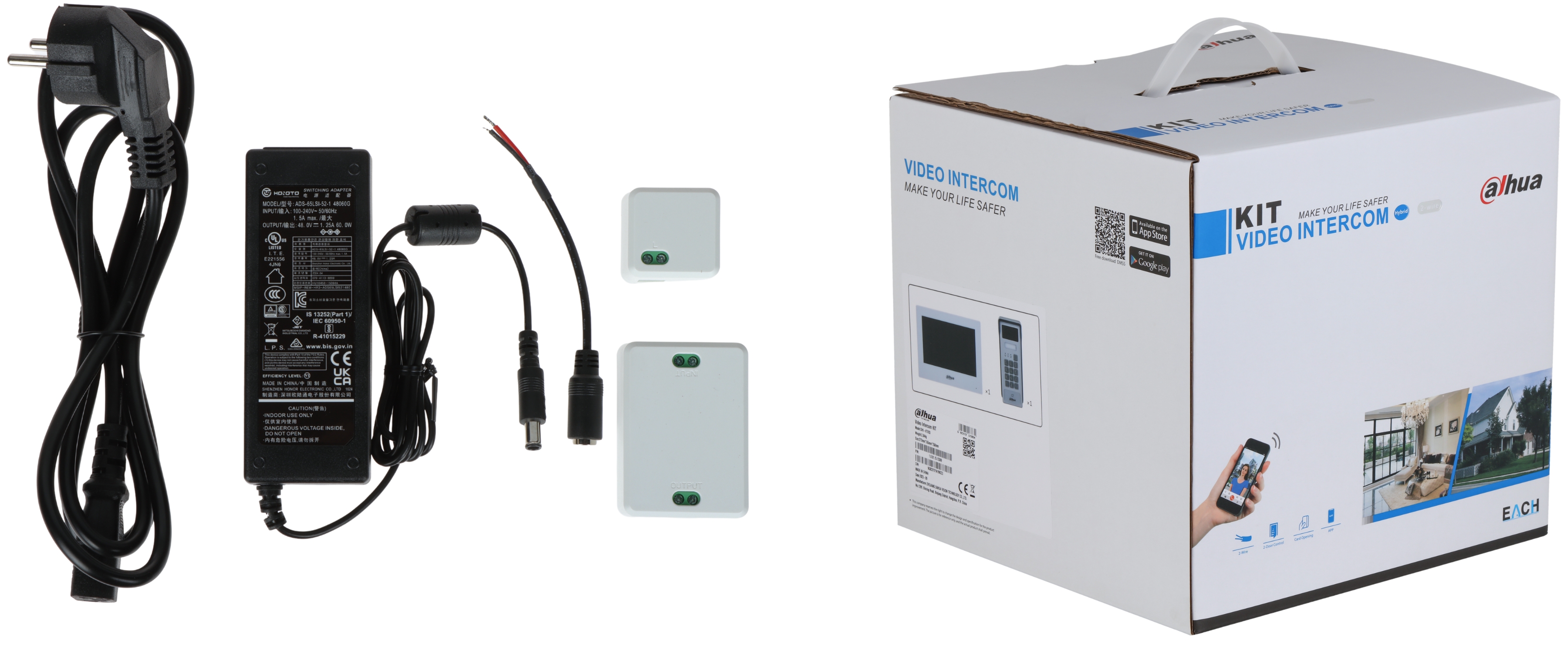

2-Wire Controller:
| Compatibility: | 2-wire doorphone installation DAHUA |
| Number of ports: | |
| Main features: | Line termination terminal (included) |
| Power supply: | 48 V DC / 0.9 A (power adapter included) |
| Power consumption: | ≤ 3.5 W (at full load) |
| Housing: | Plastic (PC + ABS) |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 0.13 kg |
| Dimensions: | 65 x 46 x 23 mm |
General information:
| Supported languages: | English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
Brand:
Dahua
