Standard: | TCP/IP |
Sensor: | 1/2.9 " Progressive Scan CMOS |
Matrix size: | 2.1 Mpx |
Resolution: | 1920 x 1080 - 1080p |
Lens: | 3.8 mm F2.4 |
View angle: | 74 ° |
Range of IR illumination: | 9 m |
Horizontal rotation range: | 360 ° |
Vertical rotation range: | 114 ° |
Audio: | |
Image compression method: | H.264 |
Main stream frame rate: | 15 fps @ 1080p |
Network protocols: | TCP/IP, DHCP, ARP, ICMP, DNS, NTP, HTTP, HTTPS, UDP, ONVIF, RTSP |
ONVIF: | ![]() |
Network interface: | Wi-Fi IEEE 802.11 b/g/n |
WEB Server: | ![]() |
Mobile phones support: | Access by a cloud (P2P) |
Default admin user / password: | Configurable at the first start |
Default IP address: | DHCP |
Web browser access ports: | ![]() |
PC client access ports: | ![]() |
Mobile client access ports: | ![]() |
ONVIF port: | 2020 |
RTSP URL: | |

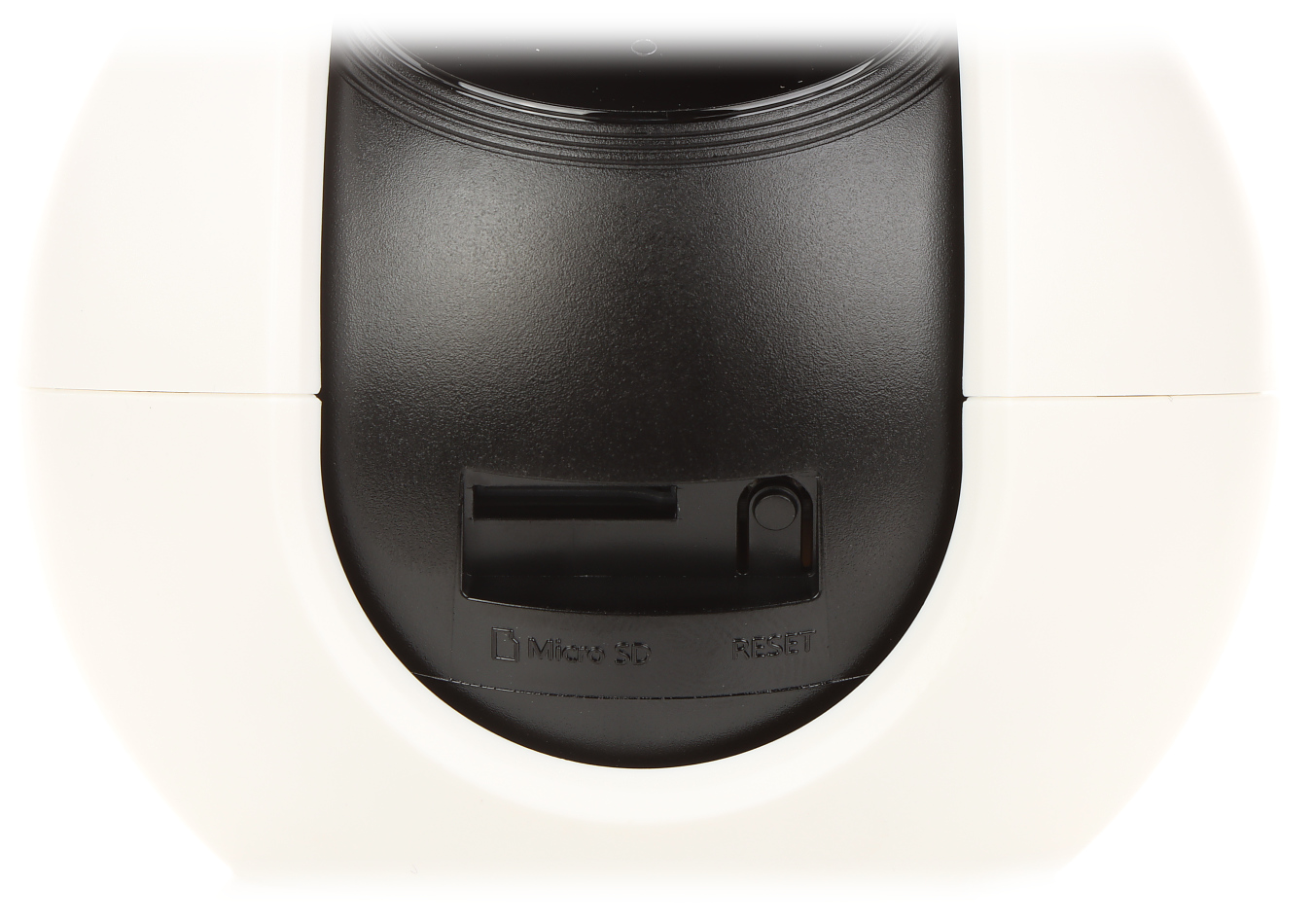

Memory card slot: | Micro SD memory cards up to 128GB support (possible local recording) - to 16 days (manufacturer data) |
Main features: | |
Housing: | Plastic |
Color: | White + Black |

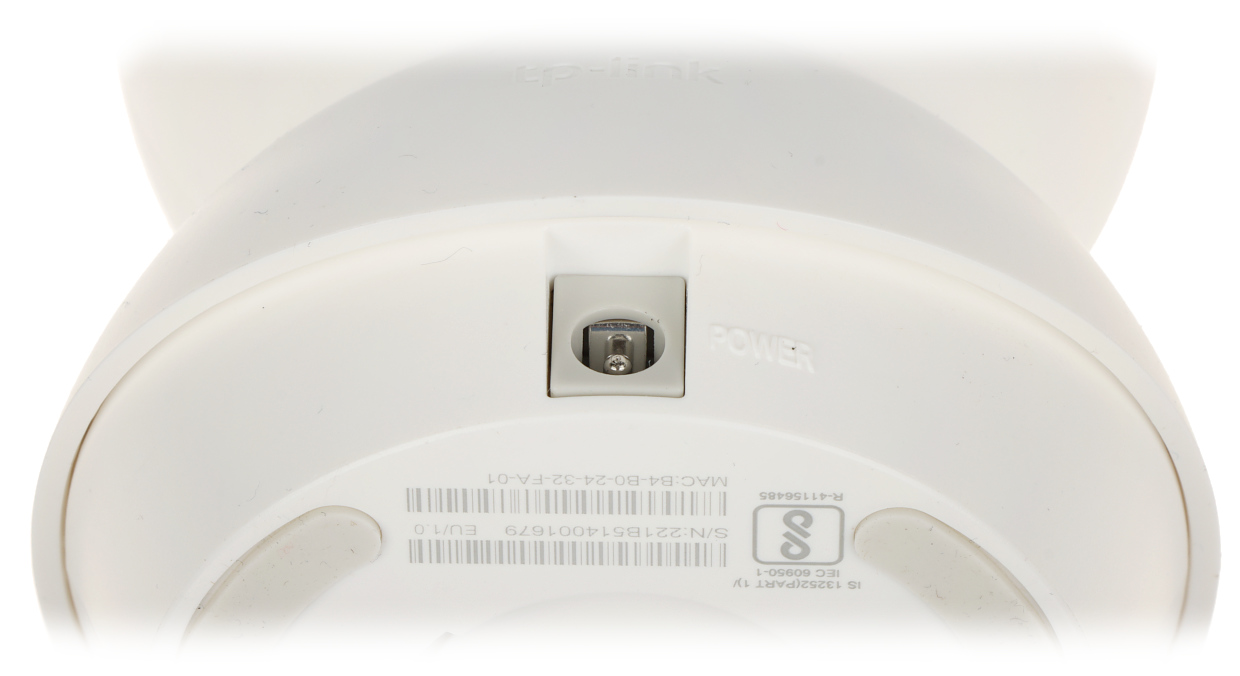

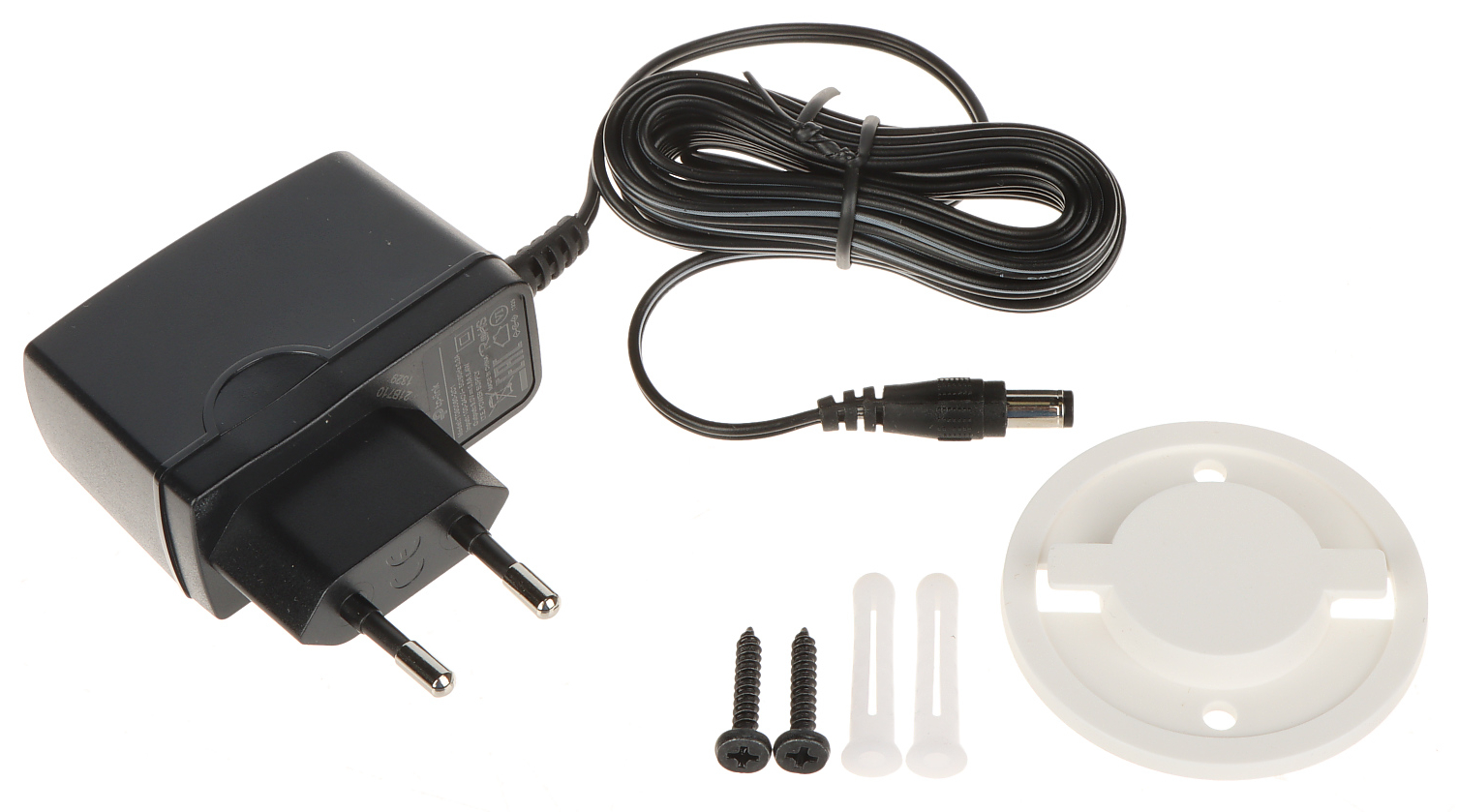

Power supply: | 9 V DC / 0.6 A (power adapter included), Length of the cable : 3 m |
Power consumption: | 5.4 W |
Operation temp: | 0 °C ... 40 °C |
Weight: | 0.19 kg |

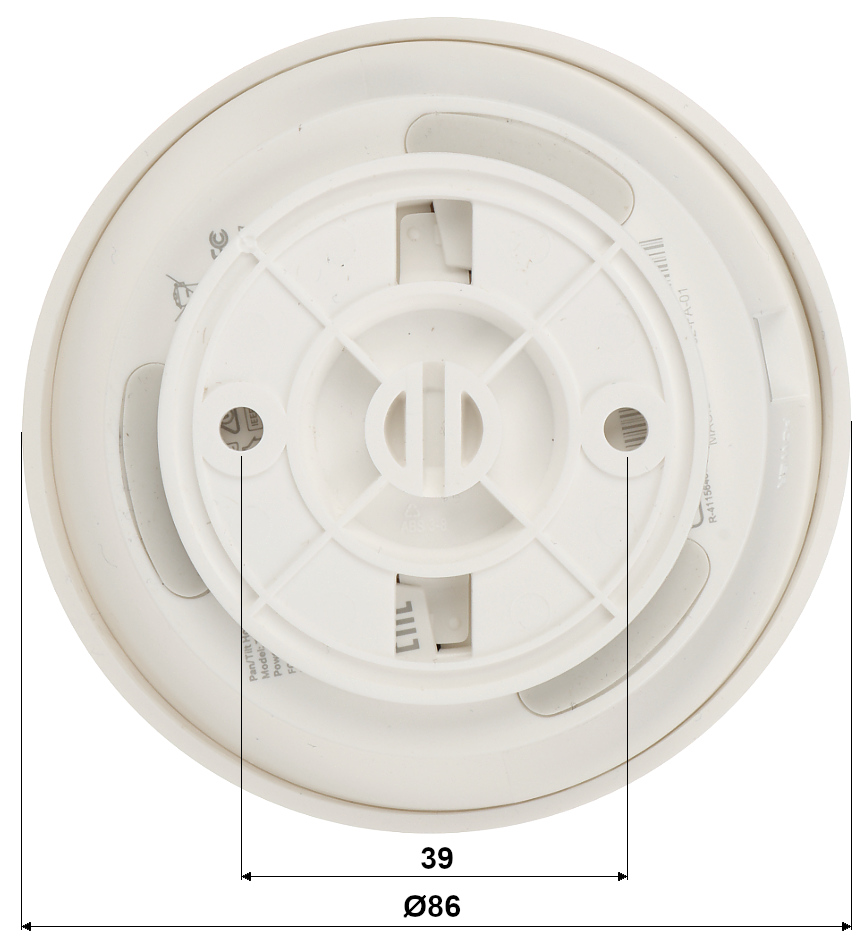

Dimensions: | 85 x 87 x 118 mm |
Supported languages: | English |
Manufacturer / Brand: | TP-LINK |
Guarantee: | 2 years |
