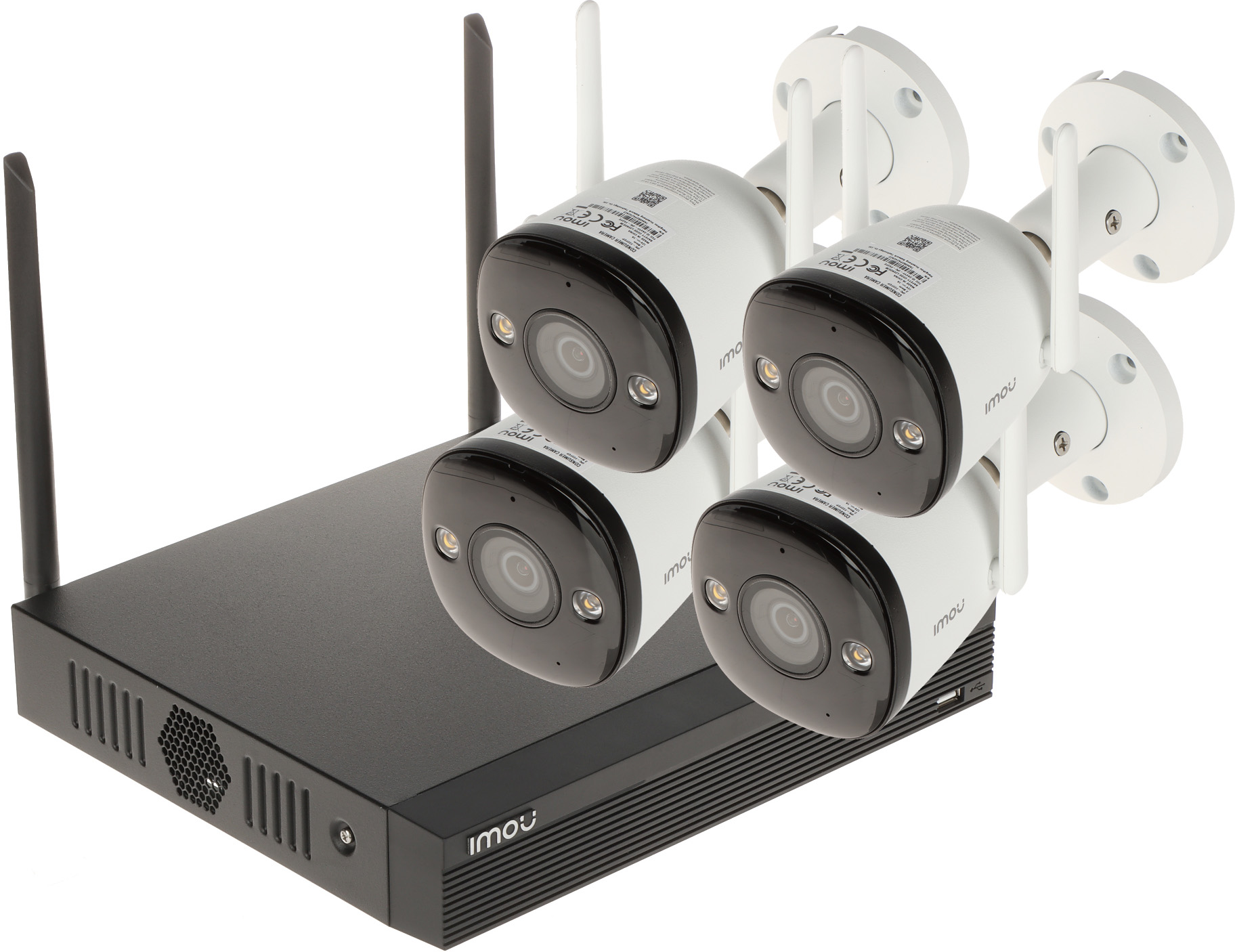

Supported resolutions: 1080p - 1920 x 1080 px ; Audio support: 4 Channels ; Supported hard drives: 1 x 8 TB SATA, HDD : 1 TB (included) ; Resolution: 1920 x 1080 ; Sensor: 1/2.8 " ; View angle: 108 ° ; White light LED illuminator range: 30 m ; Audio: Microphone built-in, Speaker built-in, Alarm siren ; Image compression method: H.265 ; Memory card slot: Micro SD memory cards up to 256GB support (possible local recording) ; Main features: Wi-Fi Module - IEEE 802.11 b/g/n, Light and sound alarm ;

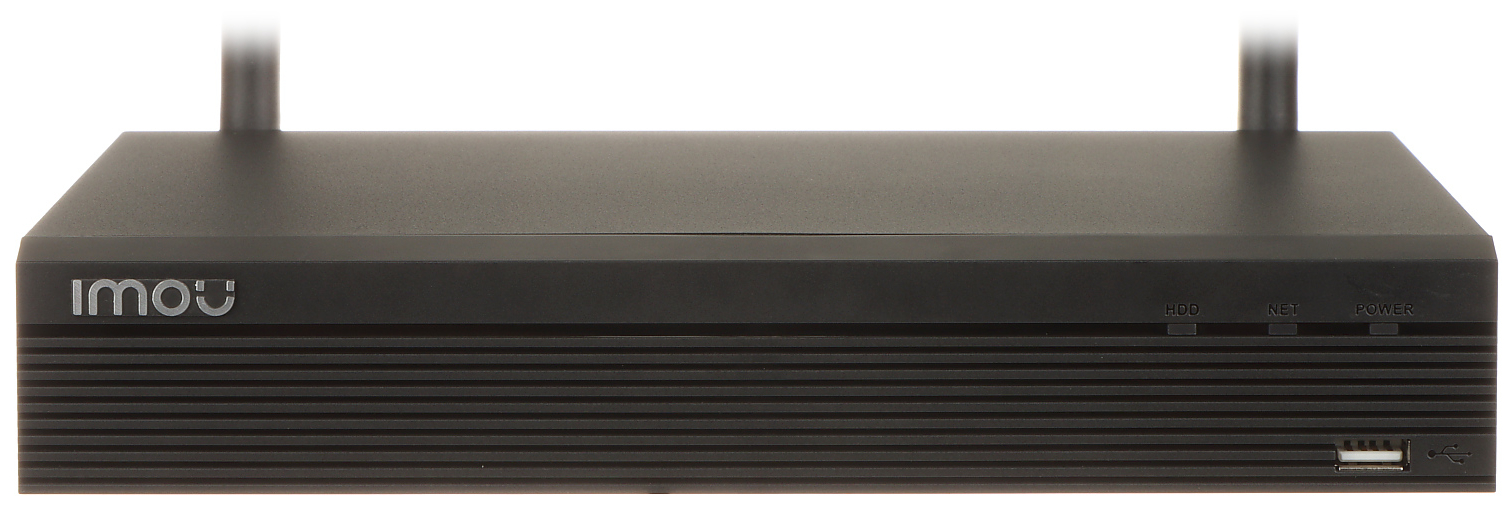

| Standard: | IP |
| Supported resolutions: | 1080p - 1920 x 1080 px |

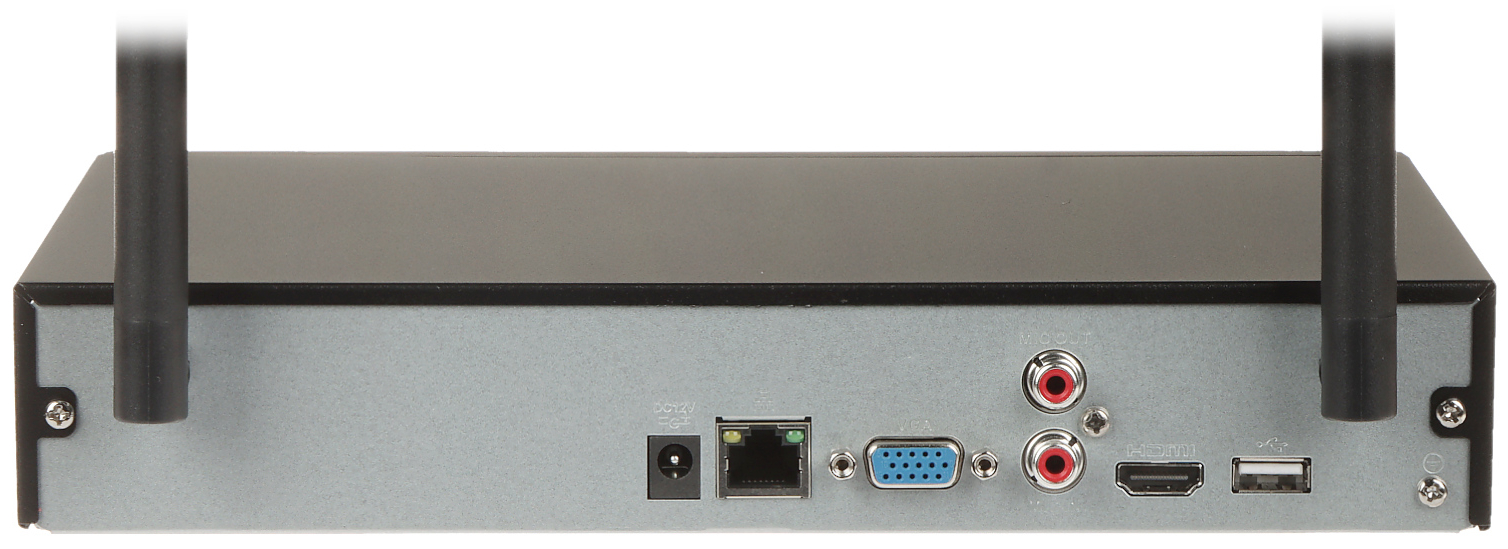

| Video outputs: | 1 pcs HDMI 1 pcs VGA |
| Audio support: | 4 Channels - Audio from cameras |
| Audio inputs: | 1 pcs CINCH |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Bitrate: | max. 40 Mbps max. 16 Mbps Wi-Fi |
| Supported hard drives: | |
| Recording modes: | Manual, Motion Detection, Schedule |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: by time and events type. Records playback: forward, backward, fast, slow Advanced searching (to the one second accuracy) 1/4 channel synchronous playback |
| Interface: | |
| Network functions: | |
| ONVIF: |  |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| USB: | 2 pcs USB 2.0 |
| Serial ports: |  |
| Alarm inputs / outputs: | |
| PTZ control: | |
| Motion Detection: | |
| Intelligent Image Analysis: | |
| Main features: | |
| Mouse support: | |
| IR remote controller in the set: | |

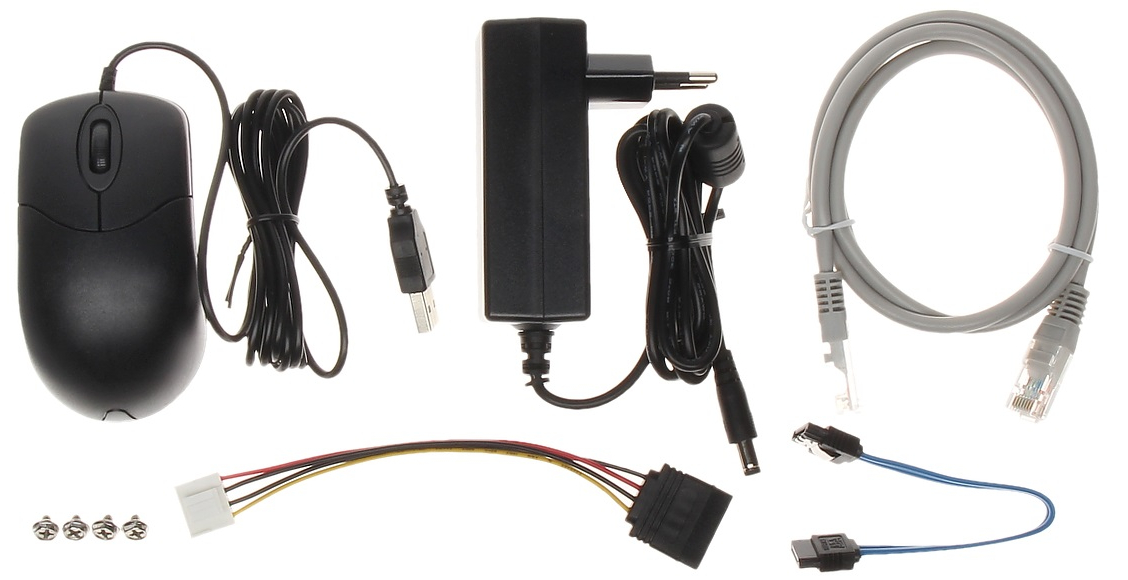

| Power supply: | 12 V DC / 1.5 A (power adapter included) |
| Power consumption: | ≤ 10 W (without HDD) |
| Operation temp: | -10 °C ... 45 °C |
| Weight: | 1.3 kg ( Recorder with HDD ) |
| Dimensions: | 260 x 248 x 48 mm |
| Supported languages: | Polish, English |

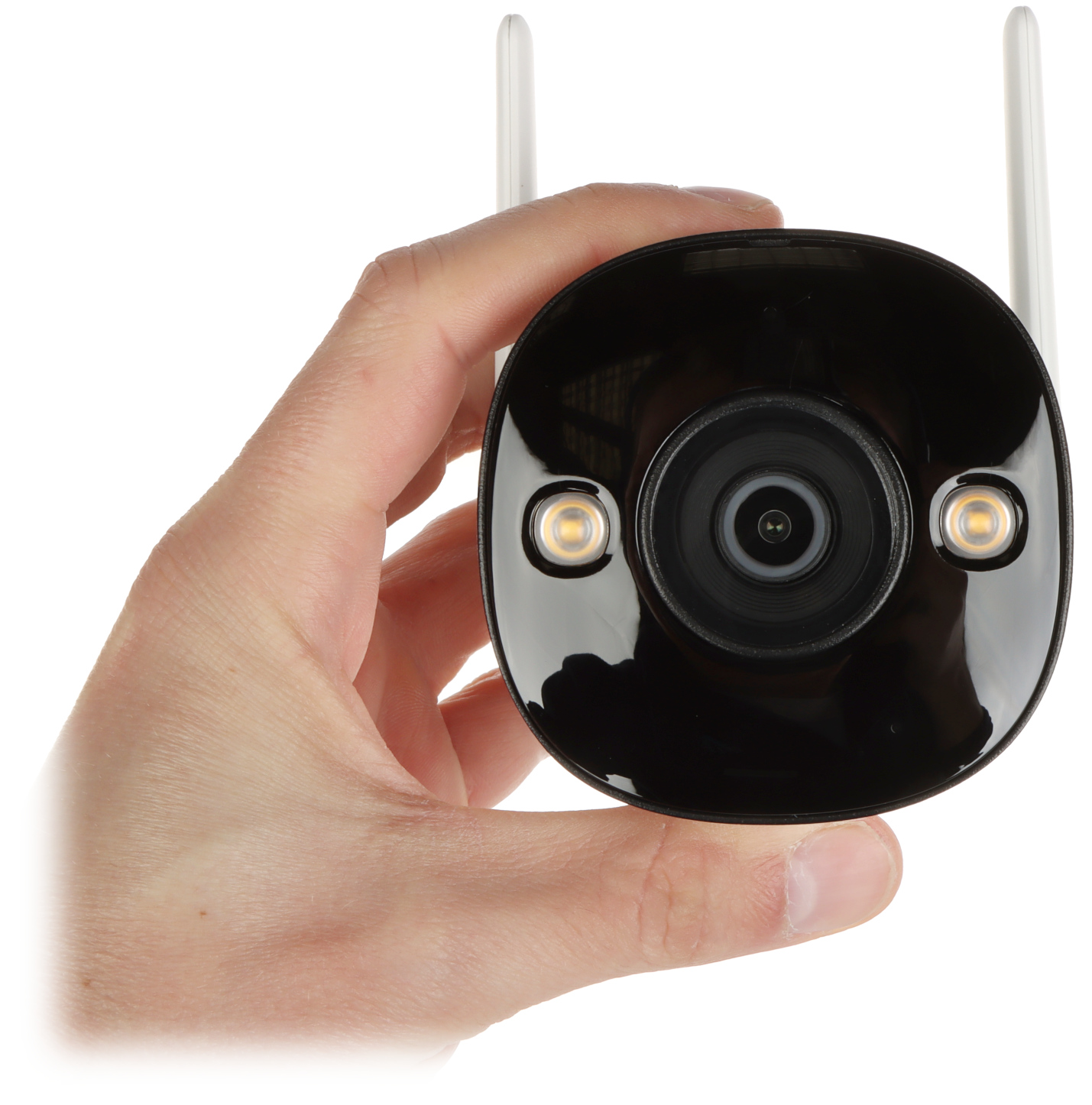

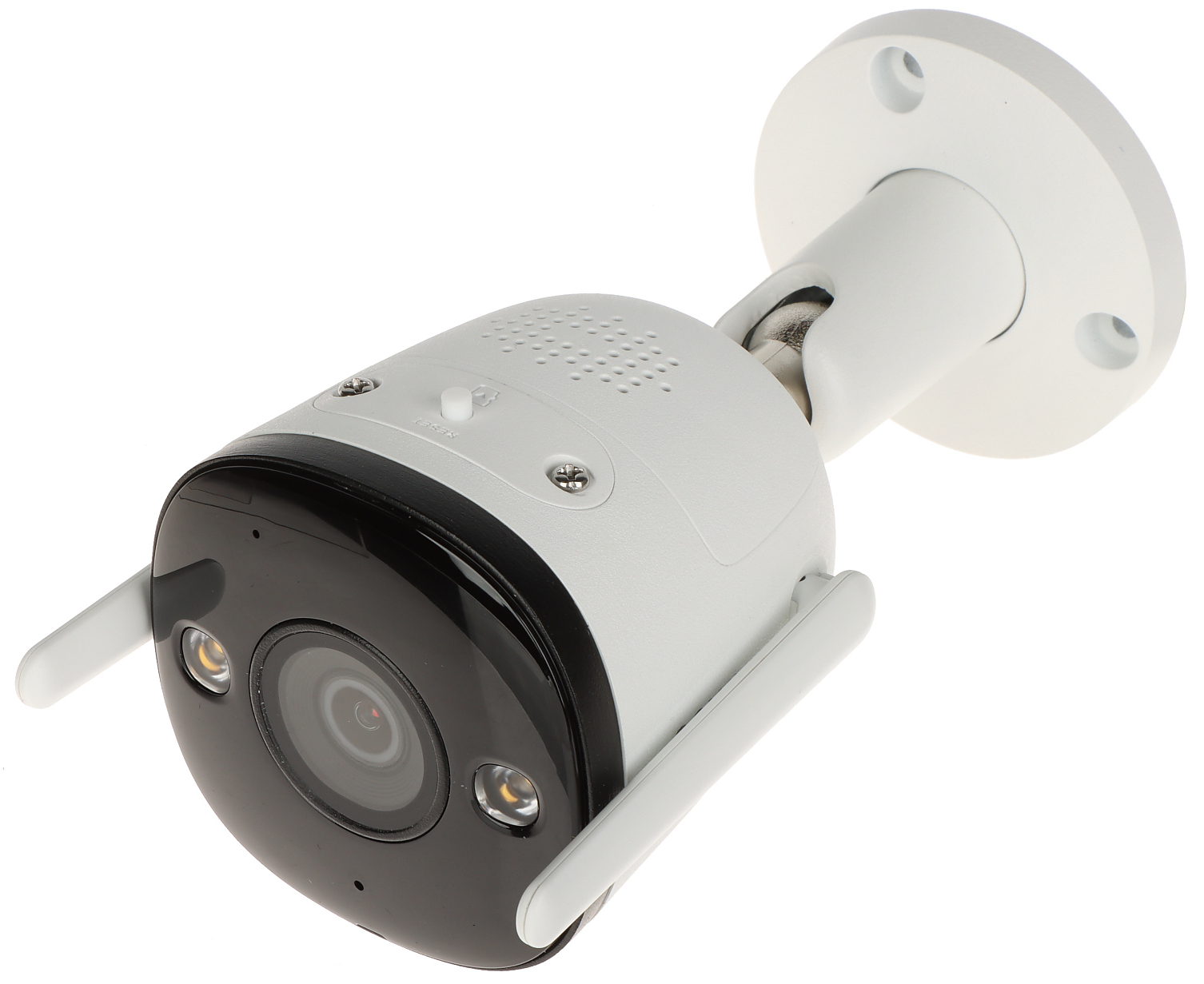

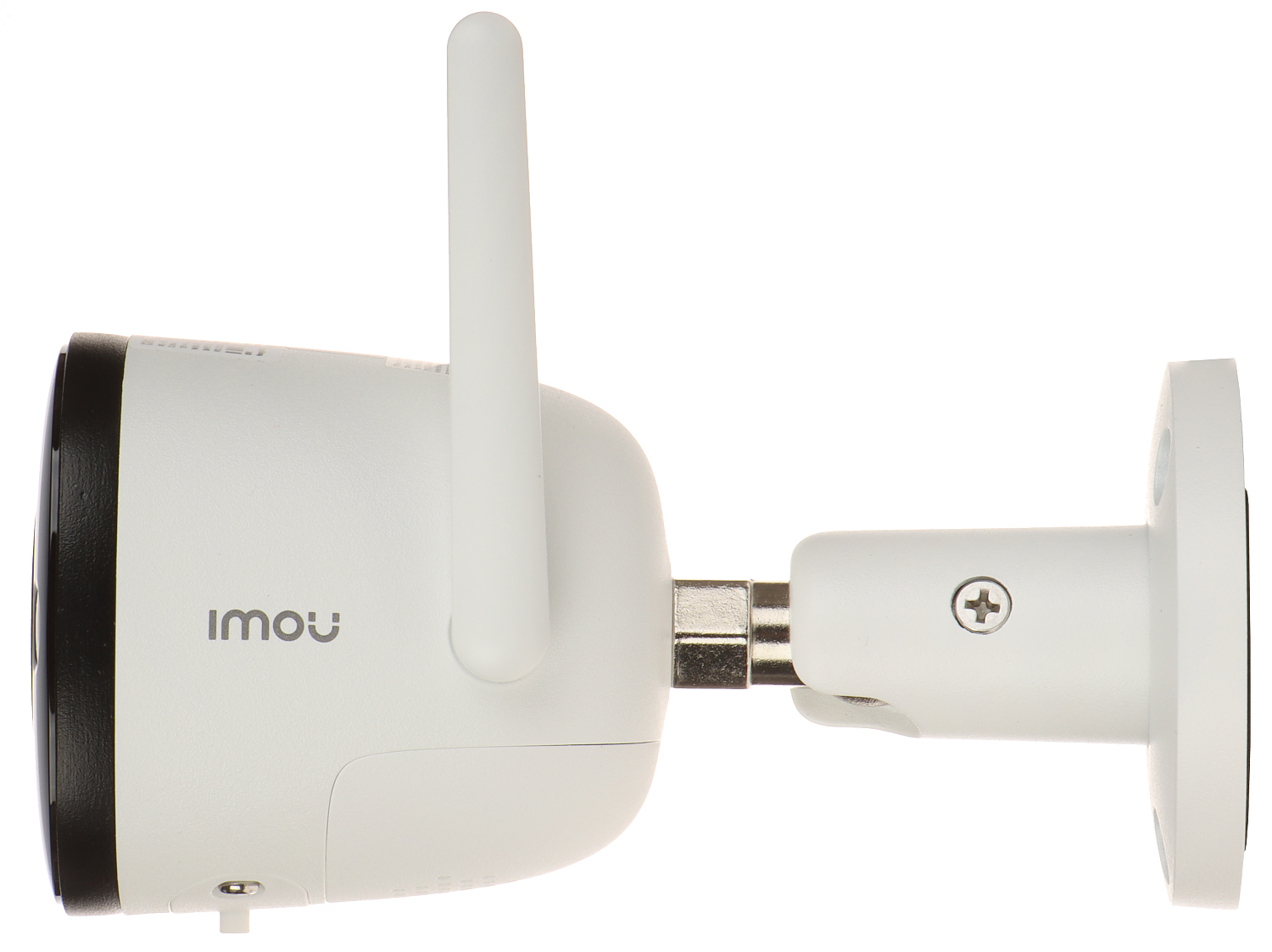

CAMERA:
| Standard: | IP |
| Resolution: | 1920 x 1080 - 1080p |
| Sensor: | 1/2.8 " Progressive Scan CMOS |
| Lens: | 2.8 mm |
| View angle: | 108 ° |
| White light LED illuminator range: | 30 m |
| Audio: | |
| Image compression method: | H.265 / H.264 |
| Main stream frame rate: | 25 fps @ 1080p |
| Network protocols: | TCP, DHCP |
| ONVIF: | |
| Interface: | |
| WEB Server: | |
| Mobile phones support: | Access by a cloud (P2P) |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Default IP address: | DHCP |
| Web browser access ports: | |
| PC client access ports: | |
| Mobile client access ports: | |
| ONVIF port: | |
| RTSP URL: | |

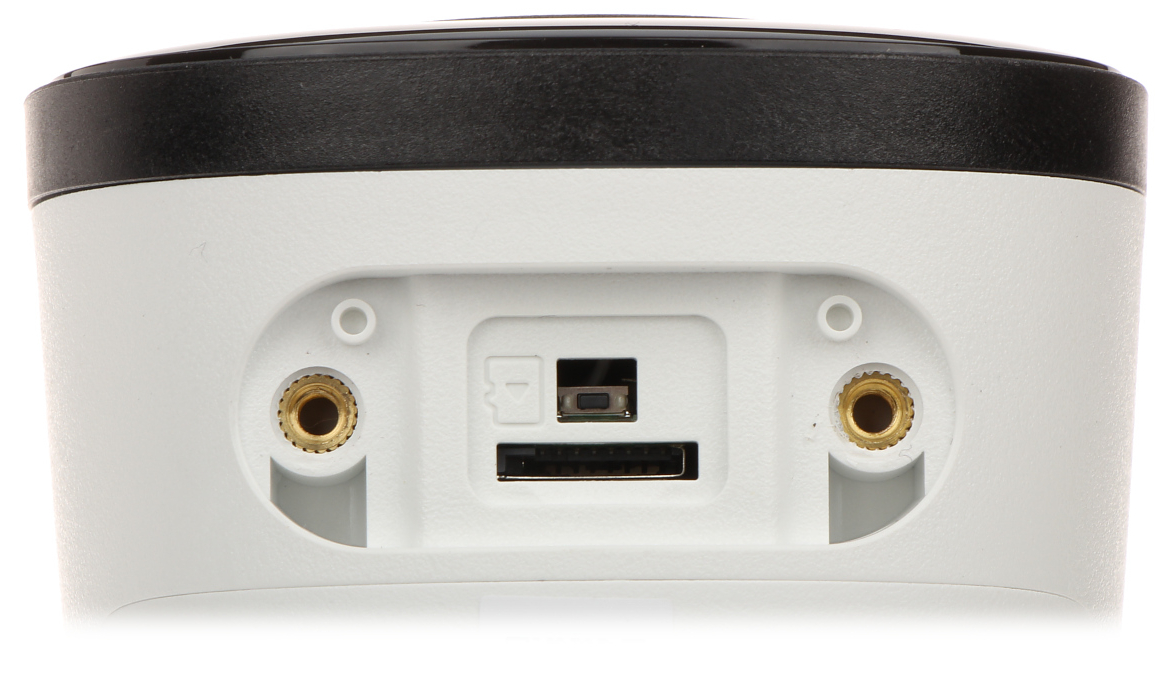

| Memory card slot: | Micro SD memory cards up to 256GB support (possible local recording) |
| Main features: | |

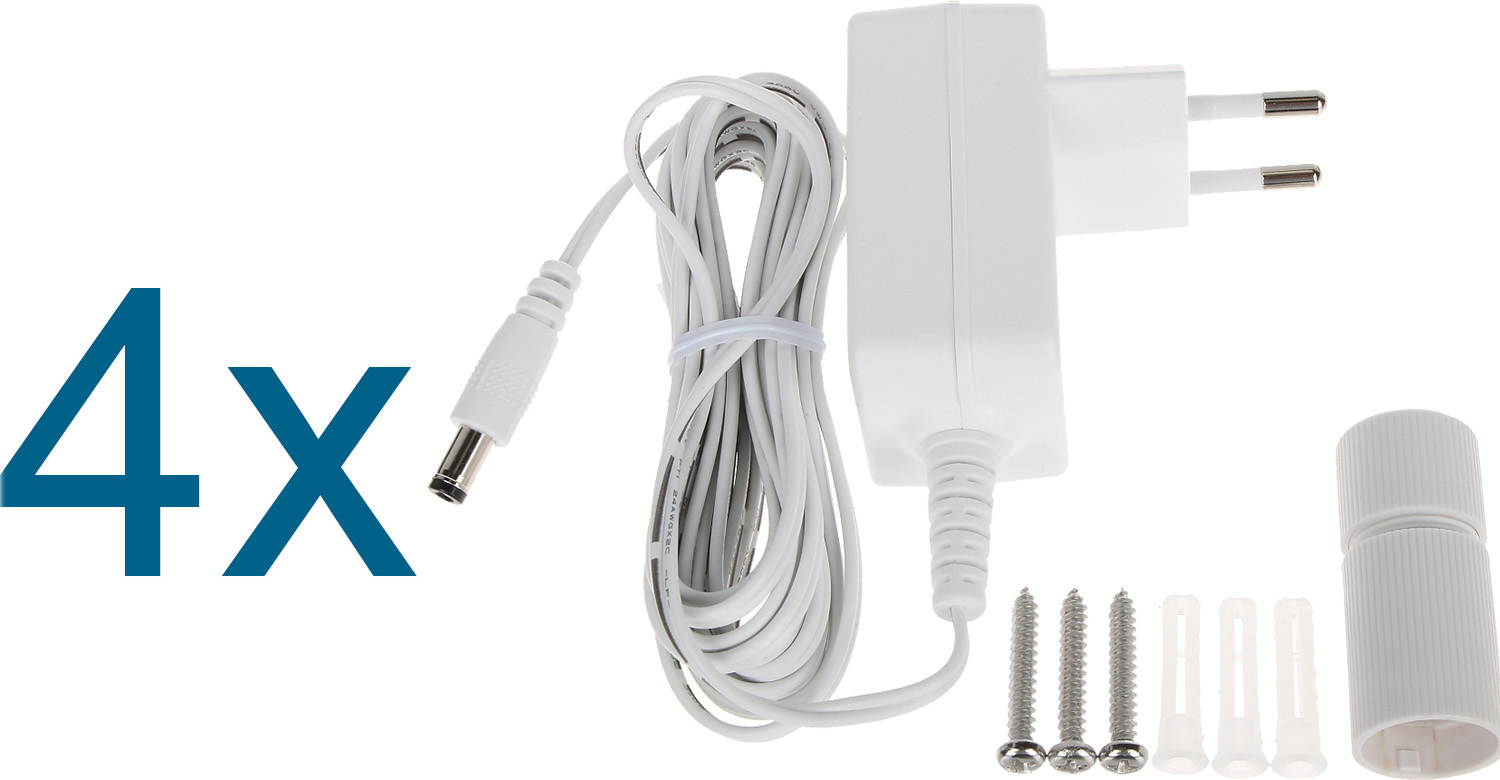

| Power supply: | 12 V DC / 1 A (power adapter included) |
| Power consumption: | < 5.32 W |
| "Index of Protection": | IP67 |
| Weight: | 0.36 kg |

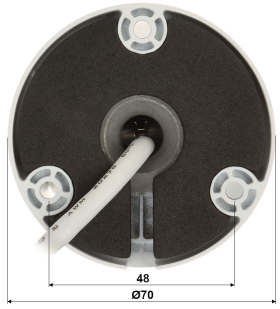

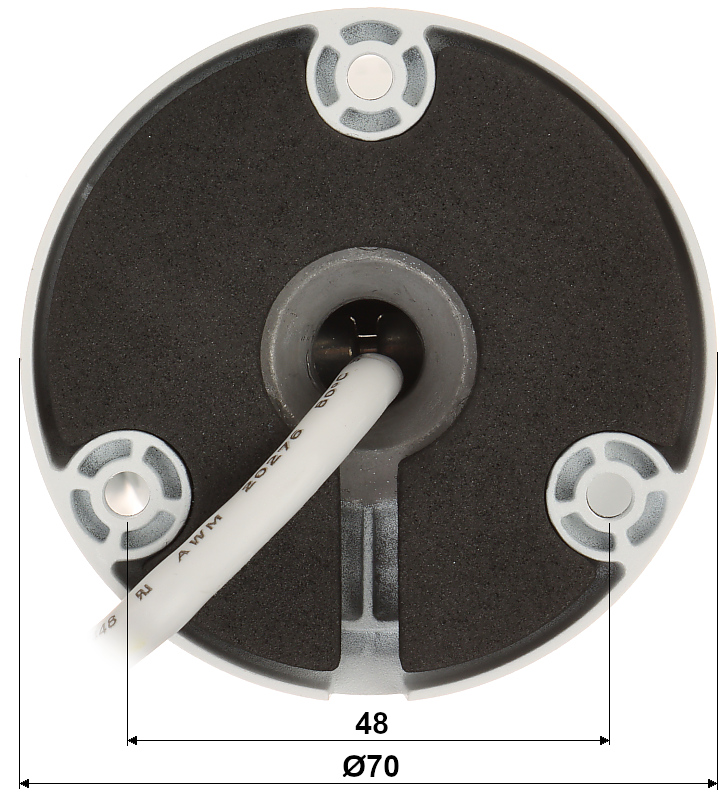

| Dimensions: | 148 x 74 x 74 mm |
General information:
| Manufacturer / Brand: | IMOU |
| Guarantee: | 2 years |
Brand:
Imou
