Standard: | TCP/IP |
Sensor: | 1/2.8 " Progressive Scan CMOS |
Matrix size: | 8.3 Mpx |
Resolution: | 3840 x 2160 - 8.3 Mpx, 4K UHD |
Lens: | 2.8 mm |
View angle: | 107 ° |
Range of IR illumination: | 30 m |
White light LED illuminator range: | 20 m |
Audio: | |
Image compression method: | H.265 / H.264 |
Main stream frame rate: | 15 fps @ 8.3 Mpx |
Network protocols: | TCP, DHCP |
ONVIF: | ![]() |
Network interface: | |
WEB Server: | ![]() |
Mobile phones support: | Access by a cloud (P2P) |
Default admin user / password: | admin / - The administrator password should be set at the first start |
Default IP address: | DHCP |
Web browser access ports: | ![]() |
PC client access ports: | ![]() |
Mobile client access ports: | ![]() |
ONVIF port: | ![]() |
RTSP URL: | ![]() |

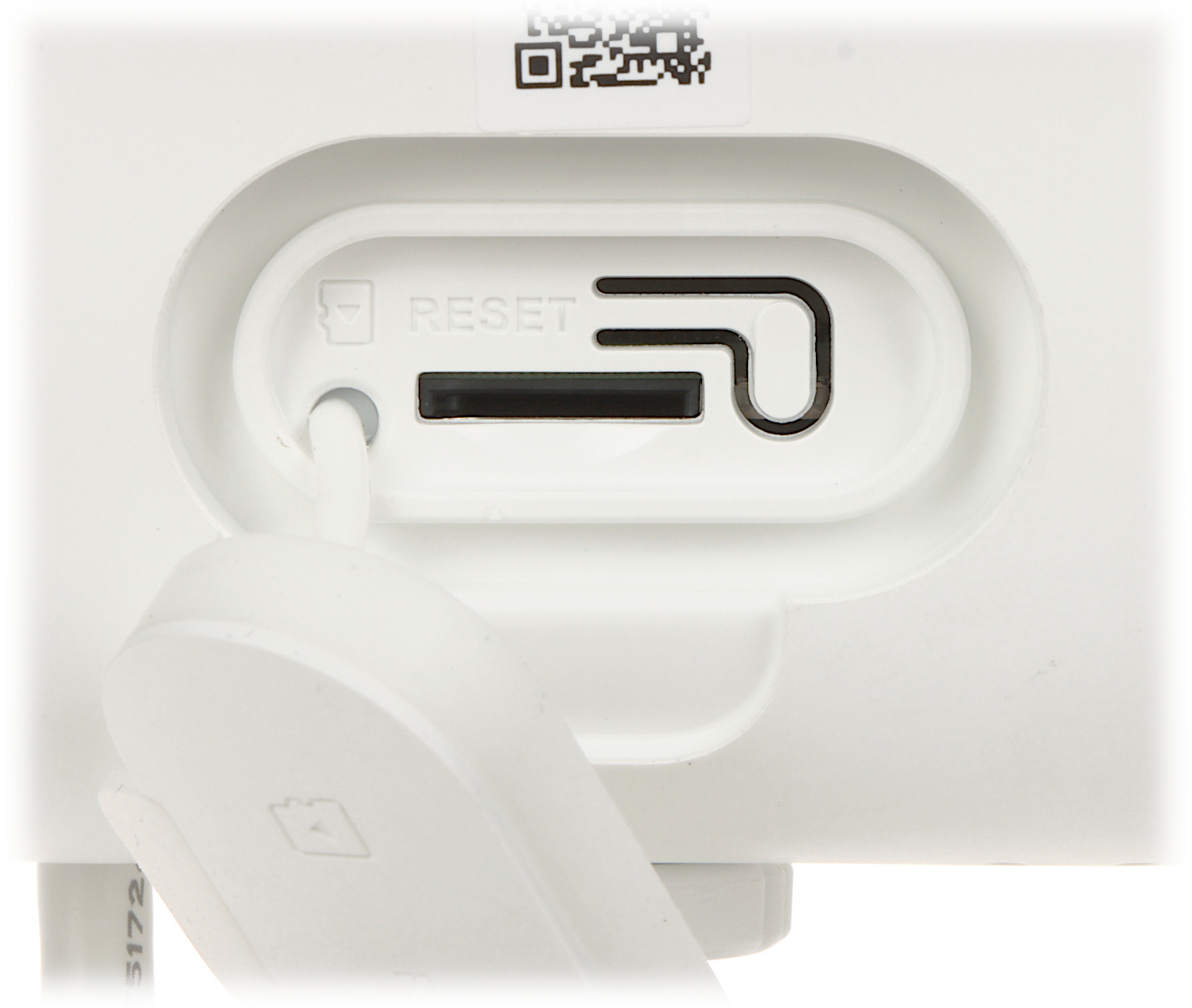

Memory card slot: | Micro SD memory cards up to 256GB support (possible local recording) |
Main features: | |

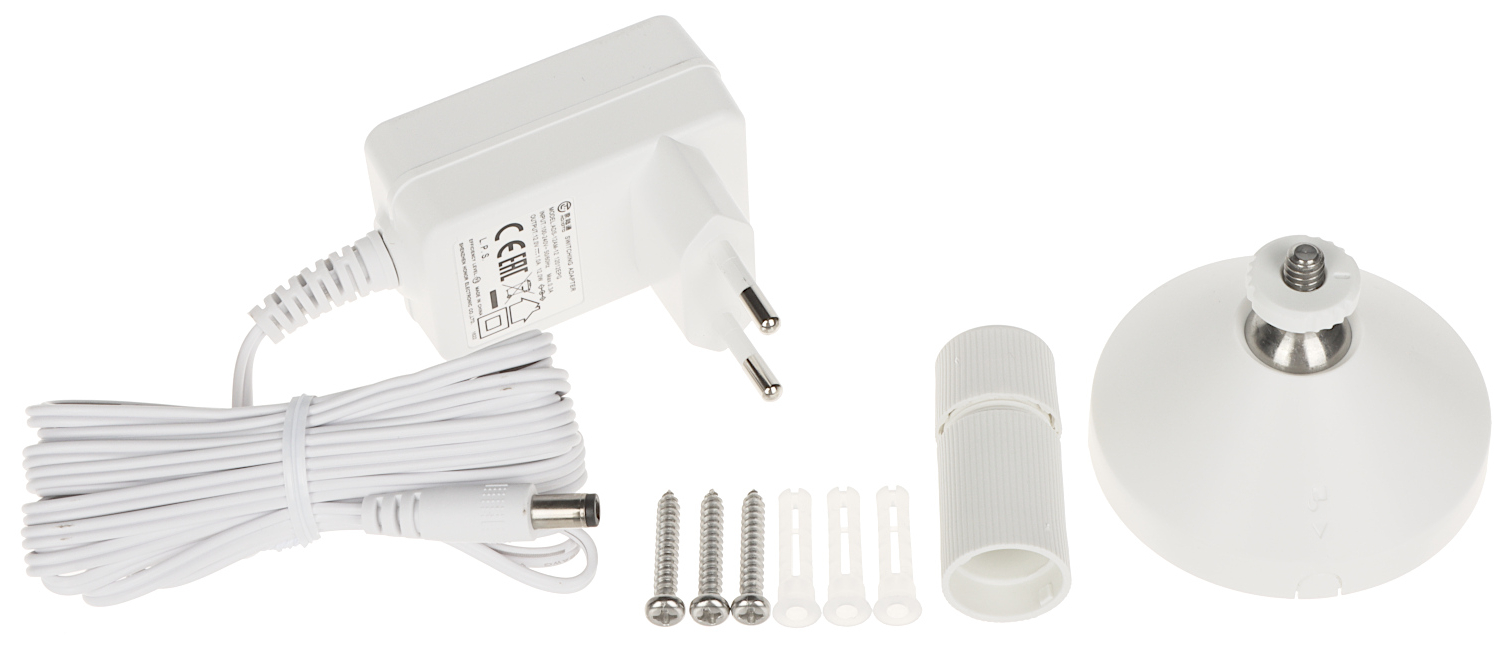

Power supply: | 12 V DC / 1.5 A (power adapter included) |
Power consumption: | < 9.2 W |
"Index of Protection": | IP66 |
Weight: | 0.57 kg (with bracket) |

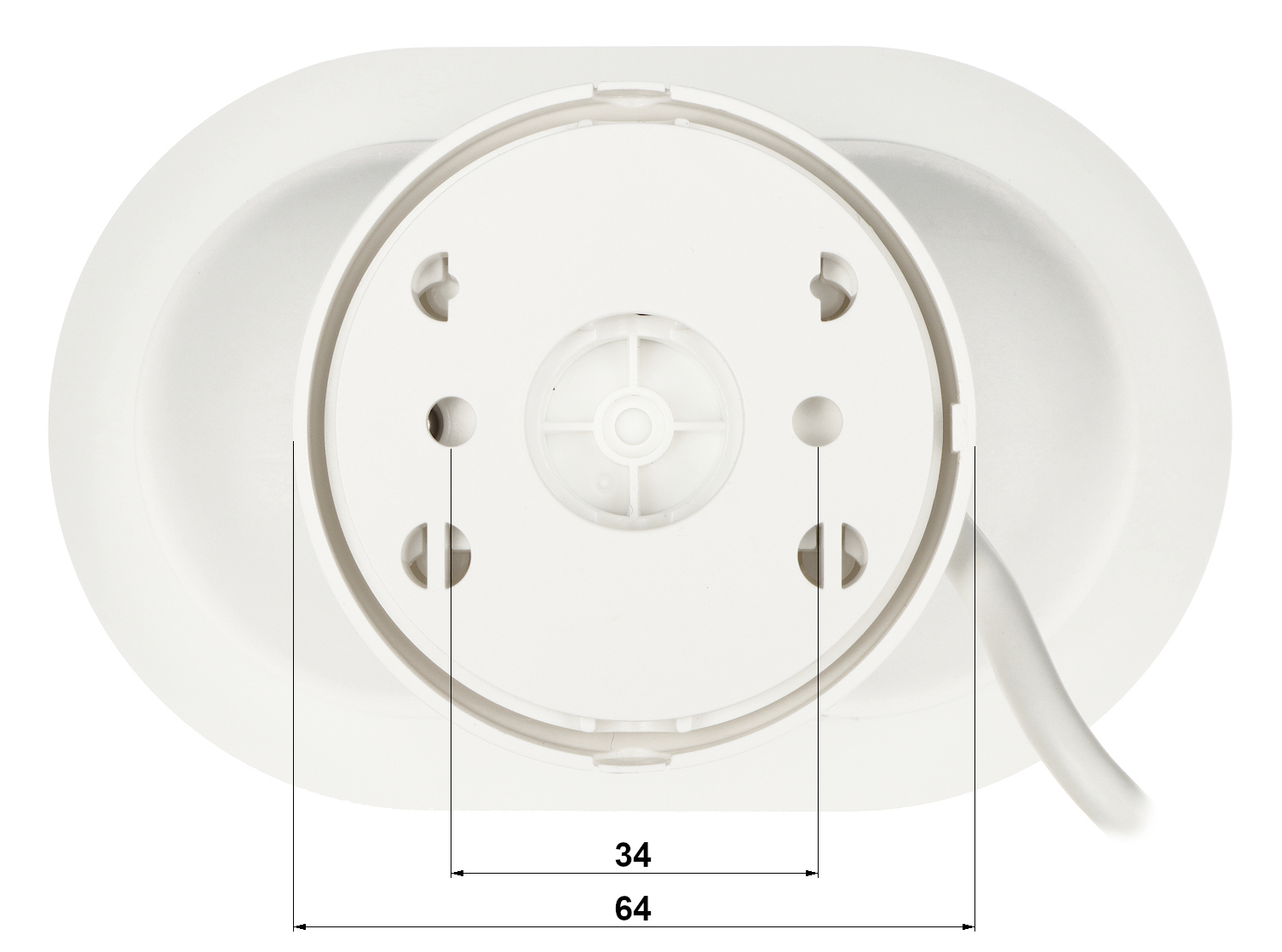

Dimensions: | 128 x 114 x 84 mm (with bracket) |
Supported languages: | ![]() |
Manufacturer / Brand: | DAHUA / IMOU |
Guarantee: | 2 years |
