Optical time-domain reflectometer (OTDR): Optical wavelength : 1610 nm Wide measuring range ≤ 100 km ; Optical power measurement: Range : -70 ... +10 dBm ; VLS (VFL) - Visual Fault Locator of fiber cable: Laser LD ; Video standard: AHD, HD-CVI, HD-TVI - 8 Mpx, TCP/IP - 8 Mpx, CVBS - PAL / NTSC ; Display: 8 " IPS - capacitive touch screen, 1920 x 1200 px ; Video input: 1 pcs AHD / HD-CVI / HD-TVI / CVBS - BNC socket, 1 pcs HDMI 1 pcs VGA ; LAN port: 2 pcs - PoE cameras and switches support ; Serial ports: RS-485 ; Wi-Fi Module: 2.4 GHz ; Identification the wire in the group of wires; Digital multimeter: Measurement : voltage, current, resistance, continuity test, diode test, electrical capacity ; Main features: Supported image compression methods : H.265, H.264, MJPEG ;
| Optical time-domain reflectometer (OTDR): | |
| Optical power measurement: | Optical power measurement in fiber optic networks (ST and SC adapters) Optical wavelength : 850, 1300, 1310, 1490, 1550, 1625 nm Range : -70 ... +10 dBm |
| VLS (VFL) - Visual Fault Locator of fiber cable: | Laser LD, 650 nm, 10 mW Range 8 km |
| Video standard: | |

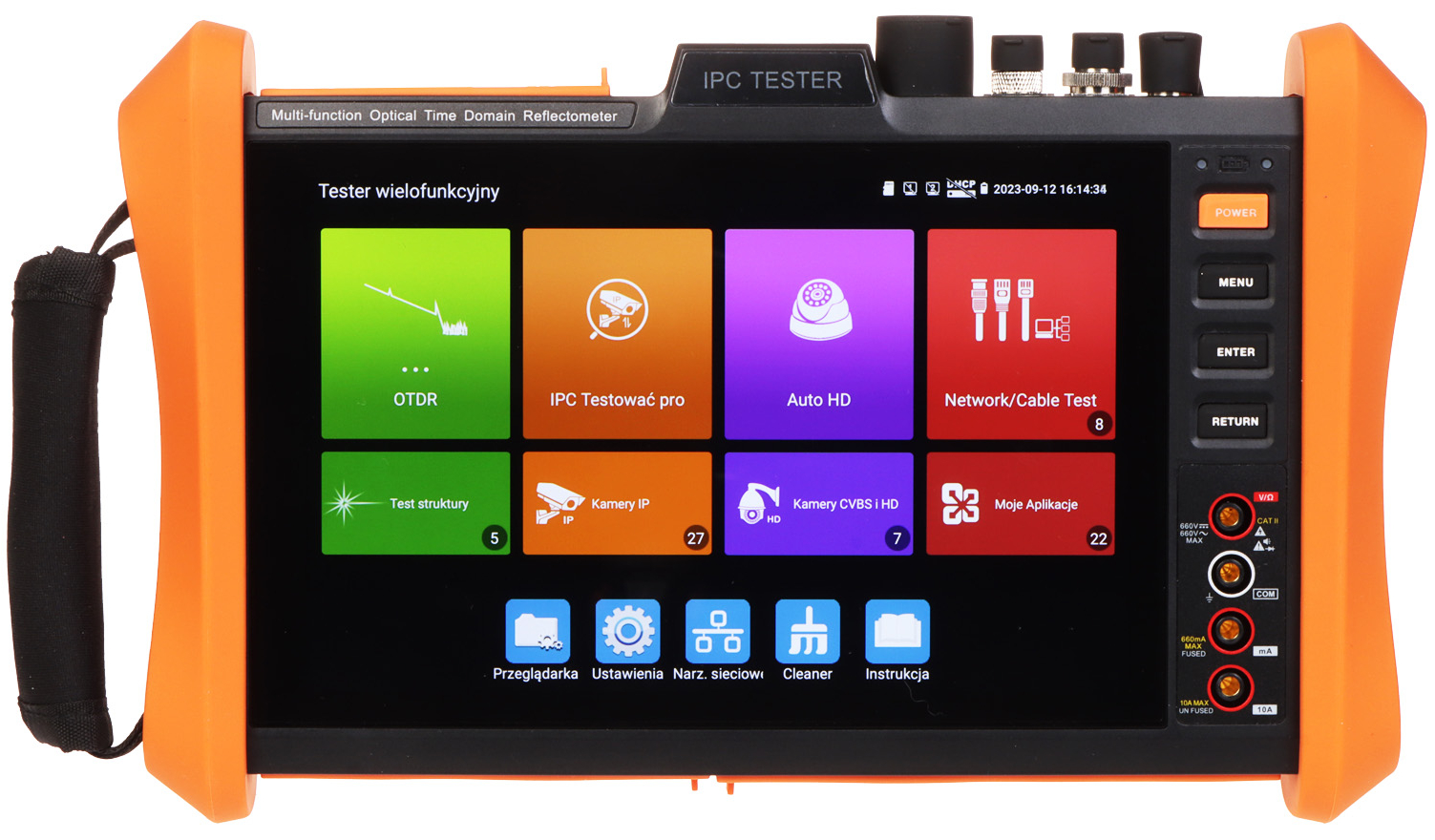

| Display: | 8 " IPS - capacitive touch screen, 1920 x 1200 px |
| Video input: | |
| Video output: |  |
| LAN port: | 2 pcs - PoE cameras and switches support |
| Audio input: | 1 pcs Mini Jack |
| Audio output: | 1 pcs Mini Jack |
| Video signal level meter: | |
| Video signal generator: | |
| Serial ports: | RS-485 |
| Protocols: | Support for over 30 RS485 protocols : Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(M-B), SAMSUNG SPD, Siemens, Cohu, MINKING B01, ALEC |
| Baud rates: | 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s |
| LAN (twisted-pair) or telephone cables testing: | UTP cables or phone lines connecting test with RJ-45 connectors |
| RS-485, lines test: | Data analysis from control device (the commands are displayed in hexadecimal) |
| Wi-Fi Module: | 2.4 GHz |
| Identification the wire in the group of wires: |  |
| Audio test: | |
| Digital multimeter: | Measurement : voltage, current, resistance, continuity test, diode test, electrical capacity |
| TDR reflectometer: | Detecting and locating a cable break or short circuit, 180 m (max) |
| Operation as power source: | |

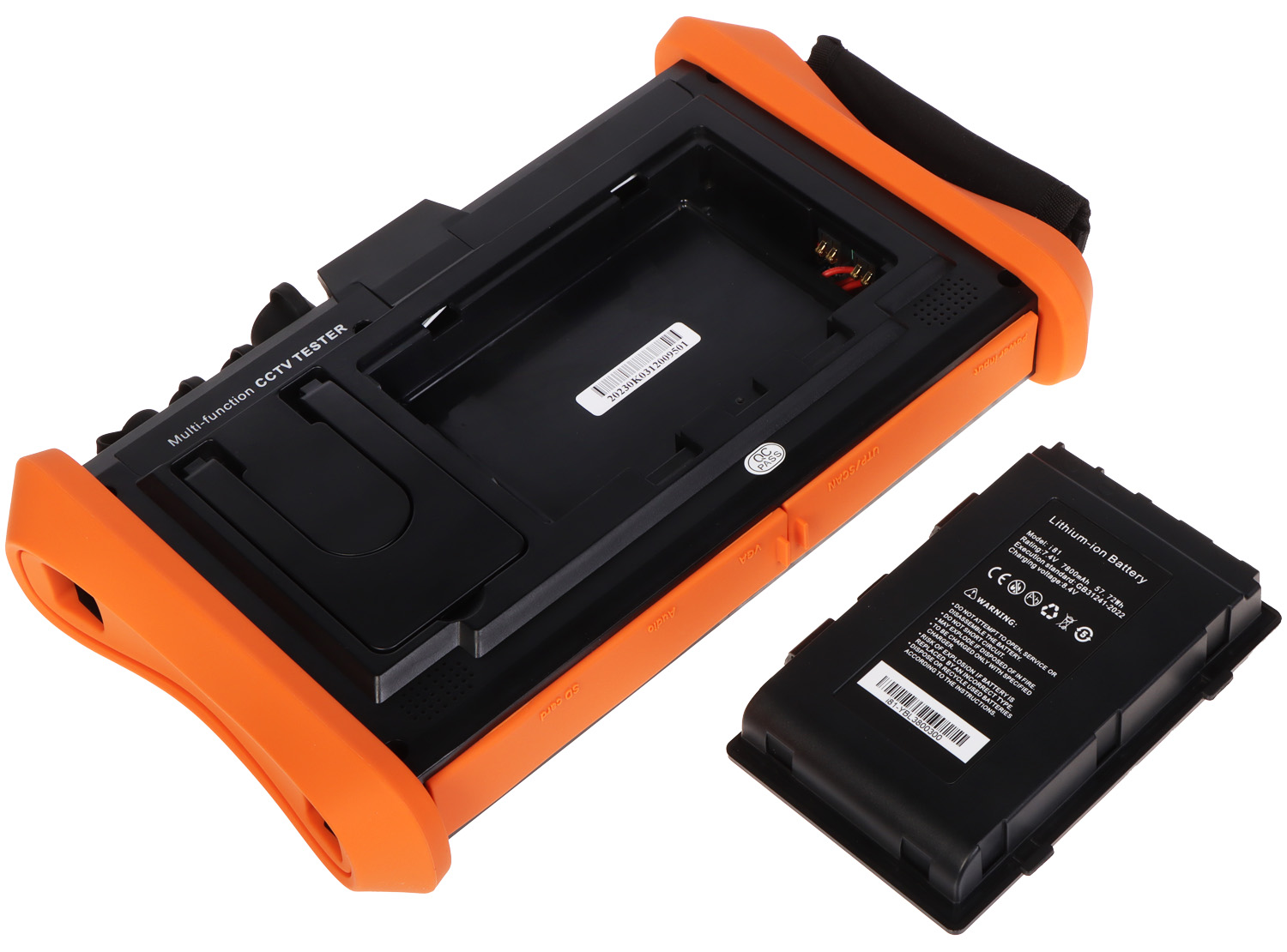

| Battery power supply: | |
| Estimated battery operation time: | max. 10 hours |

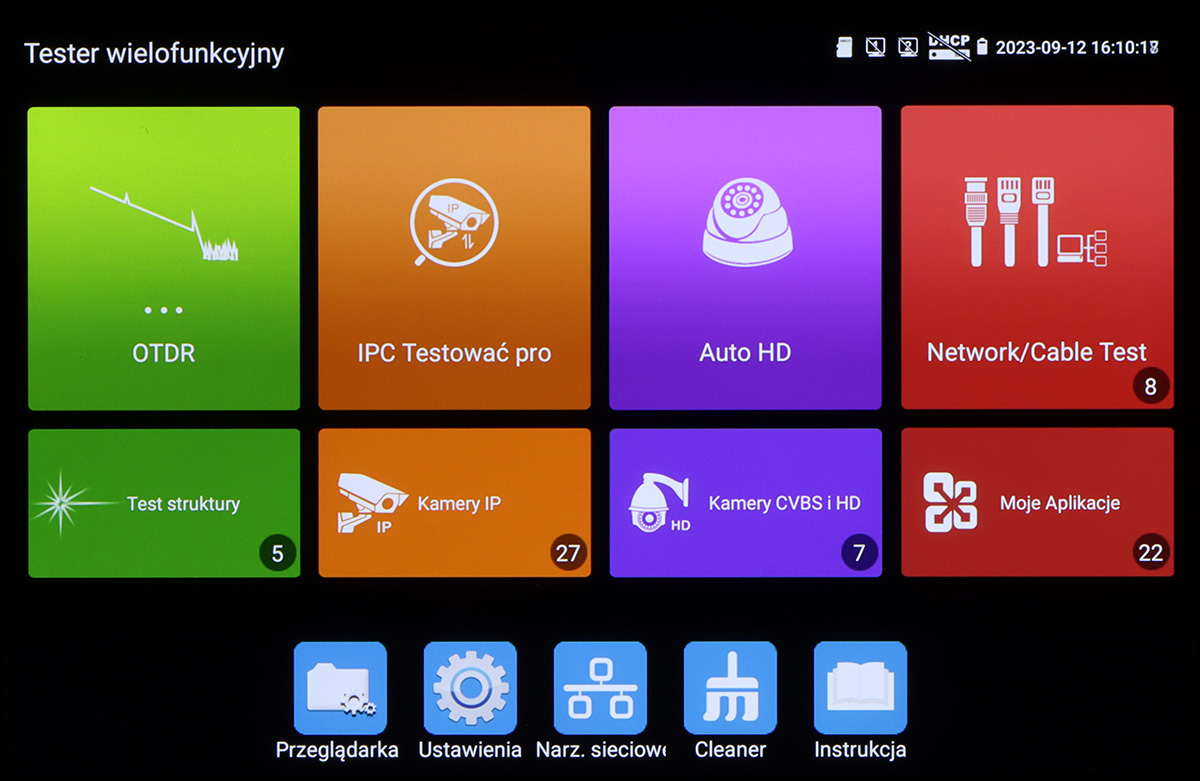

| Operation: | Graphical menu - touch control and by using the buttons |
| Main features: | EZView |
| Operation temp: | -10 °C ... 50 °C |
| Permissible relative humidity: | 30 % ... 90 % |
| Weight: | 1.24 kg |
| Dimensions: | 273 x 170 x 48 mm |

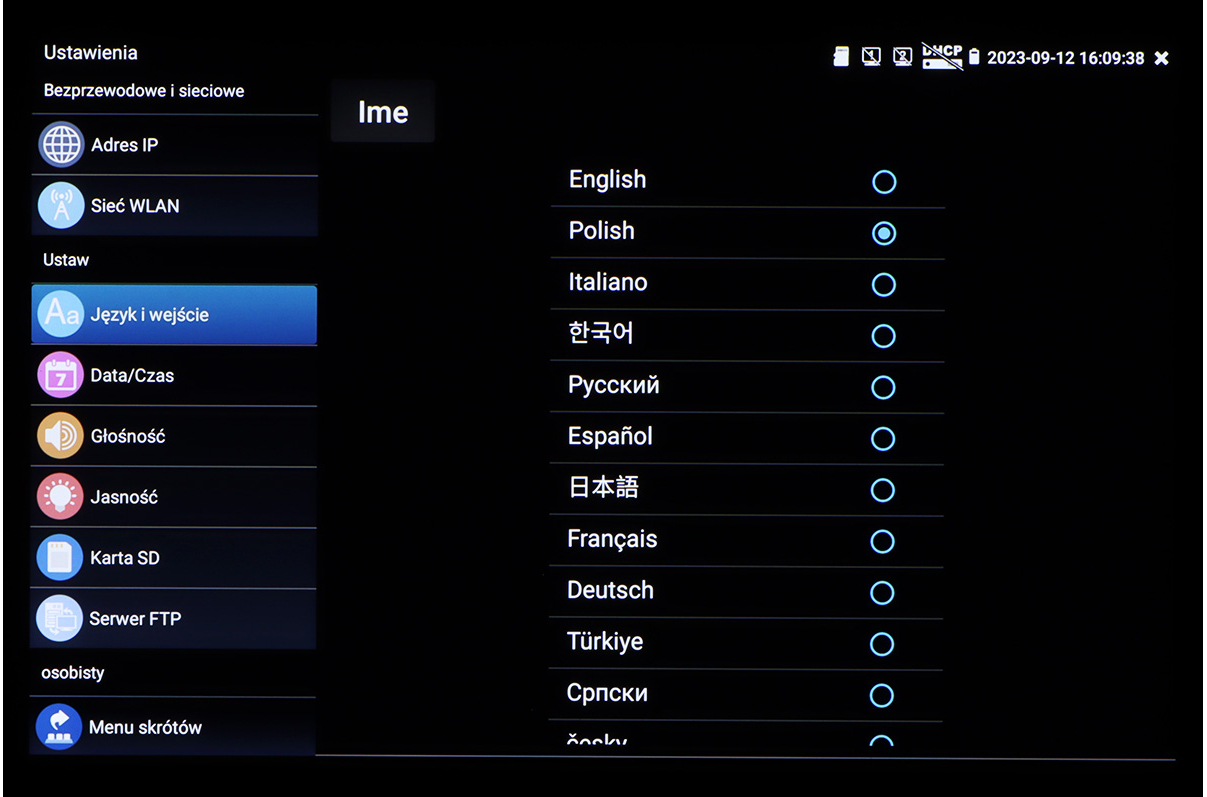

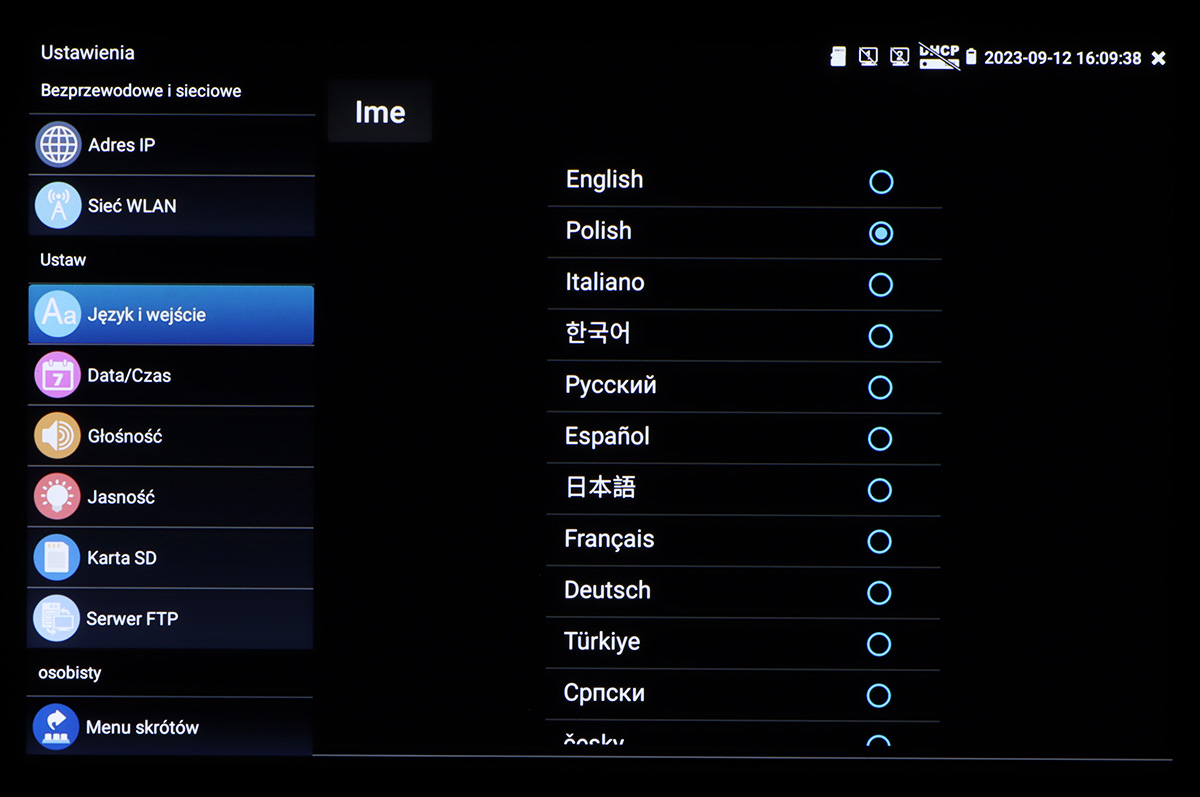

| Supported languages: | Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian |
| Guarantee: | 2 years |
Brand:
Delta Tester
