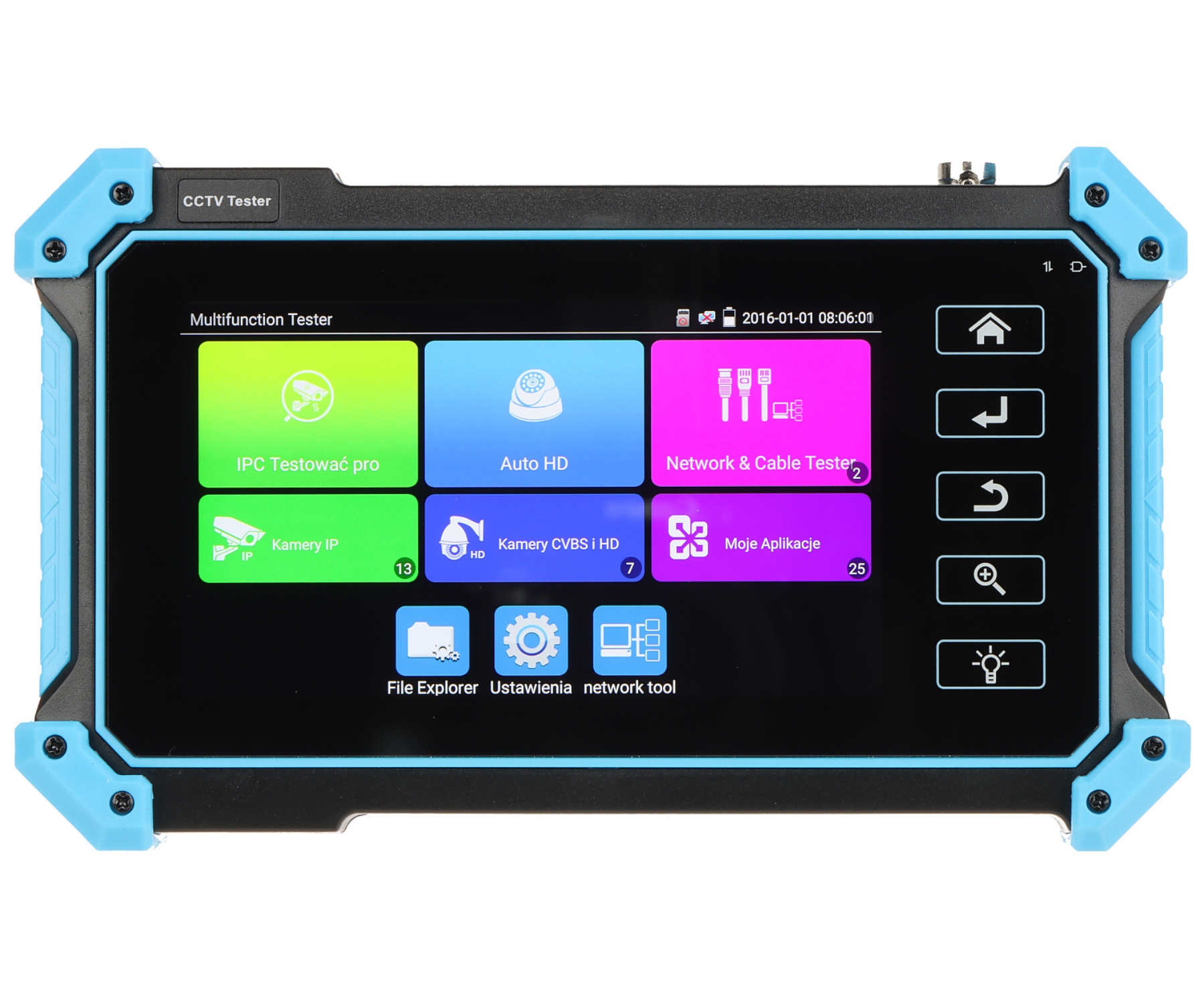

MULTI-FUNCTIONAL CCTV TESTER CS-H7-50H-S2
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

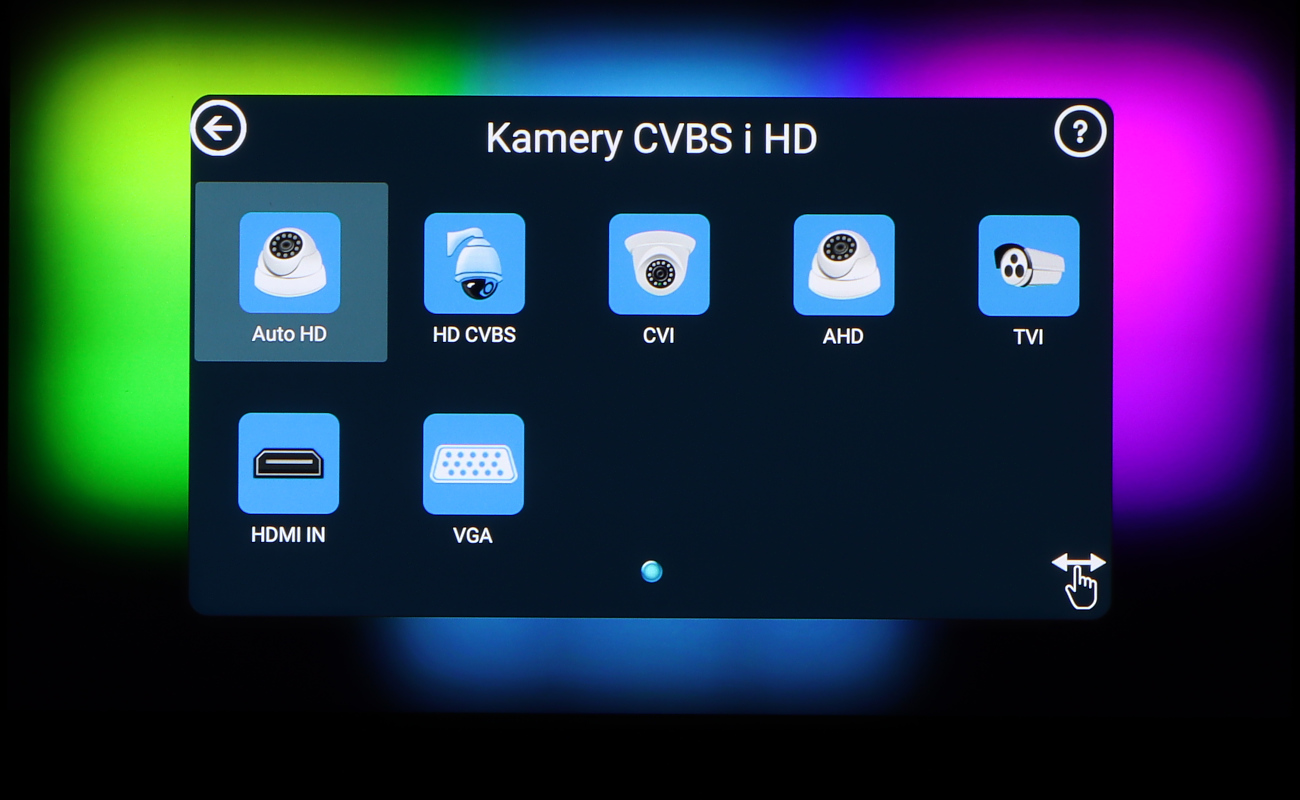

Video standard: AHD - 8 Mpx, HD-CVI - 8 Mpx, HD-TVI - 8 Mpx, IP - 4K, CVBS - PAL / NTSC ; Display: 5 " IPS - capacitive touch screen - 1920 x 1080 px ; Video input: 1 pcs AHD / HD-CVI / HD-TVI / CVBS - BNC socket, 1 pcs HDMI, 1 pcs VGA ; LAN port: 2 pcs - PoE cameras and switches support ; Serial ports: RS-485 ; Protocols: Pelco-D, Pelco-P ; Wi-Fi Module: 2.4 GHz ; Main features: Supported image compression methods : H.265, H.264, MJPEG ;
| Video standard: | |
| Display: | 5 " IPS - capacitive touch screen - 1920 x 1080 px |

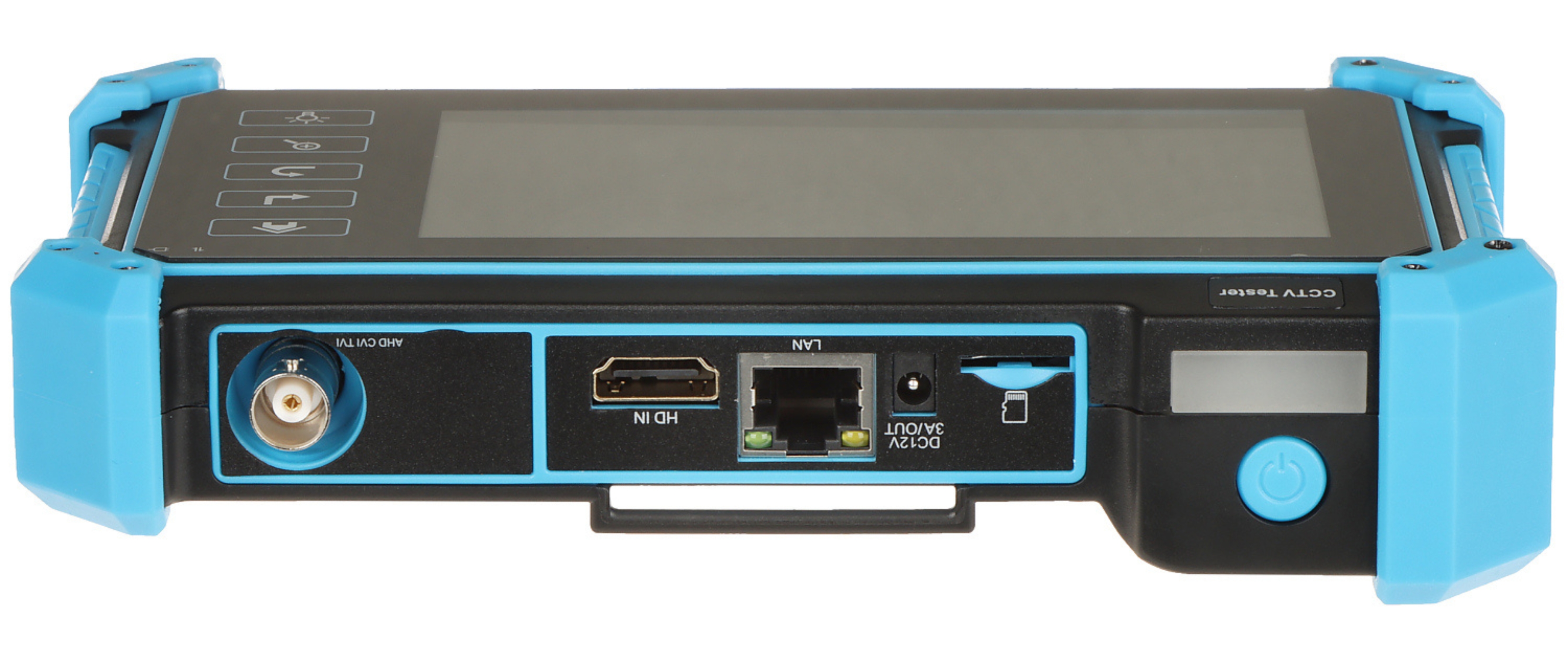

| Video input: | |
| Video output: |  |

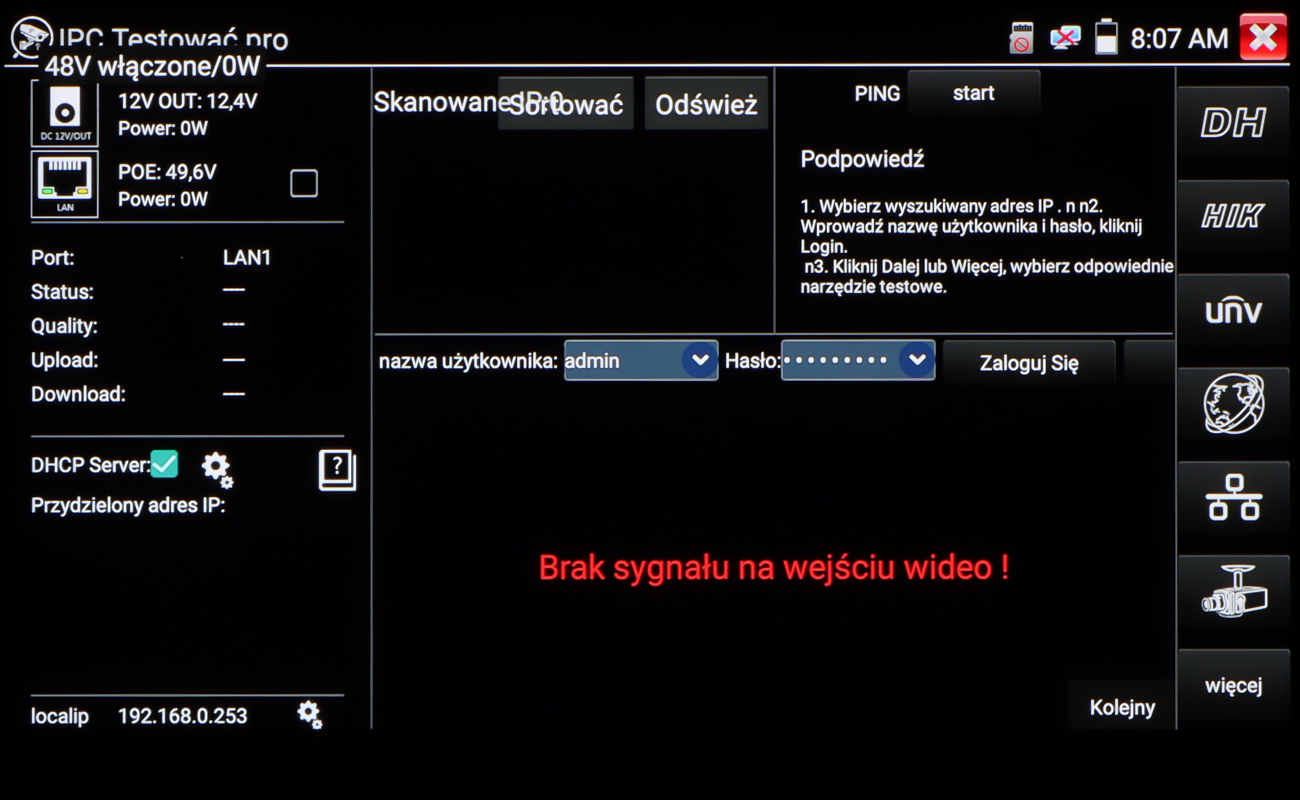

| LAN port: | 2 pcs - PoE cameras and switches support |
| Audio input: | 1 pcs Mini Jack |
| Audio output: | |
| Video signal level meter: | |
| Video signal generator: | |
| Serial ports: | RS-485 |
| Protocols: | Support for over 30 RS485 protocols Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(M-B), SAMSUNG SPD, Siemens, MINKING B01, ALEC |
| Baud rates: | 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s |

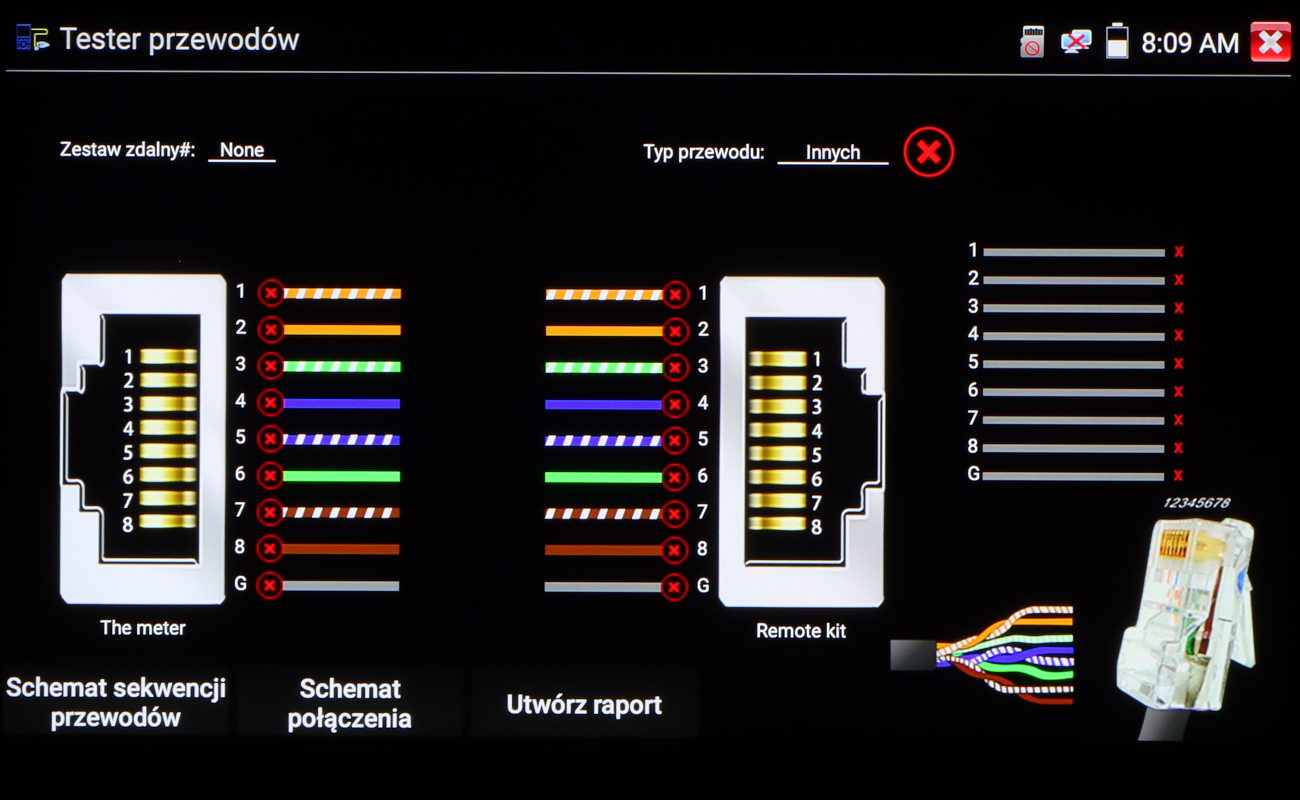

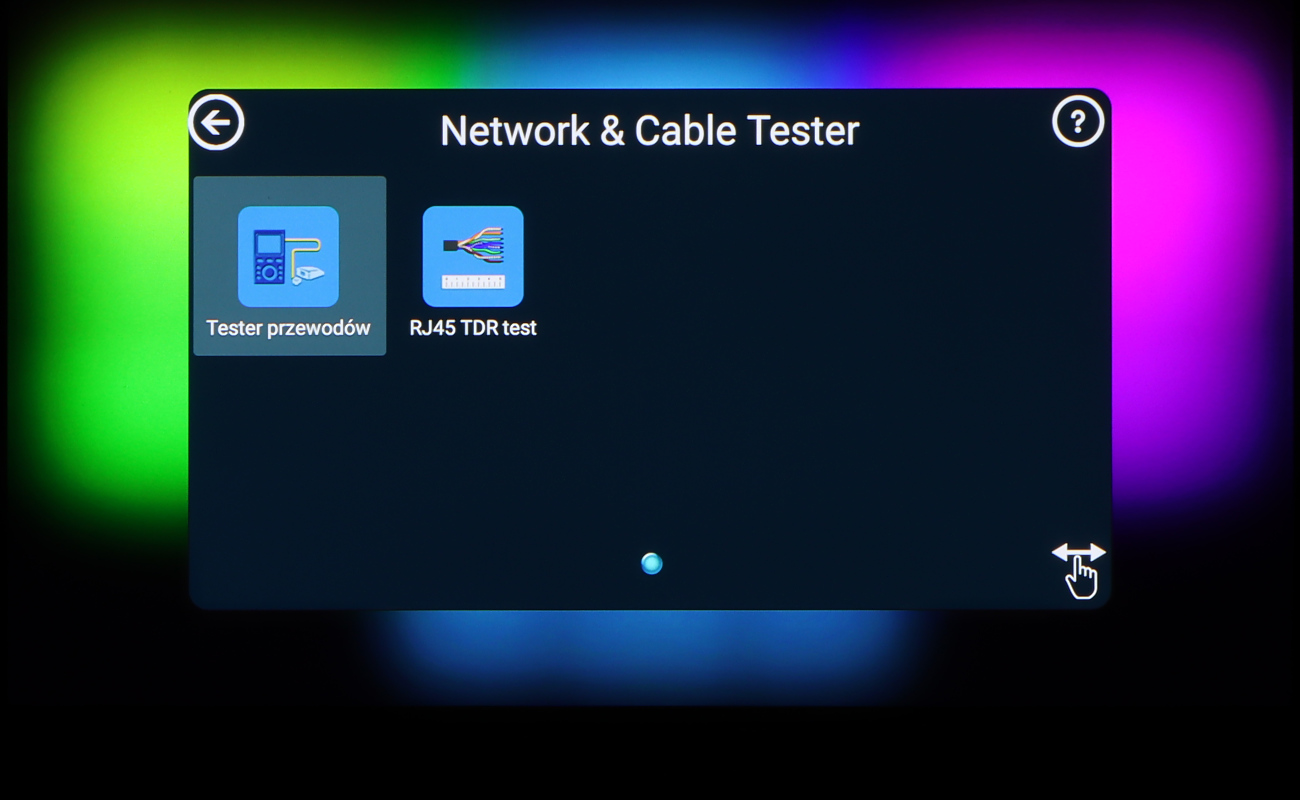

| LAN (twisted-pair) or telephone cables testing: | UTP cables or phone lines connecting test with RJ-45 connectors |

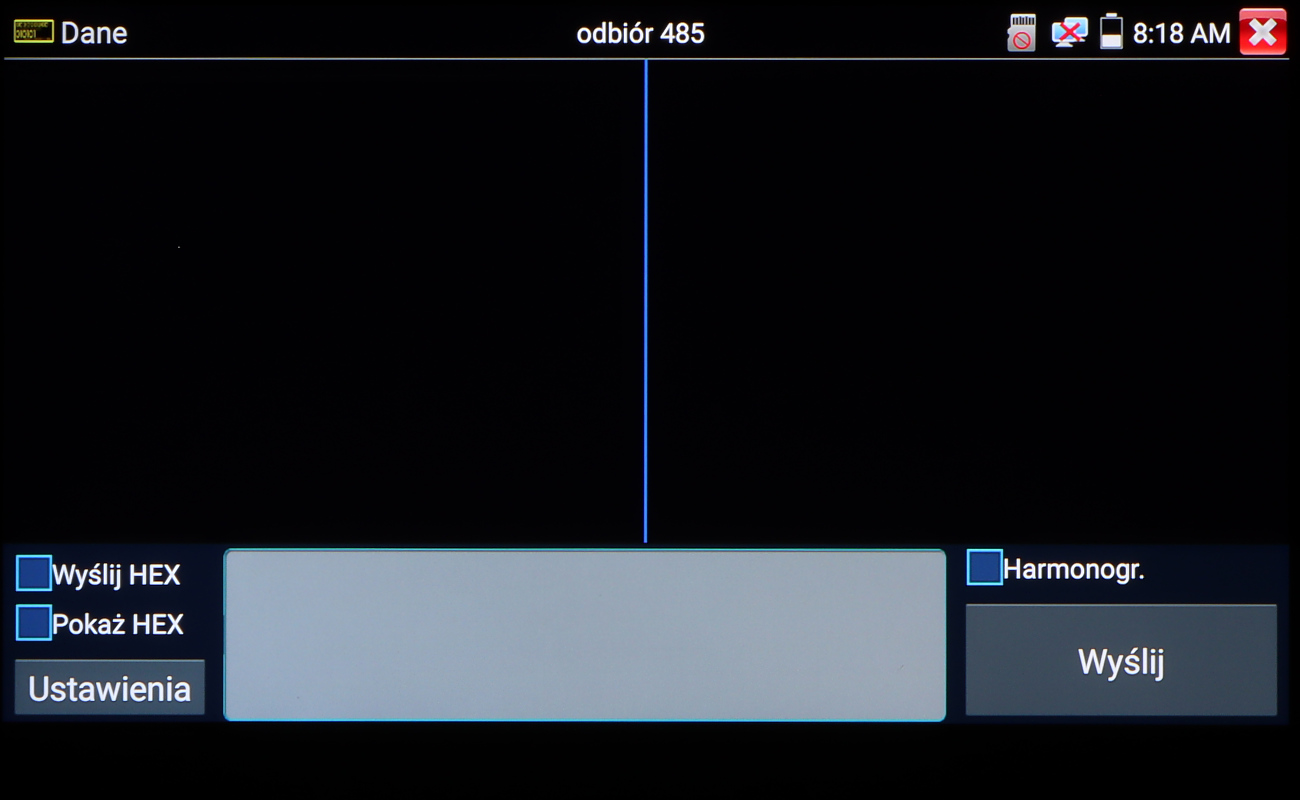

| RS-485, RS-232 lines test: | Data analysis from control device (the commands are displayed in hexadecimal) |
| Wi-Fi Module: | 2.4 GHz |
| Identification the wire in the group of wires: | |
| Audio test: |  |
| Digital multimeter: | |
| Optical power measurement: | |
| VLS (VFL) - Visual Fault Locator of fiber cable: | |

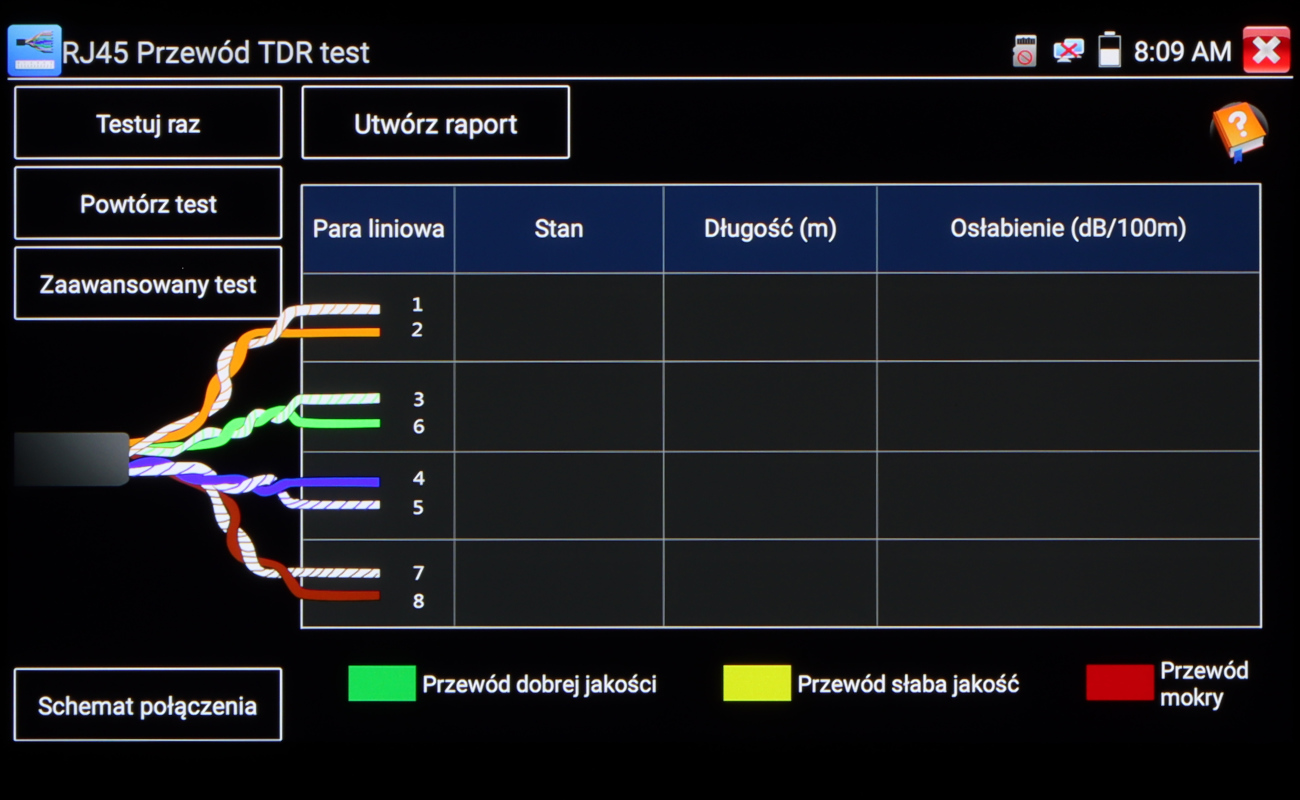

| TDR reflectometer: | Detecting and locating a cable break (UTP only) |

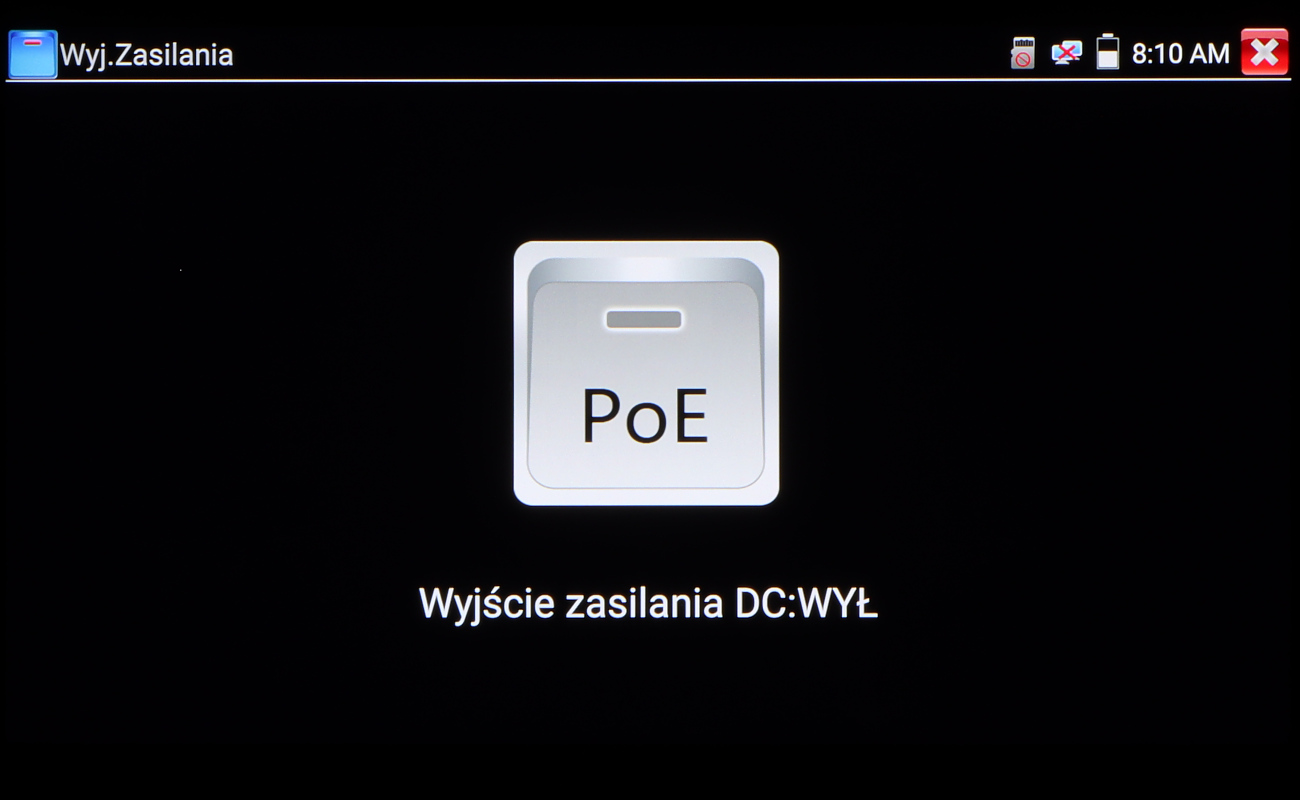

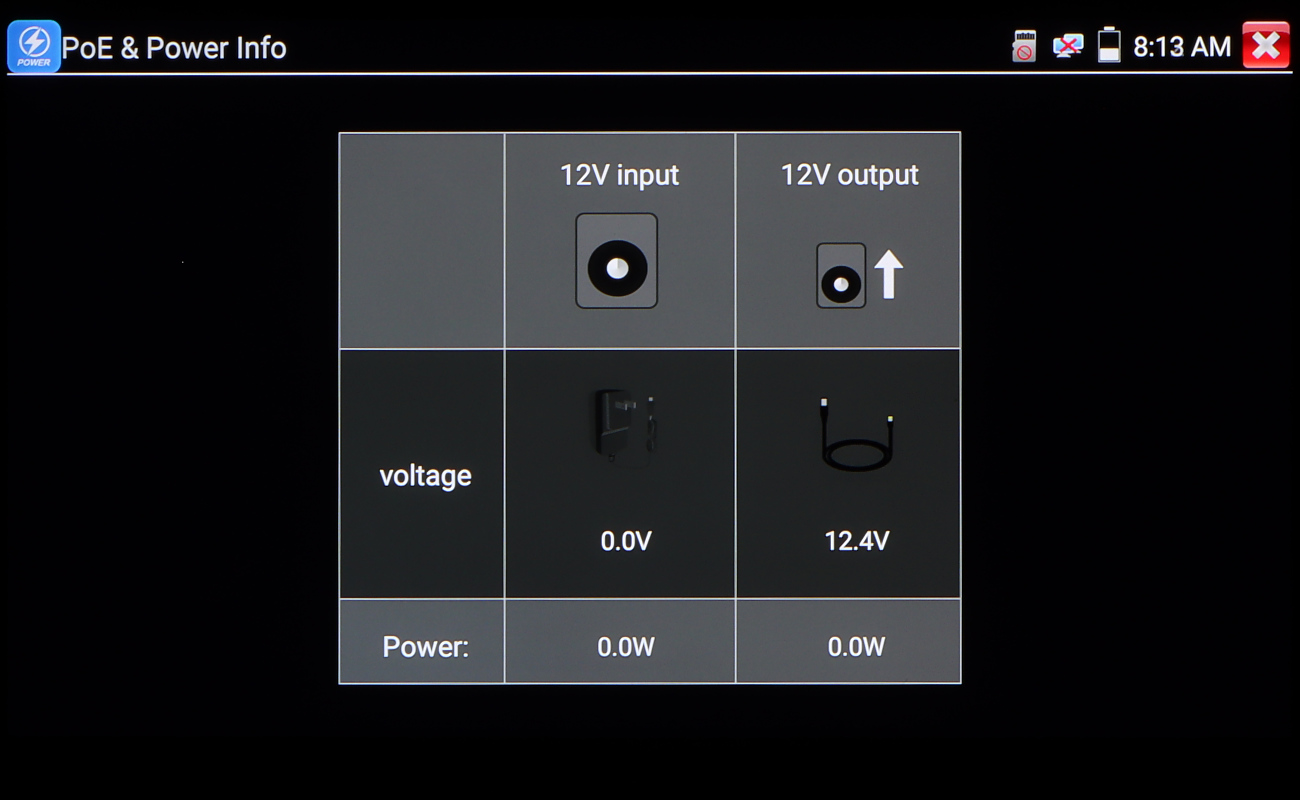

| Operation as power source: | |

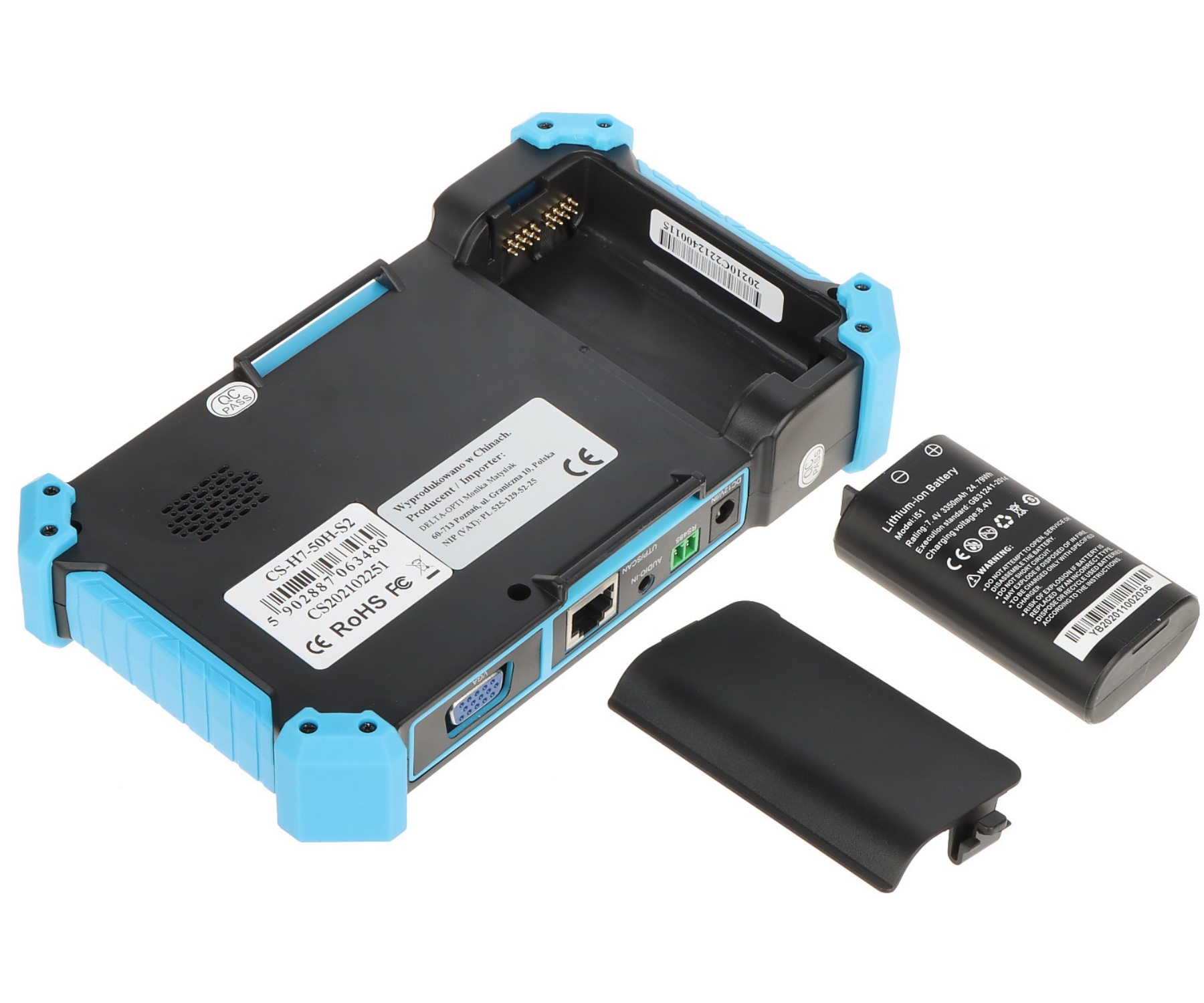

| Battery power supply: | |
| Estimated battery operation time: | max. 6 hours |

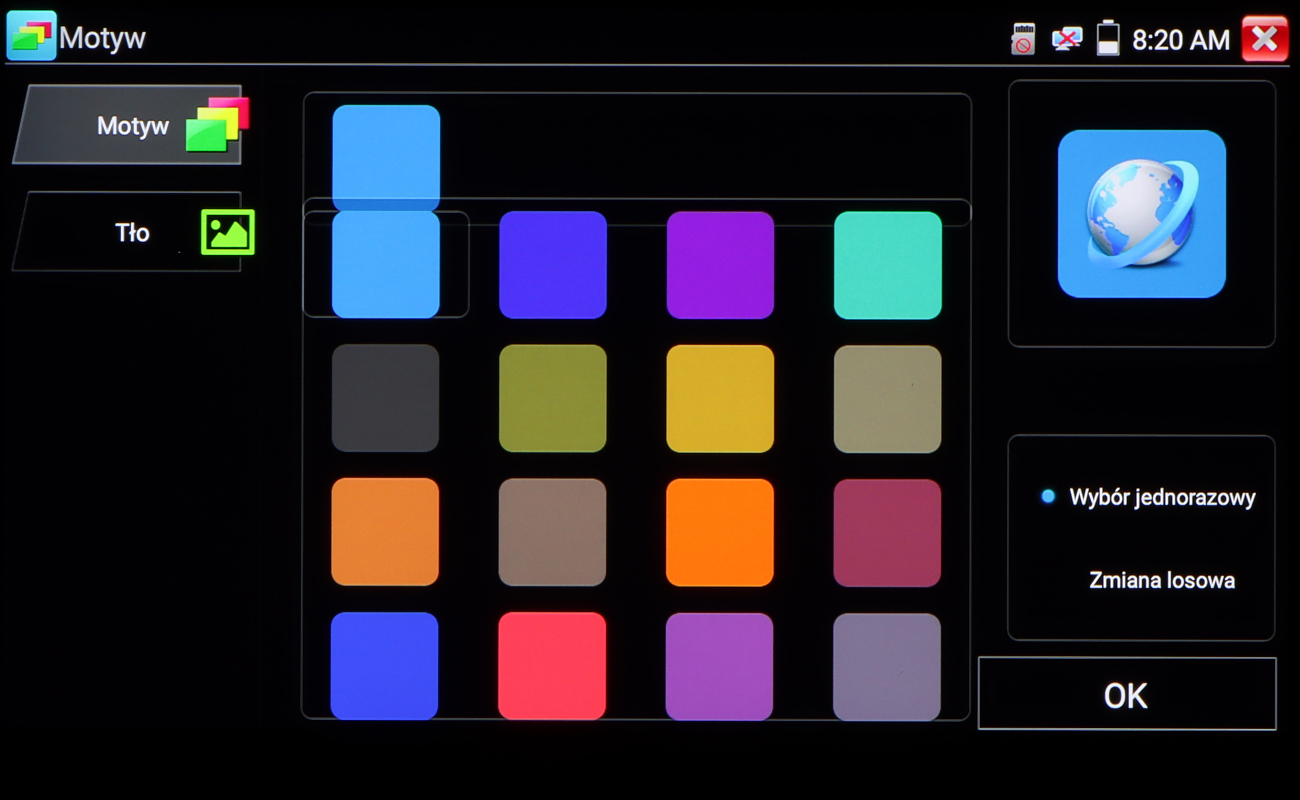

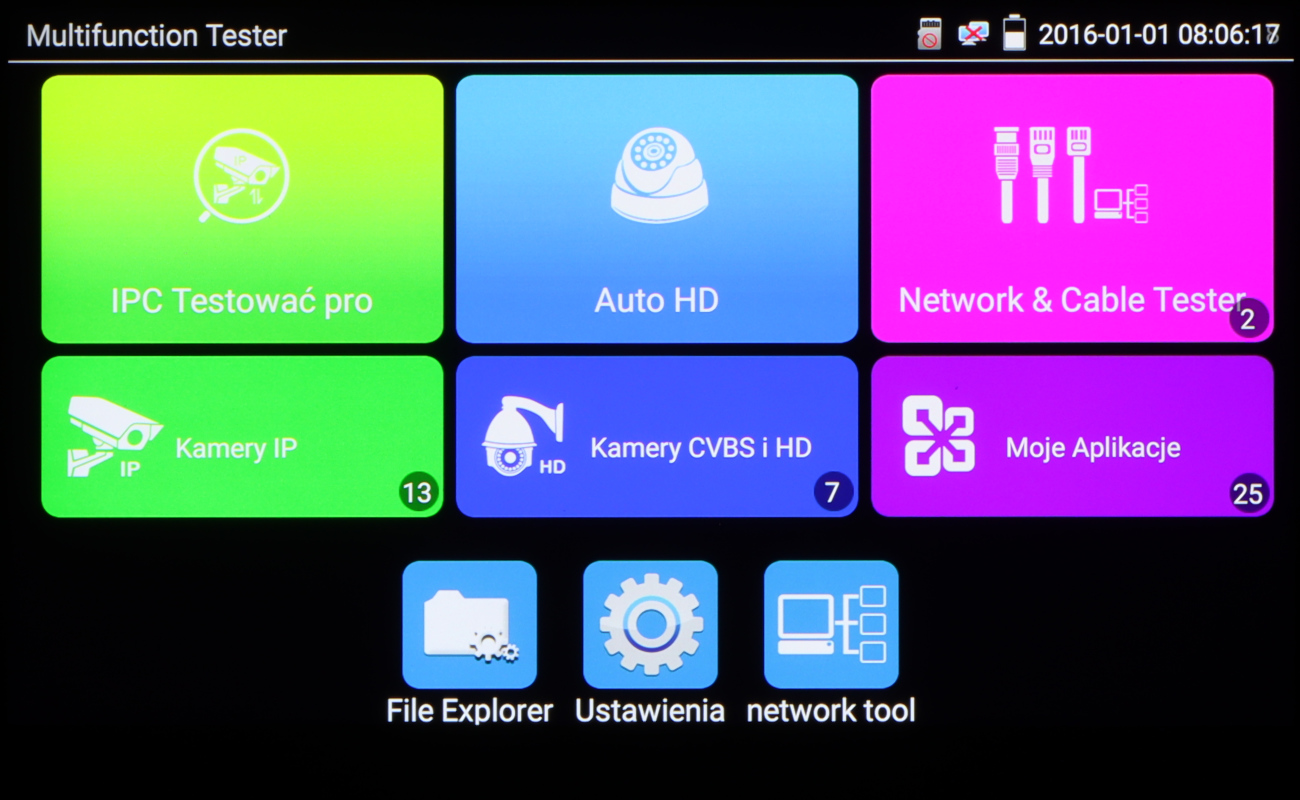

| Operation: | Graphic menu - touch control |
| Main features: | |
| Operation temp: | -10 °C ... 50 °C |
| Permissible relative humidity: | 30 % ... 90 % |
| Weight: | 0.42 kg |
| Dimensions: | 184 x 110 x 40 mm |

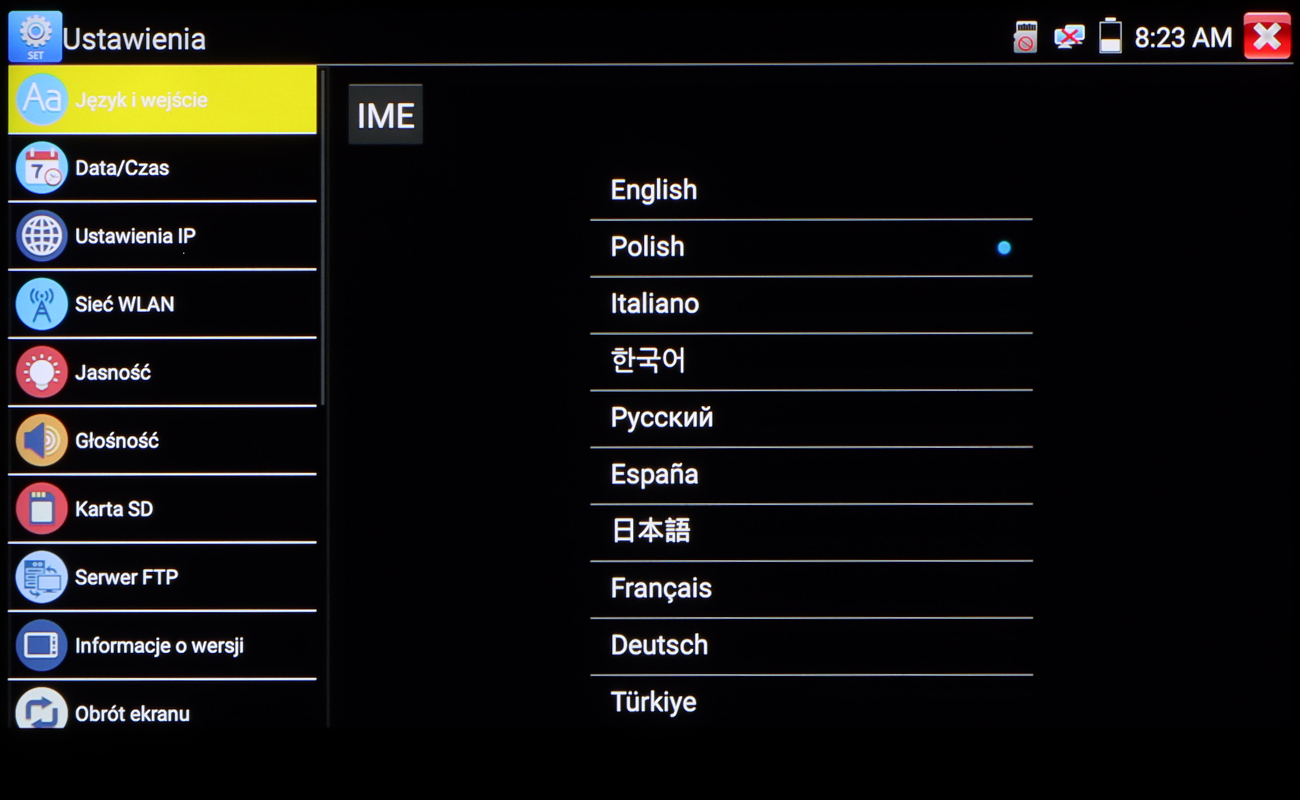

| Supported languages: | Polish, English, Czech, French, Spanish, German, Portuguese, Russian, Serbian, Turkish, Italian |
| Guarantee: | 2 years |
Brand:
Delta Tester
