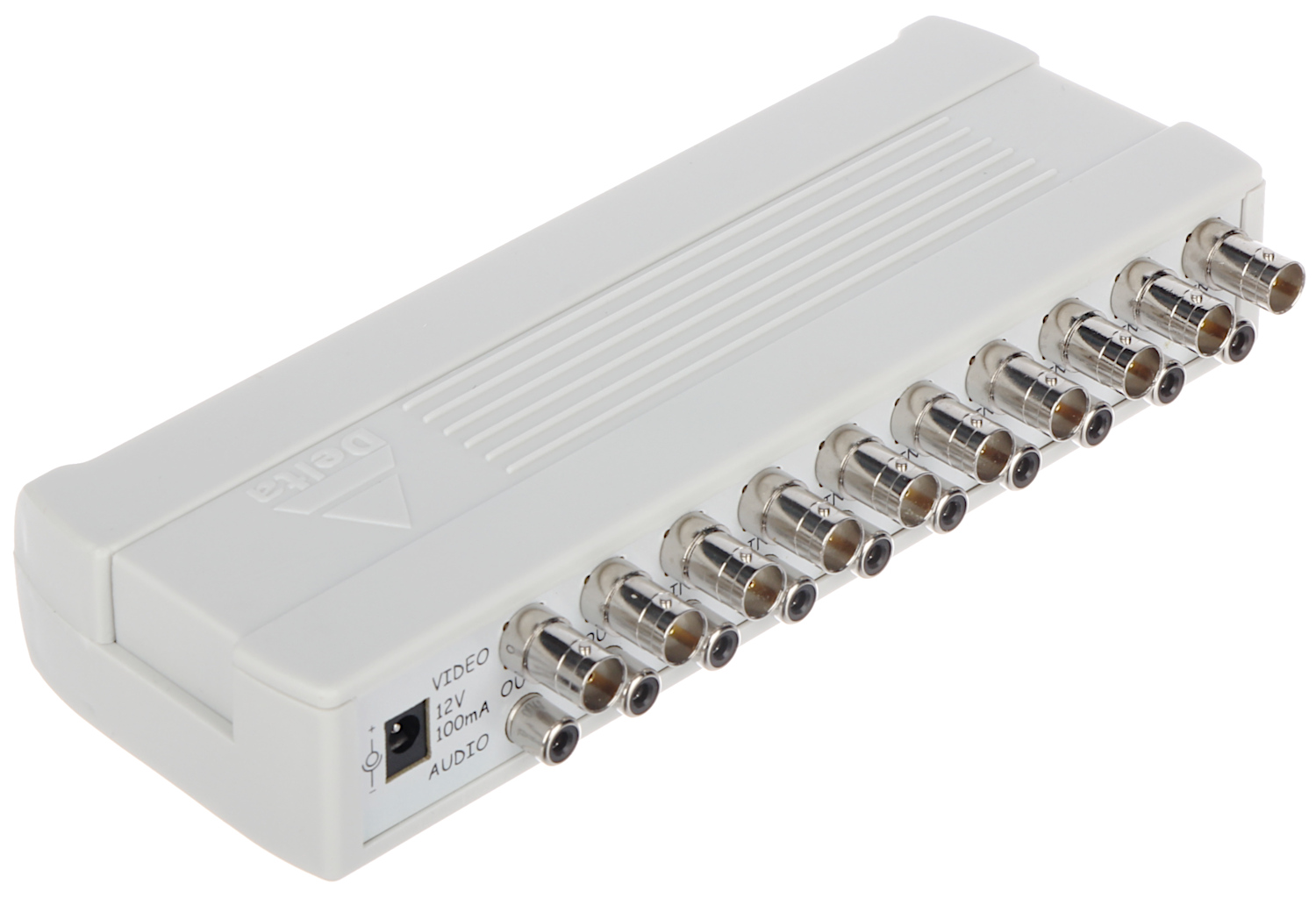

Switch allows to select one of the several signal sources and switch it to the output; Standard: AHD - 4 Mpx, HD-CVI - 1080p, HD-TVI - 5 Mpx, CVBS - PAL, NTSC ; Video inputs: 8 pcs BNC ; Video outputs: 2 pcs BNC ; Audio inputs: 8 pcs CINCH ; Audio outputs: 2 pcs CINCH ; PTZ control: Control keys ;
| Standard: | |

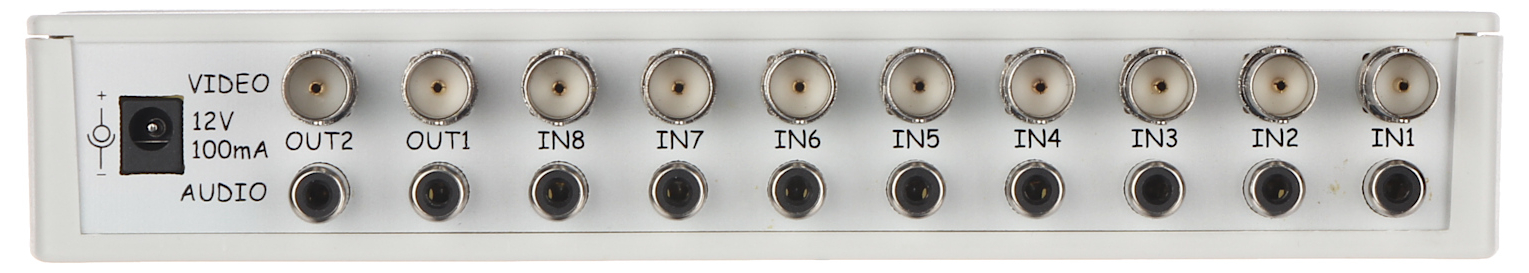

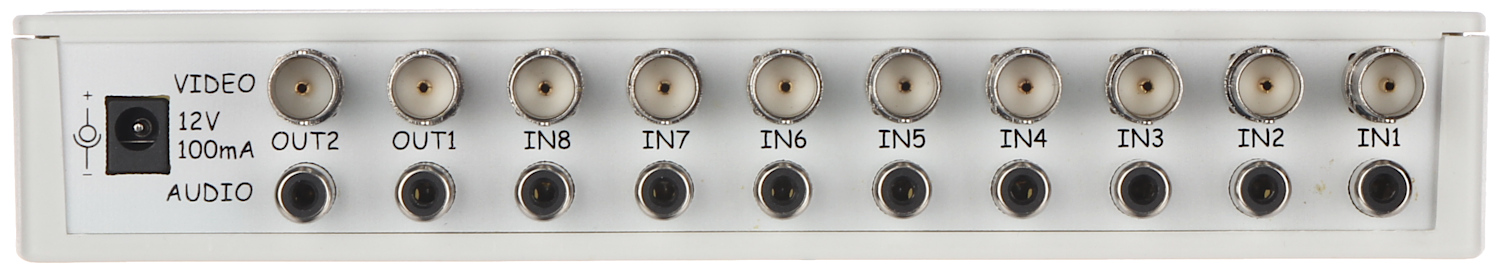

| Video inputs: | 8 pcs BNC |
| Video outputs: | 2 pcs BNC |
| Audio inputs: | 8 pcs CINCH |
| Audio outputs: | 2 pcs CINCH |
| Input impedance: | 75 Ω / 10 kΩ |
| Output impedance: | 75 Ω / 39 Ω |
| PTZ control: | Control keys |
| Time adjustment range: | 0.5 ... 125 s |
| Power supply: | 12 V / 100 mA (power adapter not included) |
| Assembly: | To the wall |
| Weight: | 0.25 kg |
| Dimensions: | 216 x 100 x 36 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
