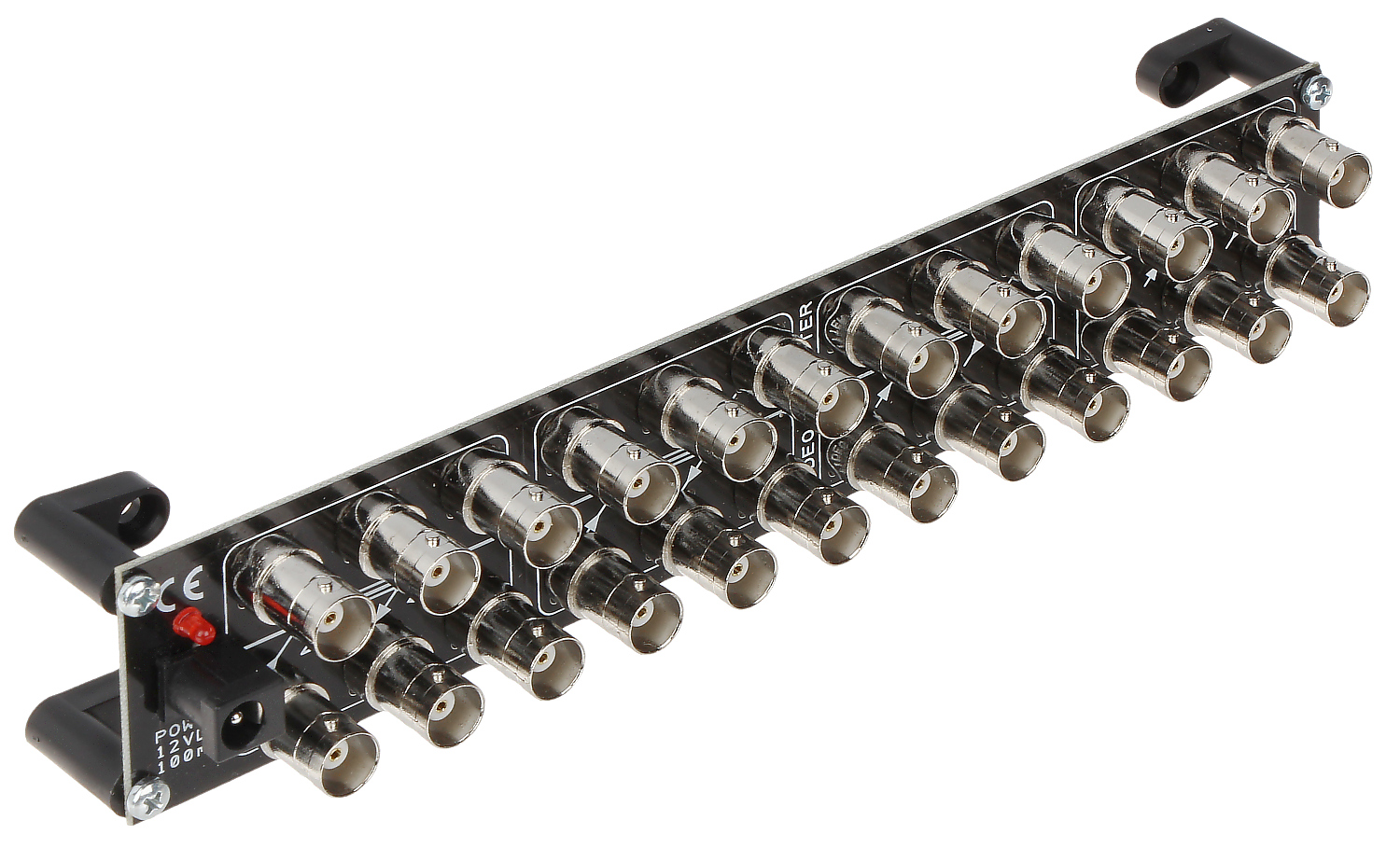

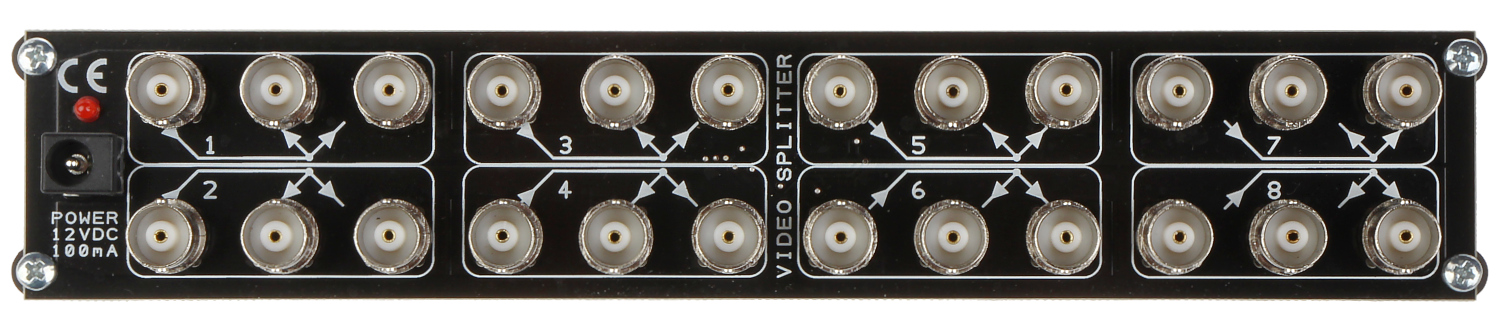

Standard: AHD / HD-CVI / HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC ; Number of inputs: 8 pcs BNC ; Number of outputs: 16 pcs BNC ; Power supply: 7 ... 26 V DC ;
| Standard: | |
| Number of inputs: | 8 pcs BNC |
| Number of outputs: | 16 pcs BNC |
| Bandwidth: | 0 ... 120 MHz (-3dB) |
| Inputs impedance: | 75 Ω |
| Outputs impedance: | 75 Ω |
| Input / Output protection: | ESD, IEC 61000-4-2, ±30kV contact, ±30kV airLightning, IEC 61000-4-5, 12A (tP=8/20μs) |
| Power supply: | 7 ... 26 V DC (power adapter not included) |
| Current consumption: | 60 mA @ 12 V DC |
| Gain : | 0 dB |
| Weight: | 0.13 kg |
| Dimensions: | 218 x 40 x 22 mm (without stand) |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 5 years |
Brand:
Delta
