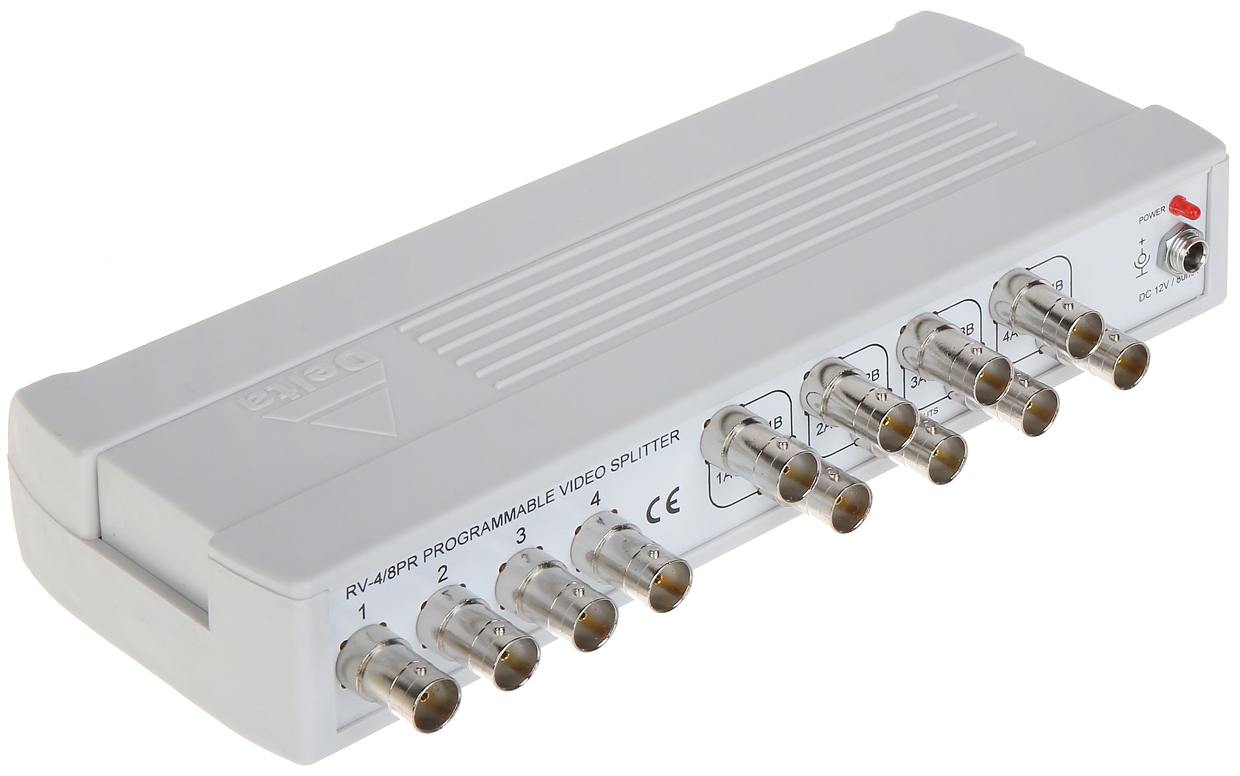

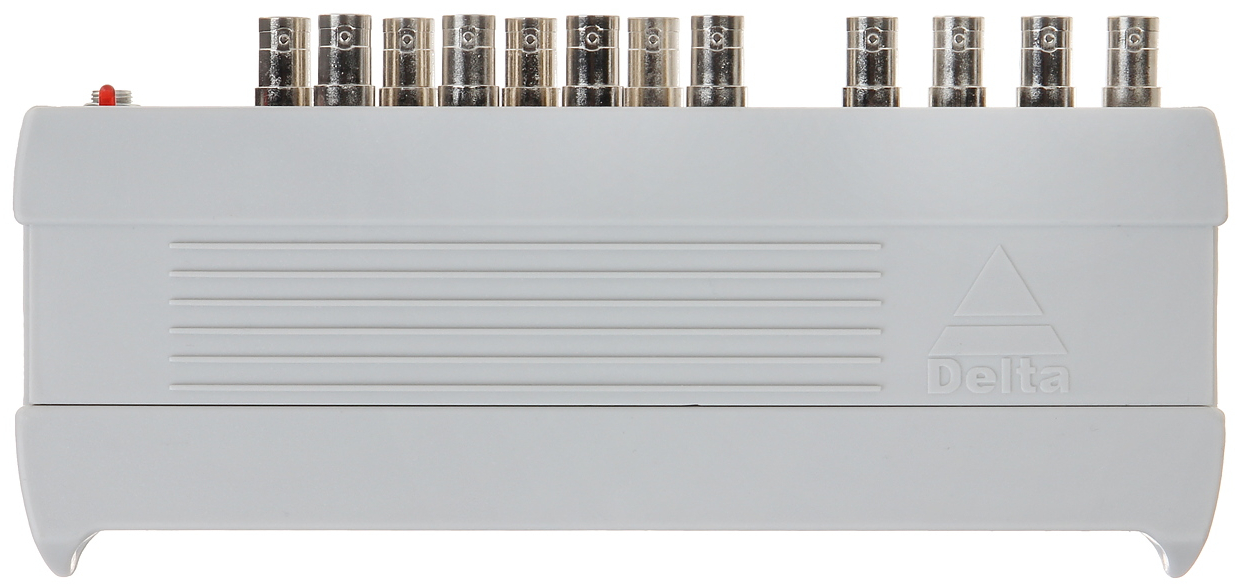

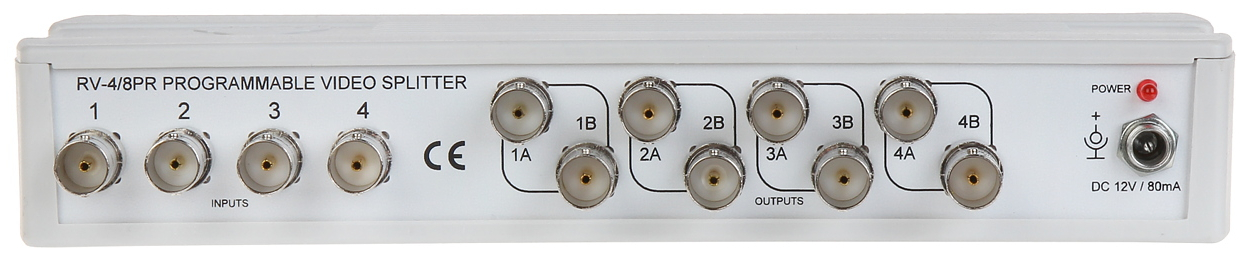

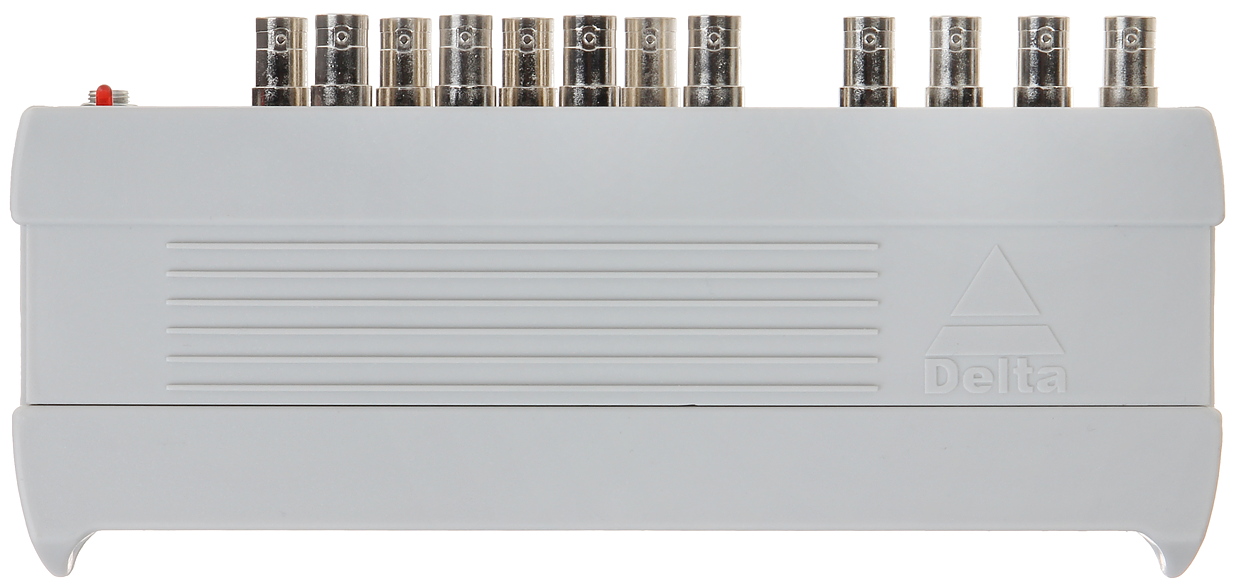

VIDEO SPLITTER RV-4/8PR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

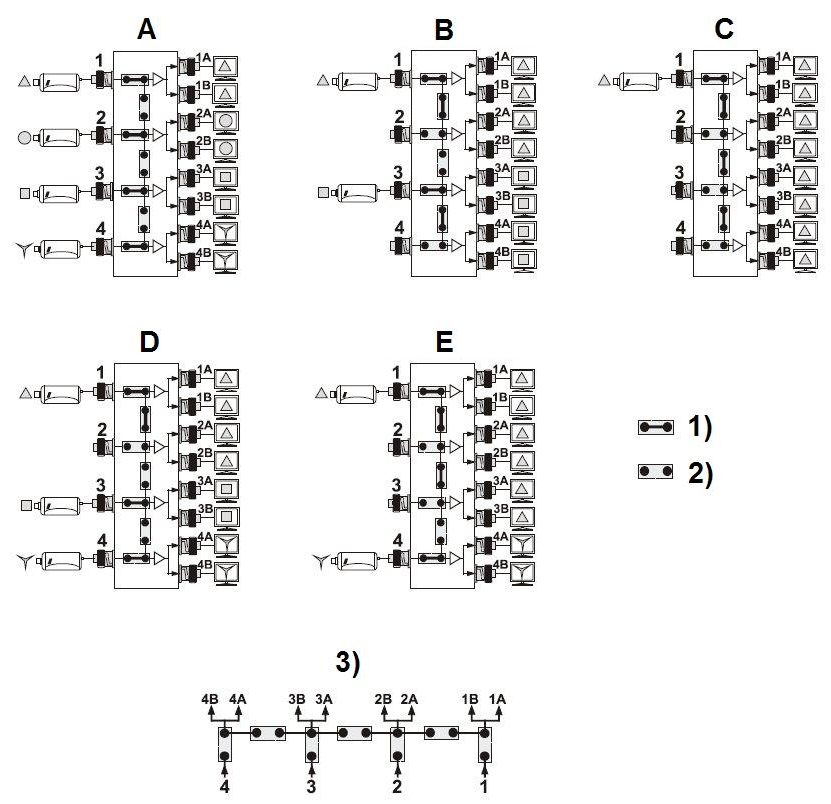

User programmable splitter; Standard: CVBS - PAL, NTSC ; Number of inputs: 4 pcs BNC ; Number of outputs: 8 pcs BNC ; Power supply: 12 V DC ;
| Standard: | CVBS - PAL, NTSC |
| Number of inputs: | 4 pcs BNC |
| Number of outputs: | 8 pcs BNC |
| Bandwidth: | 0 ... 40 MHz (-3dB) |
| Inputs impedance: | 75 Ω |
| Outputs impedance: | 75 Ω |
| Outputs configuration: |  |
| Power supply: | 12 V DC (power adapter not included) |
| Current consumption: | 80 mA |
| Gain : | 0 dB |
| Weight: | 0.220 kg |
| Dimensions: | 213 x 36 x 93 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
