Number of inputs: 4 pcs cable terminals ; Number of outputs: 4 pcs BNC socket ; Opto-isolation between inputs and outputs: 50 V DC ; Galvanic separation between individual channels: > 2000 V ; Bandwidth: 200 MHz ;
| Standard: | |
| Video transmission range: | |
| Device type: | Passive |
| Number of channels: | 4 pcs Video |
| Number of inputs: | 4 pcs cable terminals |

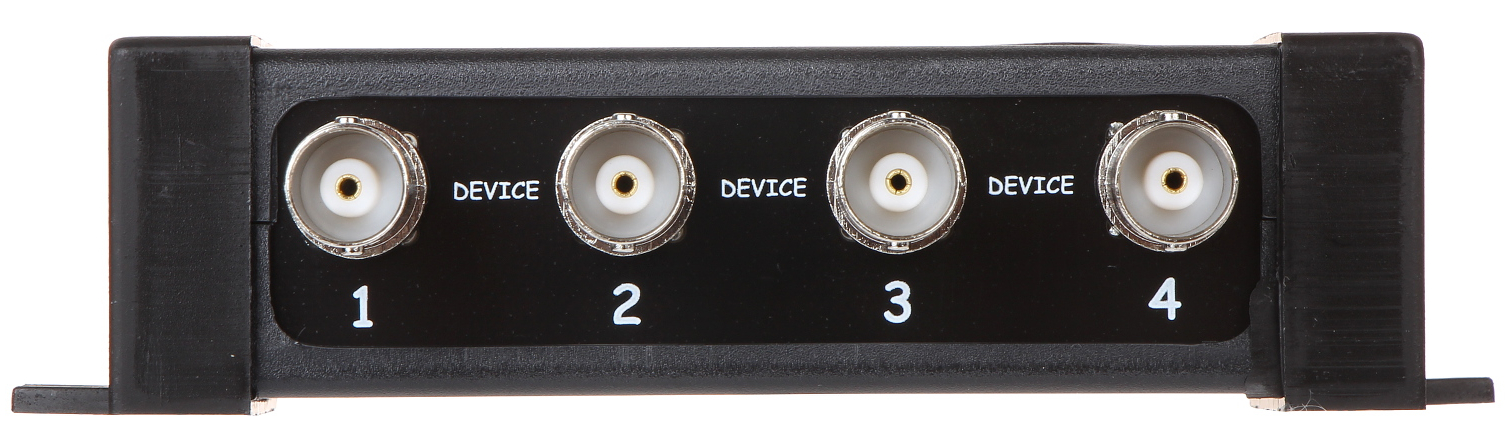

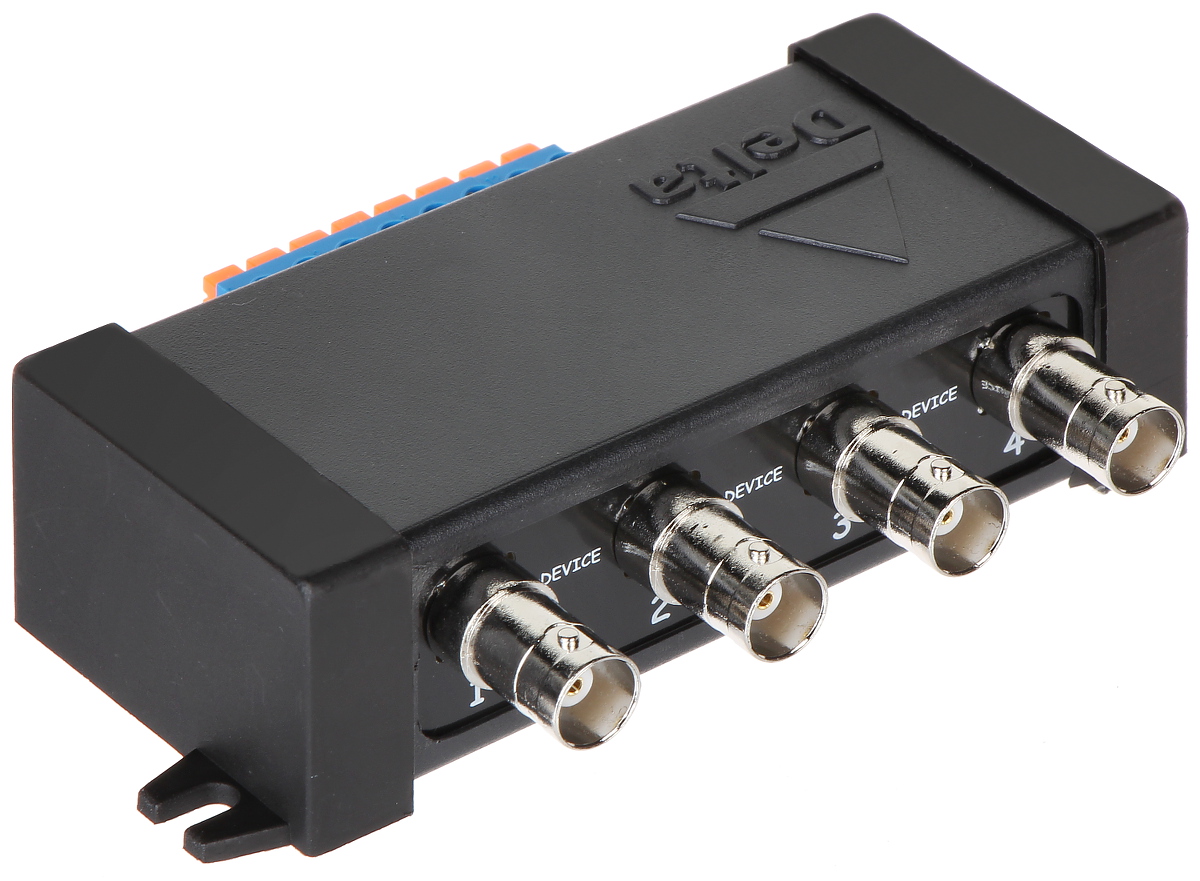

| Number of outputs: | 4 pcs BNC socket |
| Input impedance: | 100 Ω |
| Output impedance: | 75 Ω |
| Opto-isolation between inputs and outputs: | 50 V DC |
| Galvanic separation between individual channels: | > 2000 V |
| Attenuation: | The attenuation applies to two devices connected to each other |

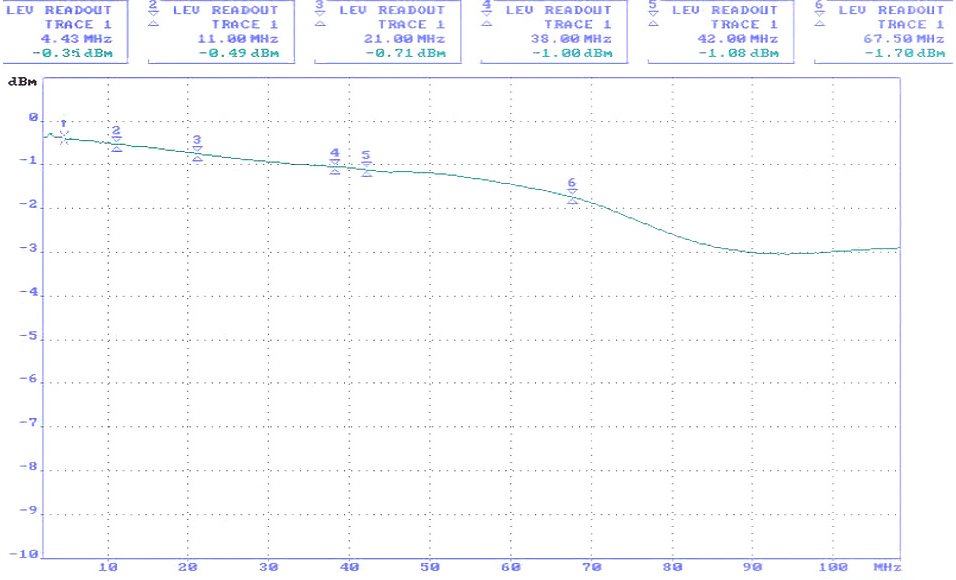

| Bandwidth: | 200 MHz |
| CMRR (dB @ 5MHz): | 50 dB |
| Inputs protection: | ESD, IEC 61000-4-2, ±30kV contact, ±30kV air EFT, IEC 61000-4-4, 40A (5/50ns) Lightning, IEC 61000-4-5, 30A (tP=8/20μs) |
| Power supply: |  |
| Operation temp: | -20 °C ... 55 °C |
| Weight: | 0.09 kg |
| Dimensions: | 103 x 75 x 30 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
