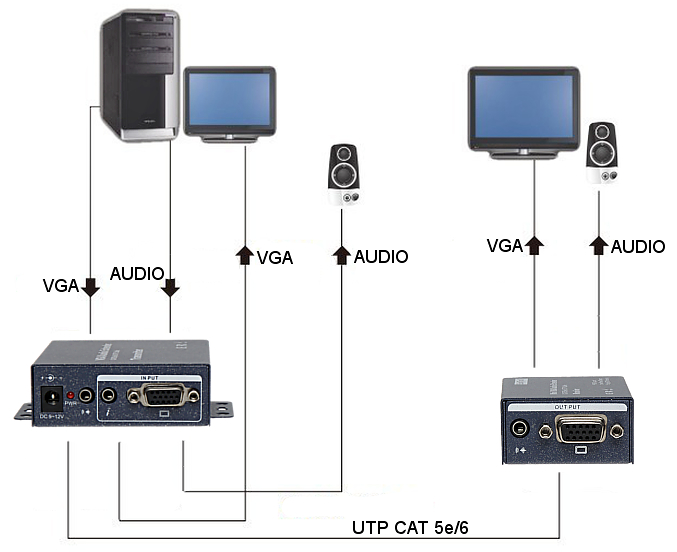

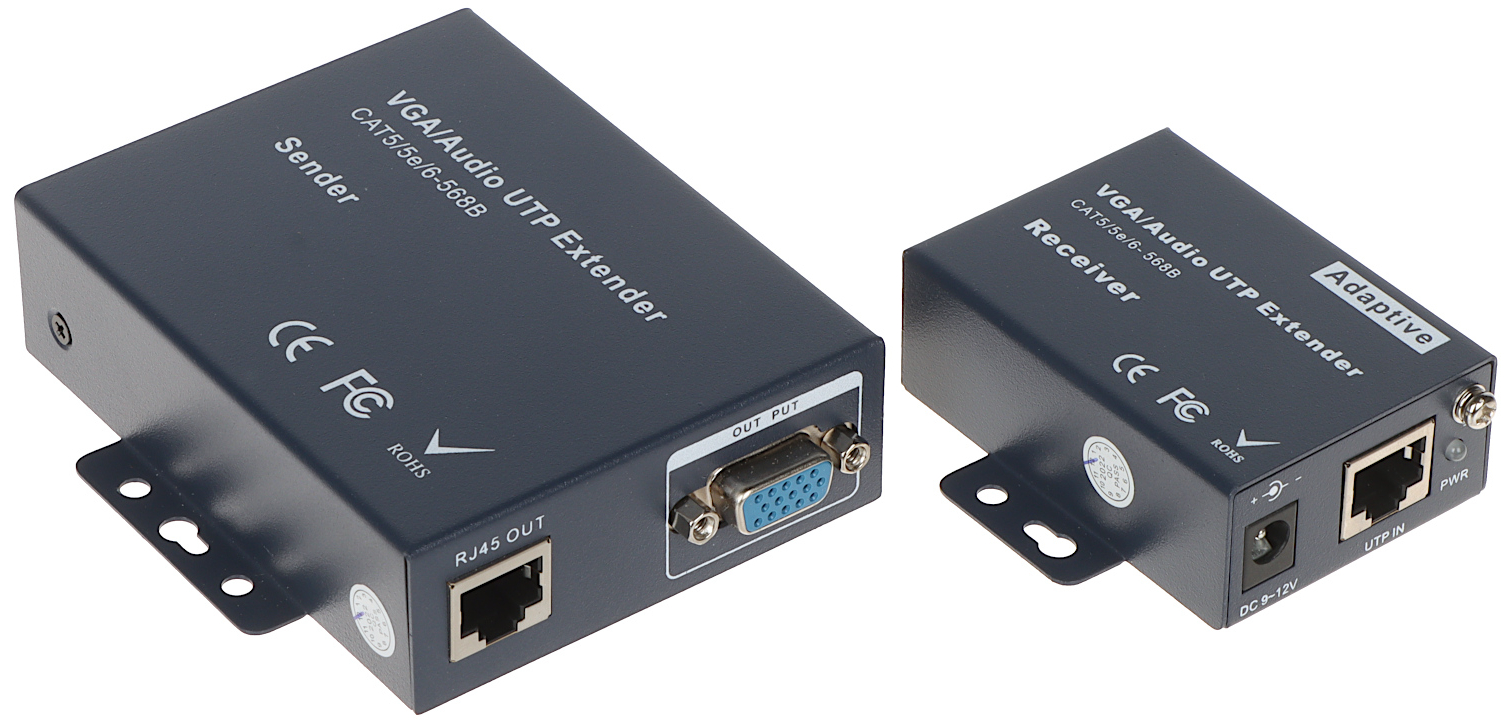

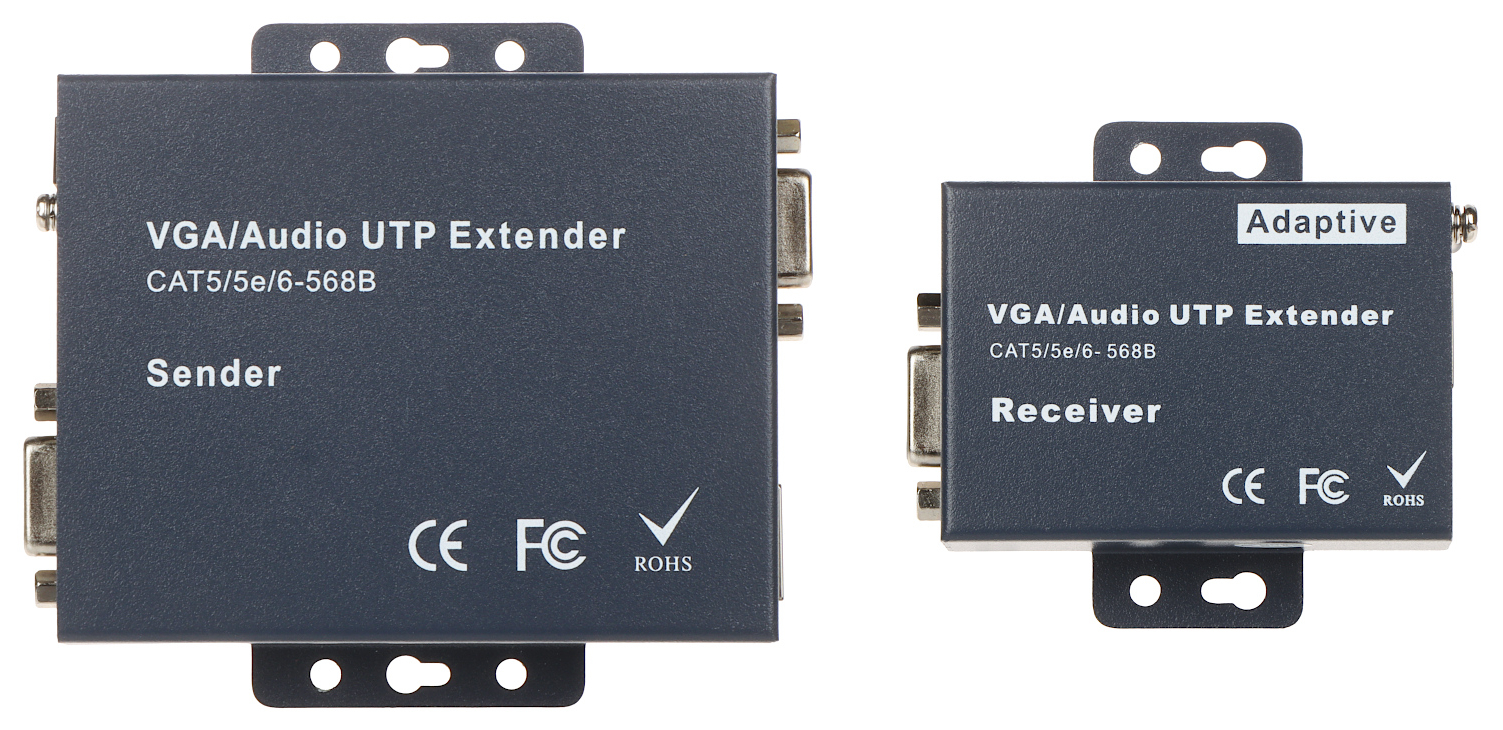

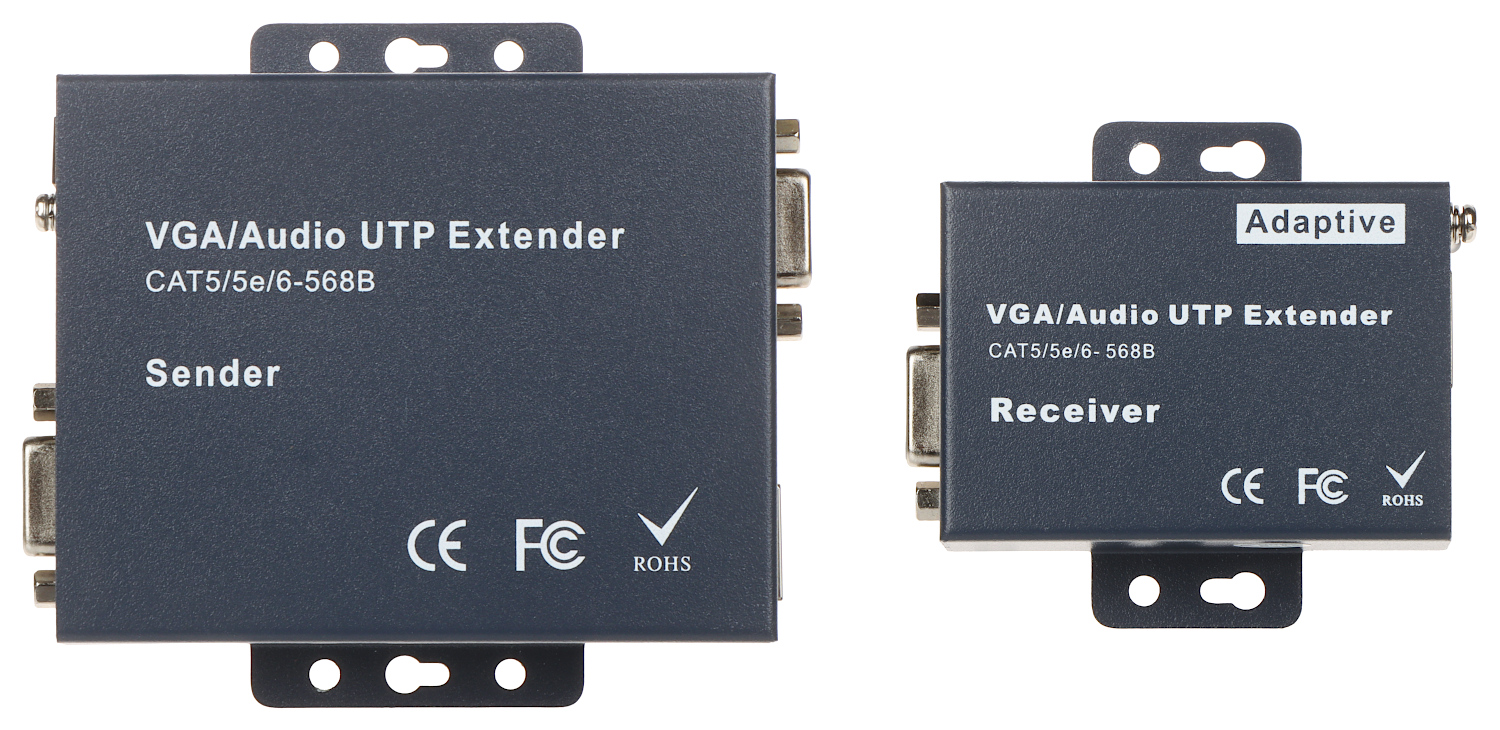

The transmitter and receiver set enables VGA signal + 2 Audio (Stereo) channels transmission for a distance up to 50-140 m via UTP cable; Device type: Active ; Video transmission range: max. 140 m ;
| Device type: | Active / Transmitter |
| Inputs: | |
| Outputs: | |

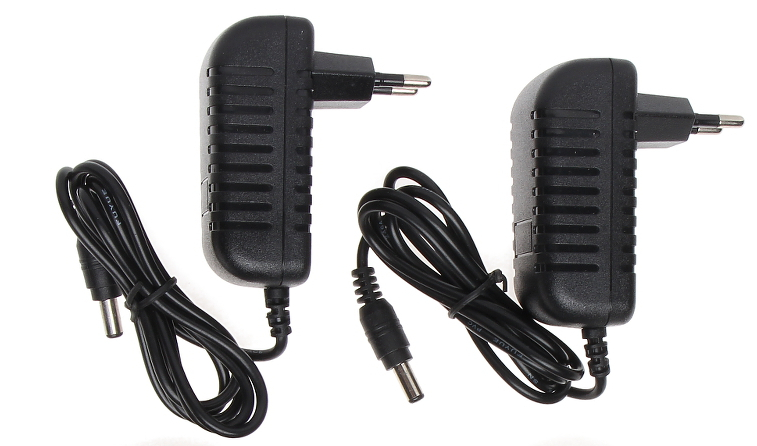

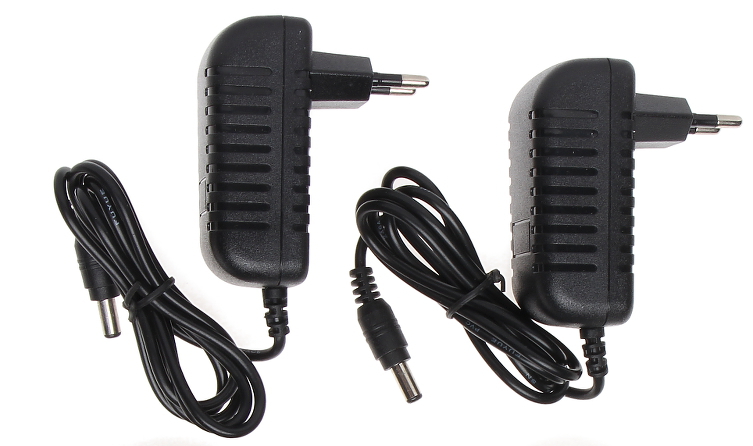

| Power supply: | 12 V DC / 1000 mA (power adapter included) |
| Video transmission range: | max. 140 m |
| Symmetrical socket impedance: | 100 Ω |
| Connectors type: | |
| Symmetrical socket type: | RJ-45 (8-pin, 4 pairs) Socket |
| Weight: | 0.2 kg |
| Dimensions: | 105 x 95 x 27 mm |
| Device type: | Active / Receiver |
| Inputs: | UTP |
| Outputs: | |
| Power supply: | 12 V DC / 1000 mA (power adapter included) |
| Video transmission range: | max. 140 m |
| Symmetrical socket impedance: | 100 Ω |
| Connectors type: | |
| Symmetrical socket type: | RJ-45 (8-pin, 4 pairs) Socket |
| Weight: | 0.1 kg |
| Dimensions: | 72 x 46 x 24 mm |
| Main features: | |
| Resolution: | |
| Bandwidth: | ≤ 60 MHz DC |
| Insertion loss: | < 3 dB |
| Return loss: | max. -15 dB |
| Grounding: | via grounding bolt |
| Operation temp: | 0 °C ... 55 °C |
| Permissible relative humidity: | ≤ 95 % |
| Guarantee: | 2 years |
