Standard: AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC ; Device type: Active / Receiver ; Number of channels: 8 Video + DC ; Output voltage: max. 40 V ;
| Standard: | |
| Input voltage: | 230 V AC |
| Device type: | Active / Receiver |
| Number of channels: | 8 Video + DC |
| Coaxial socket voltage range 75Ω (CVBS): | 1 Vpp |
| Output current: | 2 A @ LINE 1 ... 4 2 A @ LINE 4 ... 8 |
| Video transmission range: | |

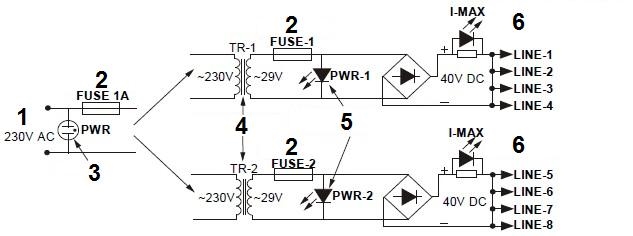

| LED indication: | The green LEDs PWR-1 or PWR-2 inform about the FUSE has gone The red LEDs I-MAX are on when there is a current overload greater than 2A |
| Output voltage: | max. 40 V |

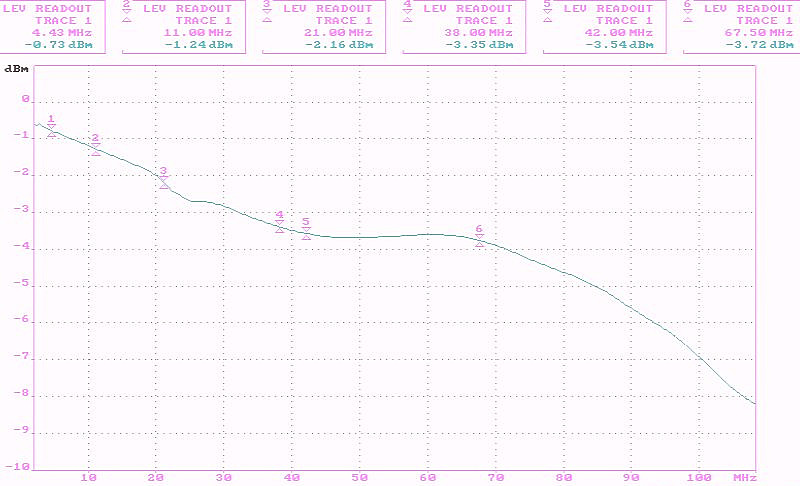

| Attenuation: | |
| Main features: | Delayed fuse 5 x 20 4 A / 250 V |
| Symmetrical socket impedance: | 100 Ω |
| Power overvoltage limiter: | 1000 V |
| Maximum stroke current (8/20µS): | 5 kA |
| Grounding: | 5mm screw |

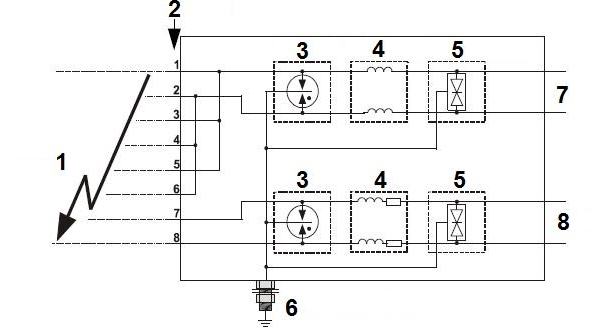

| Video overvoltage limiter: | |

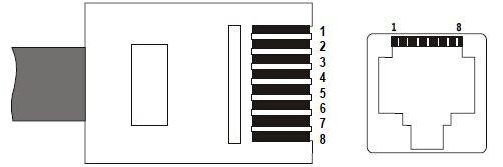

| RJ-45 connector protected wires: | 1 ... 6 7 ... 8 |
| Connectors type: | 8 x BNC Socket Video |
| Threshold voltage (wire-wire): | > 47 V > 2.4 V |
| Symmetrical socket type: | 8 x RJ-45 (8-pin, 4 pairs) Socket |
| Treshold voltage (wire / ground): | > 47 V > 18.4 V |
| Reaction time: | 15 ns 15 ns |
| Capacity: | < 7 pF |

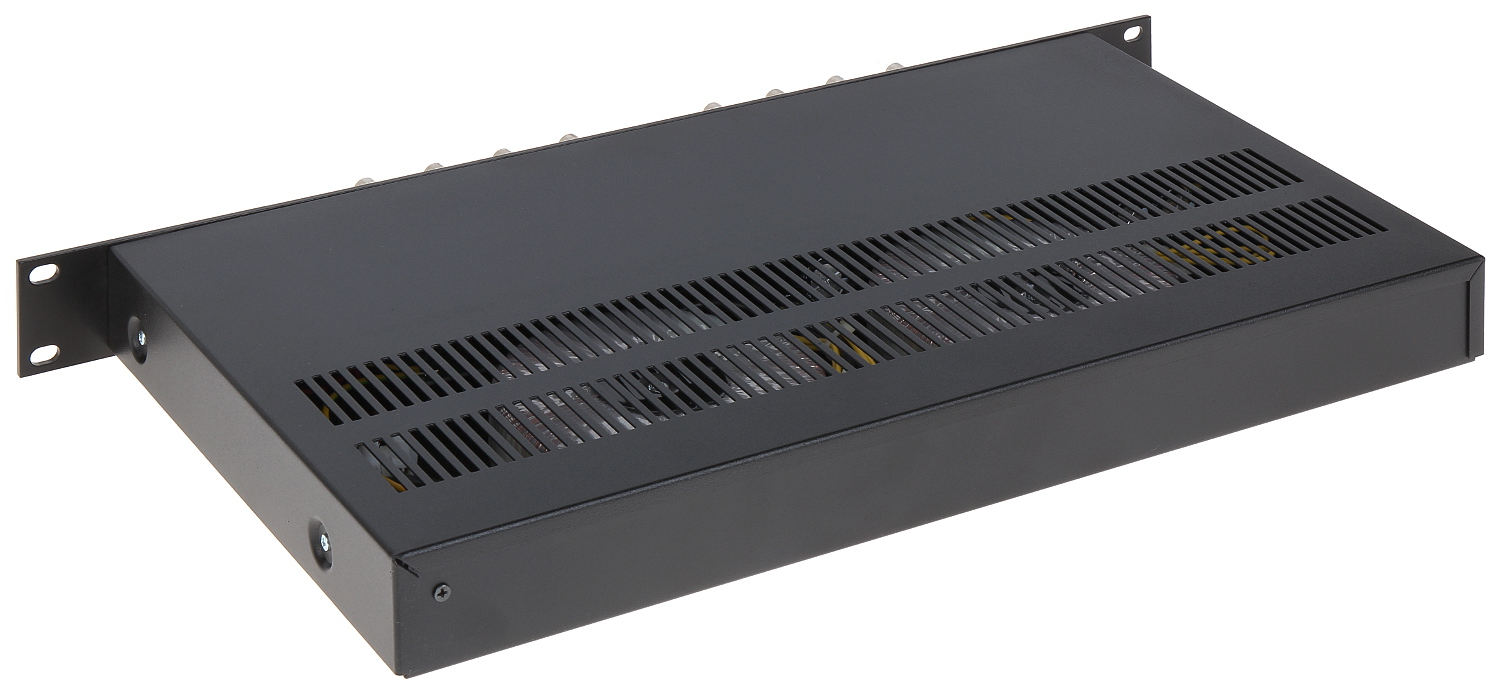

| Housing type: | RACK 19", 1U |
| Permissible relative humidity: | < 95 % |
| Operation temp: | -50 °C ... 55 °C |
| Power supply distance: | LINE 1 ... 4 420 m @ 4 x 750 mA 440 m @ 3 x 750 mA + 1200 m @ 1 x 250 mA 480 m @ 2 x 750 mA + 1400 m @ 2 x 250 mA 480 m @ 1 x 750 mA + 1500 m @ 3 x 250 mA 1700 m @ 4 x 250 mA LINE 5 ... 8 420 m @ 4 x 750 mA 440 m @ 3 x 750 mA + 1200 m @ 1 x 250 mA 480 m @ 2 x 750 mA + 1400 m @ 2 x 250 mA 480 m @ 1 x 750 mA + 1500 m @ 3 x 250 mA 1700 m @ 4 x 250 mA |
| Weight: | 4.200 kg |
| Dimensions: | 483 x 44 x 245 mm |
| Guarantee: | 3 years |
| Manufacturer / Brand: | DELTA |
Brand:
Delta
