Standard: AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC ; Device type: Active / Receiver ; Number of channels: 4 Video 4 DC ; Output voltage: max. 40 V DC / 2 A ;
| Standard: | |
| Input voltage: | max. 29 V AC / 2 A |
| Device type: | Active / Receiver |
| Number of channels: | 4 Video 4 DC |
| Coaxial socket voltage range 75Ω (CVBS): | 1 Vpp |
| Video transmission range: | |
| Output voltage: | max. 40 V DC / 2 A |
| Attenuation: | |
| Main features: | Delayed fuse 5 x 20 2 A / 250 V |
| Symmetrical socket impedance: | 100 Ω |
| Connectors type: | 4 x BNC Socket Video Cable terminals DC |

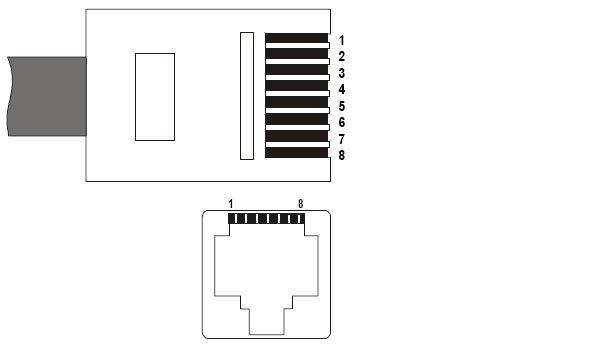

| Symmetrical socket type: | 4 x RJ-45 (8-pin, 4 pairs) Socket |
| Permissible relative humidity: | < 95 % |
| Operation temp: | -50 °C ... 55 °C |
| Power supply distance: | 55 m @ 2 x 750 mA + 190 m @ 2 x 500 mA 130 m @ 1 x 750 mA + 720 m @ 3 x 250 mA 720 m @ 4 x 250 mA 420 m @ 4 x 750 mA 440 m @ 3 x 750 mA + 1200 m @ 1 x 250 mA 480 m @ 2 x 750 mA + 1400 m @ 2 x 250 mA 480 m @ 1 x 750 mA + 1500 m @ 3 x 250 mA 1700 m @ 4 x 250 mA |
| Weight: | 0.250 kg |
| Dimensions: | 213 x 36 x 93 mm |
| Guarantee: | 3 years |
| Manufacturer / Brand: | DELTA |
Brand:
Delta
