Standard: AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC ; Device type: Active / Transmitter ; Number of channels: 1 Video 1 DC ; Output voltage adjustment: 4 V ... 14 V DC ; Output voltage: 12 V DC / max. 900 mA (factory setting) ;
| Standard: | |
| Input voltage: | max. 45 V DC |
| Device type: | Active / Transmitter |
| Number of channels: | 1 Video 1 DC |
| Coaxial socket voltage range 75Ω (CVBS): | 1 Vpp |
| Output voltage adjustment: | 4 V ... 14 V DC |
| Video transmission range: | |
| Output voltage: | 12 V DC / max. 900 mA (factory setting) |
| Attenuation: | |
| Symmetrical socket impedance: | 100 Ω |
| Connectors type: | BNC Socket Video Cable terminals DC |

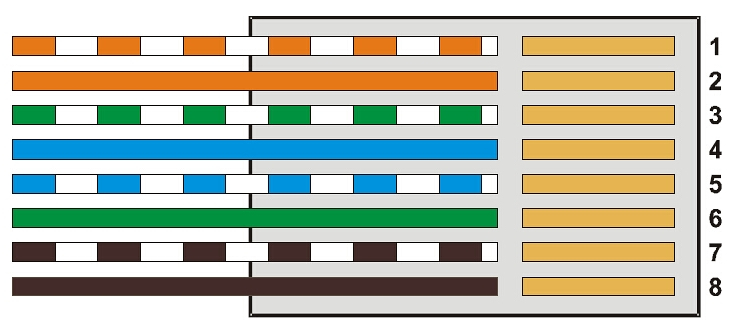

| Symmetrical socket type: | RJ-45 (8-pin, 4 pairs) Socket |
| Power supply distance: | 1080 m @ 250 mA 260 m @ 750 mA 1600 m @ 250 mA 500 m @ 750 mA |
| Weight: | 0.09 kg |
| Dimensions: | 118 x 61 x 30 mm |
| Guarantee: | 3 years |
| Manufacturer / Brand: | DELTA |
Brand:
Delta
