Standard: AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC ; Device type: Passive ; Number of channels: 8 Video + DC ;
| Standard: | |
| Input current: | 2 x max. 10 A |
| Maximal power voltage: | max. 40 V DC / 28 V AC |
| Max. output current for single output: | 2.5 A |
| Device type: | Passive |
| Number of channels: | 8 Video + DC |
| Coaxial socket voltage range 75Ω (CVBS): | 1 Vpp |
| Video transmission range: | |

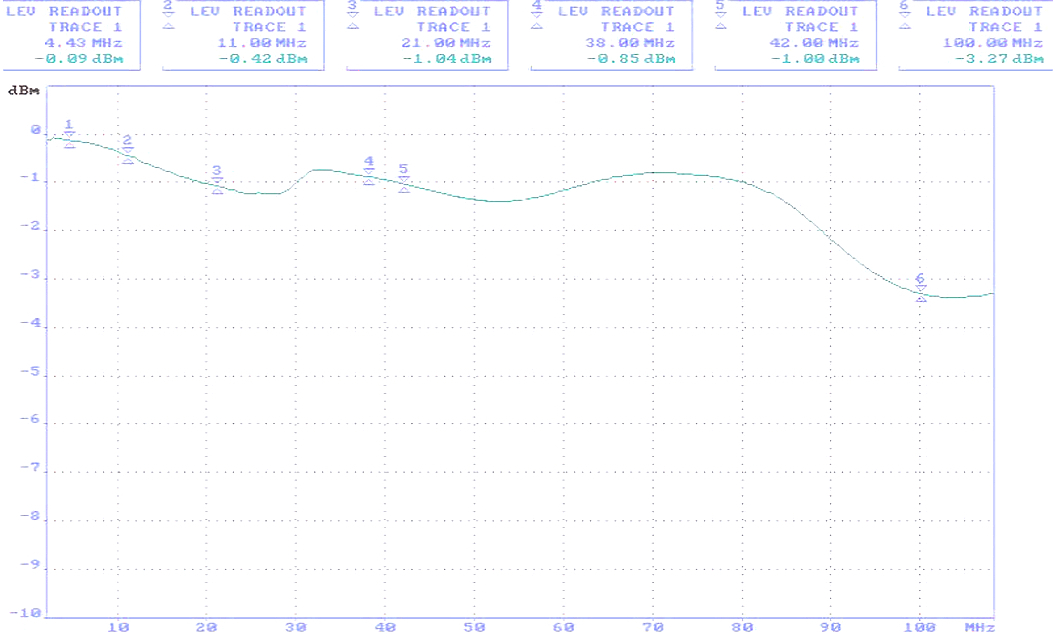

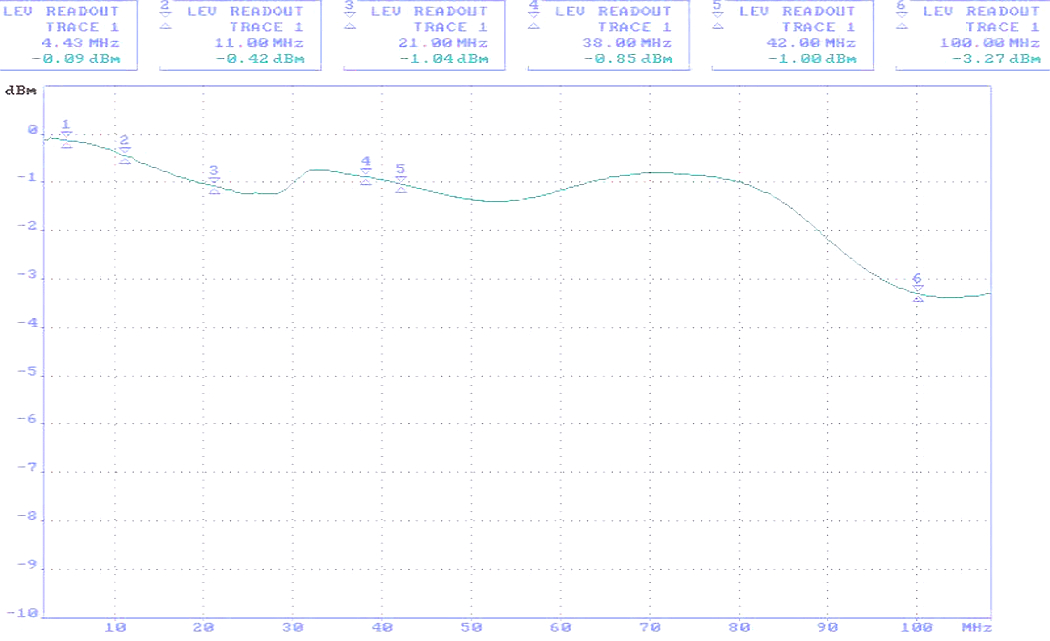

| Attenuation: | |
| Coaxial socket impedance: | 75 Ω |
| Symmetrical socket impedance: | 100 Ω |
| Connectors type: | |

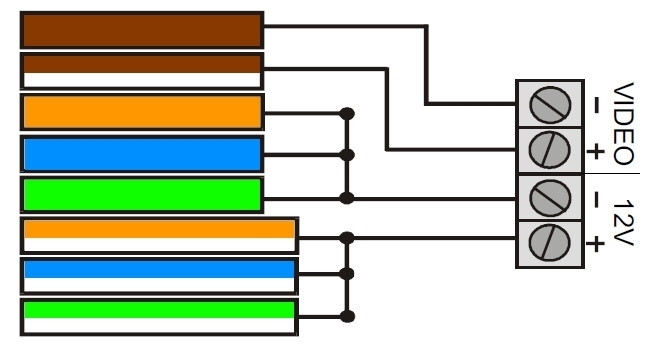

| Symmetrical socket type: | Cable terminals |
| Housing type: | Rack 10", 1U |
| Permissible relative humidity: | < 95 % |
| Operation temp: | -10 °C ... 55 °C |
| Power supply distance: | Power supply 12V DC 353 m @ 50 mA 235 m @ 75 mA 176 m @ 100 mA 141 m @ 125 mA 117 m @ 150 mA 88 m @ 200 mA 70 m @ 250 mA 58 m @ 300 mA 50 m @ 350 mA 44 m @ 400 mA 39 m @ 450 mA 35 m @ 500 mA 29 m @ 600 mA 25 m @ 700 mA 22 m @ 800 mA 19 m @ 900 mA 17 m @ 1000 mA |
| Weight: | 0.28 kg |
| Dimensions: | 256 x 44 x 53 mm |
| Guarantee: | 3 years |
| Manufacturer / Brand: | DELTA |
Brand:
Delta
