In package: 2 pcs The price for package ; Standard: AHD - 8 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC ; Audio transmission range: 1200 m ; Device type: Passive ; Number of channels: 1 Video, 1 AUDIO, 1 DC ;
| In package: | 2 pcs The price for package |
| Standard: | |
| Audio transmission range: | 1200 m |
| Device type: | Passive |
| Number of channels: | 1 Video , 1 AUDIO , 1 DC |
| Coaxial socket voltage range 75Ω (CVBS): | 1 Vpp |
| Video transmission range: | |
| Isolation between inputs: | > -50 dB Video / AUDIO |
| CMRR (dB @ 5MHz): | 50 dB |

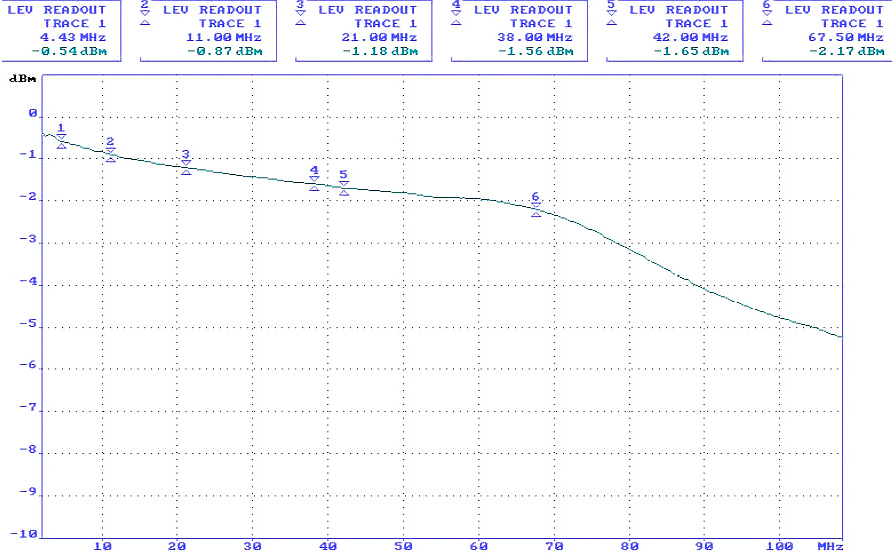

| Attenuation: | |
| Coaxial socket impedance: | 75 Ω Video 100 Ω AUDIO |
| Symmetrical socket impedance: | 100 Ω Video 100 Ω AUDIO |
| Audio input nominal level: | 1 Vpp |
| Audio output nominal level: | 1 Vpp |
| Connectors type: | BNC Plug Video CINCH Plug AUDIO 2.1 / 5.5 mm Plug DC 2.1 / 5.5 mm Socket DC |
| Symmetrical socket type: | RJ-45 (8-pin, 4 pairs) Socket |
| Permissible relative humidity: | < 95 % |
| Operation temp: | 0 °C ... 55 °C |
| Power supply distance: | 118 m @ 100 mA 79 m @ 150 mA 59 m @ 200 mA 47 m @ 250 mA |
| Guarantee: | 2 years |
Brand:
Delta Power
