In package: 2 pcs The price for package ; Standard: AHD - 8 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC ; Device type: Passive ; Number of channels: 1 x Video 1 x DC ;
| In package: | 2 pcs The price for package |
| Standard: | |
| Device type: | Passive |
| Number of channels: | |
| Coaxial socket voltage range 75Ω (CVBS): | 1 Vpp |
| Video transmission range: | |

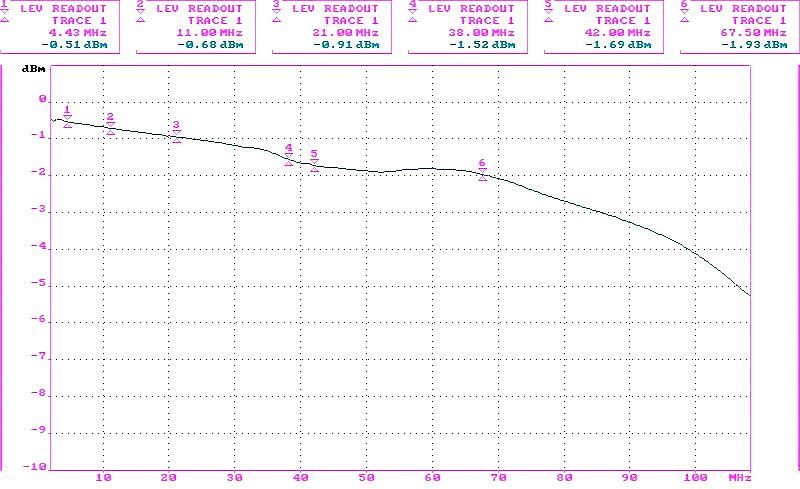

| Attenuation: | |
| Symmetrical socket impedance: | 100 Ω |

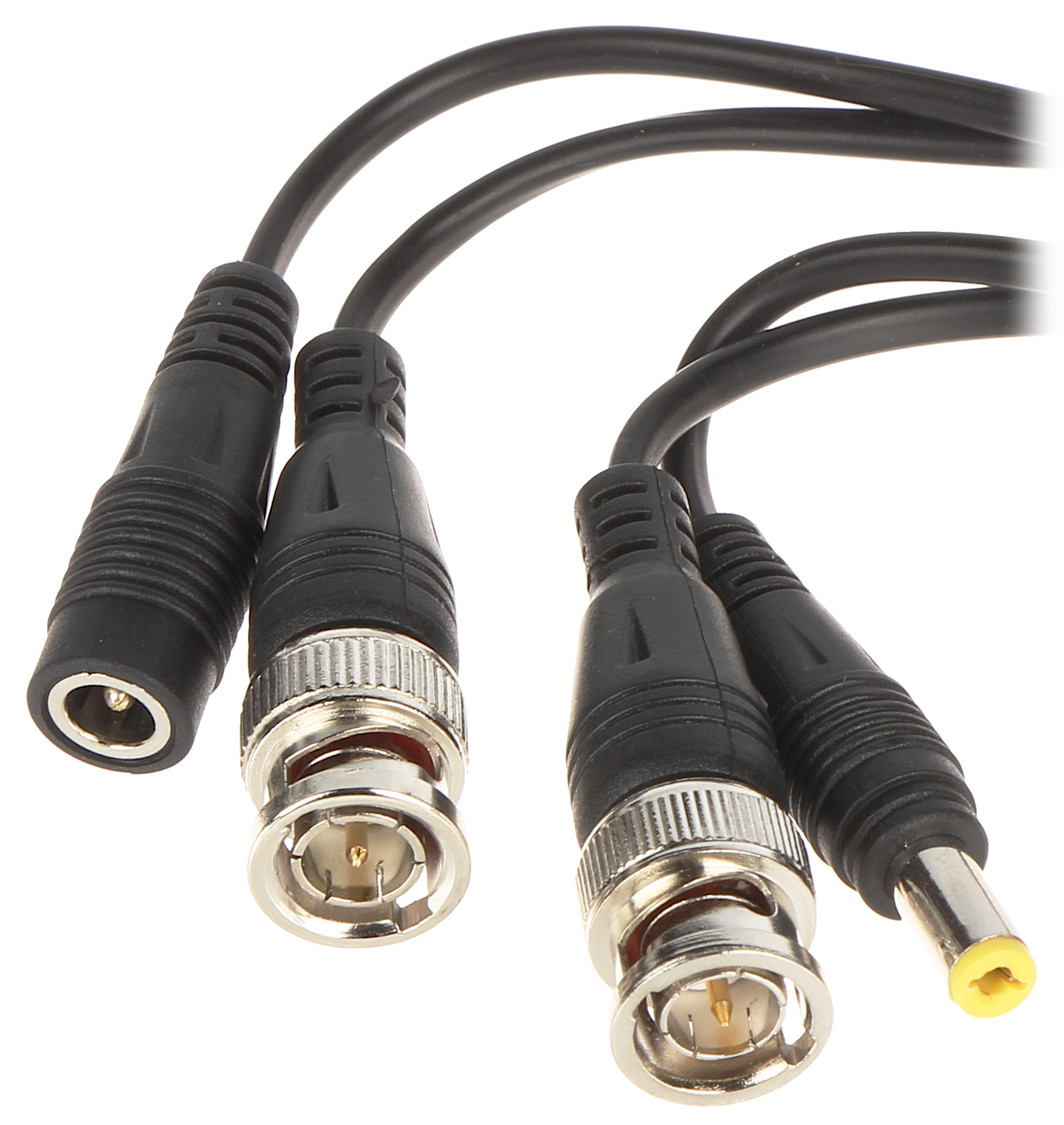

| Connectors type: | BNC Plug with cable - Video 2.1 / 5.5 mm - Socket / Plug with cable DC |

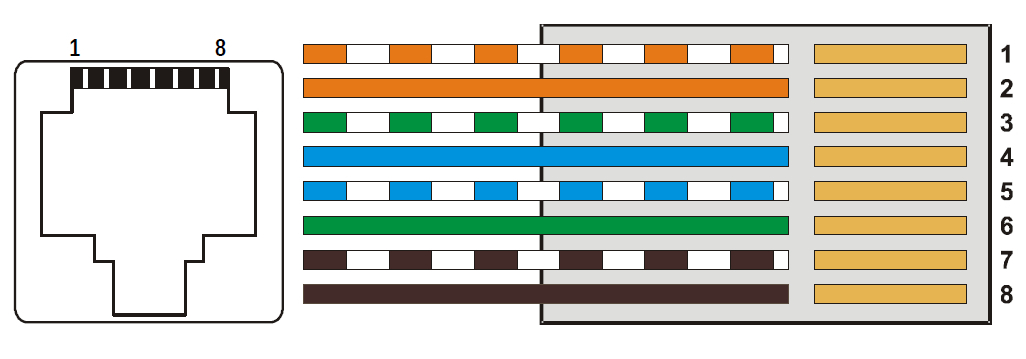

| Symmetrical socket type: | RJ-45 (8-pin, 4 pairs) Socket |
| Permissible relative humidity: | < 95 % |
| Operation temp: | -50 °C ... 55 °C |
| Power supply distance: | 100 m @ 160 mA 90 m @ 180 mA 80 m @ 200 mA 70 m @ 230 mA 60 m @ 270 mA 50 m @ 330 mA 40 m @ 410 mA 30 m @ 550 20 m @ 820 mA 10 m @ 1.65 A |
| Weight: | 0.080 kg |
| Dimensions: | 62 x 33 x 25 mm |
| Guarantee: | 2 years |
Brand:
Delta Power
