Standard: AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC ; Device type: Passive ; Number of channels: 4 pcs Video ; Symmetrical socket type: Cable terminals / RJ-45 (8-pin, 4 pairs) Socket ;
| Standard: | |
| Device type: | Passive |
| Number of channels: | 4 pcs Video |
| Video transmission range: | |
| Coaxial socket voltage range 75Ω (CVBS): | 1 Vpp |

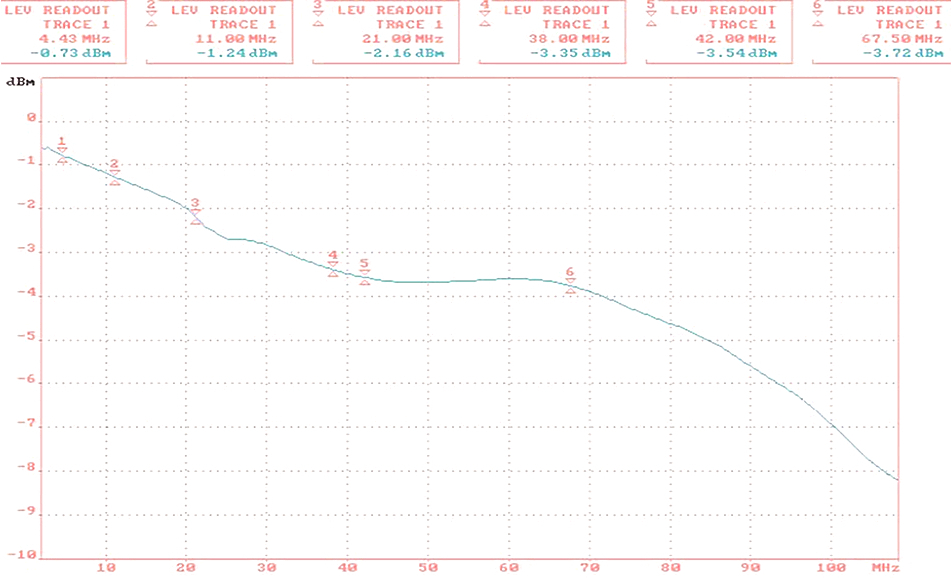

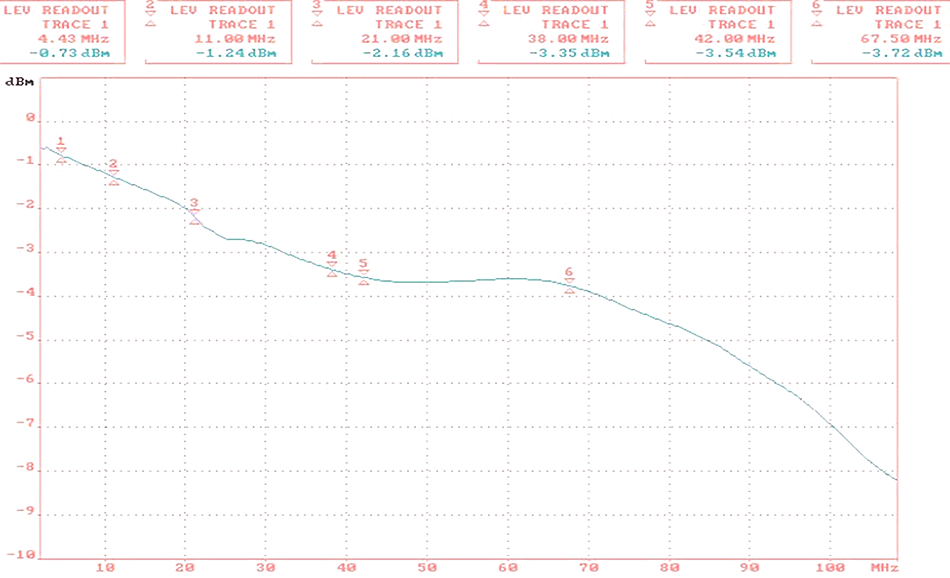

| Attenuation: | |
| Isolation between inputs: | > -50 dB |
| Manufacturer / Brand: | DELTA |
| CMRR (dB @ 5MHz): | 50 dB |
| Coaxial socket impedance: | 75 Ω |
| Symmetrical socket impedance: | 100 Ω |

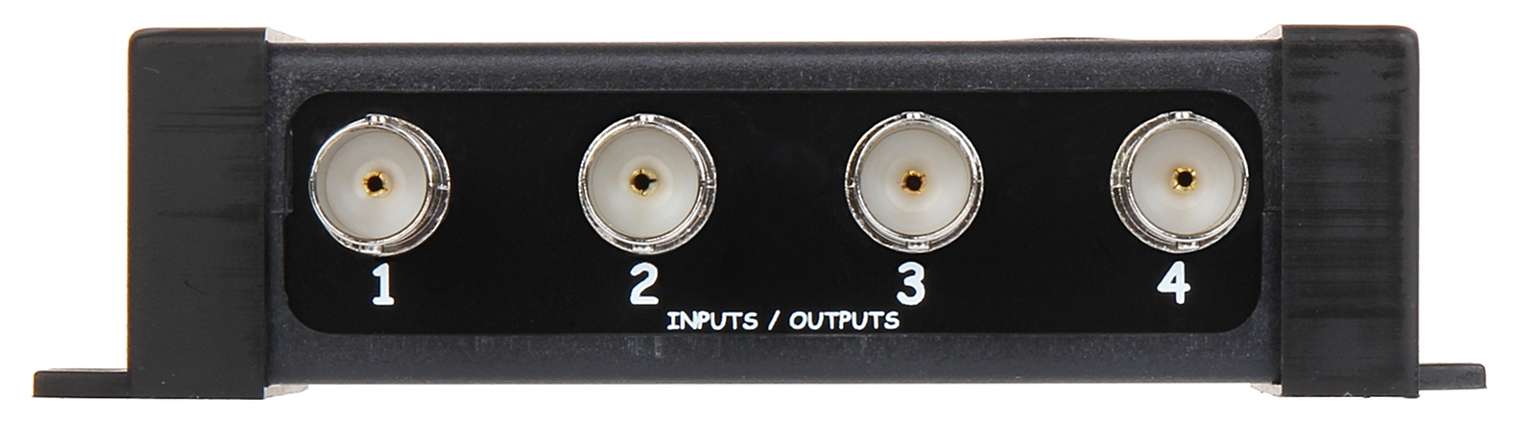

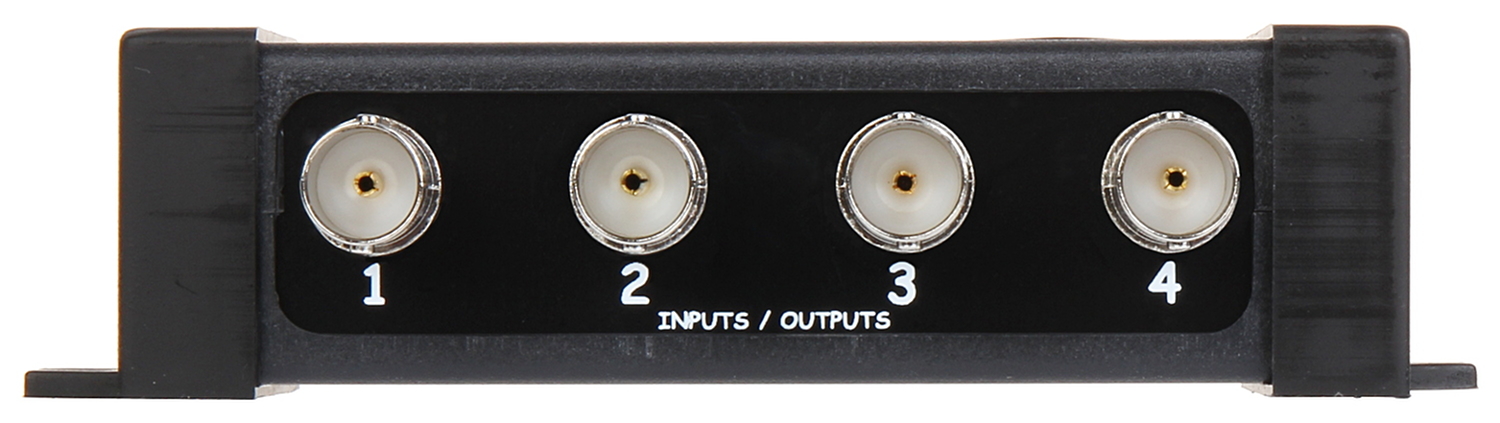

| Coaxial socket type: | 4 x BNC Straight socket |

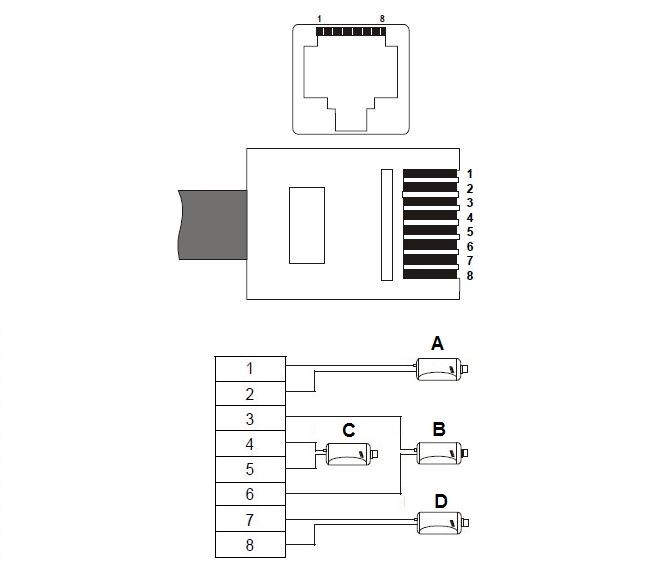

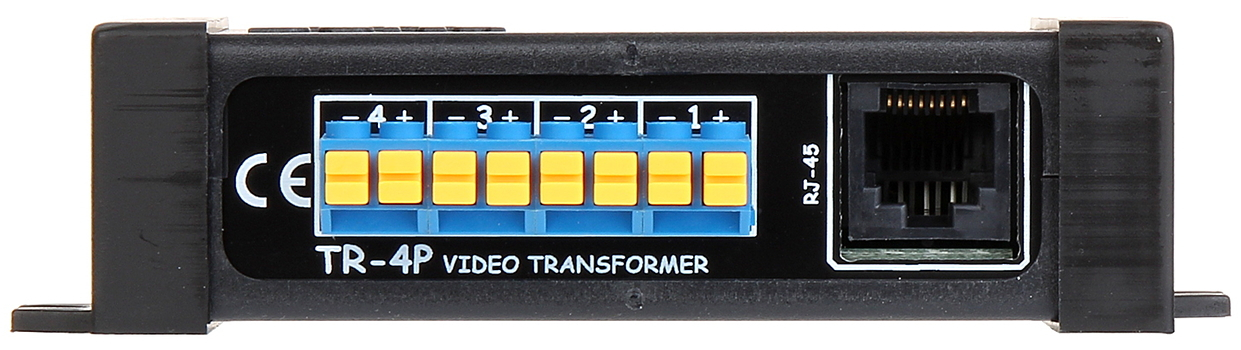

| Symmetrical socket type: | Cable terminals / RJ-45 (8-pin, 4 pairs) Socket |
| Operation temp: | -50 °C ... 55 °C |
| Permissible relative humidity: | < 95 % |
| Weight: | 0.105 kg |
| Dimensions: | 120 x 30 x 62 mm |
| Guarantee: | Lifetime warranty |
Brand:
Delta
