Device type: Passive ; Number of channels: 4 AUDIO ; Symmetrical socket type: RJ-45 (8-pin, 4 pairs) Socket Cable terminals ;
| Audio transmission range: | max. 1200 m |
| Device type: | Passive |
| Number of channels: | 4 AUDIO |
| Audio bandwidth: | 20 Hz ... 20 kHz |
| Opto-isolation between inputs and outputs: | 600 V |
| Coaxial socket impedance: | 600 Ω |
| Symmetrical socket impedance: | 100 Ω |
| Audio input nominal level: | 1 V |
| Audio output nominal level: | 1 V |

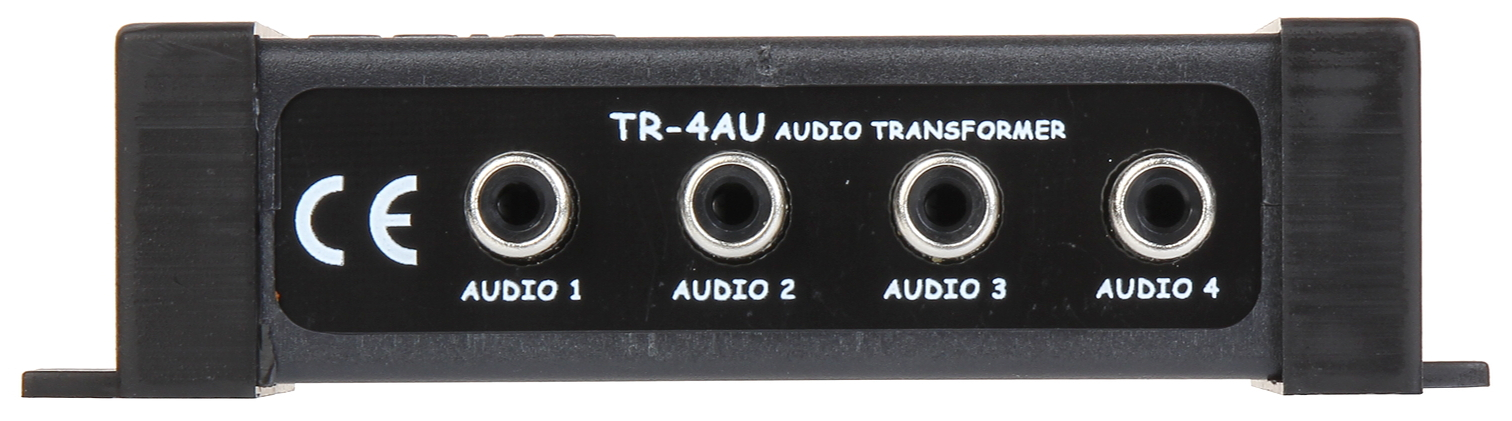

| Coaxial socket type: | 4 x CINCH Socket |

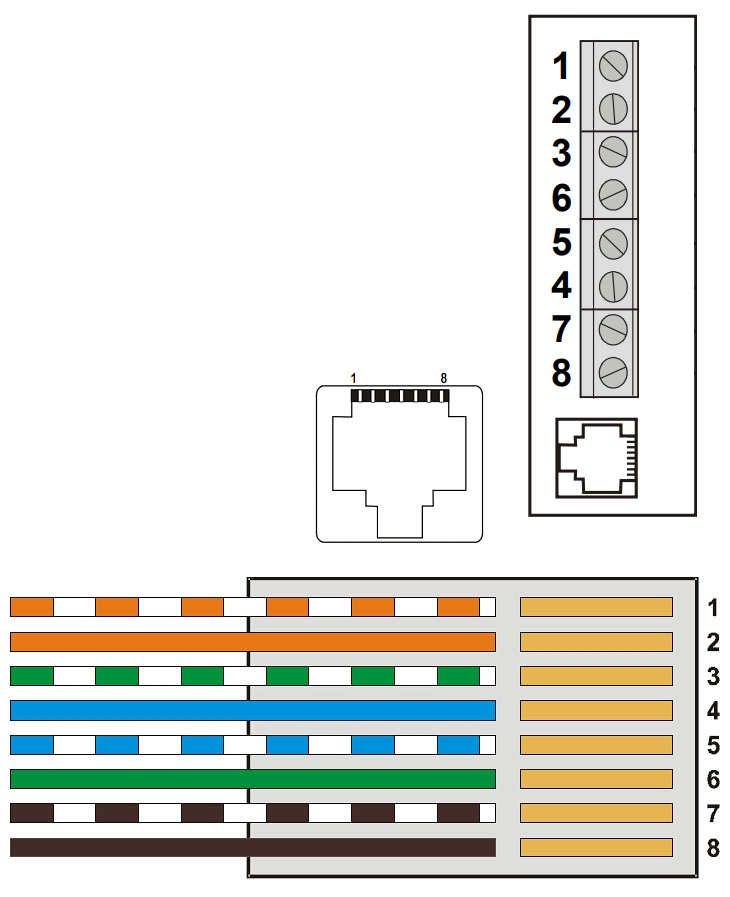

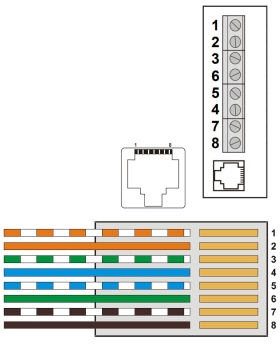

| Symmetrical socket type: | RJ-45 (8-pin, 4 pairs) Socket Cable terminals |
| Operation temp: | -50 °C ... 55 °C |
| Permissible relative humidity: | < 95 % |
| Weight: | 0.133 kg |
| Dimensions: | 120 x 30 x 60 mm |
| Guarantee: | 3 years |
| Manufacturer / Brand: | DELTA |
Brand:
Delta
