Standard: CVBS - PAL, NTSC ; Device type: Active ; Number of channels: 1 ; Opto-isolation between input and output: 1000 V ; Opto-isolation between power and signal inputs / outputs: 1000 V ; Symmetrical socket type: Cable terminals ;
| Standard: | |
| Video transmission range: | max. 400 m UTP cat. 5e |
| Device type: | Active |
| Coaxial socket voltage range 75Ω (CVBS): | 1 Vpp |
| Power supply: | 12 V DC / 90 mA |
| Number of channels: | 1 |
| Video bandwidth: | 0 ... 9 MHz ( -3 dB ) |
| CMRR (dB @ 5MHz): | 50 dB |
| Coaxial socket impedance: | 75 Ω |
| Symmetrical socket impedance: | 100 Ω |

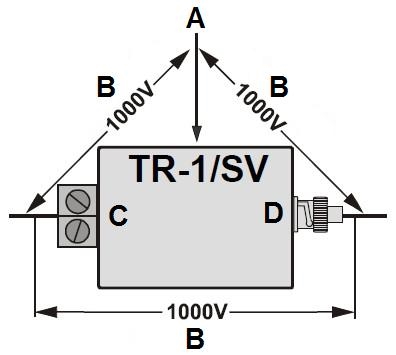

| Opto-isolation between input and output: | 1000 V ( peak ) |
| Opto-isolation between power and signal inputs / outputs: | 1000 V ( peak ) |
| Coaxial socket type: | BNC Straight socket |
| Symmetrical socket type: | Cable terminals |
| Operation temp: | -50 °C ... 55 °C |
| Permissible relative humidity: | < 95 % |
| Weight: | 0.095 kg |
| Dimensions: | 117 x 30 x 62 mm |
| Guarantee: | 3 years |
| Manufacturer / Brand: | DELTA |
Brand:
Delta
