IP HYBRID THERMAL IMAGING CAMERA TPC-DF1241-B3F4-S2 3.5 mm - 960p, 4 mm - 4 Mpx DAHUA

€616.87

(Включая налог 21%)

Задать вопрос

КОД: TPC-DF1241-B3F4-S2

В наличии: Нет в наличии

Минимальное количество для товара "IP HYBRID THERMAL IMAGING CAMERA TPC-DF1241-B3F4-S2 3.5 mm - 960p, 4 mm - 4 Mpx DAHUA" 1.

Описание
Особенности

Sensor: Uncooled VOx microbolometer ; Matrix size: 256 x 192 px ; View angle: 51 ° ; Resolution: 1280 x 960, 1024 x 768 px ; Sensor: 1/2.7 " ; Matrix size: 4 Mpx ; View angle: 71 ° ; Resolution: 2336 x 1752 - 4 Mpx ; RS-485 interface; Alarm inputs / outputs: 1 / 1 ; Audio: External microphone input ; Power supply: PoE (802.3af), 12 V DC ;

THERMAL IMAGING CAMERA:

Sensor:	Uncooled VOx microbolometer
Matrix size:	256 x 192 px
Pixel pitch:	12 µm
Thermal sensitivity (NETD):	< 50 mK @ F1.0
Spectral range:	8 µm ... 14 µm
Color palettes:	18
Lens:	3.5 mm
View angle:	51 °
Digital zoom:	x 16
Resolution:	1280 x 960 - 960p , 1024 x 768 px , 640 x 480 px , 256 x 192 px

VIDEO CAMERA:

Sensor:	1/2.7 " Progressive Scan CMOS
Matrix size:	4 Mpx
Lens:	4 mm
View angle:	71 °
Min. illumination:	0.05 Lux (color) 0.005 Lux (B/W)
Range of IR illumination:	30 m
Resolution:	2336 x 1752 - 4 Mpx 1920 x 1080 - 1080p 1280 x 720 - 720p 704 x 576 - D1

General information:

Standard:	TCP/IP
Video output:
RS-485 interface:

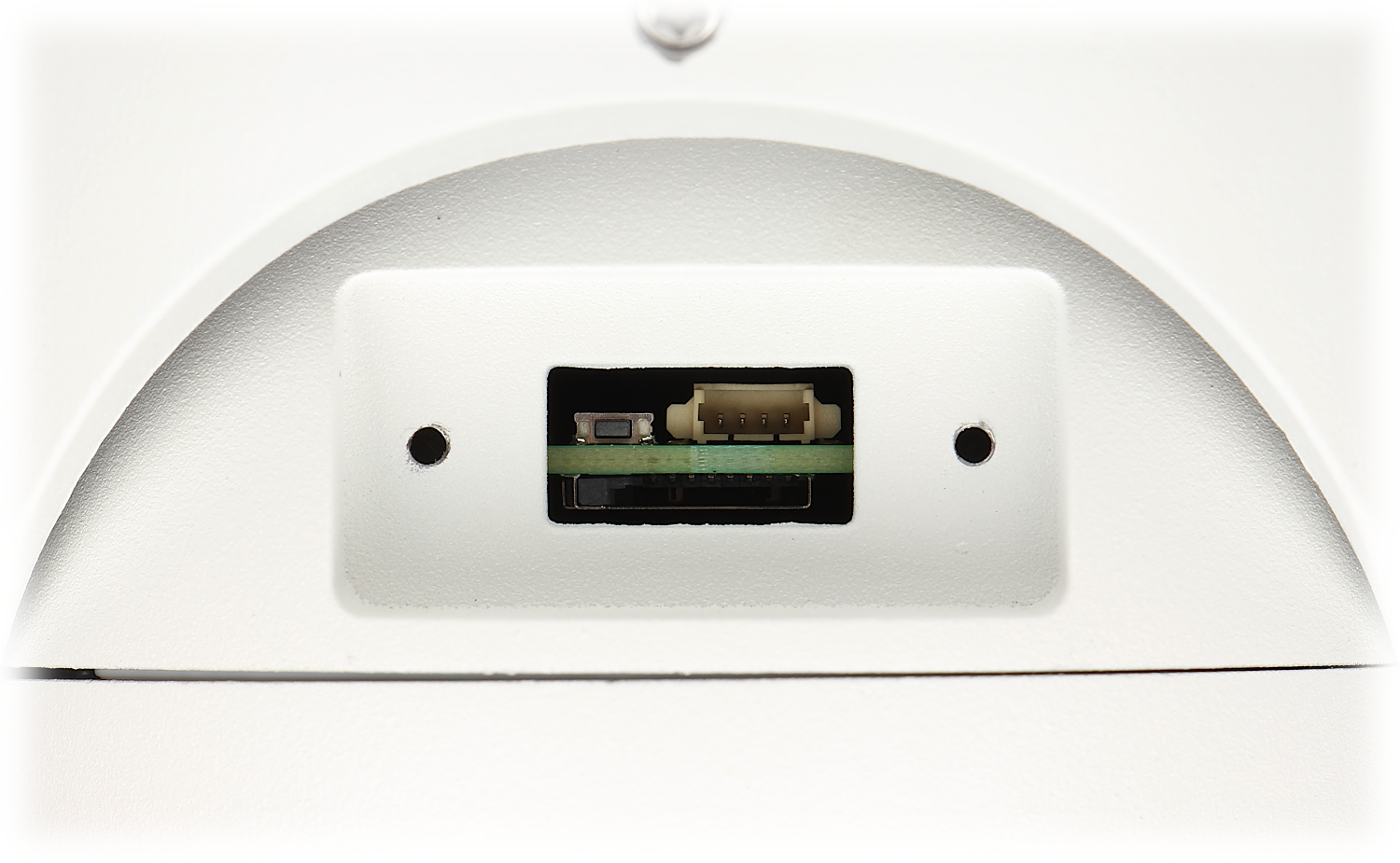

Memory card slot:	Micro SD memory cards up to 256GB support (possible local recording)
Image compression method:	H.265 / H.264 / MJPEG

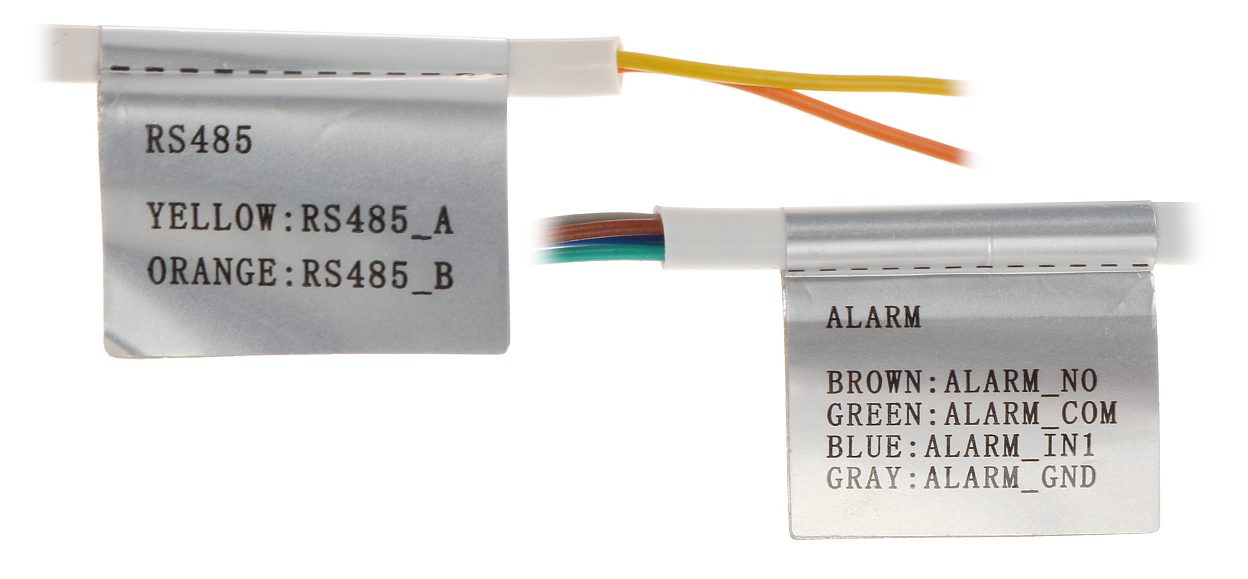

Alarm inputs / outputs:	1 / 1
Audio:	External microphone input Audio output Compliance with the AAC standard
Main stream frame rate:	25 fps @ 1280 x 960 25 fps @ 4 Mpx
Network interface:	10/100 Base-T (RJ-45)
Network protocols:	HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, SNMP, QoS, UPnP, NTP
WEB Server:	Built-in, NVR compliance
Max. number of on-line users:	10
ONVIF:
Default IP address:	192.168.1.108
Default admin user / password:	admin / - The administrator password should be set at the first start
Web browser access ports:	80, 37777
PC client access ports:	37777
ONVIF port:	80
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream

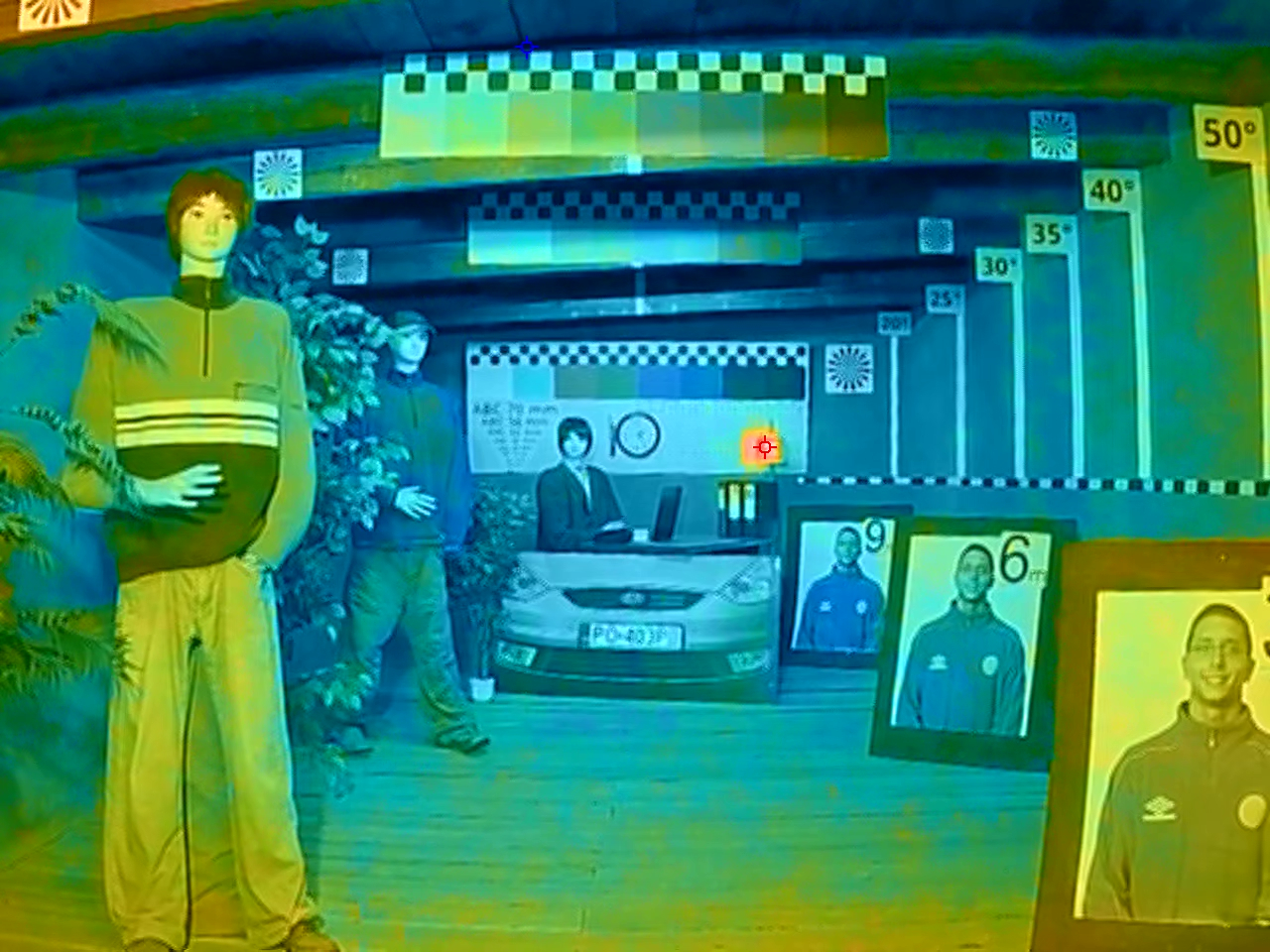

Main features:	The possibility of overlapping the image from a thermal imaging camera in a classic image D-WDR - Wide Dynamic Range 2D-DNR, 3D-DNR - Digital Noise Reduction ROI - improve the quality of selected parts of image BLC/HLC - Back Light / High Light Compensation PIP - Picture In Picture ICR - Movable InfraRed filter AGC - Automatic Gain Control Sharpness - sharper image outlines Motion Detection Detection of people smoking cigarettes Detection of telephone conversations IVS analysis : crossing the line (tripwire), intrusion, fire detection, classification of people and vehicles - The IVS analysis functions can be defined independently for the thermal imaging camera and the vision camera
Power supply:	PoE (802.3af), 12 V DC / 1.1 A
Power consumption:	≤ 13 W
Housing:	Dome - Metal
Color:	White
"Index of Protection":	IP67
Operation temp:	-30 °C ... 50 °C

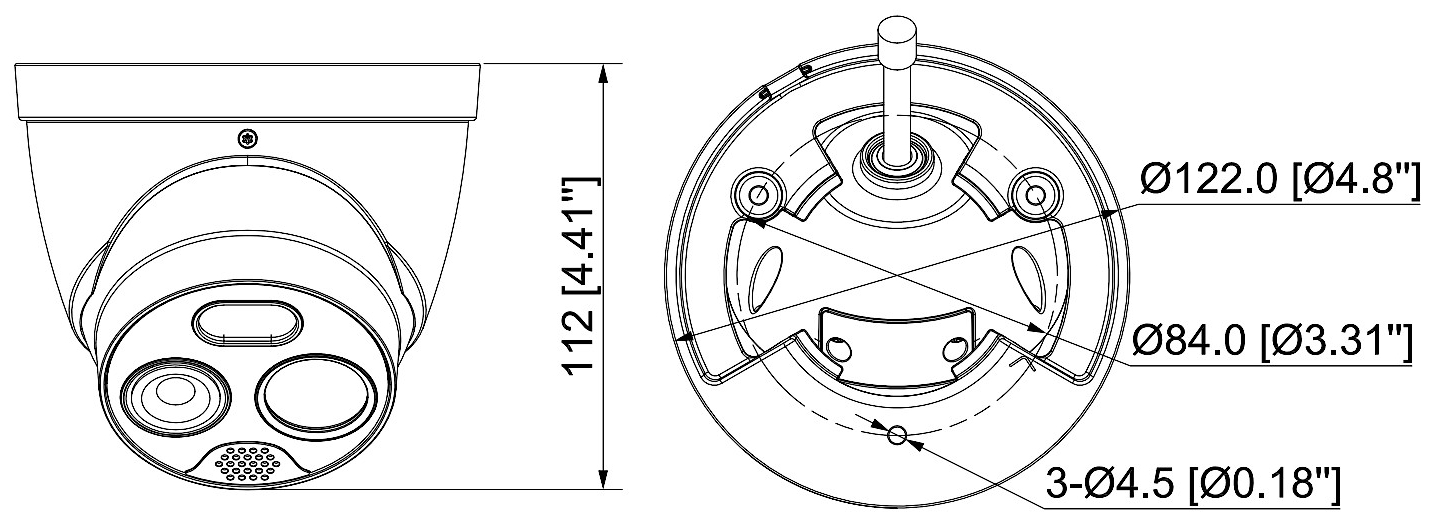

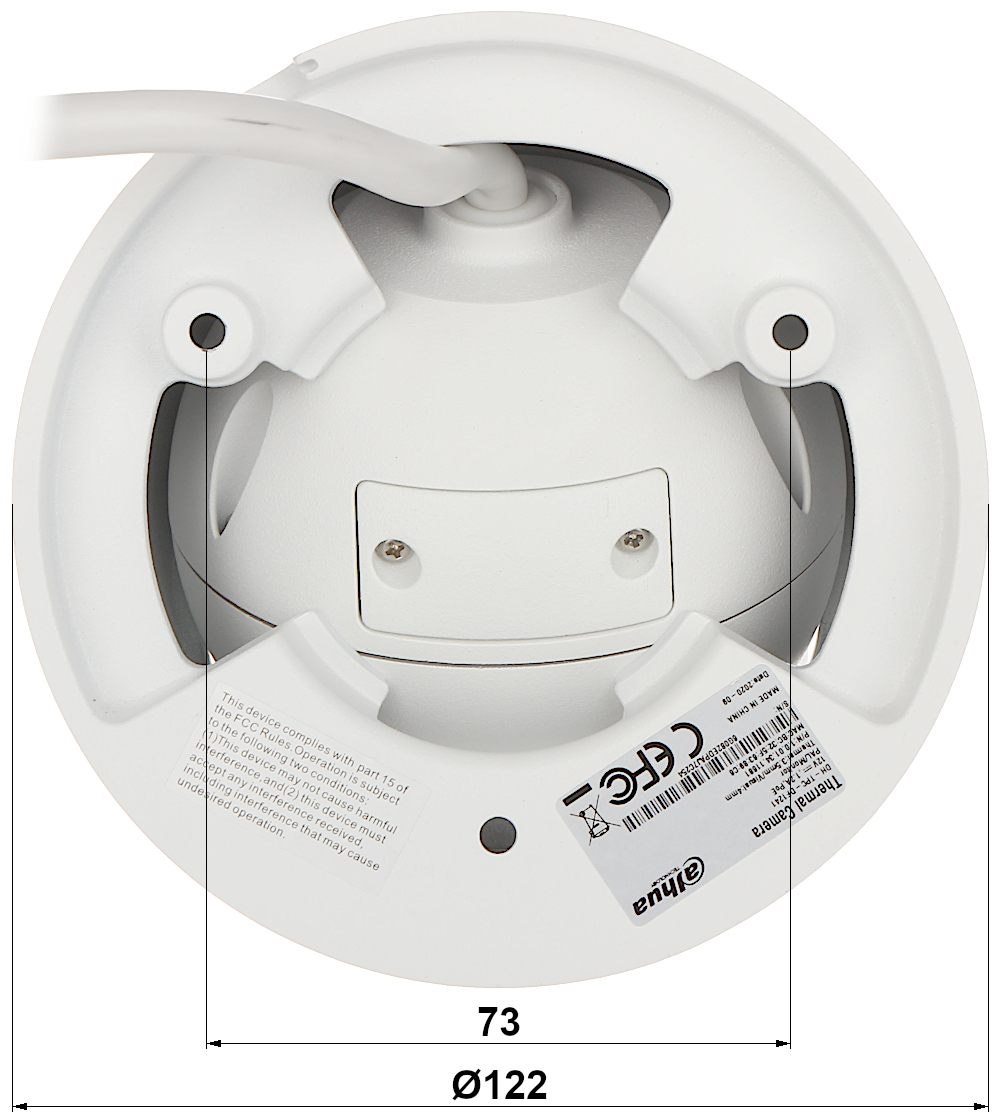

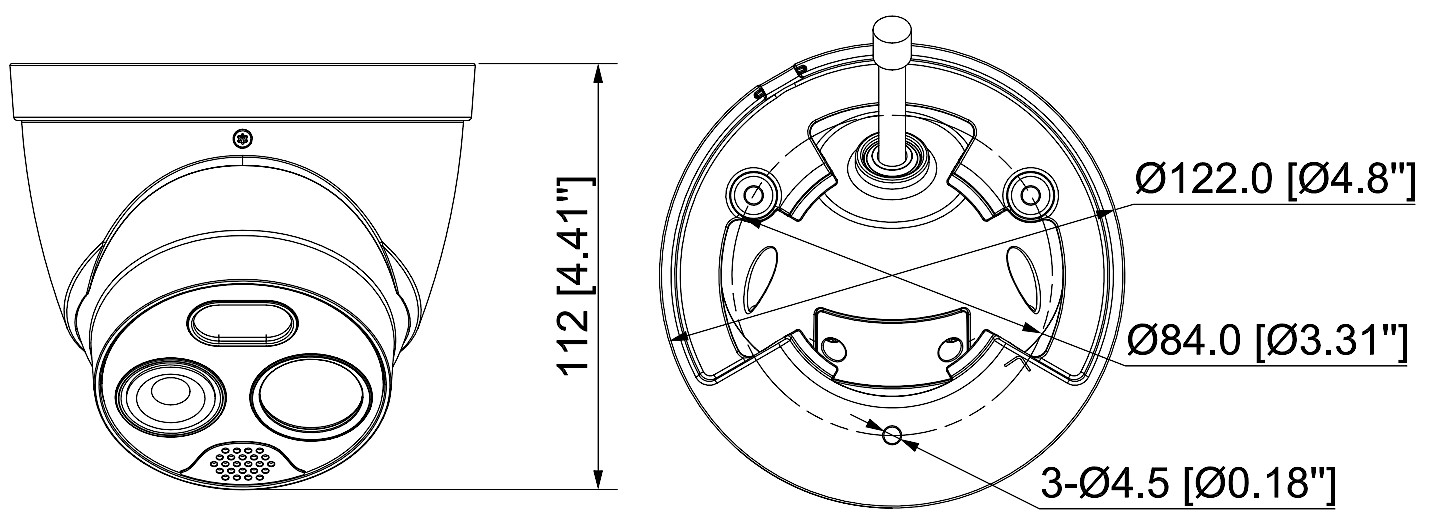

Dimensions:	Ø 122 x 112 mm
Weight:	0.77 kg
Supported languages:	English, French, Spanish, Italian
Manufacturer / Brand:	DAHUA
Guarantee:	3 years
