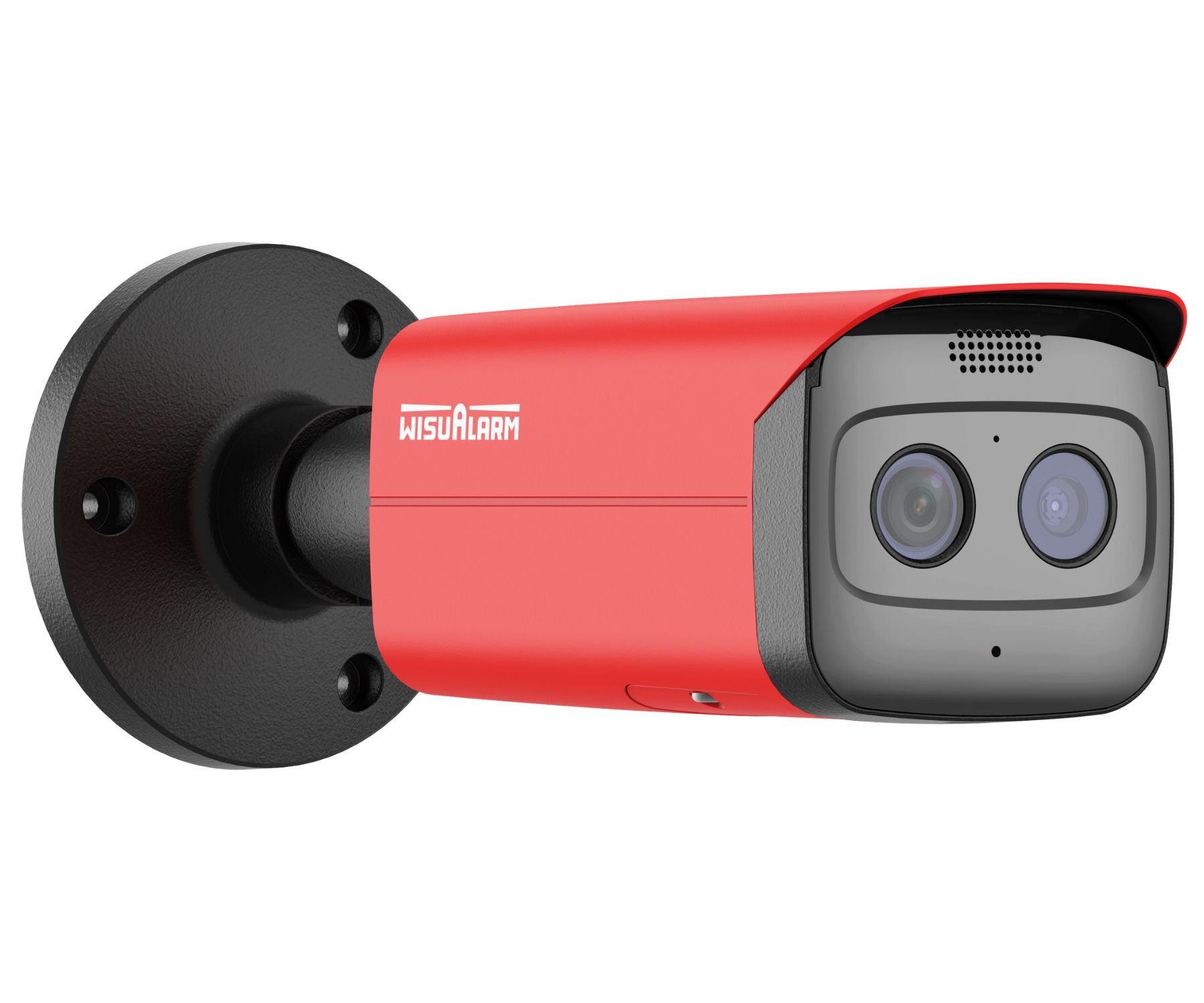

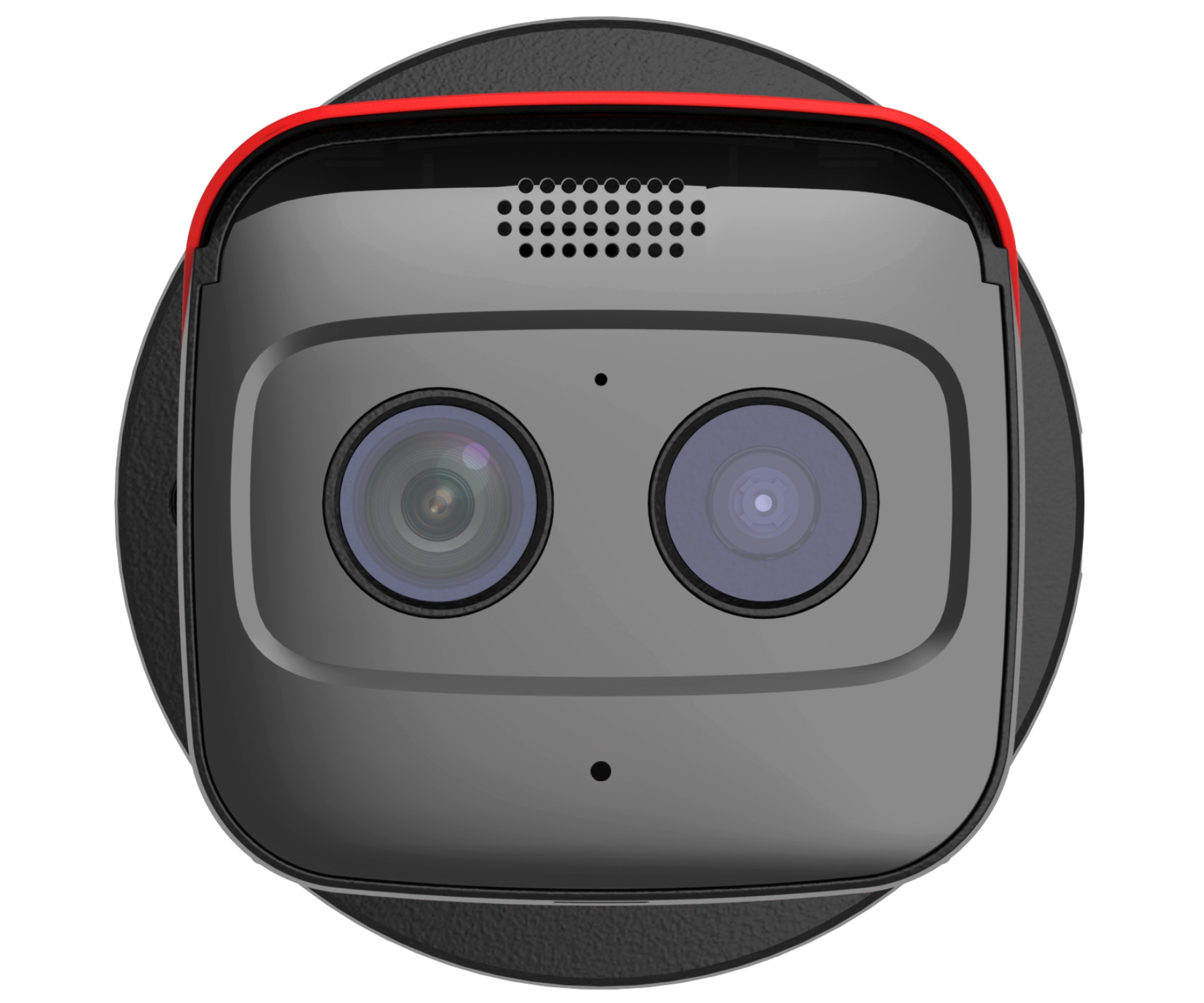

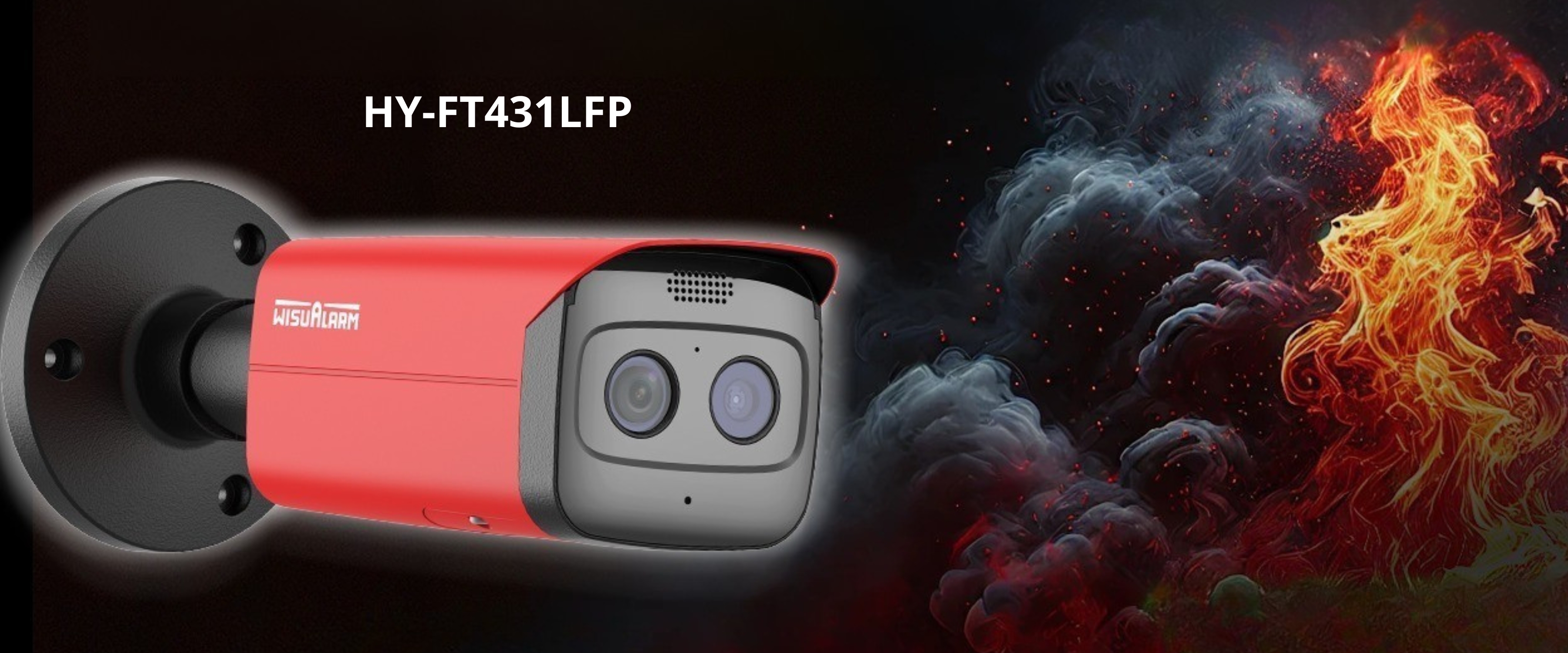

IP HYBRID THERMAL IMAGING CAMERA HY-FT431LFP-TD1F4 1.2 mm, 4 Mpx 4.0 mm WISUALARM
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

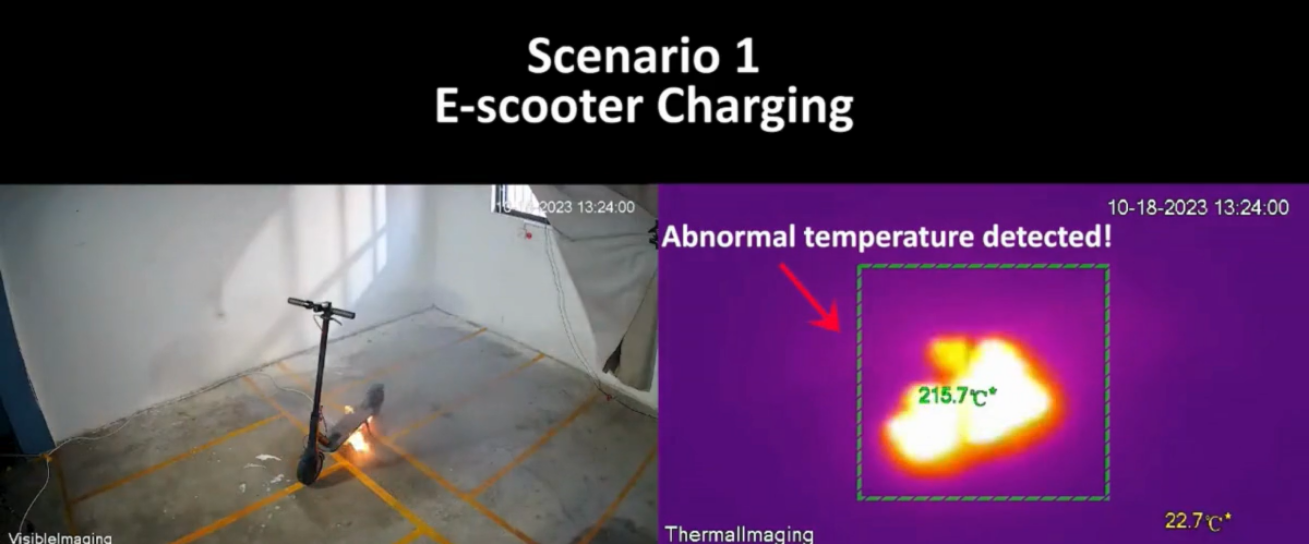

Sensor: Uncooled VOx microbolometer ; Matrix size: 120 x 90 px ; View angle: 90 ° ; Temperature measurement range: -10 °C ... 200 °C ; Accuracy of temperature measurement: ± 5 °C ; Sensor: 1/2.7 " ; Resolution: 2688 x 1520, 1920 x 1080 ; View angle: 85 ° ; Image compression method: Smart H.265+ ; Intelligent Image Analysis: flame detection ; Main features: Sudden temperature rise detection enables fire detection before flames appear ; Power supply: PoE (802.3af), 12 V DC ;
| Sensor: | Uncooled VOx microbolometer |
| Matrix size: | 120 x 90 px |
| Pixel pitch: | 17 µm |
| Thermal sensitivity (NETD): | < 60 mK @ F1.0, 300 K |
| Spectral range: | 8 µm ... 14 µm |
| Color palettes: | 12 |
| Lens: | 1.2 mm , |
| View angle: | 90 ° |
| Optical zoom: |  |
| Digital zoom: | |
| Temperature measurement: | |
| Temperature measurement range: | -10 °C ... 200 °C |
| Accuracy of temperature measurement: | ± 5 °C |
VIDEO CAMERA:
| Sensor: | 1/2.7 " Progressive Scan CMOS |
| Resolution: | 2688 x 1520 - 4 Mpx , 1920 x 1080 - 1080p 1280 x 960 - 1.3 Mpx 1280 x 720 - 720p |
| Lens: | 4.0 mm |
| View angle: | 85 ° |
| Optical zoom: | |
| Digital zoom: | |
| Min. illumination: | 0.0052 Lux (color) @ F1.6 0.0028 Lux (B/W) @ F1.6 |
| Range of IR illumination: | 25 m |
| White light LED illuminator range: | |
General information:
| Standard: | IP |
| Video output: | |
| RS-485 interface: | |
| Memory card slot: | Micro SD card support up to 256GB |
| Image compression method: | Smart H.265+ / H.265 / Smart H.264+ / H.264 / H.264H / H.264B / MJPEG |

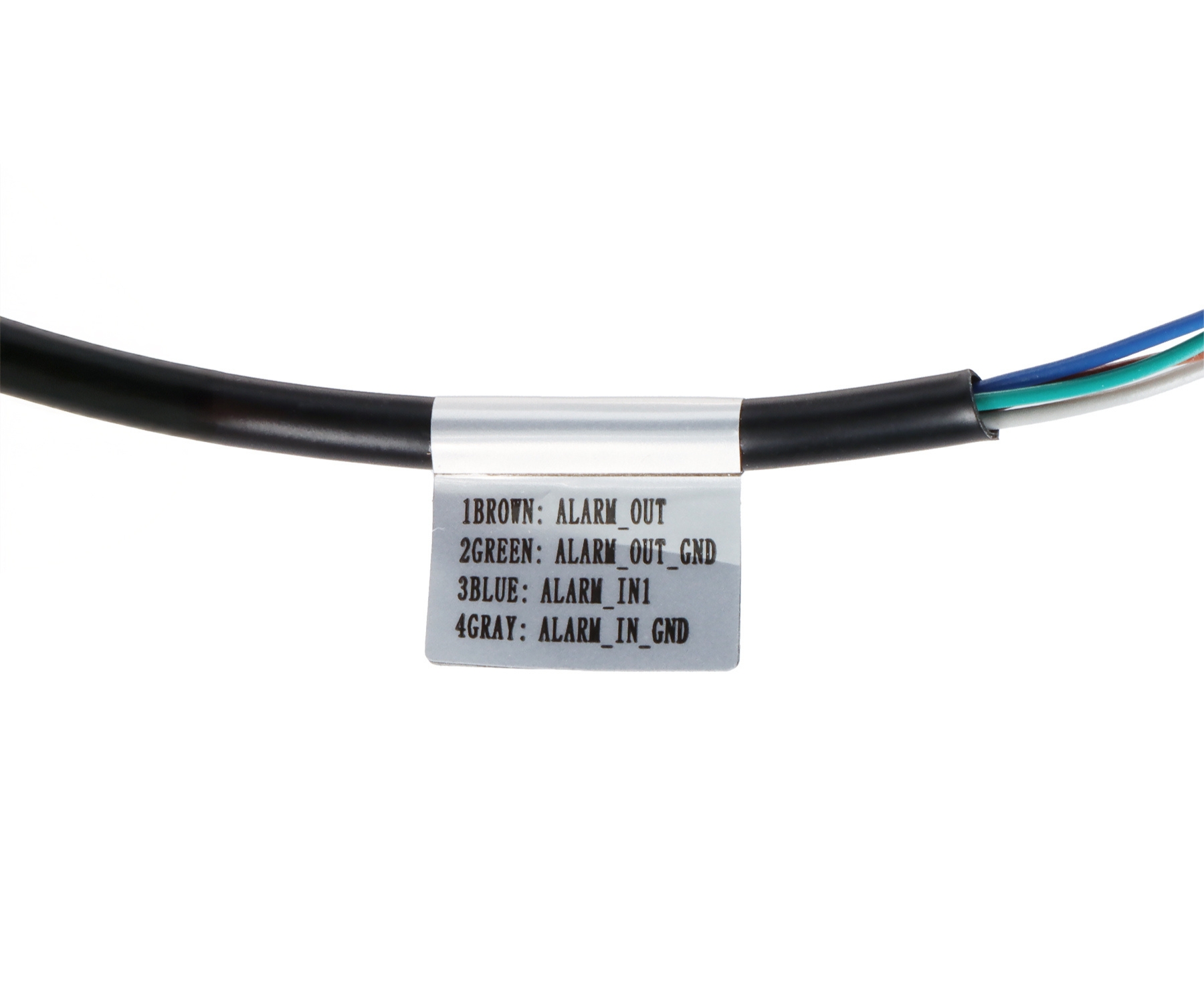

| Alarm inputs / outputs: | 1 / 1 |
| Audio: | |
| Main stream frame rate: | 25 fps @ 4 Mpx |

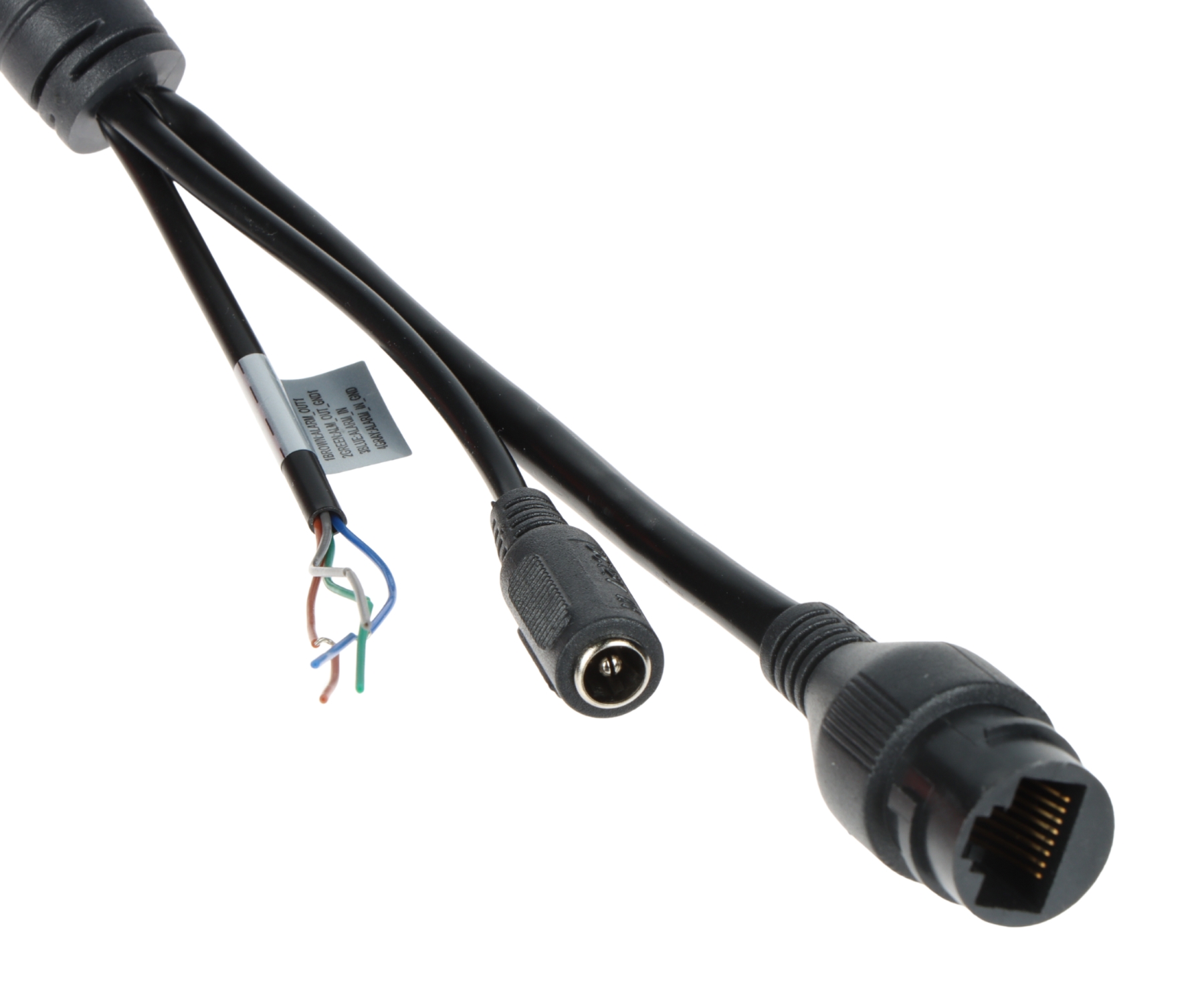

| Interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 10 |
| ONVIF: |  |
| Intelligent Image Analysis: | |
| Main features: | |
| Mobile phones support: | 37777 port |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Power supply: | |
| Power consumption: | ≤ 5.16 W |

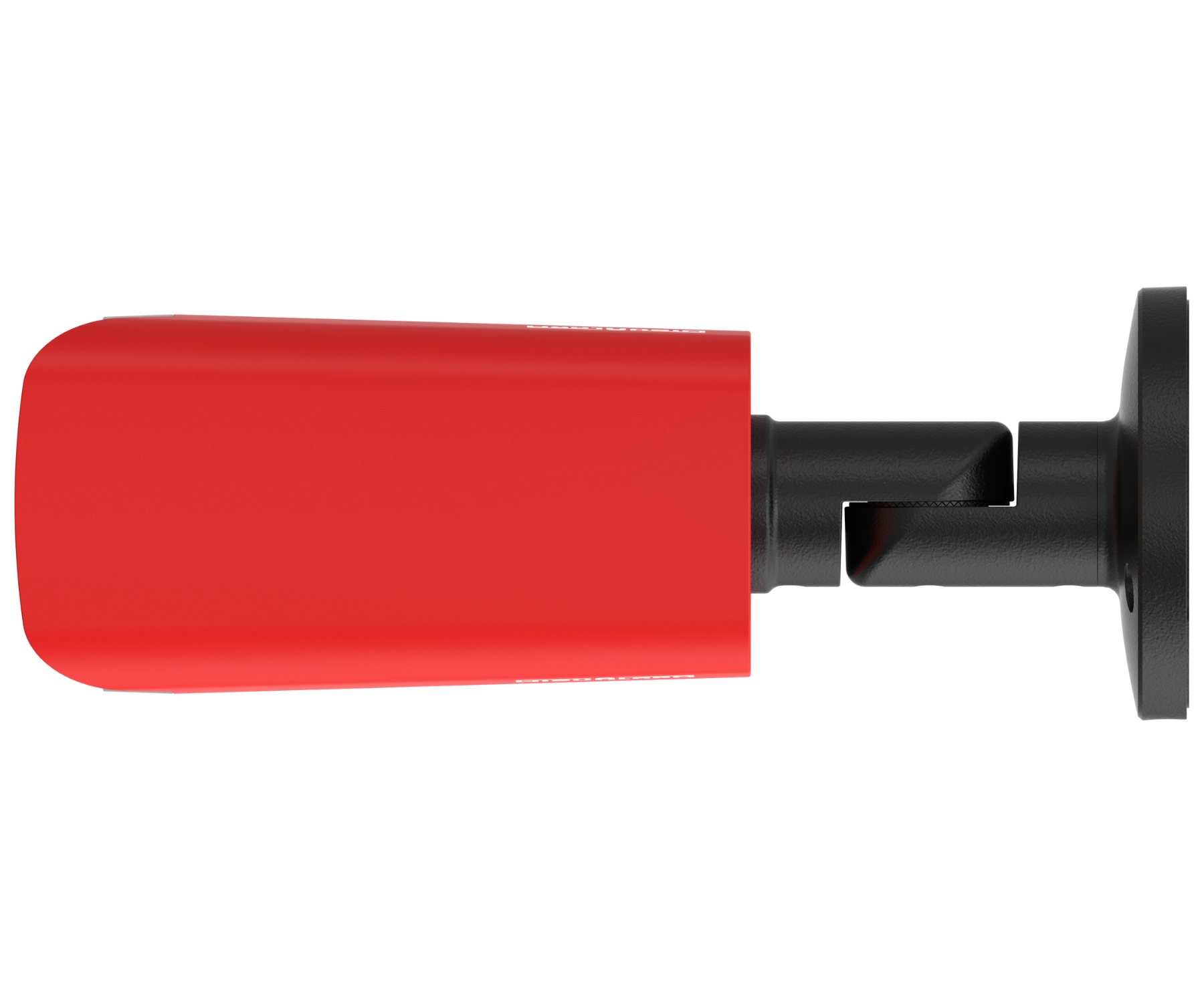

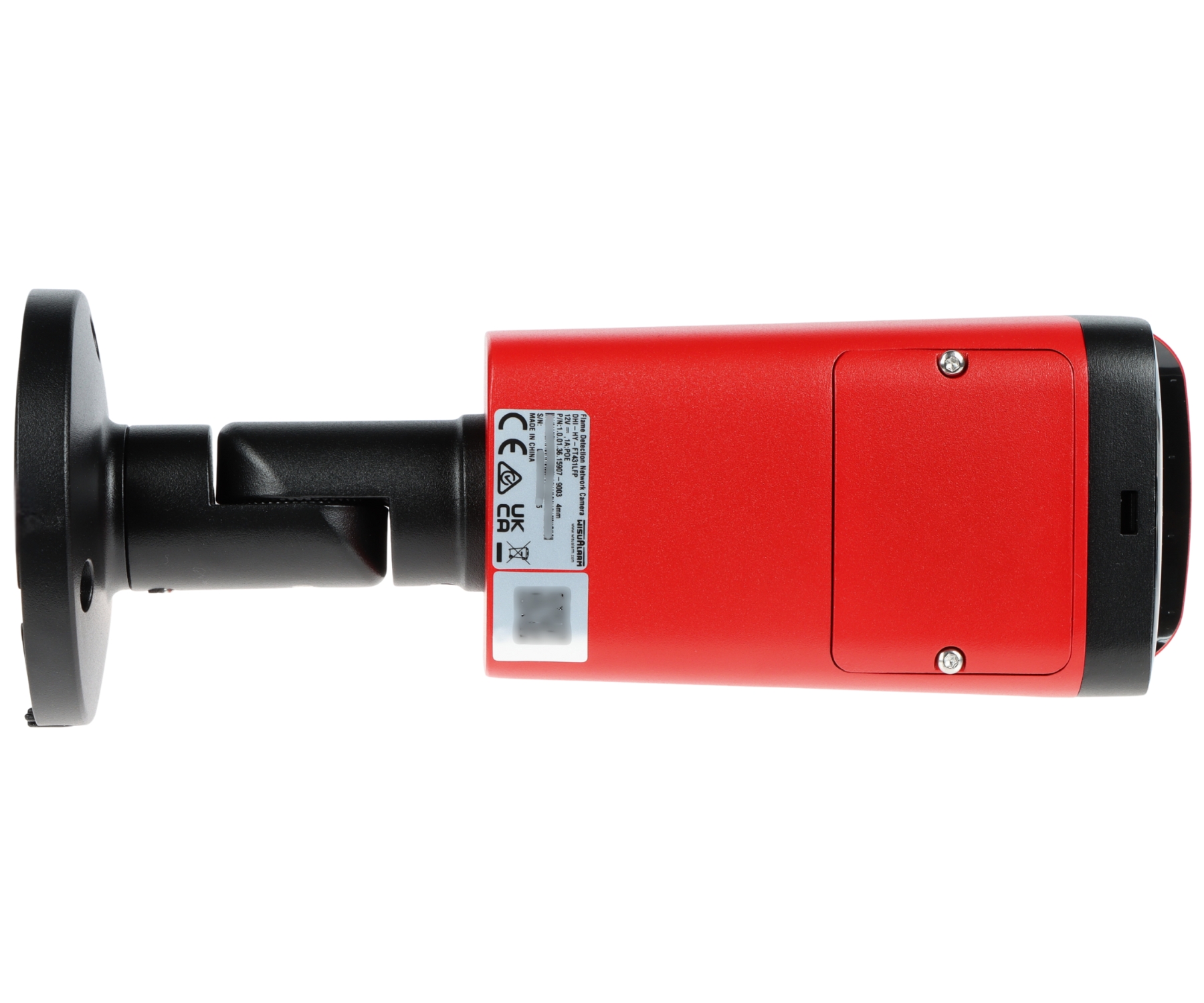

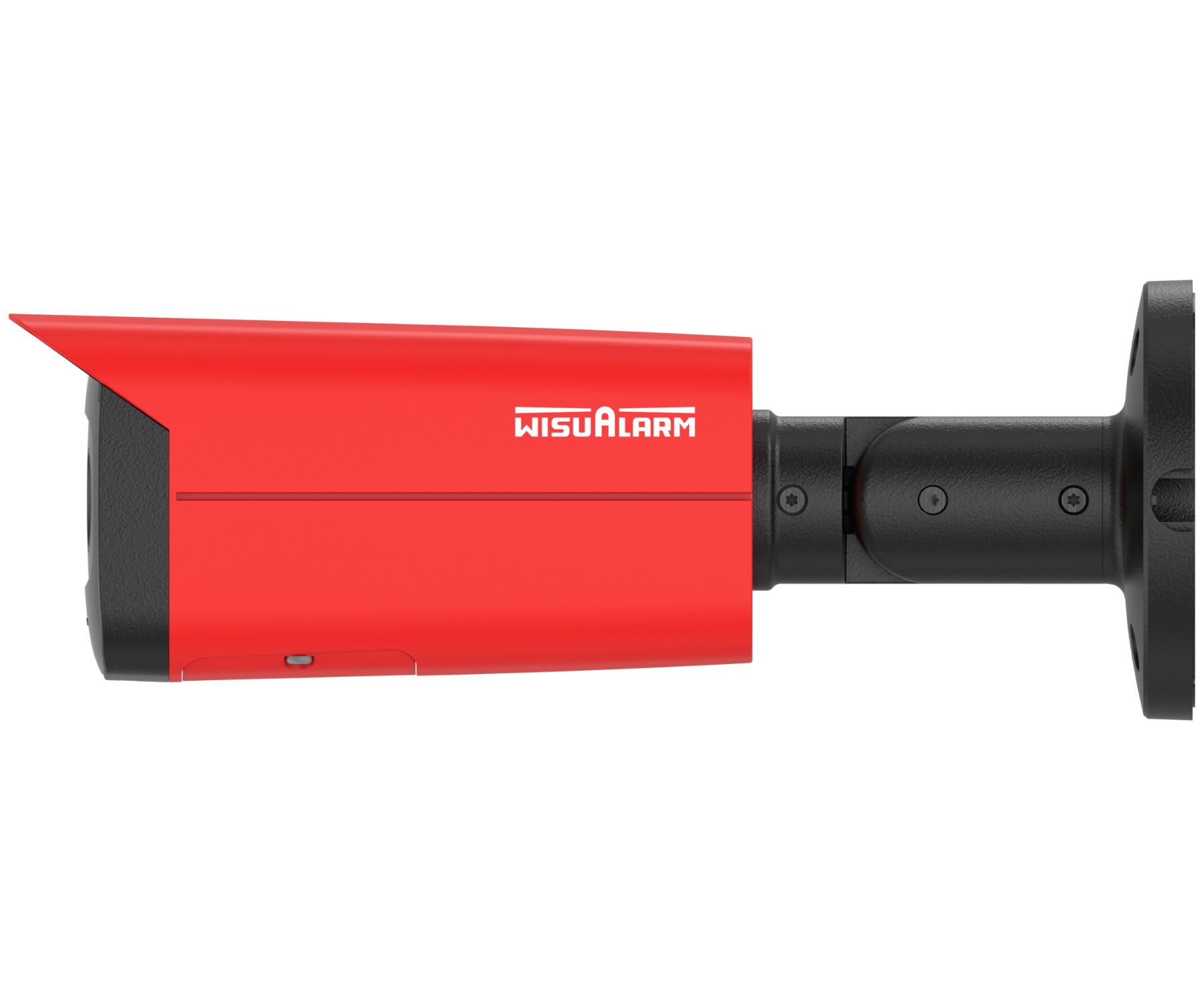

| Housing: | Bullet - Metal |
| Color: | Red |
| "Index of Protection": | IP67 |
| Mechanical protection class: | |
| Operation temp: | -40 °C ... 60 °C |
| Weight: | 0.82 kg |

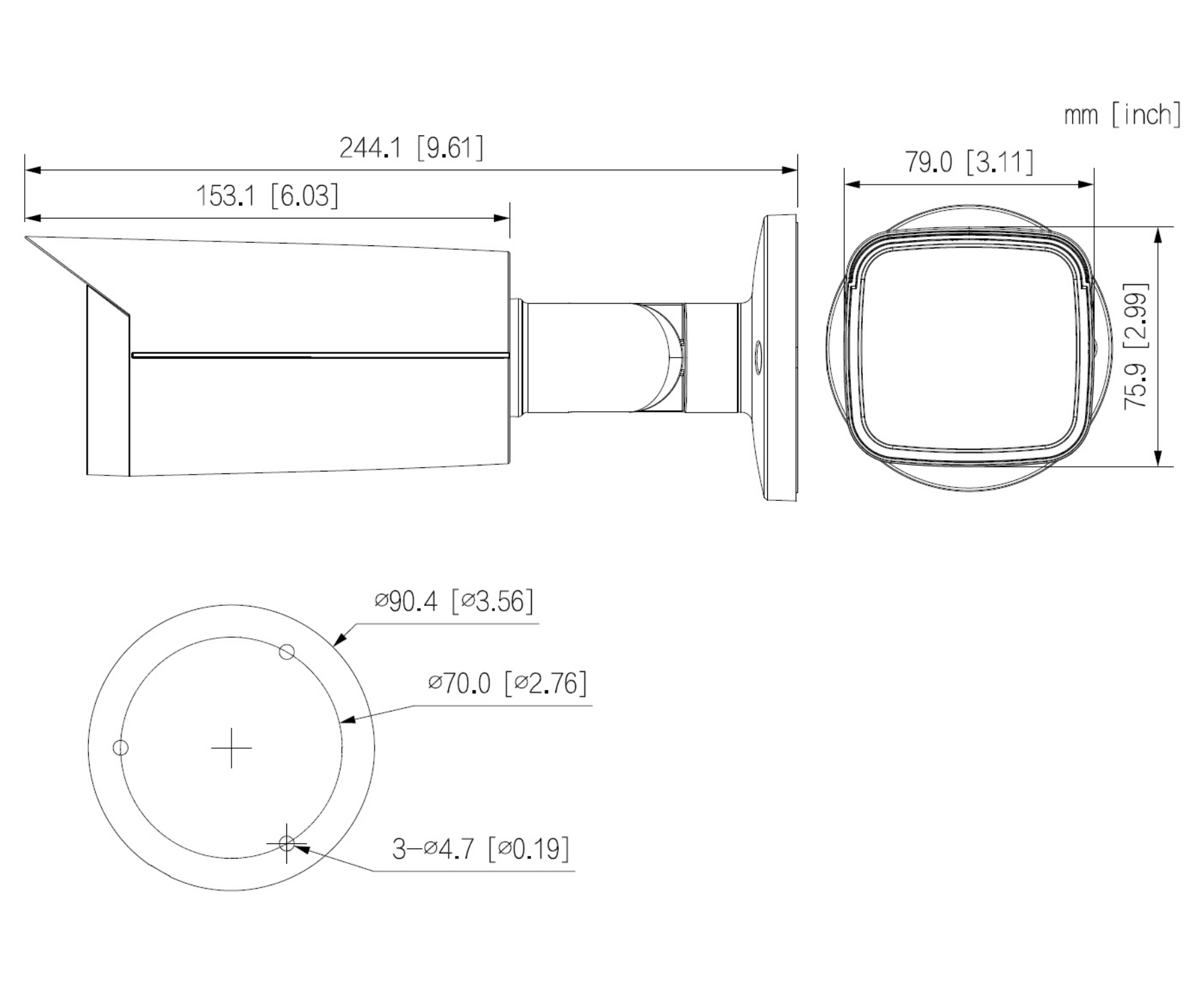

| Dimensions: | 244 x 79 x 76 mm |
| Supported languages: | English |
| Manufacturer / Brand: | WISUALARM / DAHUA |
| Guarantee: | 3 years |
Brand:
Dahua
