INTERFACE FOR DIGITAL BROADCASTING DIGIVOX-2V2

€25.59

(Включая налог 21%)

Задать вопрос

КОД: DIGIVOX-2V2

Доступность: 26 шт.

Кол-во:

+ −

Минимальное количество для товара "INTERFACE FOR DIGITAL BROADCASTING DIGIVOX-2V2" 1.

Купить в один клик

Описание
Особенности

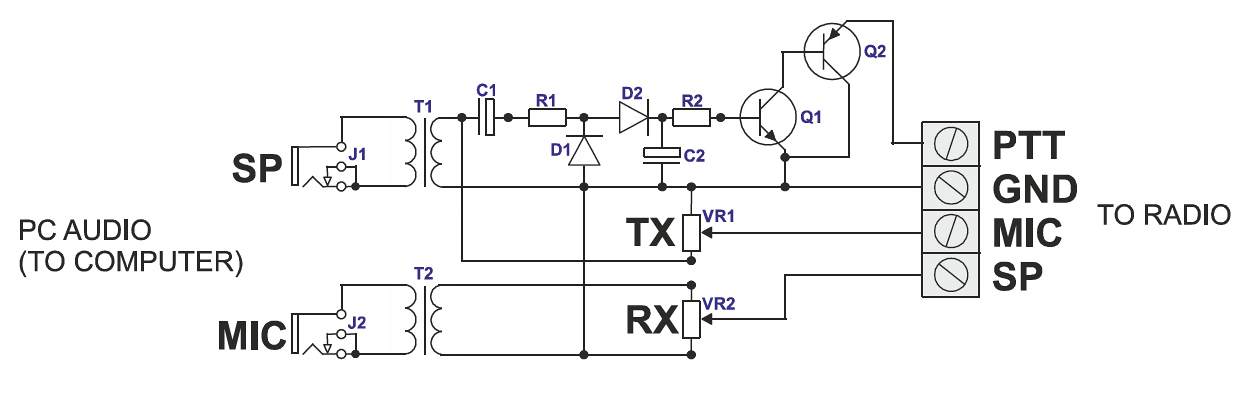

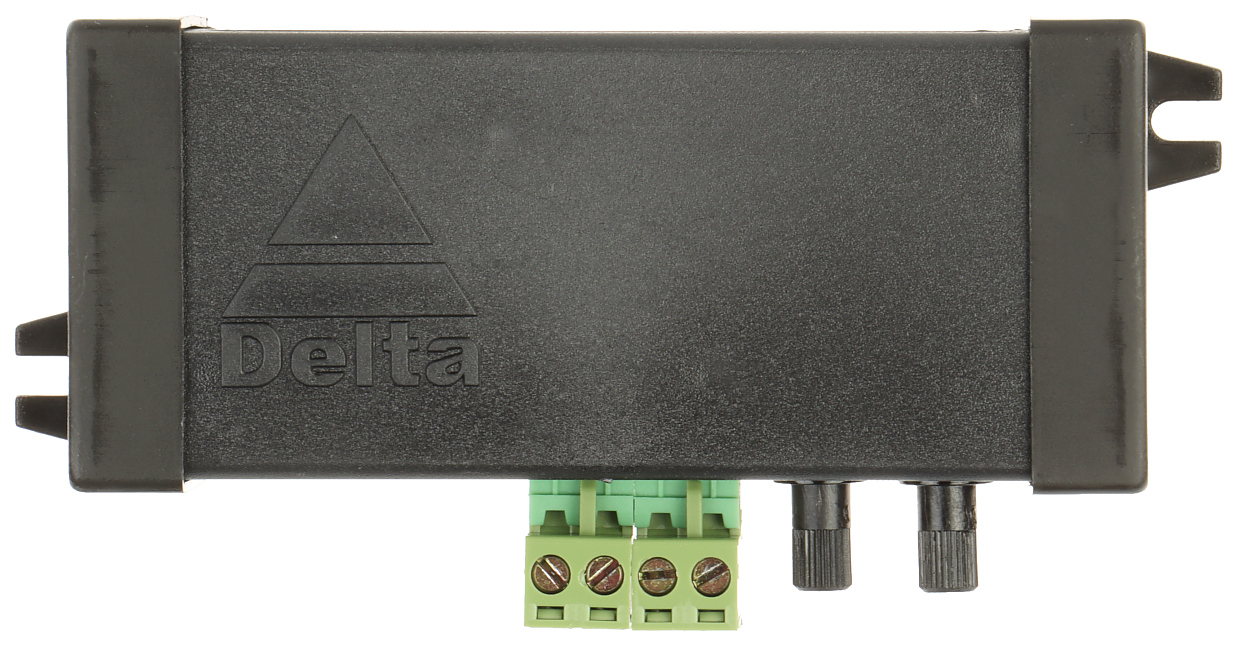

The DIGIVOX-2V2 is a passive, no power supply system that interfaces the computer with the radio; The device is designed for digital modes that use the sound card as a modem; Device type: Passive ;

Device type:	Passive

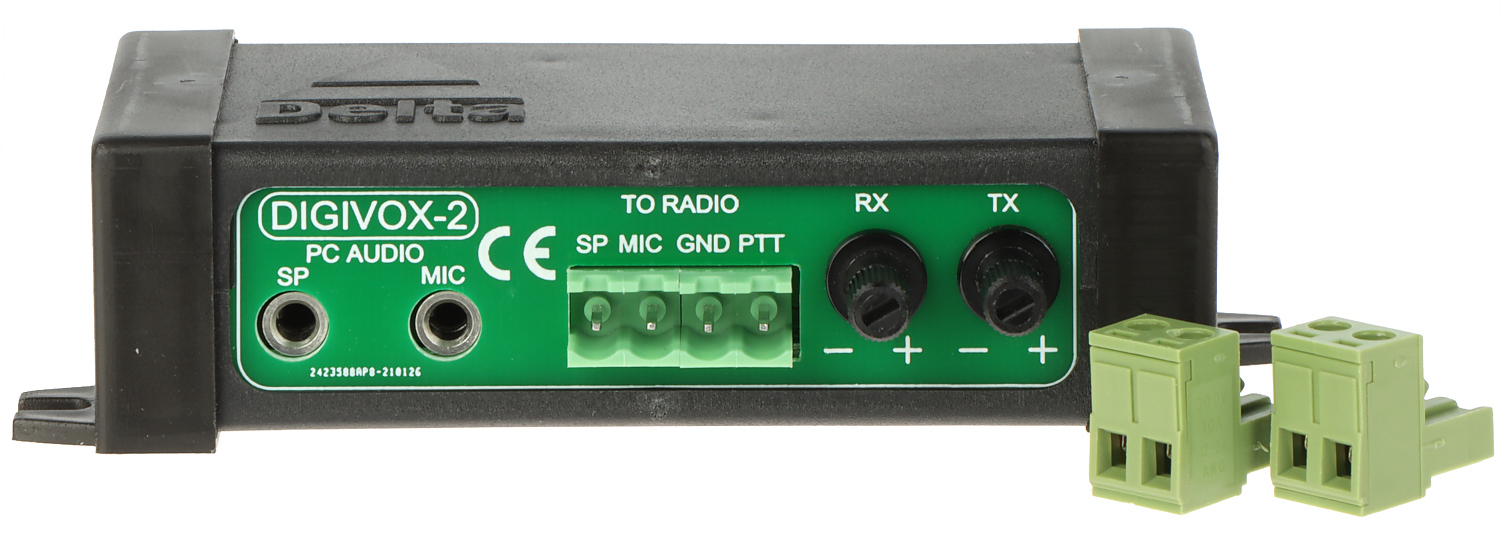

Connectors type:	PC AUDIO : 2x Jack 3.5 mm socket, TO RADIO : 4x detachable cable terminals
PTT output:	"Open Collector" (OC) type max. 30 V / 300 mA
PTT activation time:	20 ms
PTT off time:	5 ms
Minimum value of the audio signal from the sound card:	250 mV RMS
Galvanic isolation:	600 V

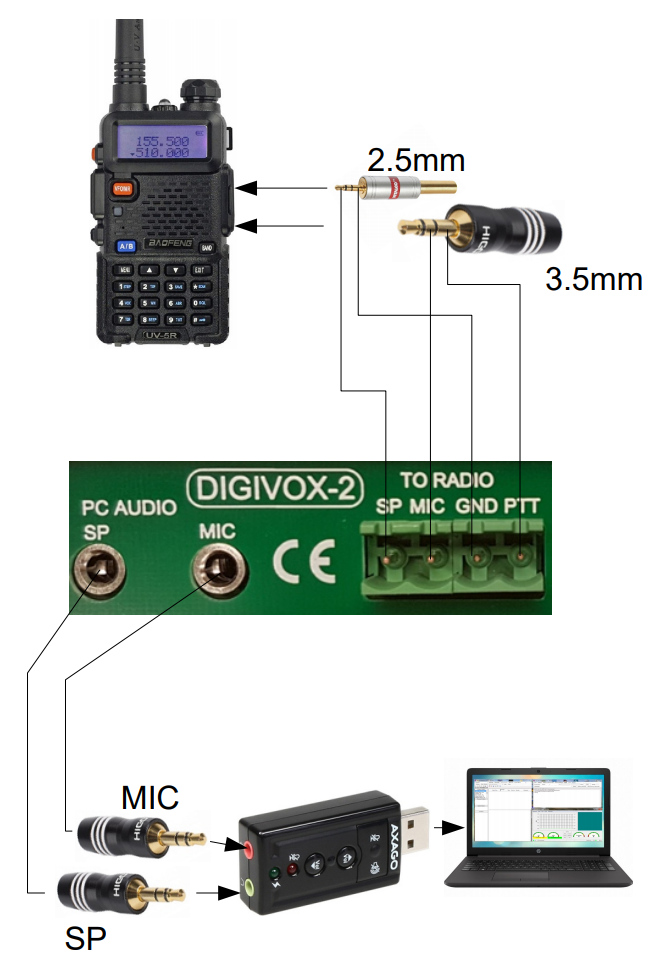

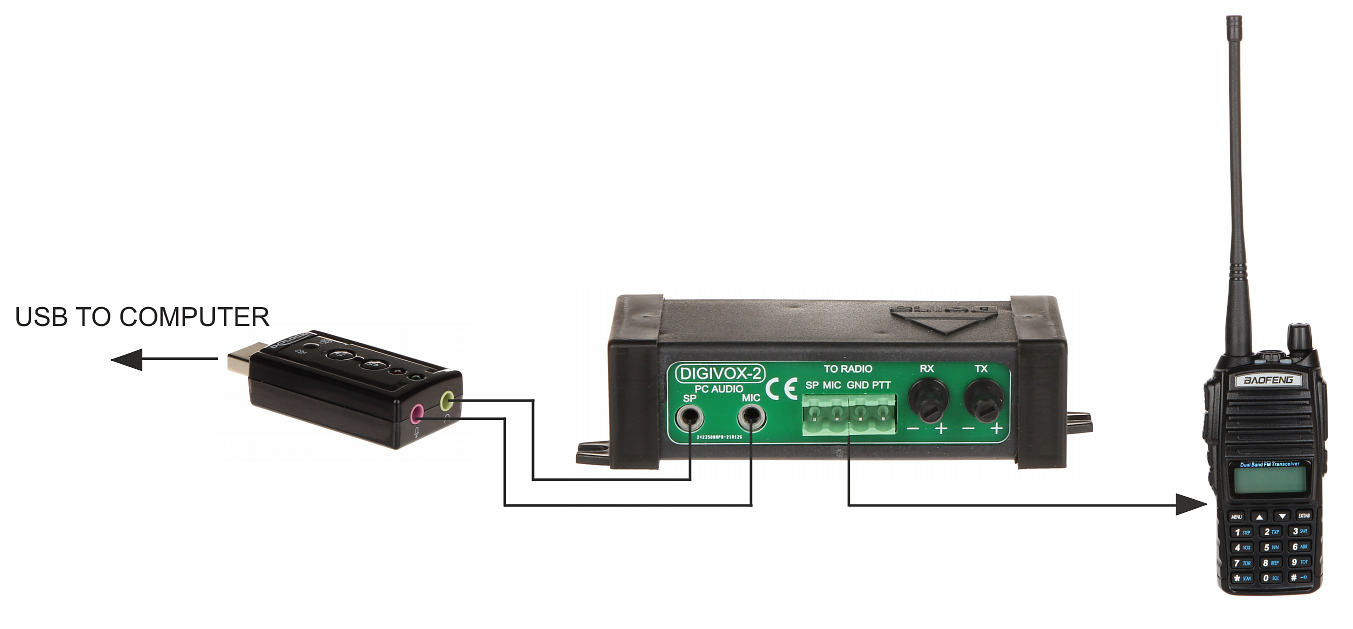

Main features:	It allows you to connect any VHF/UHF or KF radio to a computer Works very well with handheld radios such as Baofeng Provides full and complete galvanic isolation between radio and computer (600V) It does not require an external power supply No need for a serial, parallel or USB port - the connection to the computer is done only through the audio input/output paths of the sound card Works with most computer applications intended for digital broadcasting, e.g. Packet, PSK31, RTTY, SSTV, FAX It works very well with the Winlink Express application (electronic mail using radio waves), which allows you to send messages in the absence of Internet via a gateway (e.g. Poznań SR3WLK) or directly (peer-to-peer)
Operation temp:	-20 °C ... 55 °C
Weight:	0.94 kg
Dimensions:	118 x 30 x 59
Manufacturer / Brand:	DELTA
Guarantee:	2 years
