Standard: | AHD |

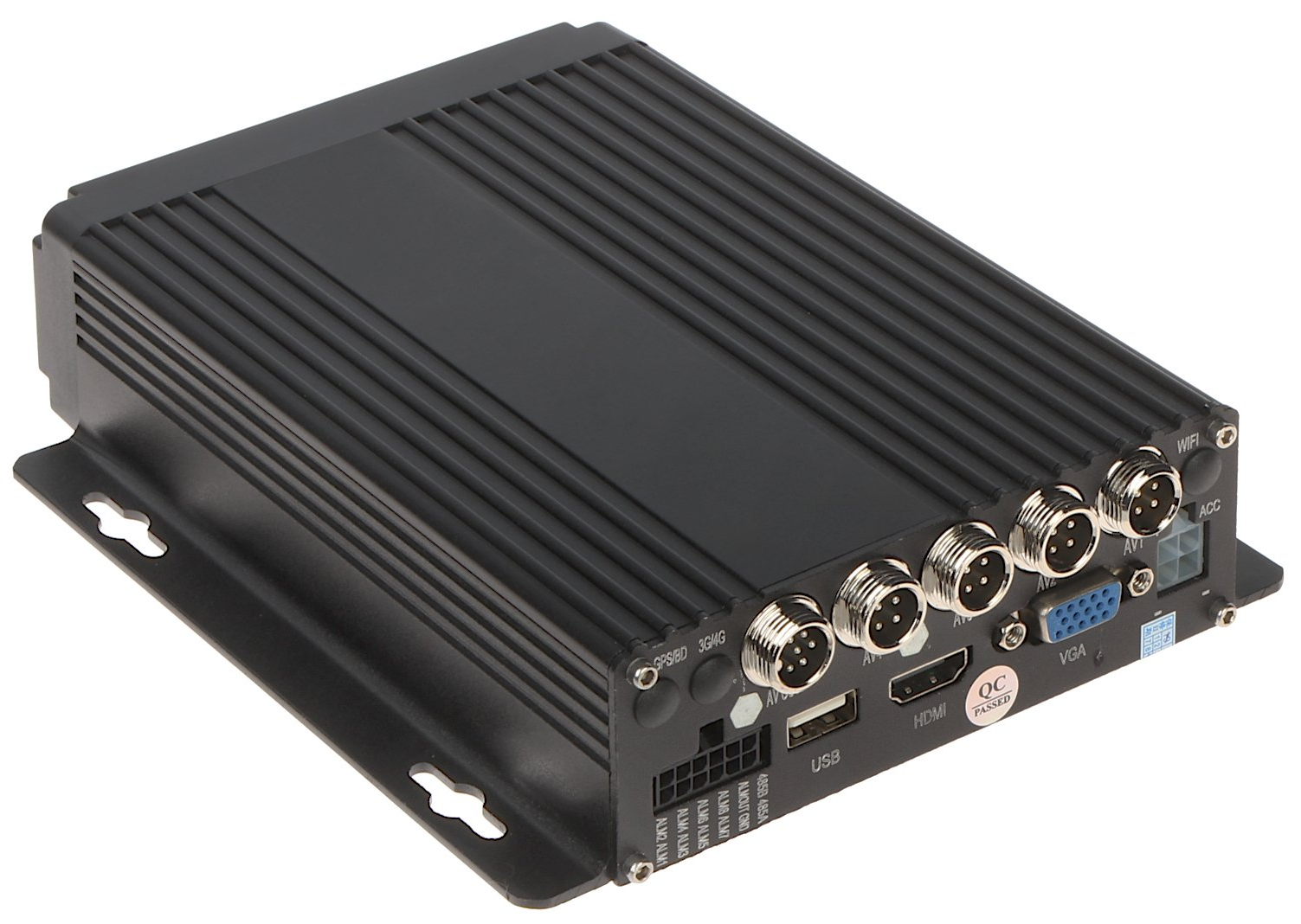

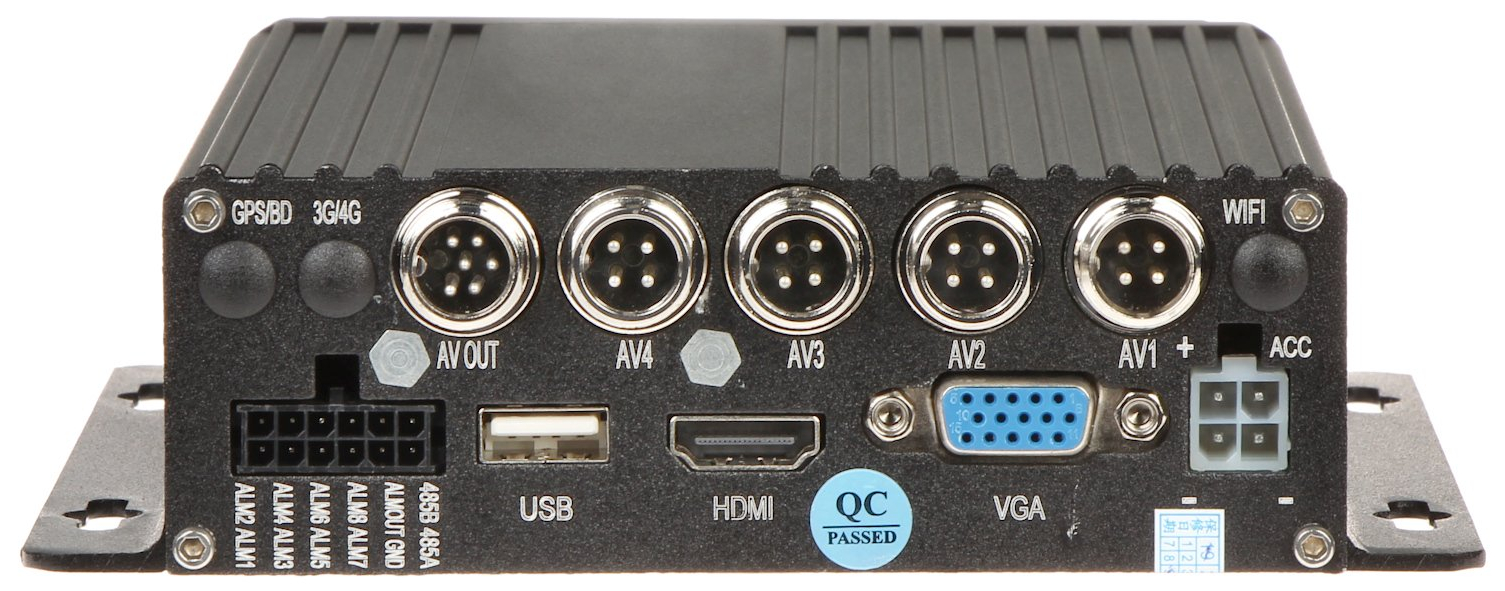

Video inputs: | 4 pcs M12, 4-pin plug, Code A |
Video outputs: | 1 pcs VGA , 1 pcs HDMI |
Audio inputs: | 4 pcs - Audio from cameras |
Audio outputs: | ![]() |
Resolution of recording video files: | 1920 x 1080 @ 25 fps , 1280 x 720 @ 25 fps , 720 x 576 @ 25 fps |
Max. capacity of memory card: | 2 x 256 GB SD/SDHC |
Supported hard drives: | ![]() |
Image compression method: | H.264 |
Number of compression levels: | 7 |
GPS: | ![]() |
Wi-Fi: | ![]() |
3G/4G: | ![]() |
SIM socket: | ![]() |
G-Sensor: | ![]() |
RS-485: | ![]() |
RS-232: | ![]() |
Alarm inputs / outputs: | 4 / 1 |
Power supply: | 8 V ... 36 V DC |
Main features: | |
Operation temp: | -20 °C ... 70 °C |
Weight: | 0.52 kg |
Dimensions: | 174 x 147 x 41 mm |
Manufacturer / Brand: | AUTONE |
Guarantee: | 2 years |
