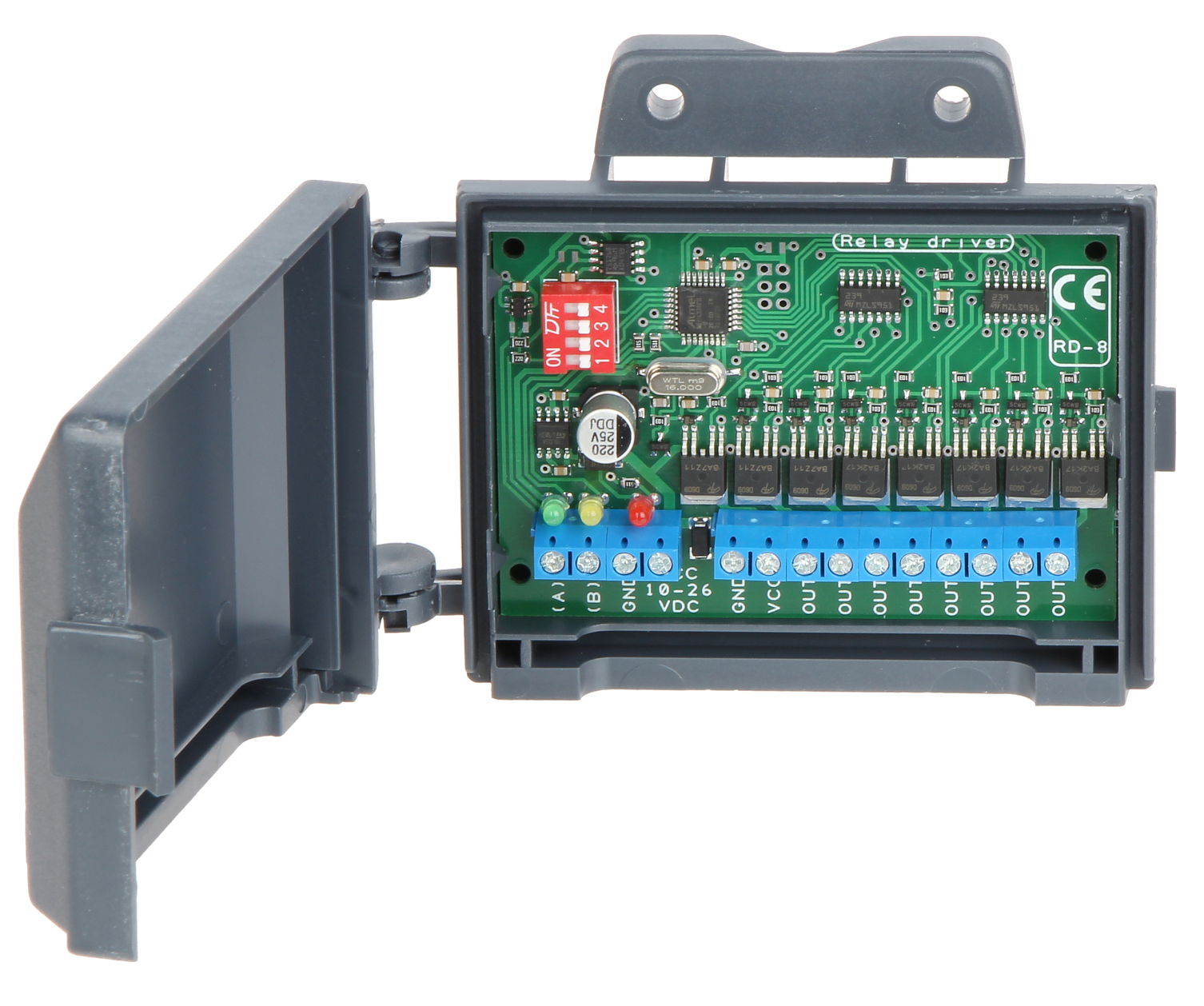

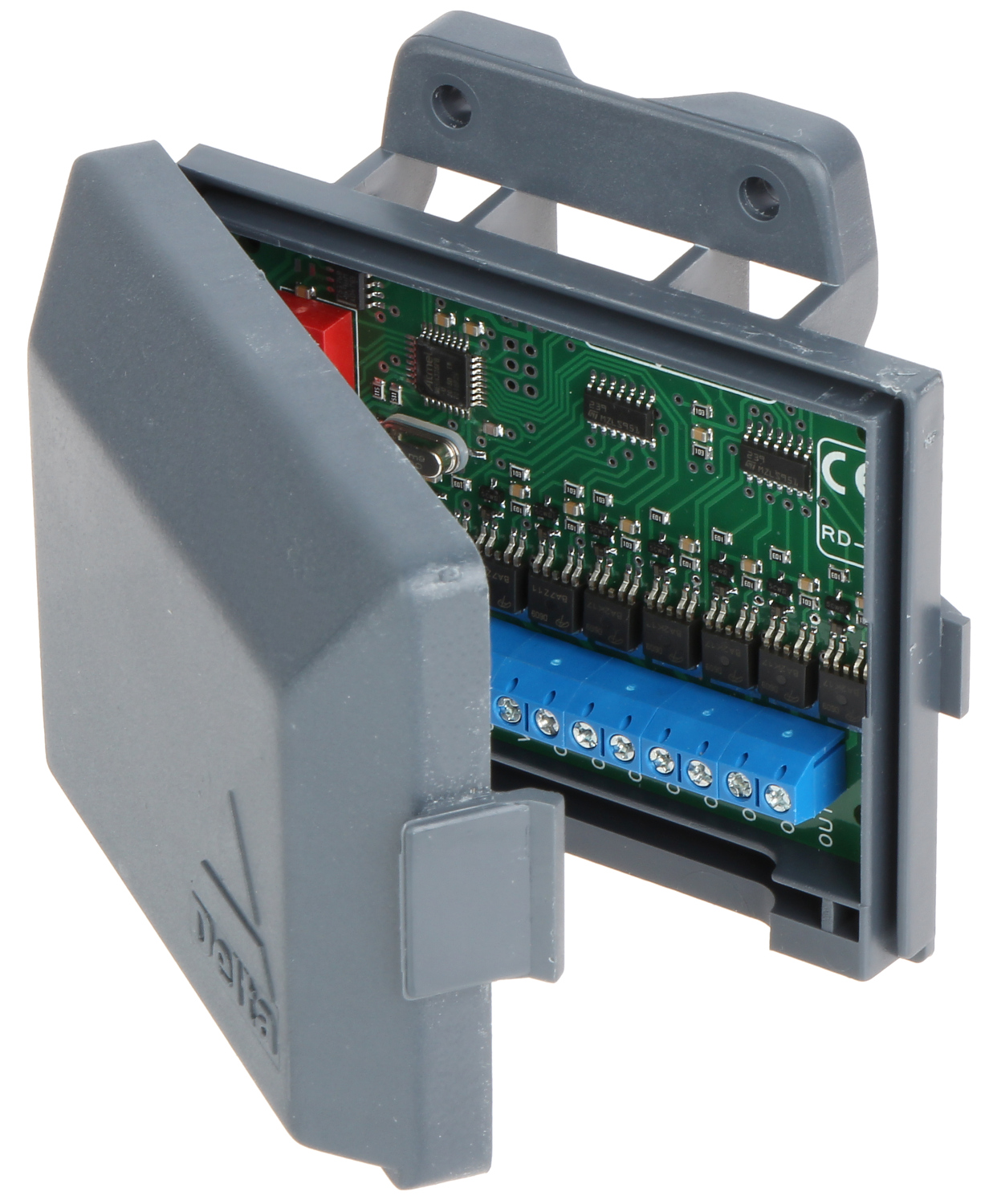

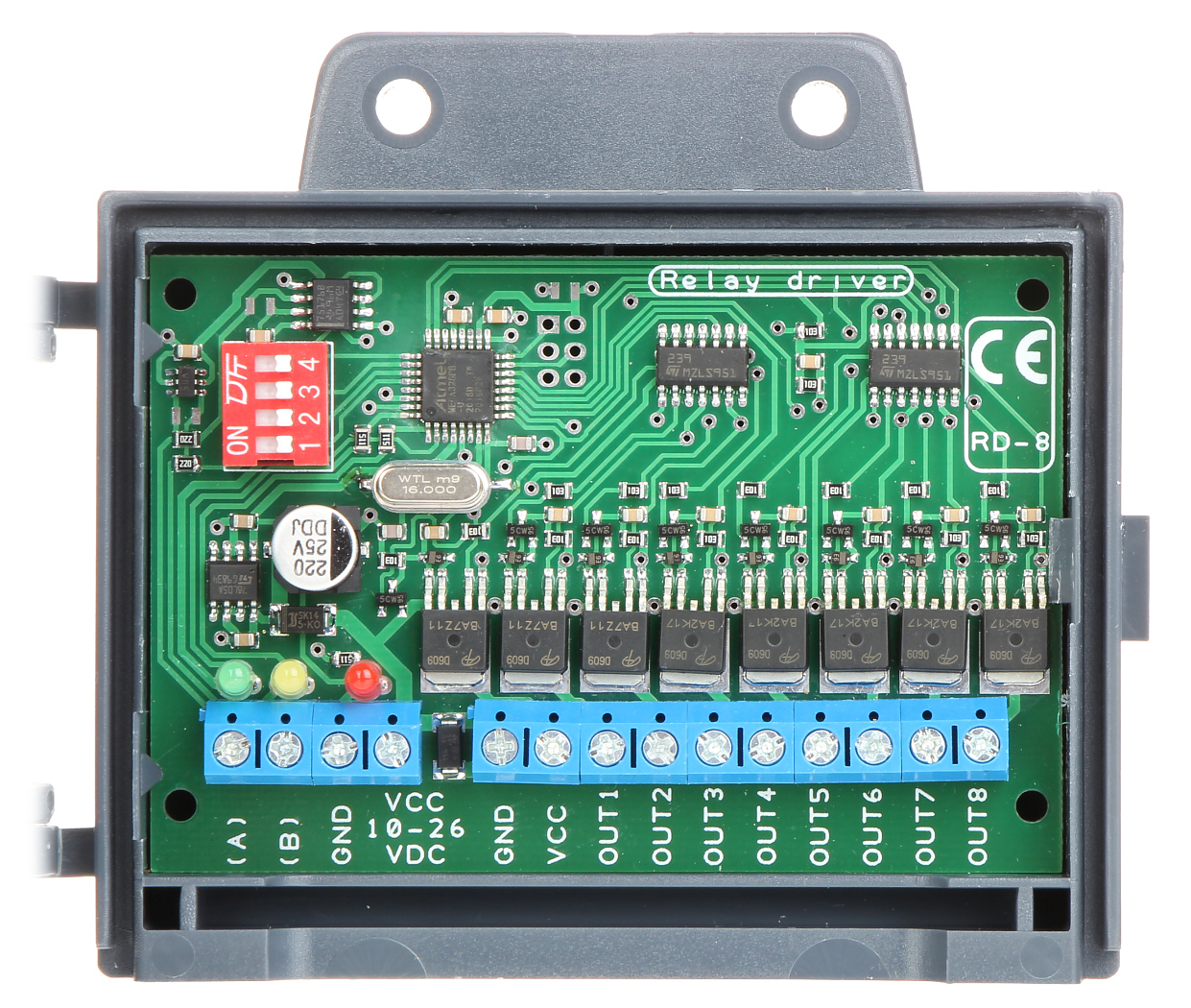

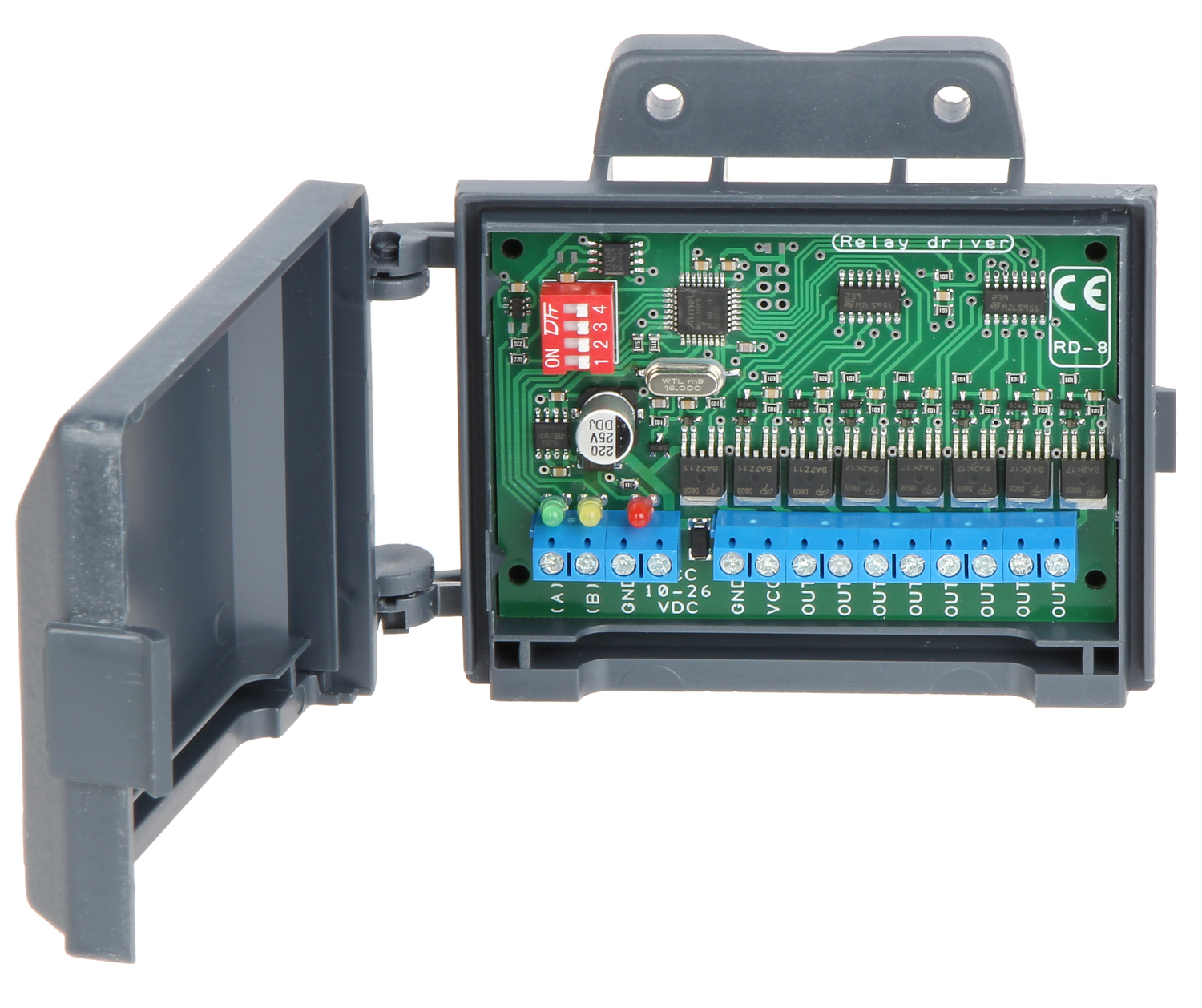

The Modbus RD-8 digital output module has 8 transistor outputs; The outputs can take two states: ground potential or power input potential; PTZ control: RS-485 ; Current efficiency: 2 A (single output), 8 A (total) ; Inputs protection;
| PTZ control: | RS-485 |
| Protocol: | MODBUS |
| Transmission speed: | 115200 b/s |
| Outputs: | 8 pcs |
| Current efficiency: | |
| Inputs protection: |  |
| Power supply: | 7 V ... 26 V DC (power adapter not included) |
| Current consumption: | 60 mA @ 12 V DC |
| Weight: | 0.09 kg |

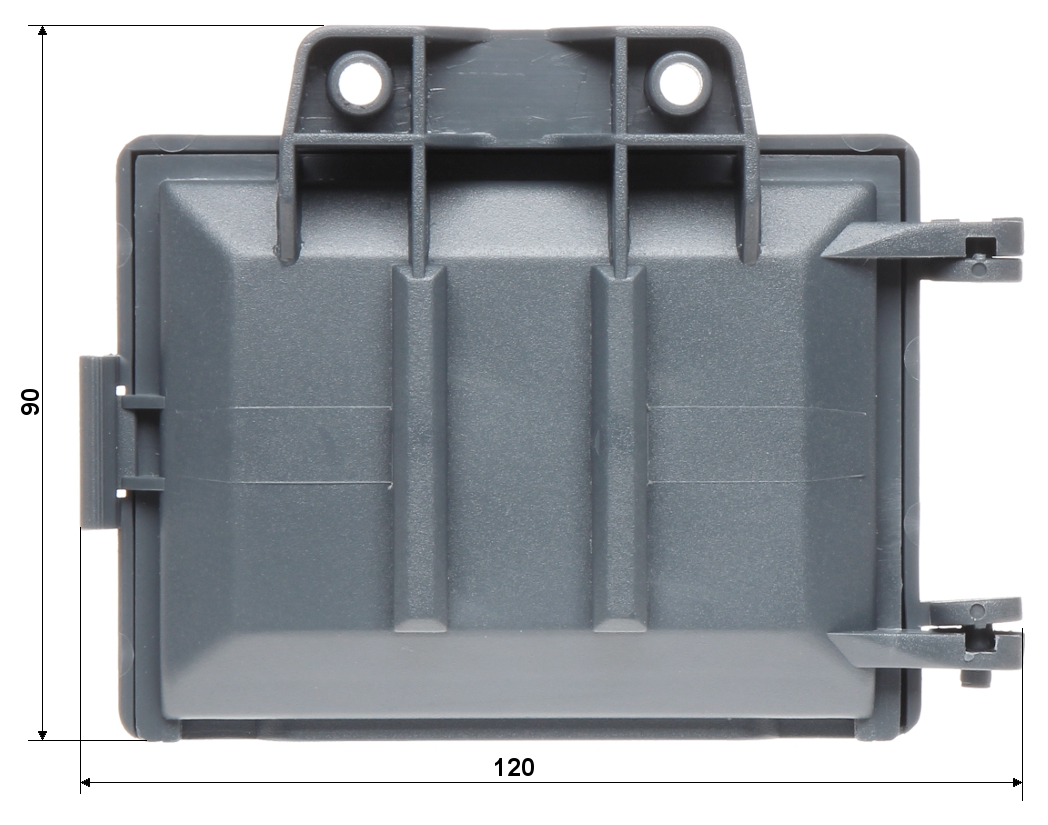

| Dimensions: | 120 x 90 x 36 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 2 years |
Brand:
Delta
