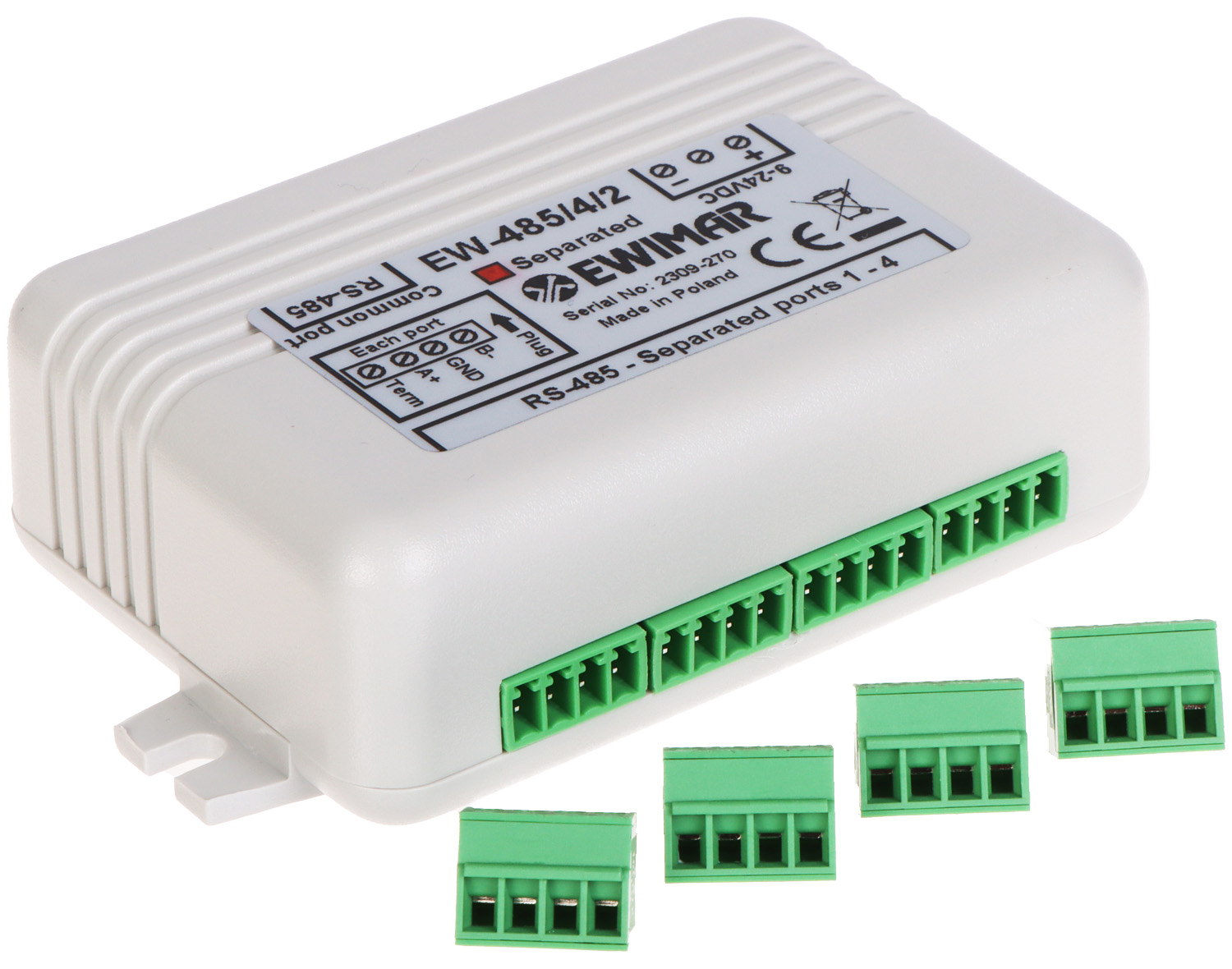

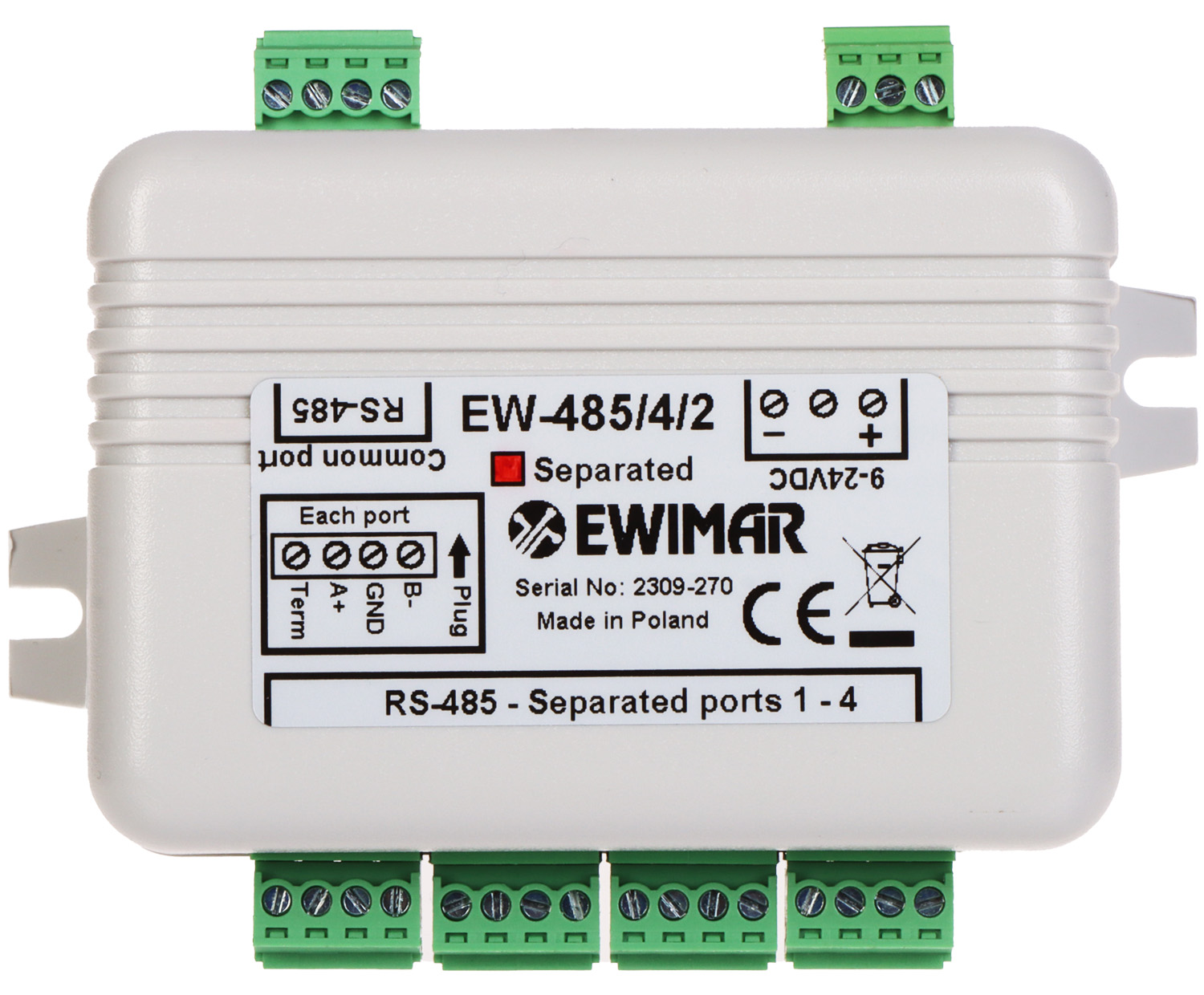

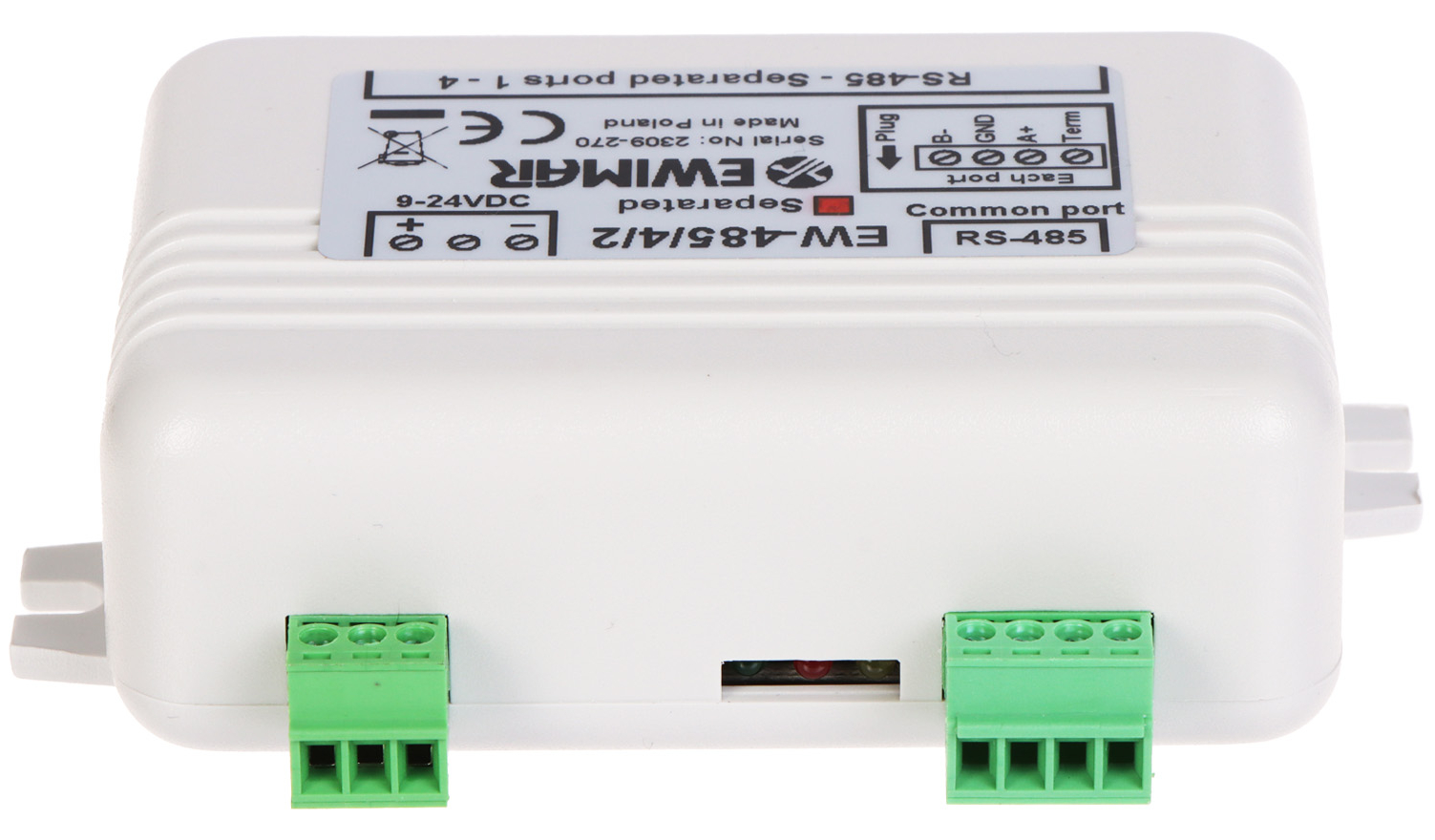

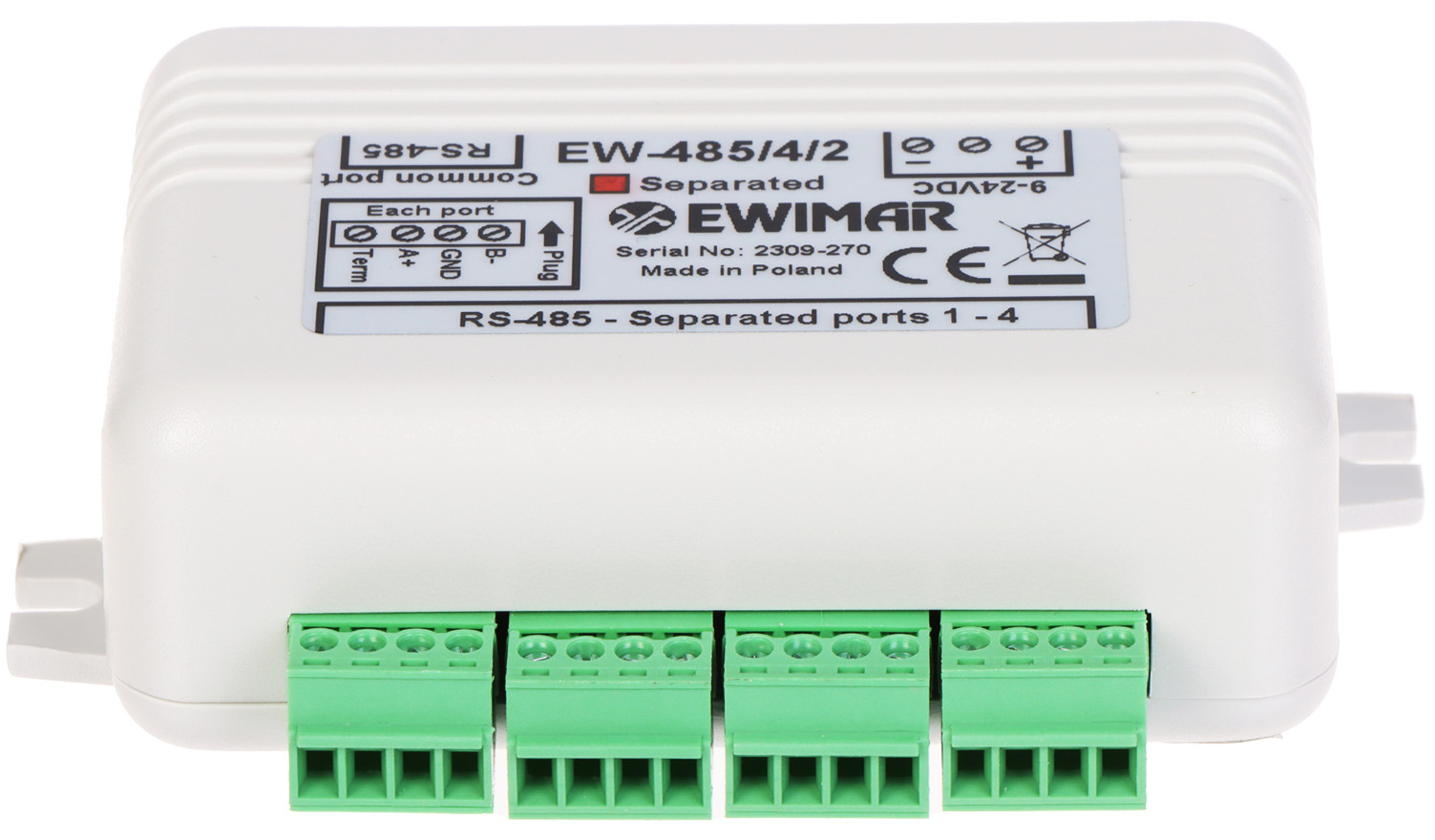

RS-485 BUS DISTRIBUTOR EW-485/4/2/SO WITH OPTICAL SEPARATION

222.86
(Включая налог 21%)
EW-485/4/2/SO
2 шт.
+

Минимальное количество для товара "RS-485 BUS DISTRIBUTOR EW-485/4/2/SO WITH OPTICAL SEPARATION" 1.

Number of inputs: 1 pcs - RS-485 ; Number of outputs: 4 pcs - RS-485 ; Opto-isolation between input and output: 1 kV DC ;
Number of inputs: 1 pcs - RS-485
Number of outputs: 4 pcs - RS-485
Opto-isolation between input and output: 1 kV DC
Operation mode: Bi-directional RS-485 (half duplex)
Baud rates: 1 Mbit
Overvoltage protection: 600 V - RS-485 ports + Power connector
Main features:
  • optical isolation between each of the RS-485 outputs
  • optical isolation between RS-485 outputs and input
  • increase the maximal distance for RS-485 transmission
  • enable to use the star topology instead of standard bus topology
  • protection against lightning discharges and voltage differences and strokes between devices
  • Power supply: 9 V - 24 V DC
    Current consumption: 180 mA @ 12 V DC
    Weight: 0.093 kg
    Dimensions: 107  x 83  x 32 mm
    Manufacturer / Brand: EWIMAR
    Guarantee: 2 years
    Brand:
    Ewimar
