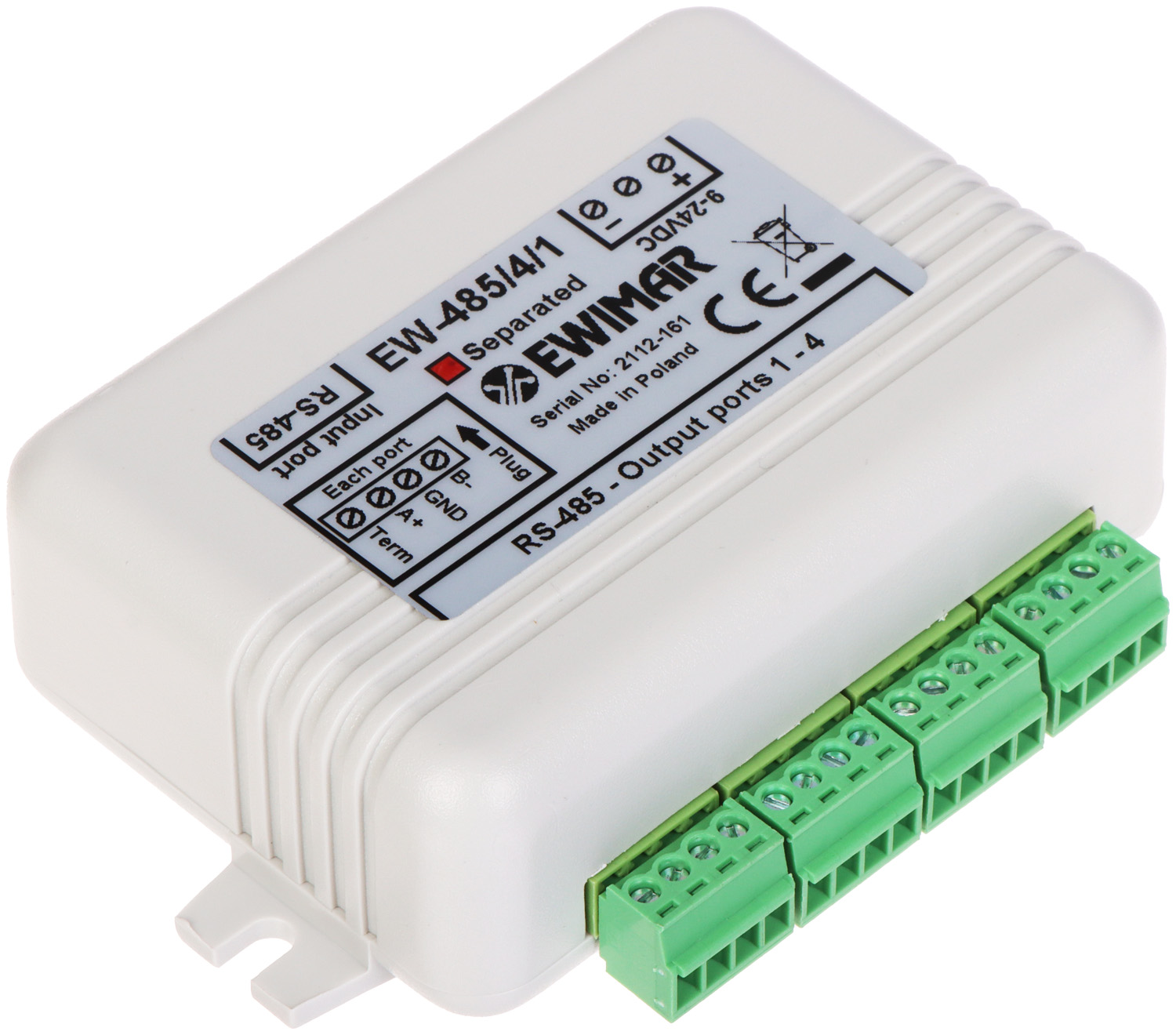

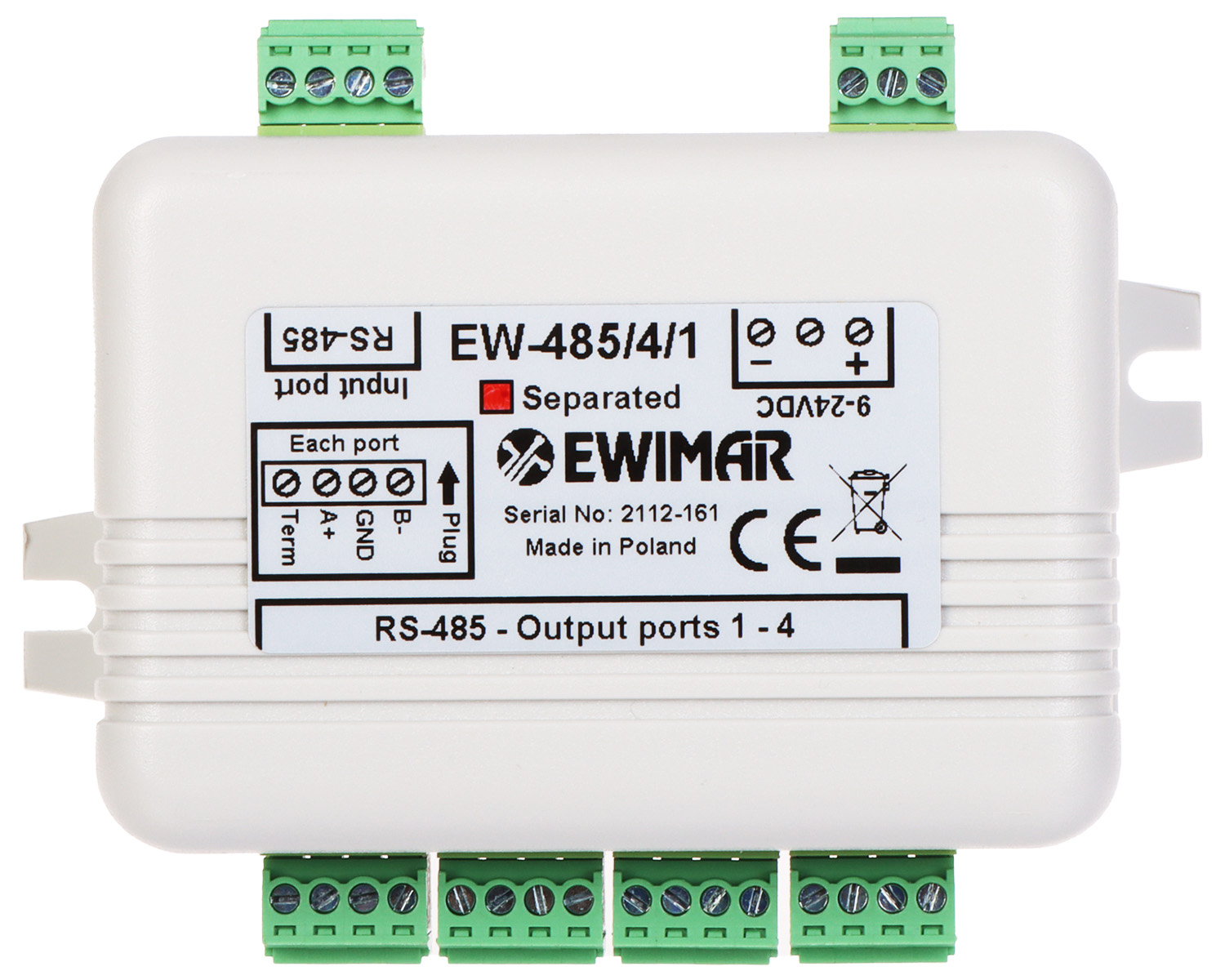

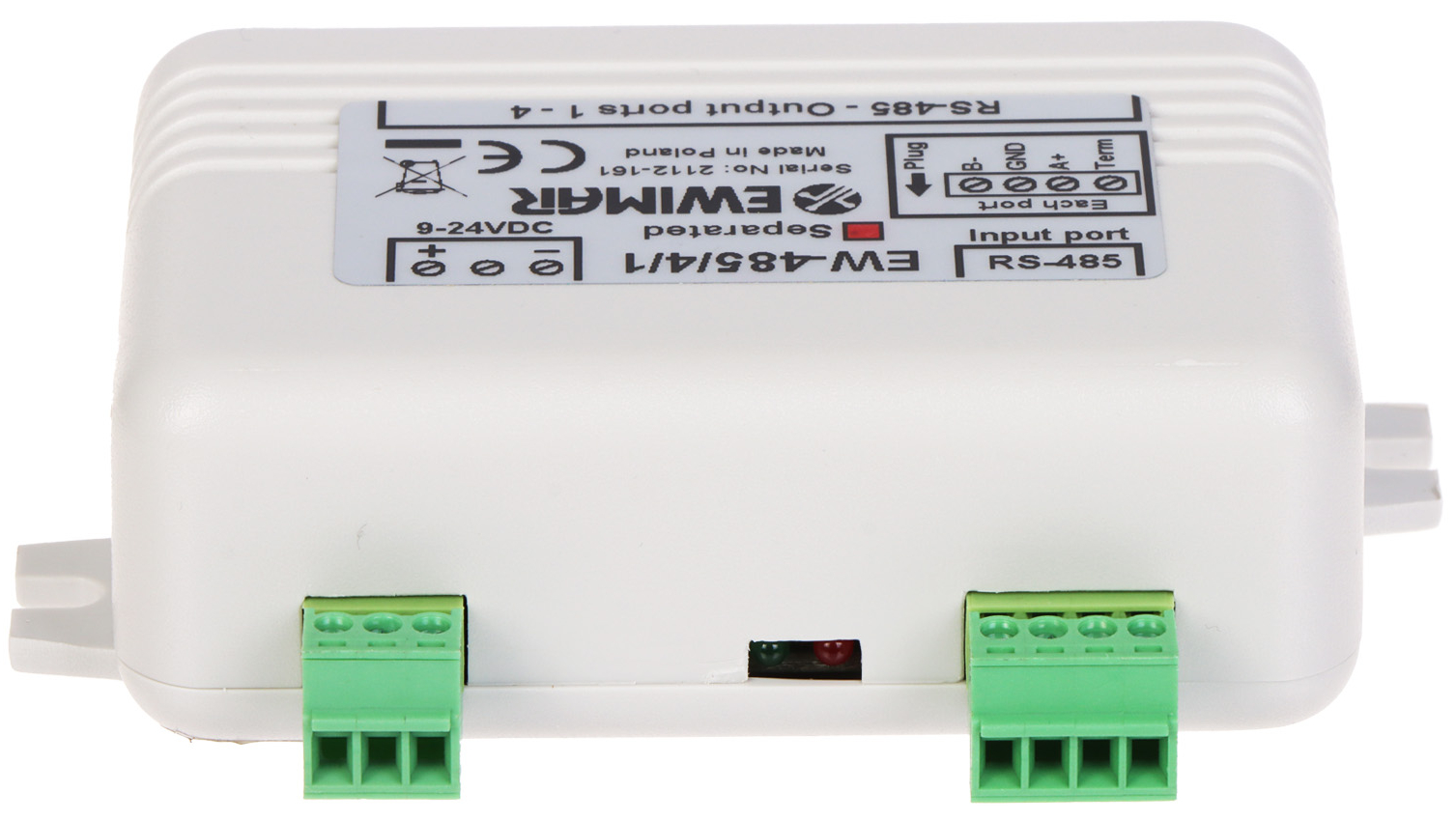

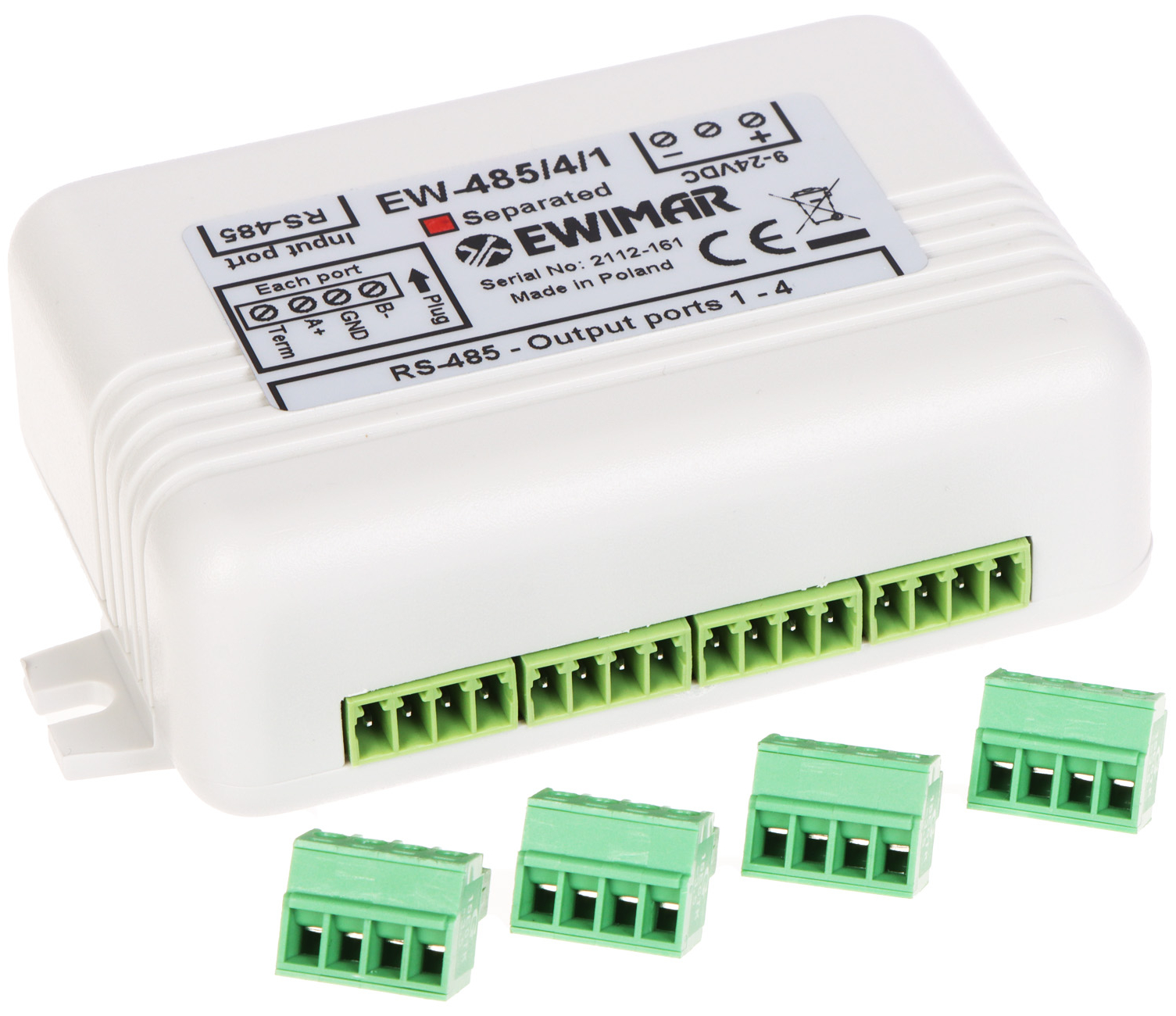

RS-485 BUS DISTRIBUTOR EW-485/4/1/SO WITH OPTICAL SEPARATION
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Number of inputs: 1 pcs - RS-485 ; Number of outputs: 4 pcs - RS-485 ; Opto-isolation between input and output: 1 kV DC ;
| Number of inputs: | 1 pcs - RS-485 |
| Number of outputs: | 4 pcs - RS-485 |
| Opto-isolation between input and output: | 1 kV DC |
| Communication: | one-direction RS-485 |
| Baud rates: | 1 Mbit |
| Overvoltage protection: | 600 W - RS-485 ports + Power connector |
| Main features: | |
| Power supply: | 9 V - 24 V DC |
| Current consumption: | 150 mA @ 12 V DC |
| Weight: | 0.093 kg |
| Dimensions: | 107 x 83 x 32 mm |
| Manufacturer / Brand: | EWIMAR |
| Guarantee: | 2 years |
Brand:
Ewimar
