Standard: | IP |
Resolution: | 2880 x 1620 - 5 Mpx |
Sensor: | 1/2.7 " Progressive Scan CMOS |
Lens: | 2.8 mm |
View angle: | 90 ° |
Optical zoom: | ![]() |
Digital zoom: | ![]() |
Range of IR illumination: | 10 m |
White light LED illuminator range: | ![]() |
Video output: | ![]() |
RS-485 interface: | ![]() |
Image compression method: | H.265 |
Alarm inputs / outputs: | ![]() |
Main stream frame rate: | 25 fps - 5 Mpx |
Memory card slot: | Micro SD card support up to 256GB |
Interface: | Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n/ax |
WEB Server: | ![]() |
Max. number of on-line users: | 20 |
ONVIF: | ![]() |
Audio: | |
Mobile phones support: | 37777 port |
Default admin user / password: | admin / - The administrator password should be set at the first start |
Default IP address: | 192.168.1.108 |
Web browser access ports: | ![]() |
PC client access ports: | 37777 |
Mobile client access ports: | 37777 |
ONVIF port: | ![]() |
RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
Intelligent Image Analysis: | |
Main features: | |
Power supply: | 5 V DC / 1 A |
Power consumption: | ≤ 2.57 W |
Housing: | Plastic |
Color: | White |
"Index of Protection": | IP66 |
Operation temp: | -20 °C ... 55 °C |
Weight: | 0.1 kg |

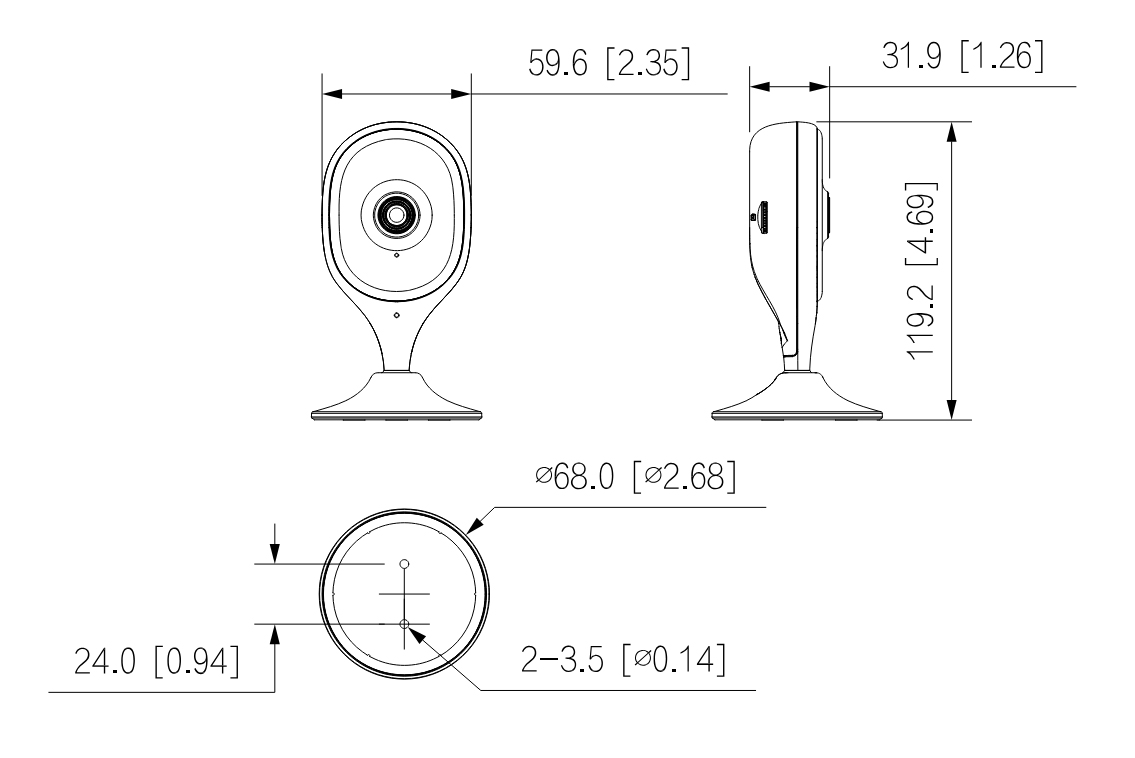

Dimensions: | Ø 68 x 119 mm (without bracket) |
Supported languages: | English |
Manufacturer / Brand: | DAHUA |
Guarantee: | 3 years |
