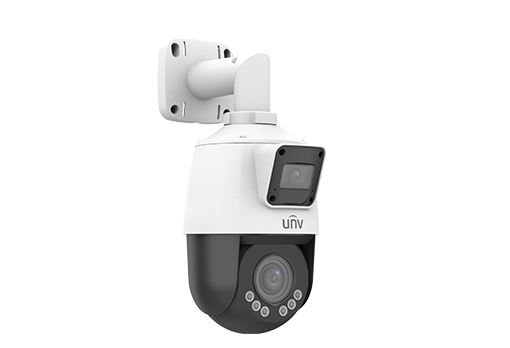

IPC9312LFW-AF28-2X4 - 2x2Mpix, LightHunter, , IR 50m, LED 10m
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
• Интеграция фиксированной камеры и PTZ-камеры, два канала с одним IP-адресом, просмотр общей ситуации и одновременное рассмотрение деталей • Высококачественное изображение благодаря 2-мегапиксельной матрице CMOS 1/2,8 дюйма. • 1920*1080 при 25 кадрах в секунду в основном потоке • Ультра 265, H.265, H.264, MJPEG • 4-кратный оптический зум канала PTZ позволяет рассмотреть объекты ближе • Технология Lighthunter обеспечивает сверхвысокое качество изображения в условиях низкой освещенности. • Оптический WDR до 120 дБ (широкий динамический диапазон) • Встроенный 2 микрофона и мощный динамик, поддерживают двустороннюю аудиосвязь, обеспечивают лучшее качество звука. • Поддержка потолочного и настенного крепления.
| Camera | Panorama | Detail | ||||
| Sensor | 1/2.8", 2MP, CMOS | |||||
| Min. Illumination | Color:0.002 lux (F1.6, AGC ON) 0 lux with IR | Color:0.002 lux (F1.6, AGC ON) 0 lux with IR/Warm light | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| WDR | 120dB | DWDR | ||||
| S/N | ＞52dB | |||||
| Lens | ||||||
| Lens type | 2.8mm@F1.6 | 2.8~12mm@F1.6, AF automatic focusing and motorized zoom lens | ||||
| Optical Zoom | N/A | 4X | ||||
| Iris | Fixed aperture | |||||
| Field of View (H) | 102.4° | 106.6° ~ 30.6° | ||||
| Field of View (V) | 54.9° | 56.5° ~ 17.4° | ||||
| Field of View (D) | 133.1° | 138.6° ~ 37.6° | ||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8(Panorama) | 43.4(142.5ft) | 17.4(57.0ft) | 8.7(28.5ft) | 4.3(14.3ft) | ||
| 2.8(Detail) | 43.4(142.5ft) | 17.4(57.0ft) | 8.7(28.5ft) | 4.3(14.3ft) | ||
| 12(Detail) | 162.9(534.6ft) | 65.2(213.8ft) | 32.6(106.9ft) | 16.3(53.5ft) | ||
| Illuminator | ||||||
| IR Range | Up to 10m (32.8 ft) | Up to 50m (164.0 ft) | ||||
| Warm Light Range | N/A | Up to 10m (32.8 ft) | ||||
| Wavelength | 850nm (IR) | |||||
| Light On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| Frame Rate | Main Stream: 1080P (1920*1080),Max 25fps Sub Stream: 720P (1280*720), Max 25fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| U-code | Support (Main stream) | |||||
| ROI | Up to 8 areas | |||||
| Video stream | Dual streams | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | 24 areas, up to 4 areas per scene | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital defog | |||||
| Events | ||||||
| Basic Detection | Motion detection, Audio detection | |||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U, G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way Audio | Support | |||||
| Suppression | Support | |||||
| Sampling Rate | 8 kHz | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256 GB | |||||
| Network Storage | ANR | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G), API, SDK | |||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | |||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | EZStation EZLive EZView | |||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
| Pan & Tilt | ||||||
| Pan Range | N/A | 0° ~ 345° | ||||
| Pan Speed | N/A | 1°/s ~ 40°/s | ||||
| Preset speed: N/A | Preset speed: 40°/s | |||||
| Tilt Range | 18° ± 5° | -10° ~ 100° | ||||
| Tilt Speed | N/A | 1°/s ~ 50°/s | ||||
| Preset speed: N/A | Preset speed: 50°/s | |||||
| Number of Presets | 256 | |||||
| Preset Patrol | 16 patrol routes, up to 64 presets for each route | |||||
| Patrol Stay Time | 1000s~1800s | |||||
| Preset Image Freeze | N/A | |||||
| Home Position | Support | |||||
Brand:
Uniview
