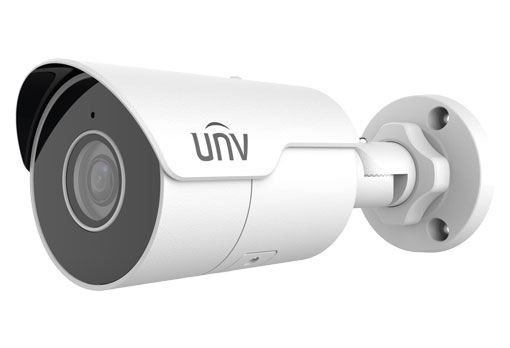

IPC2124LE-ADF28KM-G – 4MP HD Mini IR Fixed Bullet, 2.8 mm
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
• Высококачественное изображение с 4-мегапиксельной 1/3-дюймовой CMOS-матрицей • 4 МП (2688*1520)@ 25/20 кадров в секунду; 4MP (2560*1440) @ 25/20 кадров в секунду; 3MP (2304*1296) @30/25fps; 2 МП (1920*1080) при 30/25 кадрах в секунду; • Ультра 265, H.265, H.264, MJPEG • Технология Easystar обеспечивает высокое качество изображения в условиях низкой освещенности. • Технология True WDR 120 дБ обеспечивает четкое изображение при ярком освещении • Поддержка режима коридора 9:16 • Встроенный микрофон • Интеллектуальная ИК-подсветка на расстоянии до 50 м (164 фута) • Поддерживает карту памяти Micro SD емкостью 256 ГБ. • Защита IP67 • Поддержка питания PoE • 3 оси
| Camera | |||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||||||
| Minimum Illumination | Support Easystar: Colour: 0.003 lux ( F1.6, AGC ON) 0Lux with IR | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||
| S/N | >56dB | ||||||||
| WDR | 120dB | ||||||||
| Lens | |||||||||
| Lens Type | 2.8mm @F1.6 | 4.0mm @F1.6 | |||||||
| Iris | Fixed | ||||||||
| Field of View (H) | 101.1° | 83.7° | |||||||
| Field of View (V) | 55.3° | 44.9° | |||||||
| Field of View (D) | 111.1° | 89.2° | |||||||
| DORI | |||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |||||
| Illuminator | |||||||||
| IR Range | Up to 50m (164ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| U-code | Supported | ||||||||
| OSD | Up to 4 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Video stream | Dual streams | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| HLC | Supported | ||||||||
| BLC | Supported | ||||||||
| Defog | Digital Defog | ||||||||
| Events | |||||||||
| Basic Detection | Cross line, intrusion(based on human body detection),motion detection, Ultra motion detection, tampering alarm, audio detection | ||||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||||||
| Audio | |||||||||
| Audio Compression | G.711U, G.711A | ||||||||
| Audio Bitrate | 64 Kbps | ||||||||
| Two-way Audio | N/A | ||||||||
| Suppression | Supported | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256GB | ||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||
| Network | |||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||
| Client | EZStation EZView EZLive | ||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||
Brand:
Uniview
